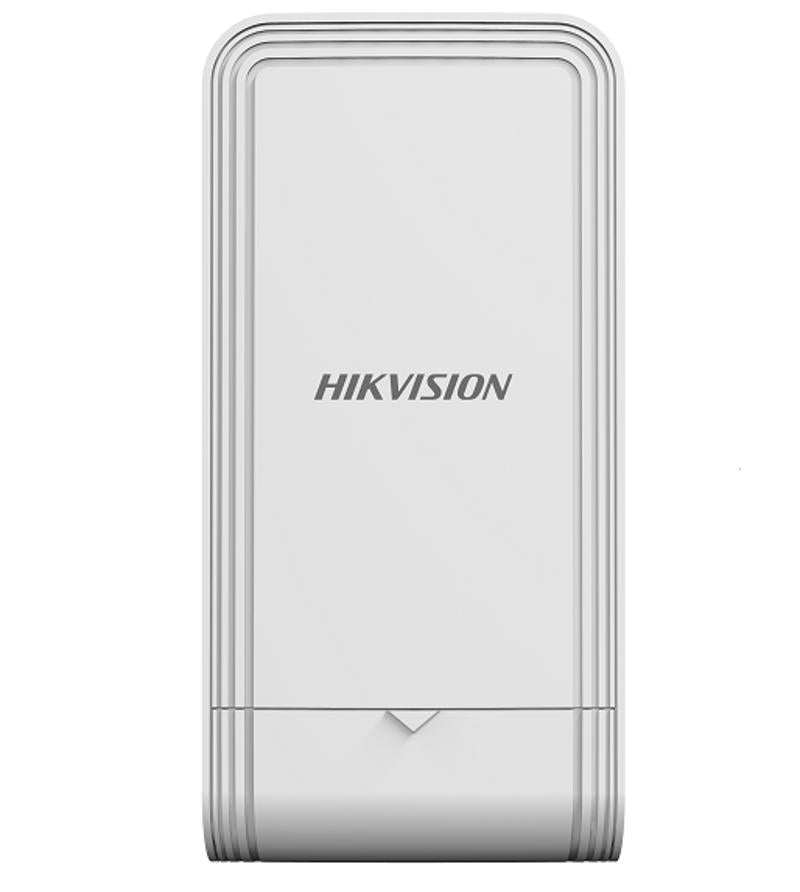

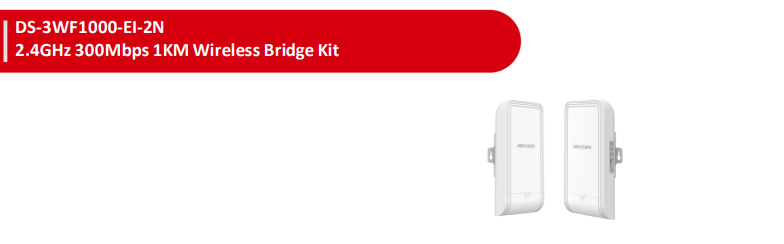

Hikvision DS-3WF1000-EI-2N 2.4GHz 300Mbps 1KM Wireless Bridge Kit with Dual 2×2 MIMO Antennas, Plug & Play Setup, IP55 Protection & PoE Support

Hikvision DS-3WF1000-EI-2N 2.4GHz 300Mbps 1KM Wireless Bridge Kit with Dual 2×2 MIMO Antennas, Plug & Play Setup, IP55 Protection & PoE Support

$96.90 AUD
$142.80 AUD $96.90 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.
Color

The Hikvision DS-3WF1000-EI-2N Wireless Bridge Kit is a reliable 2.4GHz 300Mbps outdoor wireless bridge solution designed for long-distance wireless video, data, and network transmission. With up to 1 km wireless transmission distance, 802.11n 2×2 MIMO performance, built-in 7 dBi antennas, and Plug and Play installation, it is ideal for CCTV networks, remote buildings, industrial sites, transport systems, rural connectivity, and wireless network coverage.

Designed for professional surveillance and data transmission applications, the DS-3WF1000-EI-2N supports stable multi-channel HD video transmission across point-to-point and point-to-multipoint network setups. Its compact outdoor design, IP55 ingress protection, and working temperature range of -30 °C to 60 °C make it suitable for demanding environments where cabling is difficult, expensive, or impractical.

This Hikvision wireless bridge kit includes two wireless bridge devices and essential installation accessories, providing a convenient paired solution for fast deployment. With visualized topology management, real-time alarm push technology, signal strength indicators, and remote management support through Hik-Partner Pro, the DS-3WF1000-EI-2N helps simplify setup, monitoring, and maintenance.

What’s Included in the Box

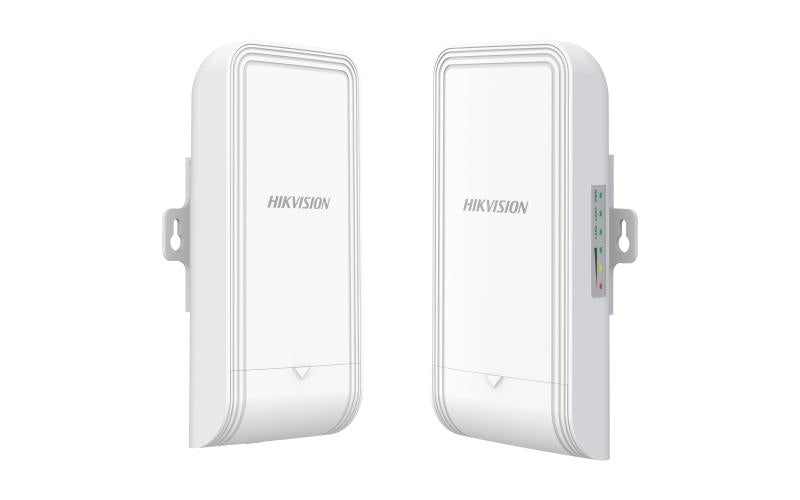

  • 2 × Wireless Bridge Devices
  • 2 × Power Adapters, 12 VDC, 1 A
  • 2 × 10/100 Mbps PoE Injectors
  • 4 × Binding Tapes
  • 1 × Quick Start Guide
  • 1 × Regulatory Compliance and Safety Information

Main Features

  • Up to 1 km wireless transmission distance
  • 300 Mbps 802.11n wireless bridge
  • Built-in 7 dBi 2×2 MIMO antenna
  • Designed for wireless video and data transmission
  • Supports multi-channel HD video transmission
  • Plug and Play setup for easier installation
  • Visualized topology management
  • Real-time alarm push technology

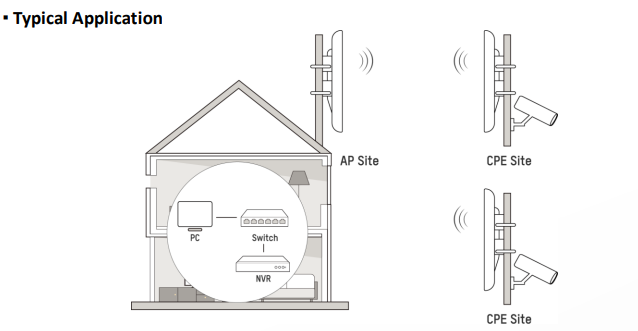

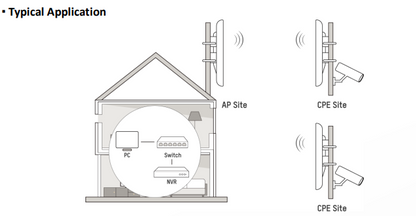

  • Suitable for point-to-point and point-to-multipoint applications
  • Outdoor-ready with IP55 ingress protection
  • Pole mounting installation
  • Dual 10/100 Mbps RJ45 ports
  • Supports 12–24 VDC Passive PoE
  • Signal intensity indicator for easier alignment
  • Remote management via Hik-Partner Pro
  • Supports bridge alignment and spectrum scanning
  • WPA2-PSK wireless security
  • Hidden wireless network name security mechanism

Detailed Specifications

General

Specification Details
Product Code DS-3WF1000-EI-2N
Product Type 2.4GHz Wireless Bridge Kit
Wireless Transmission Distance Up to 1 km

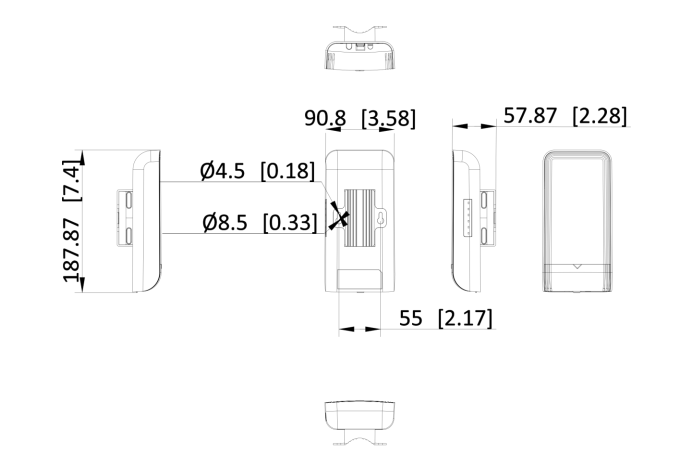

Product Dimensions 90.8 mm × 187.87 mm × 57.87 mm
Package Dimensions 256 mm × 231 mm × 86 mm
Net Weight 0.26 kg per device
Gross Weight 0.9 kg
Packing Method Packed in pairs
Installation Mode Pole mounting
Ingress Protection IP55
Working Temperature -30 °C to 60 °C
Working Humidity 5% to 95%, non-condensing
Storage Temperature -40 °C to 80 °C
Storage Humidity 5% to 95%, non-condensing
Power Consumption 1.8 W typical, max. 4.5 W

Wireless Parameters

Specification Details
Wireless Standard IEEE 802.11b/g/n
MIMO 2×2 MIMO
Max. Air Interface Transmission Rate ≤ 300 Mbps
Working Frequency Band 2400 MHz to 2483.5 MHz
Antenna Gain 7 dBi
Antenna Beamwidth Horizontal 60°, Vertical 50°
Transmitting Power 22 dBm @ 11n MCS0
Receiving Sensitivity -87 ± 2 dBm @ HT40 MCS0

Throughput Rate

Mode Throughput
PTP at 0.2 km, HT40 90 Mbps
PTP at 0.5 km, HT40 90 Mbps
PTP at 1 km, HT40 70 Mbps
PTMP 1 to 4 at 1 km, HT40 40 Mbps

Hardware Parameters

Specification Details
Network Interface 2 × 10/100 Mbps RJ45 ports
LED Indicators Power, LAN, signal intensity
Reset Hardware reset button
Power Supply 12–24 VDC Passive PoE

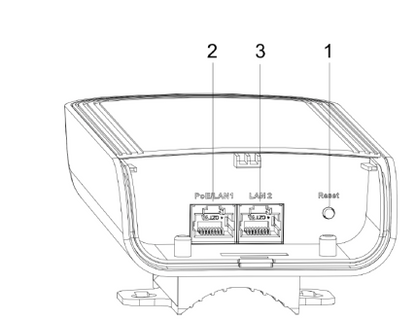

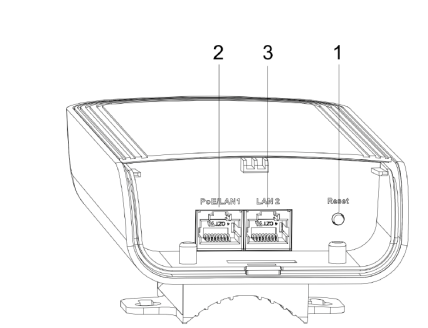

Physical Interface

Interface/Button Description
Reset Long press for 4 seconds to restore factory settings
PoE/LAN 1 10/100 Mbps adaptive RJ45 port, also usable as PoE port
LAN 2 10/100 Mbps adaptive RJ45 port

Software Functions

Specification Details
Application Function IFM, IPM
Channel Width 10/20/40 MHz
Channel Selection Auto/manual selection
Security Mode WPA2-PSK
Security Mechanism Wireless network name hidden
Network Protocols NTP, SADP, HTTPS/HTTP, SSH
Management Method HCP, Web, iVMS-4200, HPP
System Log Syslog, control center information
Upgrade Methods Web, iVMS-4200, HCP, HPP

Hik-Partner Pro Support

Function Supported
One-click activation Yes
Remote management Yes
Reboot device Yes
Restore device Yes
Display topology information Yes
Display AP and CPE connection status Yes
Signal intensity and background noise display Yes
Sending and receiving rate display Yes
Wireless settings configuration Yes
Bridge alignment Yes
Spectrum scanning Yes

Approvals

Category Standards
EMC CE-EMC: EN 55032, EN 50130-4, EN 55035, EN IEC 61000-3-2, EN 61000-3-3
Safety CB: IEC 62368-1, CE-LVD: EN 62368-1
Chemistry CE-RoHS, WEEE, REACH
Radio EN 301 489-17, EN 301 489-1, EN 61000-3-3, EN IEC 61000-3-2, EN 300 328, EN IEC 62311

Warranty Information

1 year Warranty

Brand Description

Hikvision is a global provider of security, surveillance, networking, and intelligent video solutions. Hikvision products are widely used across residential, commercial, industrial, transportation, and infrastructure environments, offering practical solutions for video security, data transmission, and network management.

SKU

DS-3WF1000-EI-2N

Practical Use Scenarios

  • Wireless CCTV camera transmission
  • Remote security camera connectivity
  • Building-to-building network bridging
  • Industrial wireless data transmission
  • Railway and transportation network applications
  • Power industry communication links
  • Rural wireless network coverage
  • Temporary surveillance network deployment
  • Areas where trenching or cabling is impractical
  • Wireless backbone network construction
  • Outdoor Wi-Fi and network extension projects
  • Point-to-point HD video transmission

Datasheets & Downloadable Resources

Excellence for the Australian and New Zealand Market

The Hikvision DS-3WF1000-EI-2N Wireless Bridge Kit is suitable for Australian and New Zealand projects requiring long-distance outdoor wireless transmission for CCTV, data, and network connectivity. Its 1 km wireless transmission distance, IP55 outdoor protection, 2.4GHz 300Mbps wireless performance, and Plug and Play setup make it a practical option for commercial, industrial, rural, and security installations.

For Australian and New Zealand deployments, wireless operation should always be configured in accordance with local radio frequency regulations and site requirements. The product’s outdoor-ready design and wide operating temperature range support reliable use across varied installation environments.

NDSS approval is not applicable to this wireless networking product category. For best results, source this product through authorised Hikvision representatives to ensure genuine supply, correct regional support, and warranty handling through the appropriate brand channel.

FAQs

What is the Hikvision DS-3WF1000-EI-2N used for?

The Hikvision DS-3WF1000-EI-2N is used for long-distance wireless video, data, and network transmission, especially for CCTV systems, building-to-building links, and outdoor wireless network coverage.

What wireless transmission distance does the Hikvision DS-3WF1000-EI-2N support?

The Hikvision DS-3WF1000-EI-2N supports wireless transmission up to 1 km, depending on installation conditions, alignment, and environmental factors.

What wireless speed does the Hikvision DS-3WF1000-EI-2N provide?

The Hikvision DS-3WF1000-EI-2N supports up to 300 Mbps air interface transmission rate using IEEE 802.11b/g/n wireless standards.

Does the Hikvision DS-3WF1000-EI-2N come as a pair?

Yes, the Hikvision DS-3WF1000-EI-2N is packed in pairs and includes 2 wireless bridge devices, 2 power adapters, and 2 PoE injectors.

Is the Hikvision DS-3WF1000-EI-2N suitable for outdoor use?

Yes, the Hikvision DS-3WF1000-EI-2N has an IP55 ingress protection rating, making it suitable for outdoor wireless bridge installations.

Does the Hikvision DS-3WF1000-EI-2N support PoE?

Yes, the Hikvision DS-3WF1000-EI-2N supports 12–24 VDC Passive PoE and includes PoE injectors in the package.

What antenna does the Hikvision DS-3WF1000-EI-2N use?

The Hikvision DS-3WF1000-EI-2N includes a built-in 7 dBi 2×2 MIMO antenna for stable wireless transmission.

Can the Hikvision DS-3WF1000-EI-2N transmit HD CCTV video?

Yes, the Hikvision DS-3WF1000-EI-2N is designed to support long-distance wireless video transmission and can help support multi-channel HD video transmission when correctly installed and configured.

What management options does the Hikvision DS-3WF1000-EI-2N support?

The Hikvision DS-3WF1000-EI-2N supports management through Web, iVMS-4200, HCP, and Hik-Partner Pro.

What is included with the Hikvision DS-3WF1000-EI-2N wireless bridge kit?

The Hikvision DS-3WF1000-EI-2N includes two wireless bridges, two 12 VDC power adapters, two 10/100 Mbps PoE injectors, four binding tapes, a quick start guide, and regulatory compliance and safety information.
