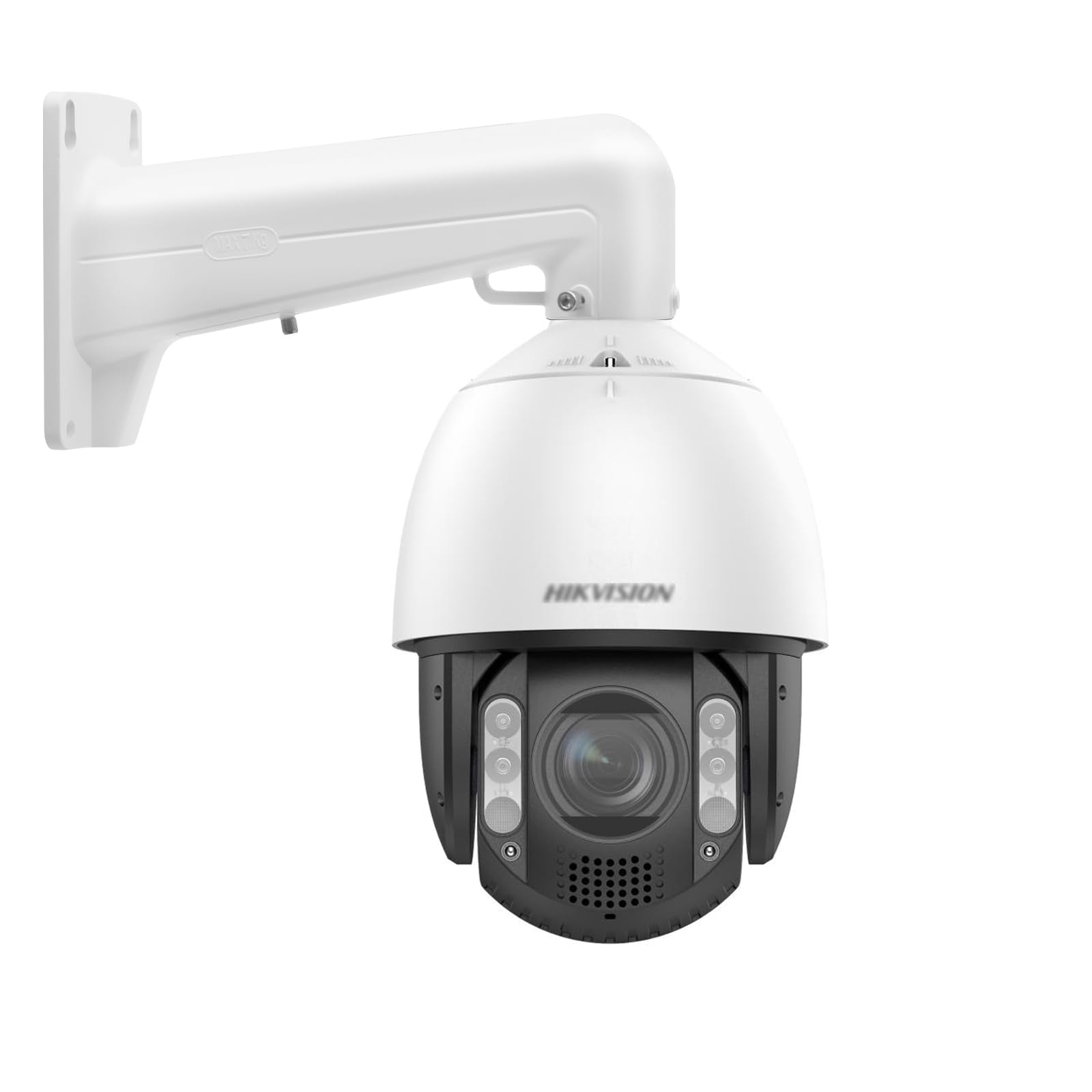

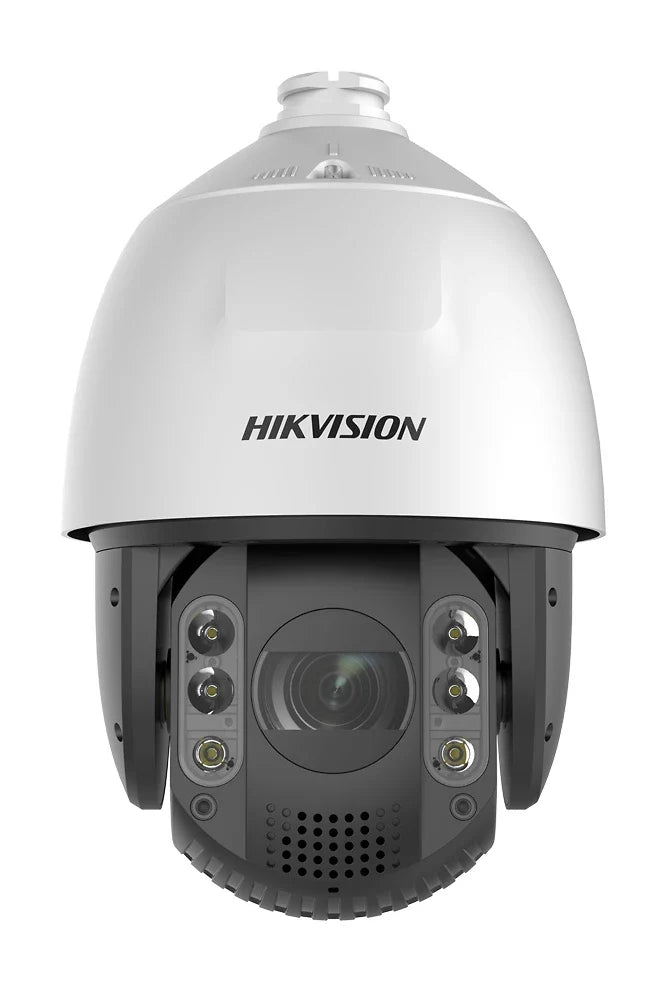

Hikvision DS-2DE7A812MCG-EB 8MP ColorVu G2 HD-IP Outdoor PTZ Camera

Overview: The Hikvision DS-2DE7A812MCG-EB is a high-performance 8MP ColorVu G2 HD-IP outdoor PTZ camera designed for advanced surveillance applications. This versatile camera combines high-definition imaging with enhanced night visibility, audio-visual alarms, and intelligent analytics to provide comprehensive security coverage. Ideal for monitoring expansive areas such as airports, parks, and large venues, it delivers superior image quality and intelligent alerting.

Features:

• High-Resolution Imaging: Equipped with a 1/1.8" progressive scan CMOS sensor, the camera offers 8MP resolution (3840 × 2160) for crystal-clear images.
• Advanced Zoom Capabilities: The 12x optical zoom (6.7mm to 80.4mm) and 64x digital zoom provide detailed close-ups over large areas.
• Enhanced Night Vision: Hybrid illumination with up to 150m IR distance and 100m white light ensures clear visibility even in total darkness.
• Audio-Visual Alerts: Integrated speaker and flashing white strobe light for real-time audio-visual notifications in response to security events.
• Smart Analytics: AcuSense technology for human and vehicle classification, improving the efficiency of alerts and reducing false alarms.
• Face Capture: Capable of detecting and capturing up to 5 faces simultaneously, with features to grade and select the best image.
• Wide Dynamic Range: 120dB WDR ensures clear imaging in high-contrast environments, such as bright sunlight and shadowed areas.
• Durable Design: IP66 rating for protection against dust and water, and IK10 impact resistance (excluding glass) for robustness in harsh environments.
• Flexible PTZ Control: Pan range of 360° and tilt range of -15° to 90° with adjustable speeds and multiple preset options for customized monitoring.

Specifications:

• Camera:
  • Image Sensor: 1/1.8" Progressive Scan CMOS
  • Max. Resolution: 3840 × 2160
  • Minimum Illumination: Color: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON); 0 Lux with IR
  • Shutter Speed: 1/1 s to 1/30,000 s
  • Day/Night: IR cut filter
  • Zoom: 12x optical, 64x digital
• Lens:
  • Focal Length: 6.7 mm to 80.4 mm
  • Zoom Speed: Approx. 5.8 s
  • Field of View: Horizontal 53° to 8.1°, Vertical 31.3° to 4.6°, Diagonal 59.6° to 9.3°
  • Aperture: Max. F1.2
• Illuminator:
  • Type: Hybrid (IR and White Light)
  • Range: White light: up to 100 m; IR: up to 150 m
• PTZ:
  • Pan Range: 360°
  • Tilt Range: -15° to 90° (auto flip)
  • Pan Speed: Configurable from 0.1° to 160°/s; preset speed: 240°/s
  • Tilt Speed: Configurable from 0.1° to 120°/s; preset speed: 200°/s
  • Presets: 300
  • Patrol Scan: 8 patrols, up to 32 presets per patrol
• Video:
  • Compression: H.265+/H.265/H.264+/H.264
  • Bit Rate: 32 kbps to 16,384 kbps
  • Streams: Main, Sub, and Third with various resolutions and frame rates
• Audio:
  • Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC-LC, PCM
  • Bit Rate: 64 Kbps to 1,024 Kbps
• Network:
  • Protocols: IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, and more
  • Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client Software: iVMS-4200, HikCentral Pro, Hik-Connect
• General:
  • Power: 24 VAC, Max. 42 W; Hi-PoE
  • Operating Conditions: -30 °C to 65 °C (-22 °F to 149 °F); Humidity 90% or less (non-condensing)
  • Dimensions: Ø 220 mm × 357.3 mm (Ø 8.66" × 14.07")
  • Weight: Approx. 5.5 kg (12.13 lb.)

Benefits:

• Comprehensive Coverage: The 12x optical zoom and wide-angle field of view provide extensive area coverage, making it suitable for large-scale monitoring.
• Superior Low-Light Performance: ColorVu technology ensures vibrant, detailed images even in low-light conditions.
• Enhanced Security Alerts: Integrated speaker and strobe light enhance security response capabilities with immediate, visible warnings.
• Advanced Analytics: Deep learning algorithms optimize target classification, improving the accuracy of security alerts and reducing false positives.

Uses:

• Urban Surveillance: Ideal for monitoring public spaces like city streets, parks, and transportation hubs.
• Critical Infrastructure: Effective for securing areas such as airports, railways, and large industrial sites.
• Perimeter Protection: Perfect for high-security facilities and large venues requiring robust surveillance solutions.

The Hikvision DS-2DE7A812MCG-EB is a versatile and powerful PTZ camera designed to deliver top-notch surveillance performance with advanced features and robust construction.
