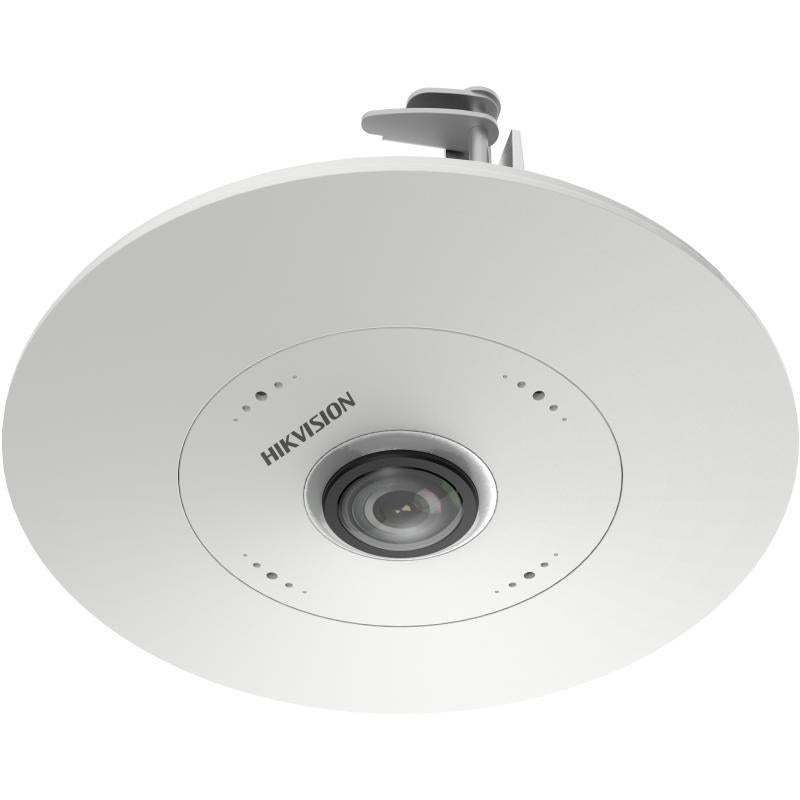

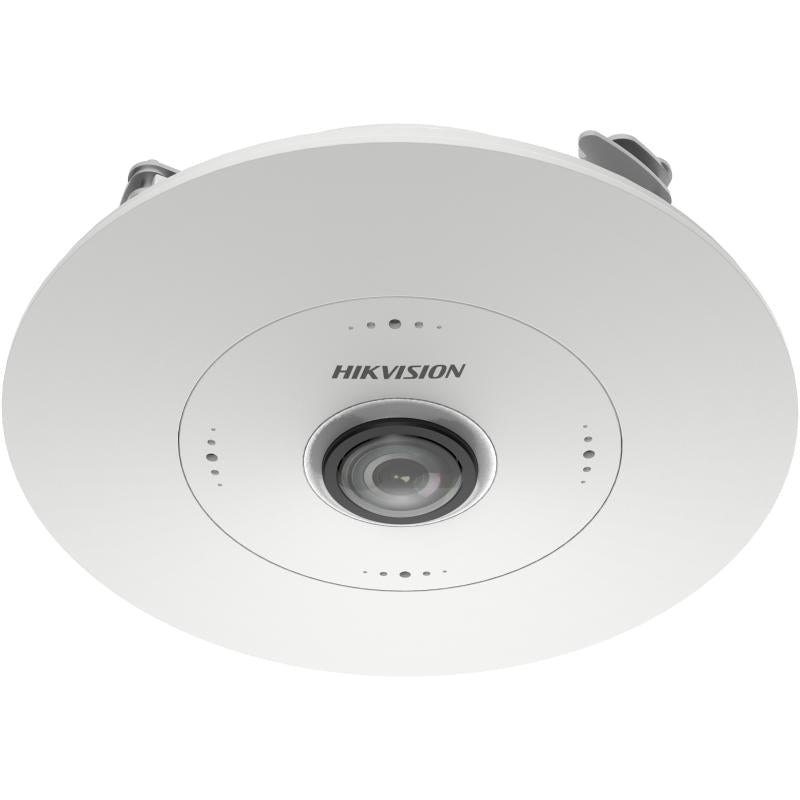

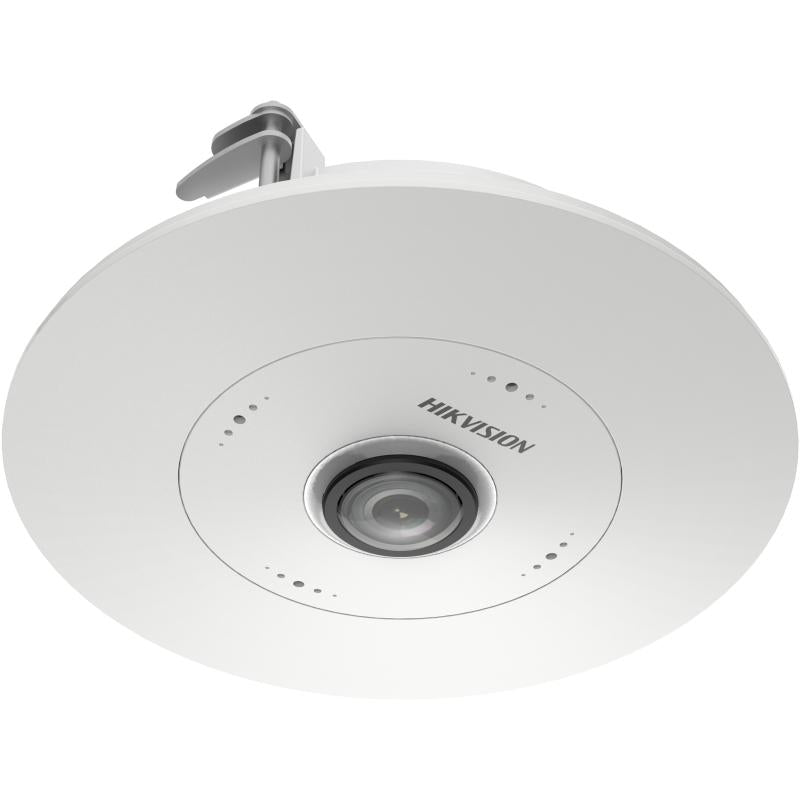

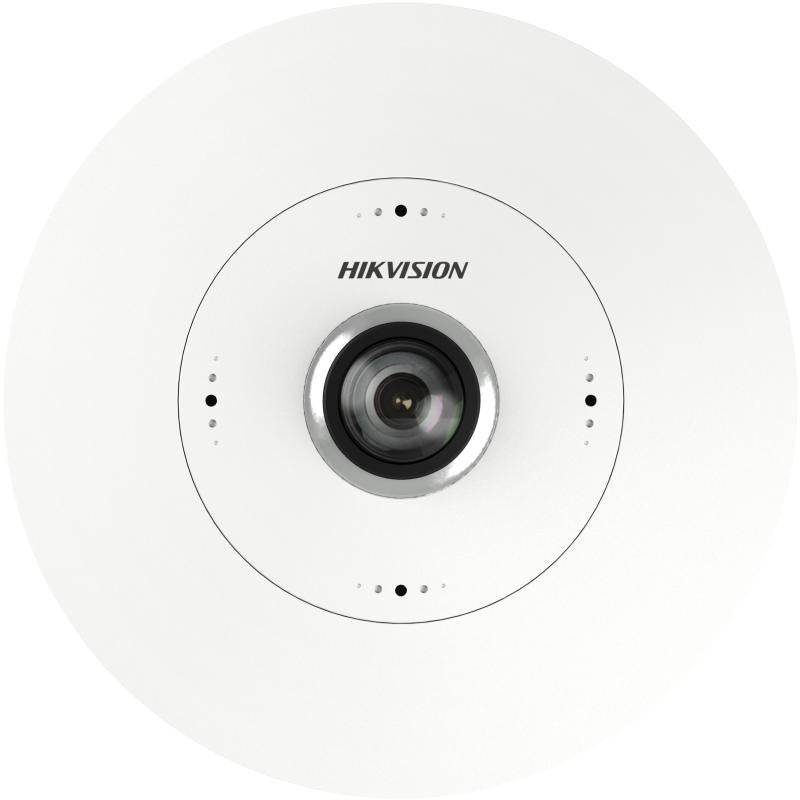

Hikvision DS-2CD63C5G1-S/RC 12MP DeepinView Fisheye Network Camera

Product Overview

The Hikvision DS-2CD63C5G1-S/RC 12MP Fisheye Network Camera is a high-performance security camera designed to provide 360-degree panoramic surveillance. Equipped with a 1.29mm fixed lens and a 1/1.8" Progressive Scan CMOS sensor, this fisheye camera delivers exceptional clarity with a maximum resolution of 3504 × 3504. Ideal for comprehensive monitoring in areas such as retail stores, offices, and large public spaces, this camera also features built-in microphones, digital WDR, day/night functionality, and deep learning algorithms for advanced analytics.

Key Features

• 12 MP Resolution: Ultra-high-definition images with 3504 × 3504 pixels for detailed surveillance.
• 360-Degree Panoramic View: Ideal for monitoring large areas without blind spots.
• Built-In Microphones: Four integrated microphones for audio monitoring, providing an additional layer of security.
• Deep Learning Algorithms: Includes heat mapping, people counting, and queue management for smarter analytics.
• Multi-Dewarping Modes: Corrects the fisheye distortion to offer intuitive viewing, including 180° and PTZ modes.
• Heatmap Analytics: Tracks foot traffic in an area for optimized business operations.
• Wide Dynamic Range (DWDR): Enhances image quality in challenging lighting environments.
• Dual Power Options: Supports both 12V DC and PoE (Power over Ethernet) for flexible installation.
• H.265+/H.265 Compression: Reduces bandwidth usage and storage requirements without compromising image quality.

Specifications

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Resolution: 3504 × 3504
• Lens: Fixed 1.29mm, Horizontal FOV: 180°, Vertical FOV: 180°
• Minimum Illumination: 0.03 Lux in color, 0.006 Lux in B/W
• Video Compression: H.265+/H.265/H.264+/H.264, MJPEG
• Audio Compression: G.711, G.726, MP2L2, MP3, AAC-LC
• Dewarping Modes: Fisheye view, Panorama view, PTZ views, AR hemisphere, Cylinder, and more.
• Privacy Masking: Up to 8 programmable privacy masks
• Smart Events: Motion detection, line crossing detection, intrusion detection, region detection, audio exception detection
• Storage: Supports microSD/SDHC/SDXC card up to 256GB
• Power: 12V DC or PoE (IEEE 802.3af)

Benefits

• Comprehensive Coverage: The 360-degree view eliminates the need for multiple cameras, saving on installation and equipment costs.
• Intelligent Analytics: Deep learning-powered heatmaps and people counting offer valuable insights into customer behavior and enhance operational efficiency.
• High Image Clarity: Even when dewarped, the camera produces clear and sharp images, making it ideal for detailed monitoring.
• Flexible Installation: The camera supports ceiling, wall, and table mounting, making it suitable for diverse environments.
• Efficient Bandwidth Management: The H.265+ video compression technology minimizes storage and bandwidth requirements without sacrificing quality.

Applications

• Retail Stores: Monitor customer flow and foot traffic with heat mapping and people counting, helping optimize store layout.
• Public Spaces: Perfect for areas like malls, train stations, or airports where a 360-degree panoramic view is needed.
• Offices: Provides seamless coverage of open workspaces, ensuring maximum security with minimal camera deployment.
• Educational Institutions: Ideal for monitoring large spaces like auditoriums and lecture halls.

The Hikvision DS-2CD63C5G1-S/RC combines advanced features like deep learning analytics and high-resolution imaging, making it a versatile and powerful tool for enhanced surveillance and business intelligence.

Datasheets

Warranty

3 years warranty
