Hikvision DS-2CD63C5G1-IVS 12MP DeepinView IR Fisheye Network Camera with 360° Panoramic View, Heatmap, Two-Way Audio, IP67 & IK10

Hikvision DS-2CD63C5G1-IVS 12MP DeepinView IR Fisheye Network Camera with 360° Panoramic View, Heatmap, Two-Way Audio, IP67 & IK10

$1,229.10 AUD
$1,528.98 AUD $1,229.10 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The Hikvision DS-2CD63C5G1-IVS 12MP DeepinView fisheye network camera delivers high-resolution 360-degree panoramic surveillance, intelligent heatmap analytics, multi-dewarping display modes, two-way audio, built-in IR illumination, and durable IP67/IK10 protection for professional indoor and outdoor security applications.

Designed for wide-area monitoring, the DS-2CD63C5G1-IVS captures a complete fisheye view of the scene using a 12 MP progressive scan CMOS sensor with a maximum resolution of 3504 × 3504. Its panoramic coverage makes it ideal for open spaces where a single camera can help reduce blind spots and provide comprehensive visual awareness.

The camera supports up to 20 live view display modes across wall, table, and ceiling mounting options, allowing operators to view footage in fisheye, panorama, PTZ, 4PTZ, fisheye + PTZ, hemisphere, cylinder, and other dewarped formats. This makes footage easier to interpret while preserving wide-area visibility.

With built-in deep learning heatmap analytics, the DS-2CD63C5G1-IVS can count people and present intuitive visual reports based on visits or dwell time. It also supports people counting, queue management, and intersection analysis, making it suitable for retail, public facilities, transport hubs, and commercial environments where visitor behaviour insights are valuable. Product details are based on the supplied Hikvision datasheet information.

What’s Included in the Box

  • 1 × Hikvision DS-2CD63C5G1-IVS 12MP DeepinView IR Fisheye Network Camera
  • Standard installation accessories
  • Product documentation / quick start information

Main Features

  • 12 MP high-resolution fisheye imaging for detailed panoramic surveillance
  • 360-degree panoramic scene coverage from a single camera position
  • Deep learning heatmap analytics for people counting and dwell-time visualisation
  • Multi-dewarping display modes for intuitive viewing
  • Up to 20 live view display modes for wall, table, and ceiling mounting
  • Built-in IR illumination with up to 15 m IR range
  • Built-in microphone and speaker for two-way audio communication
  • Four built-in microphones for enhanced audio capture
  • High-quality dewarped image clarity, including 4-image PTZ mode
  • Panomorph lens RPL: 89VVT
  • IP67 water and dust resistance for outdoor reliability
  • IK10 vandal resistance for enhanced physical protection
  • People counting, queue management, heat map, and intersection analysis
  • MicroSD card support up to 256 GB
  • ONVIF Profile S, Profile G and Profile T support
  • Compatible with iVMS-4200, iVMS-4500, iVMS-5200 and Hik-Connect

Detailed Specifications

Specification Details
Product Code / SKU DS-2CD63C5G1-IVS
Camera Type 12 MP DeepinView IR Network Fisheye Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Maximum Resolution 3504 × 3504
Minimum Illumination Colour: 0.03 Lux @ F2.2, AGC ON; B/W: 0.006 Lux @ F2.2, AGC ON; 0 Lux with IR
Lens Type Fixed focal lens
Focal Length 1.29 mm
Field of View Horizontal 180°, Vertical 180°
Aperture F2.2
Depth of Field 0.2 m to infinity
DORI Distance Detect: 27.9 m; Observe: 11.1 m; Recognise: 5.6 m; Identify: 2.8 m
Supplement Light Type IR
IR Range Up to 15 m
Supplement Light Number 3
IR Wavelength 850 nm
Main Stream Compression H.265+, H.265, H.264+, H.264
Sub-Stream Compression H.265, H.264, MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
Frame Rate 50 Hz: up to 25 fps; 60 Hz: up to 30 fps
Display Modes Fisheye, panorama, 360 panorama, PTZ modes, 4PTZ, fisheye + PTZ, hemisphere, AR hemisphere, cylinder and more
Mount Types Wall, table and ceiling mounting
Audio Compression G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
Audio Sampling Rate 8 kHz, 16 kHz, 32 kHz, 48 kHz
Built-in Microphone Yes, 4 built-in microphones
Built-in Speaker Yes, 1 built-in speaker

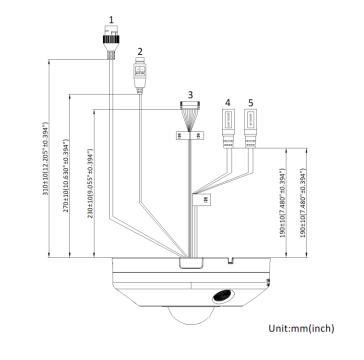

Audio Input / Output 1 line input and 1 line output via 3.5 mm connector
Network Interface 1 × RJ45 10/100/1000M self-adaptive Ethernet port
Simultaneous Live View Up to 20 channels
API Support ONVIF Profile S/G/T, ISAPI, SDK, ISUP
SIP Support Supports SIP integration with VoIP systems, peer-to-peer or SIP/PBX integration
On-board Storage microSD/microSDHC/microSDXC card support up to 256 GB
Alarm Interface 2 inputs, 2 outputs
RS-485 1 × RS-485 half duplex
WDR Digital WDR
Image Enhancement BLC, HLC, 3D DNR, distortion correction, defog
Privacy Mask 8 programmable polygon privacy masks
Deep Learning Functions People counting, queue management, heat map, intersection analysis
Smart Events Line crossing, intrusion, region entrance, region exiting, scene change, audio exception, defocus, unattended baggage, object removal
Power Supply 12 VDC ±20% or PoE IEEE 802.3af Class 3
Maximum Power Consumption 11.5 W via 12 VDC; 12.5 W via PoE
Material Metal

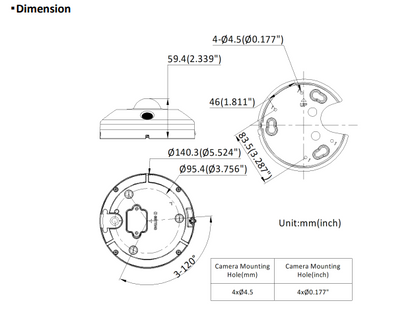

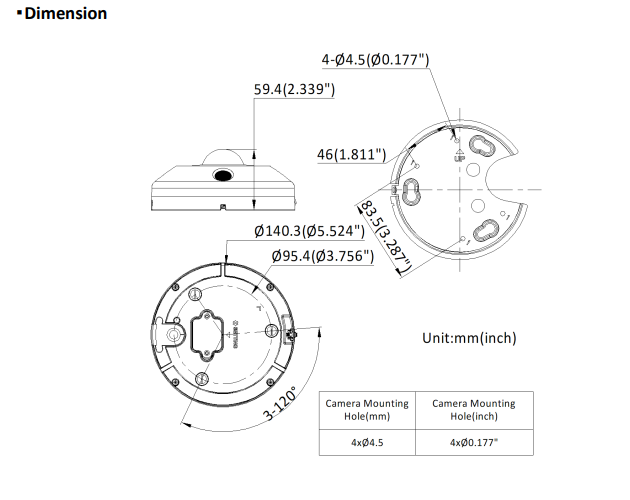

Dimensions Ø140.3 mm × 59.4 mm
Weight Approx. 715 g
Operating Conditions -40 °C to 60 °C; humidity 95% or less, non-condensing
Protection Rating IP67, IK10
Heater Yes
Cable Length 0.31 m
Available Model DS-2CD63C5G1-IVS 1.29 mm

Warranty Information

3-year Warranty. For Australian and New Zealand customers, warranty handling should be managed through authorised Hikvision supply channels or direct communication with the brand representative, where applicable.

Brand Description

Hikvision is a global provider of video security and surveillance solutions, offering a wide range of IP cameras, network video recorders, access control systems, intercom products, and intelligent analytics solutions. Hikvision cameras are widely used across residential, commercial, industrial, government, transport, retail, and public infrastructure environments.

SKU

DS-2CD63C5G1-IVS

Practical Use Scenarios

  • Retail store heatmap and customer flow analysis
  • Shopping centre and public venue monitoring
  • Office reception areas and open-plan spaces
  • Warehouses, logistics areas, and loading zones
  • Schools, universities, and education facilities
  • Transport hubs, station concourses, and waiting areas
  • Car park lobbies and building entrances
  • Commercial spaces requiring wide-angle 360-degree visibility
  • Queue monitoring and service efficiency analysis
  • Security installations requiring two-way audio communication

Datasheets & Downloadable Resources

Excellence for the Australian and New Zealand Market

The Hikvision DS-2CD63C5G1-IVS is suitable for professional security projects across Australia and New Zealand, particularly where panoramic surveillance, intelligent visitor analytics, queue monitoring, and durable outdoor protection are required.

The supplied specifications list RCM: AS/NZS CISPR 32:2015, along with CE-EMC, UL, CB, CE-LVD, CE-RoHS, WEEE, REACH, IP67, and IK10 approvals or standards. Its IP67 water and dust resistance and IK10 vandal resistance make it suitable for demanding installations where environmental durability and impact protection are important.

This model is listed as having no specific anti-corrosion protection, so it should be selected carefully for coastal, corrosive, or chemically exposed environments. For best results, source the product through authorised Hikvision supply channels, with warranty and support handled through authorised suppliers or direct brand representative communication where applicable.

FAQs

What is the Hikvision DS-2CD63C5G1-IVS used for?

The Hikvision DS-2CD63C5G1-IVS is used for 12 MP fisheye surveillance, 360-degree panoramic monitoring, heatmap analytics, people counting, and wide-area security coverage.

Does the Hikvision DS-2CD63C5G1-IVS support 360-degree viewing?

Yes, the Hikvision DS-2CD63C5G1-IVS provides 360-degree panoramic imaging and supports multiple dewarping modes for easier viewing.

What resolution does the Hikvision DS-2CD63C5G1-IVS provide?

The Hikvision DS-2CD63C5G1-IVS provides up to 12 MP resolution with a maximum image size of 3504 × 3504.

Does the Hikvision DS-2CD63C5G1-IVS have heatmap analytics?

Yes, the Hikvision DS-2CD63C5G1-IVS supports heatmap analytics based on deep learning algorithms to help visualise people flow and dwell time.

Does the Hikvision DS-2CD63C5G1-IVS support two-way audio?

Yes, the Hikvision DS-2CD63C5G1-IVS includes built-in microphones and a built-in speaker for two-way audio communication.

What is the IR range of the Hikvision DS-2CD63C5G1-IVS?

The Hikvision DS-2CD63C5G1-IVS has built-in IR illumination with a range of up to 15 metres.

Is the Hikvision DS-2CD63C5G1-IVS suitable for outdoor installation?

Yes, the Hikvision DS-2CD63C5G1-IVS is IP67 rated for water and dust resistance, making it suitable for outdoor installation when installed correctly.

Is the Hikvision DS-2CD63C5G1-IVS vandal resistant?

Yes, the Hikvision DS-2CD63C5G1-IVS has an IK10 vandal-resistant rating for added physical protection.

What storage does the Hikvision DS-2CD63C5G1-IVS support?

The Hikvision DS-2CD63C5G1-IVS supports microSD, microSDHC, and microSDXC cards up to 256 GB.

Does the Hikvision DS-2CD63C5G1-IVS support queue management?

Yes, the Hikvision DS-2CD63C5G1-IVS supports queue management with regional people queuing and waiting-time detection features.
