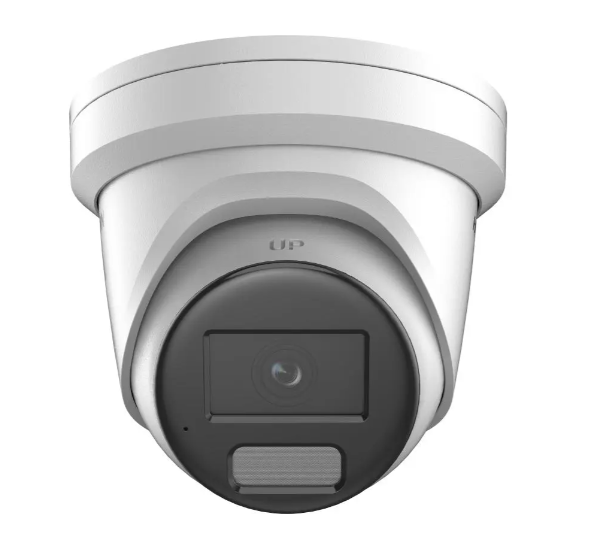

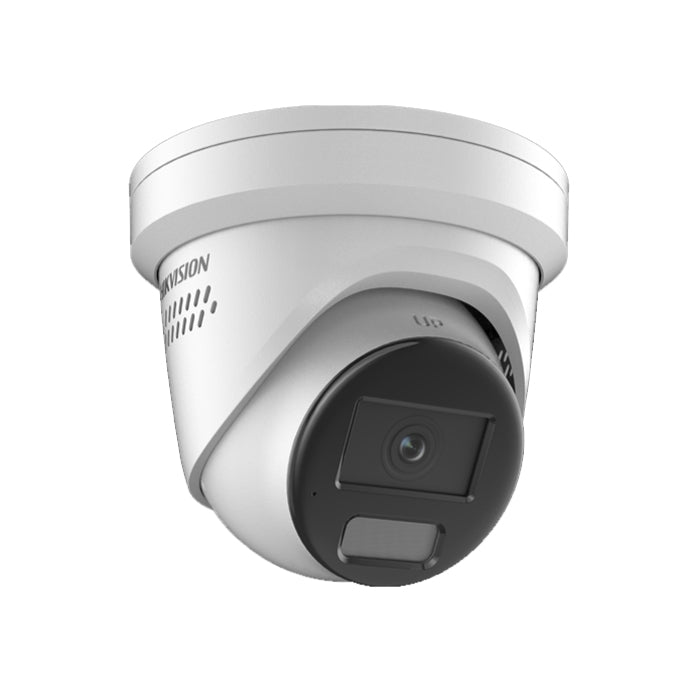

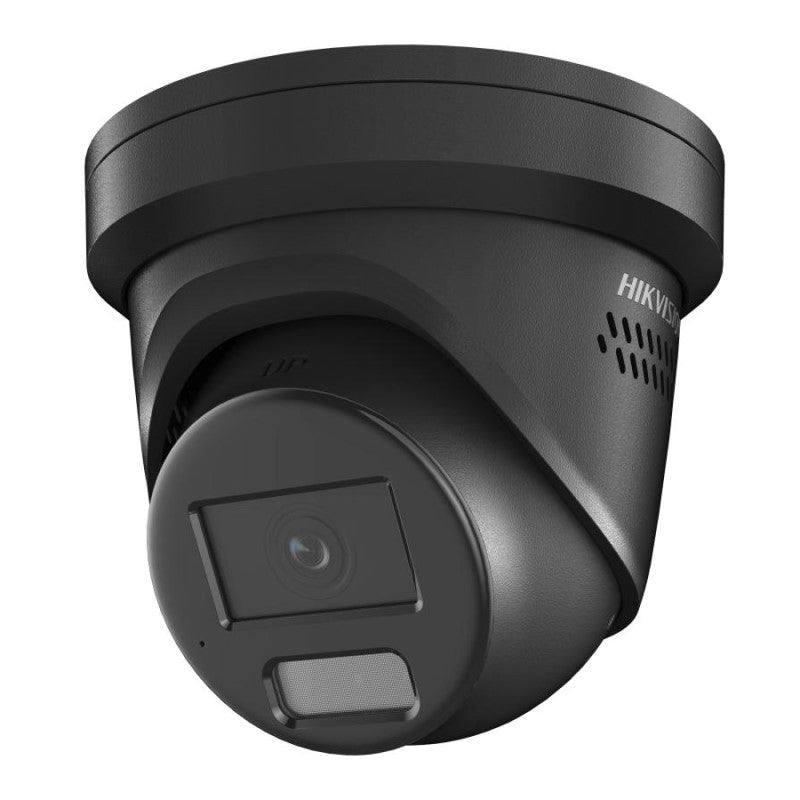

Hikvision DS-2CD2387G2H-LIU 8MP ColorVu Hybrid HD-IP Outdoor Turret CCTV Camera

Hikvision 8MP ColorVu Hybrid HD-IP Outdoor Turret Camera *NEW*

Overview: The Hikvision 8MP ColorVu Hybrid HD-IP Outdoor Turret Camera is a high-performance surveillance solution designed to deliver exceptional image quality and advanced features. With its 8MP resolution, built-in microphone, smart dual-light technology, and robust construction, this camera is ideal for outdoor security applications.

Key Features:

• High-Resolution Imaging: 8 MP resolution for sharp, detailed video (3840 × 2160).
• Smart Dual-Light Technology: Combines infrared and white light for clear images in all lighting conditions, with a range up to 40m.
• Wide Dynamic Range (WDR): 130 dB WDR ensures clear images even in challenging lighting conditions.
• Advanced Compression: H.265+ compression technology for efficient storage and bandwidth usage.
• Deep Learning Algorithms: Focus on human and vehicle classification for enhanced security and analytics.
• Built-in Microphone: Provides real-time audio security for comprehensive monitoring.
• Durable Construction: IP67 rated for water and dust resistance, ensuring reliable outdoor performance.
• Tri-Axis Adjustment: Flexible installation with 360° pan, 75° tilt, and 360° rotation.
• Power Options: Supports 12V DC and PoE for versatile power options.

Specifications:

Camera:

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.0008 Lux @ (F1.0, AGC ON)
  • 0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens:

• Lens Type: Fixed focal lens, 2.8 mm and 4 mm optional
• Focal Length & FOV:
  • 2.8 mm: Horizontal FOV 108.8°, Vertical FOV 56.4°, Diagonal FOV 134.3°
  • 4 mm: Horizontal FOV 93.3°, Vertical FOV 47.2°, Diagonal FOV 114.2°
• Aperture: F1.0
• Depth of Field:
  • 2.8 mm: 3.3 m to ∞
  • 4 mm: 3.8 m to ∞

Illuminator:

• Supplement Light Type: IR, White Light
• Range: Up to 40 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video:

• Main Stream:

  • 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream:

  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream:

  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

• Video Compression:

  • Main Stream: H.265/H.264/H.264+/H.265+
  • Sub-Stream: H.265/H.264/MJPEG
  • Third Stream: H.265/H.264

Audio:

• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: 64 Kbps to 320 Kbps
• Sampling Rate: 8 kHz to 48 kHz
• Environment Noise Filtering: Yes

Network:

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• Security: Password protection, HTTPS encryption, 802.1X authentication, watermark, IP address filter, and more.
• Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)

Interface:

• Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, supports up to 512 GB
• Built-in Microphone: Yes
• Reset Key: Yes

General:

• Power Supply: 12 VDC ± 25%, PoE (802.3af, Class 3)
• Material: Metal cover and main body
• Dimensions: Ø 138.3 mm × 115.4 mm (Ø 5.4" × 4.5")
• Weight: Approx. 770 g (1.7 lb.), with package 1040 g (2.3 lb.)
• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
• General Functions: Heartbeat, mirror, password reset via email, pixel counter, anti-banding
• Languages: 33 languages including English, Russian, German, French, Spanish, and more

Approval:

• EMC: CE-EMC, RCM, IC, KC
• Safety: UL, CB, CE-LVD, BIS
• Environment: CE-RoHS
• Protection: IP67

Typical Applications: The Hikvision 8MP ColorVu Hybrid HD-IP Outdoor Turret Camera is perfect for areas requiring high-resolution surveillance with audio capabilities, such as building entrances, parking lots, and perimeters. Its robust design ensures durability and reliability in harsh outdoor conditions.

Datasheets

Data Sheet

Quick Start Guide

User Manual

Warranty

We offer 3 Years warranty
