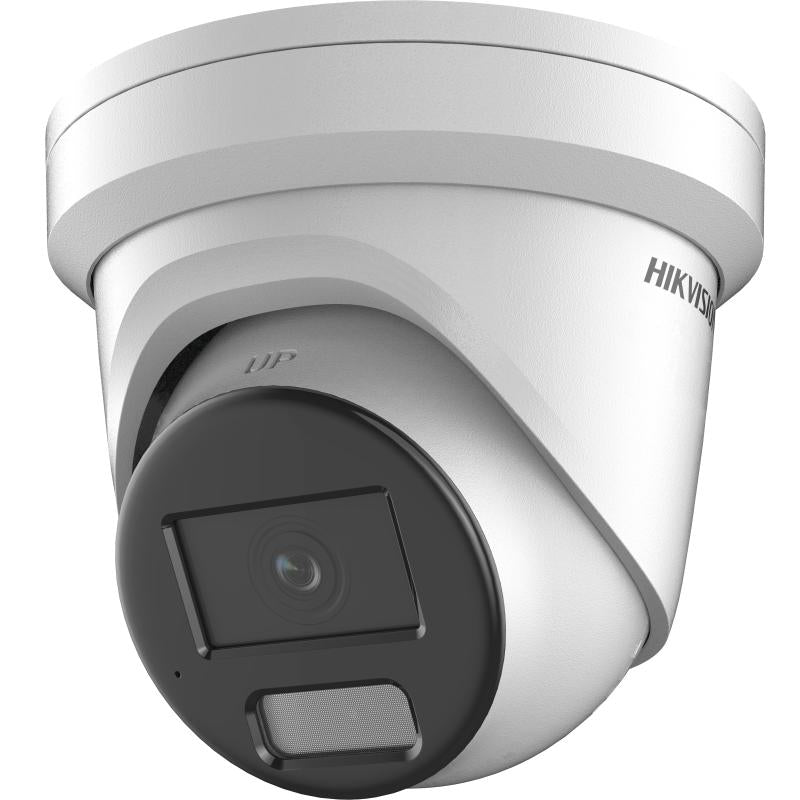

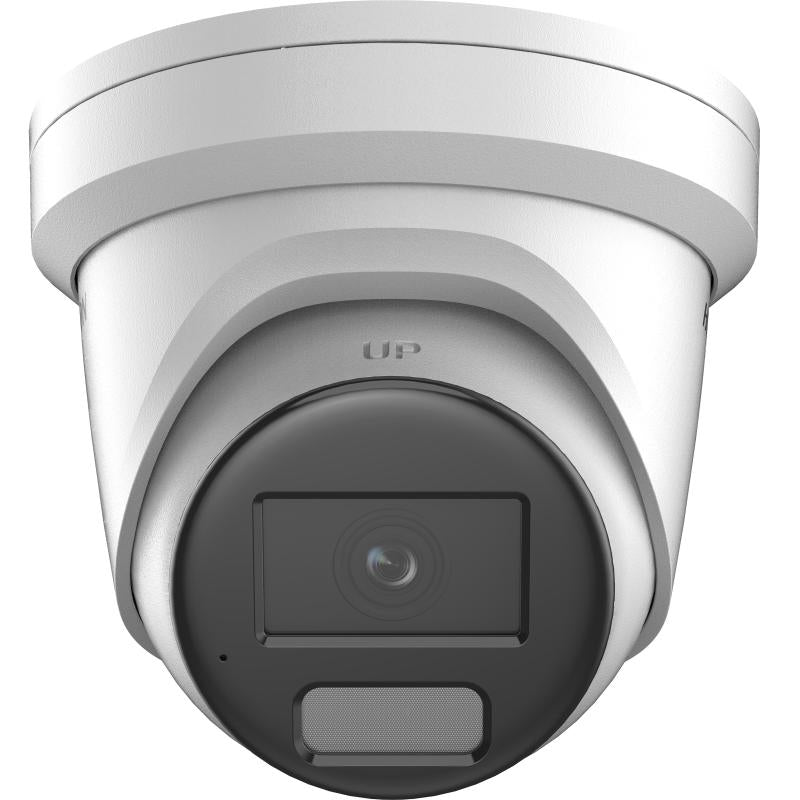

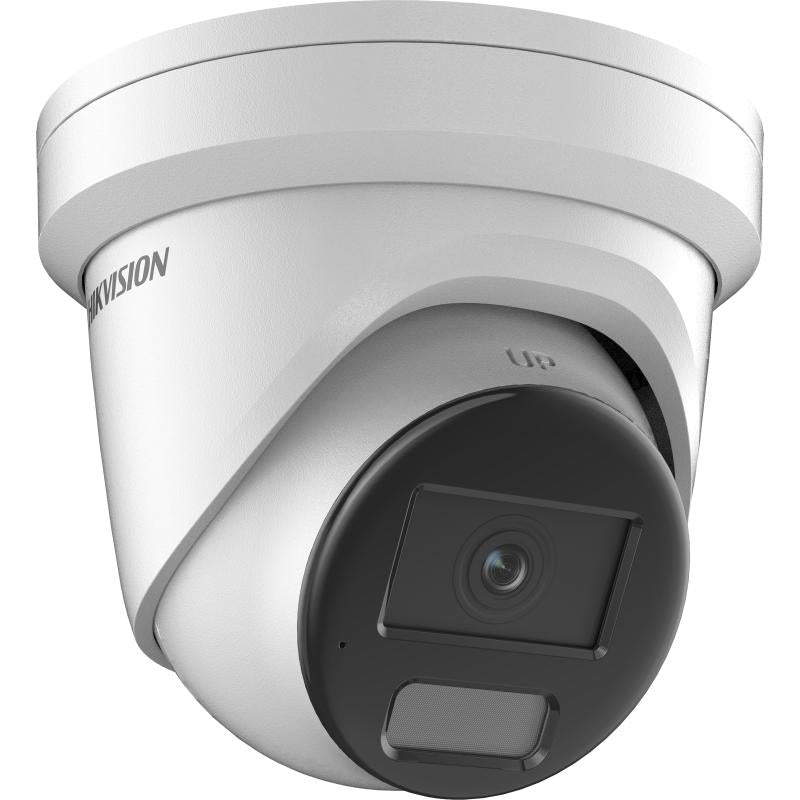

Hikvision DS-2CD2367G2H-LI(U) 6 MP Smart Hybrid Light with ColorVu Fixed Turret Network CCTV Camera (Replaced by DS-2CD2367G3-LIS2UY/SL)

You will receive DS-2CD2367G3-LIS2UY/SL

The Hikvision DS-2CD2367G2H-LI(U) 6 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera offers advanced imaging technology, robust video and audio security features, and flexible installation options. With a built-in microphone (-U version) and Smart Hybrid Light for exceptional performance in low-light conditions, this camera is suitable for various indoor and outdoor applications, providing dependable surveillance in any light and a high level of control over image quality.

Key Features

• High-Quality 6 MP Resolution: Captures sharp images with a resolution of 3200 × 1800 pixels, making it ideal for high-detail security footage.
• ColorVu and Smart Hybrid Light: Ensures vivid color imaging in extremely low light (0.0005 Lux) with an automatic switch between IR and white light, supporting up to 30 meters of clear night vision.
• Advanced WDR Technology: 130 dB Wide Dynamic Range (WDR) ensures clear images even in challenging lighting, reducing shadows and bright spots.
• Efficient H.265+ Compression: Saves on storage and bandwidth without sacrificing image quality, supporting up to three concurrent streams.
• Built-in Microphone (Optional -U): Real-time audio monitoring with noise filtering, suitable for two-way audio applications.
• Deep Learning-Based Analytics: Supports human and vehicle classification to reduce false alarms, along with face capture, line crossing, and intrusion detection.

Specifications

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Lens: Fixed 2.8 mm (108.8° FOV) and 4 mm (93.3° FOV) options with an F1.0 aperture.
• Shutter Speed: 1/3 s to 1/100,000 s
• Audio: High-quality G.711, MP3, and AAC-LC compression, with noise filtering (-U version).
• Video Resolution & Frame Rates:
  • Main Stream: Up to 25 fps at 3200 × 1800 (50 Hz), and 24 fps at 3200 × 1800 (60 Hz).
  • Sub-Stream: 25/30 fps at lower resolutions like 1280 × 720, 640 × 480.
• On-Board Storage: MicroSD slot supporting up to 512 GB, with NAS and ANR compatibility.
• Weatherproof: IP67-rated for dust and water resistance, allowing reliable outdoor use.

Network & Security

• Network Protocols: Comprehensive support, including TCP/IP, HTTPS, FTP, and more, ensuring compatibility with most networking systems.
• User Management: Supports up to 32 users with customizable access levels.
• Enhanced Security: TLS encryption, password protection, IP filtering, and MAC address authentication to prevent unauthorized access.

Installation and Power

• Power Options: Supports 12 VDC or PoE (IEEE 802.3af, Class 3), with a maximum power consumption of 8 W.
• Operating Conditions: Withstands temperatures from -30 °C to 60 °C (-22 °F to 140 °F), ideal for varied climates.
• Dimensions: Ø 138.3 mm × 115.4 mm (5.4" × 4.5"), weighing approximately 770 g (1.7 lbs).

In the Box

• Included: DS-2CD2367G2H-LI(U) camera, mounting hardware, quick start guide, and documentation.

Warranty and Compliance

• Warranty: 3-year warranty.
• Certifications: CE, UL, RoHS, and IP67 for performance and environmental compliance.

Applications

This camera is recommended for environments requiring high-detail security footage without specialized anti-corrosion protection, such as residential perimeters, retail stores, parking lots, and building entrances. The DS-2CD2367G2H-LI(U) offers a blend of advanced imaging, intelligent monitoring, and reliable build quality, making it a robust choice for versatile security needs.
