Hikvision DS‑2CD2366G2H‑IS2U/S(L)(RB) 6MP AcuSense Turret Network Camera with Strobe & Audible Warning

Hikvision DS‑2CD2366G2H‑IS2U/S(L)(RB) 6MP AcuSense Turret Network Camera with Strobe & Audible Warning

$339.66 AUD
$463.08 AUD $339.66 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

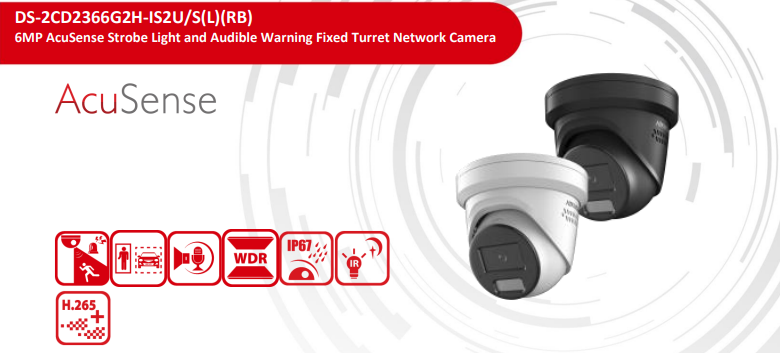

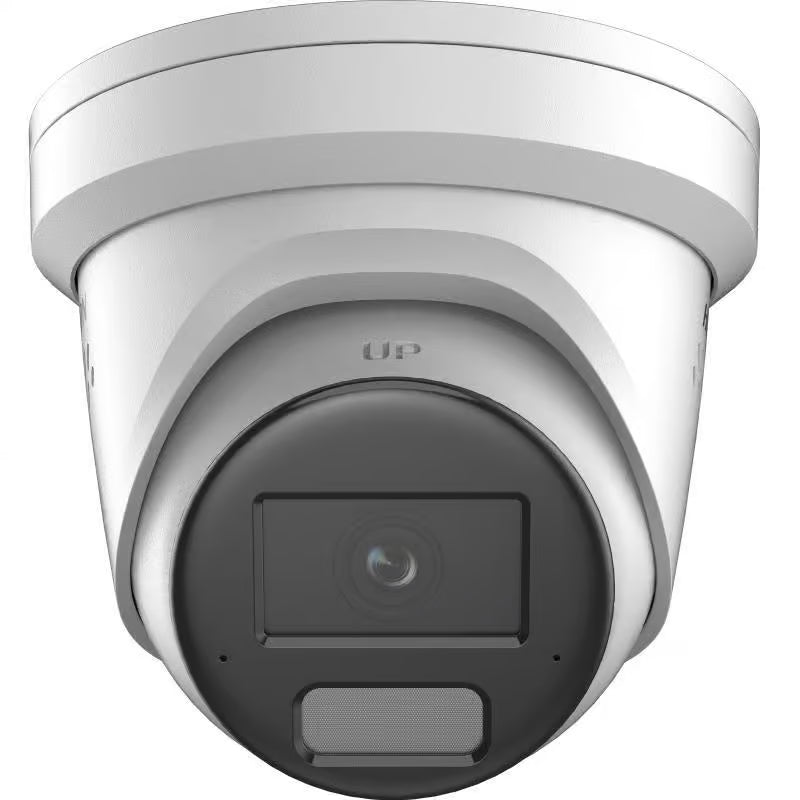

The Hikvision DS‑2CD2366G2H‑IS2U/S(L)(RB) is a high‑performance 6MP AcuSense fixed turret network camera combining advanced imaging, intelligent analytics, and active deterrence features. With robust weather resistance (IP67), deep learning algorithms for human/vehicle classification, strobe light and audio alarms, and flexible deployment modes, it’s ideal for modern surveillance systems in commercial, industrial, or residential environments.

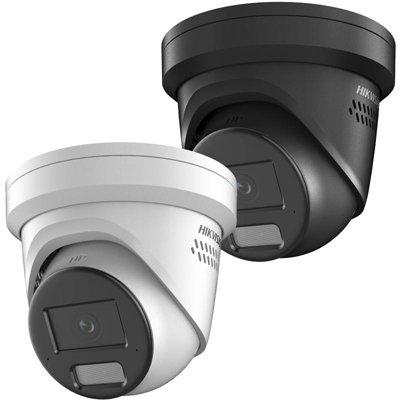

This model supports both white light and IR versions depending on the suffix (SL for white light, SRB for red/blue strobe) and is built for clear imaging in challenging lighting, efficient storage, and proactive threat response.

What’s Included in the Box

  • 1 × Hikvision DS‑2CD2366G2H‑IS2U/S(L)(RB) camera

  • Quick Start Guide / Installation Manual

  • Mounting Template

  • Screws & Anchors

  • Warranty & Compliance Card

Main Features & Highlights

  • 6 Megapixel resolution (3200 × 1800) for crisp, detailed video

  • 120 dB WDR (Wide Dynamic Range) ensures clear imaging under strong backlight

  • H.265+ / H.265 / H.264 compression for efficient bandwidth and storage usage

  • AcuSense deep learning‑based classification to distinguish humans and vehicles

  • Strobe light and audible warning built-in to actively deter intruders

  • Two‑way audio with built-in microphones and speaker

  • Onboard microSD storage support up to 512 GB

  • IP67 rated for dust and water resistance

  • Alarm and I/O interface for third‑party system integration

  • ONVIF, ISAPI, and SDK support for flexible system compatibility

  • Lens options: 2.8 mm or 4 mm fixed lens

Detailed Specifications

Category Specification
Image Sensor 1/2.4″ Progressive Scan CMOS
Max Resolution 3200 × 1800 (≈ 6 MP)
Min. Illumination Colour: 0.001 Lux @ F1.0, AGC ON; B/W: 0 Lux with IR
Shutter Range 1/3 s to 1/100,000 s
Lens Options Fixed focal: 2.8 mm or 4 mm (M12 mount)
Field of View (FOV) 2.8 mm: ~115° H / 60° V; 4 mm: ~94° H / 50° V
Depth of Field 2.8 mm: 1.7 m to ∞; 4 mm: 2.2 m to ∞
DORI Distances 2.8 mm: D 64 m / O 25 m / R 12 m / I 6 m; 4 mm: D 77 m / O 30 m / R 15 m / I 7 m
IR Range Up to 30 m with smart IR
Video Streams / FPS Main: up to 25 fps @ 3200×1800 (50 Hz), Sub: up to 25 fps at lower resolutions; third stream supported
Compression H.265 / H.265+ / H.264 / H.264+ / MJPEG
Audio Mono, G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC‑LC
Storage microSD / microSDHC / microSDXC up to 512 GB
Network / Protocols TCP/IP, HTTP, HTTPS, FTP, RTSP, RTP, IPv4/IPv6, ONVIF, etc.
Simultaneous Live Views Up to 6 channels
Security Features HTTPS, 802.1X, IP filters, watermark, TLS 1.1/1.2/1.3
Interface 1 × RJ45 (10/100 Mbps)
Alarm I/O 1 input, 1 output (max 24 VDC/AC, 1 A)
Power 12 VDC ±25% or PoE (IEEE 802.3at, Class 4), max. 18 W

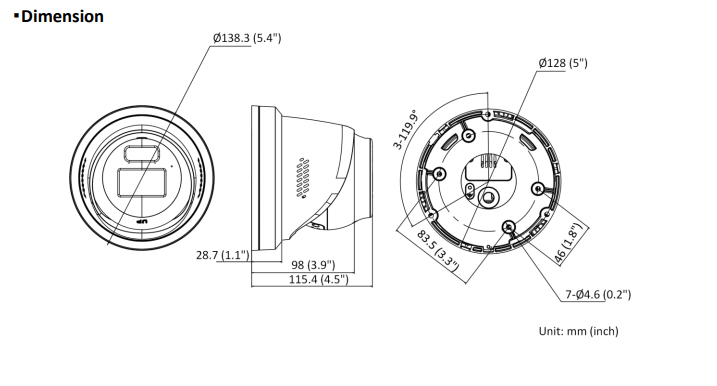

Dimensions Ø 138.3 mm × 115.4 mm
Weight (approx.) 780 g (camera only)
Operating Conditions –30 °C to +60 °C, ≤ 95% RH (non‑condensing)
Certifications CE, RCM (AS/NZS CISPR 32), UL, RoHS, WEEE

Warranty & Support

  • Manufacturer’s standard warranty (region-specific)

  • Supported via authorized Hikvision distributors in Australia and New Zealand

  • Firmware updates and manuals available from Hikvision official website

Brand Description

Hikvision is a globally leading provider of innovative video surveillance products and solutions. The brand is known for its advanced technology, high product reliability, and extensive global support infrastructure. Hikvision serves diverse industries, including commercial, industrial, transportation, and residential sectors.

Practical Use Scenarios

  1. Commercial Properties
    Perfect for storefronts, building entrances, and perimeter zones with high pedestrian traffic.

  2. Warehouses and Loading Bays
    Use strobe and audio warnings to prevent unauthorized access and secure high‑value inventory.

  3. Retail Environments
    Two-way audio allows announcements or deterrent messages; local SD recording adds redundancy.

  4. Residential Communities
    Monitor gates, shared facilities, and entry points with reliable detection and real-time alerts.

Datasheets & Downloadable Resources

Excellence for the Australian and New Zealand Market

The Hikvision DS‑2CD2366G2H‑IS2U/S(L)(RB) complies with Australian and New Zealand safety and EMC regulations, including RCM certification (AS/NZS CISPR 32). All units sold in this region are sourced through authorized Hikvision partners, ensuring authenticity, support, and full warranty coverage. Local support and documentation are available, and the camera is fully optimized for ANZ network infrastructure and installation practices.

Frequently Asked Questions (FAQs)

Q: What is the maximum resolution of the DS‑2CD2366G2H‑IS2U/S(L)(RB)?
A: The DS‑2CD2366G2H‑IS2U/S(L)(RB) supports up to 3200 × 1800 (6 MP) resolution.

Q: Does the DS‑2CD2366G2H‑IS2U/S(L)(RB) have onboard storage?
A: Yes, it supports microSD cards up to 512 GB for local video recording.

Q: What kind of strobe and audio alert does the DS‑2CD2366G2H‑IS2U/S(L)(RB) provide?
A: The camera includes a built-in strobe light and speaker for real-time audible warnings.

Q: Is the DS‑2CD2366G2H‑IS2U/S(L)(RB) suitable for outdoor use?
A: Yes, with IP67 protection, it’s dust-tight and water-resistant for outdoor deployment.

Q: Which lens options are available with the DS‑2CD2366G2H‑IS2U/S(L)(RB)?
A: You can choose between 2.8 mm and 4 mm fixed lens versions based on your coverage needs.

Q: Does the DS‑2CD2366G2H‑IS2U/S(L)(RB) support PoE?
A: Yes, it supports Power over Ethernet (PoE) based on IEEE 802.3at, Class 4.

SKU: DS-2CD2366G2H-IS2U-SL-RB
