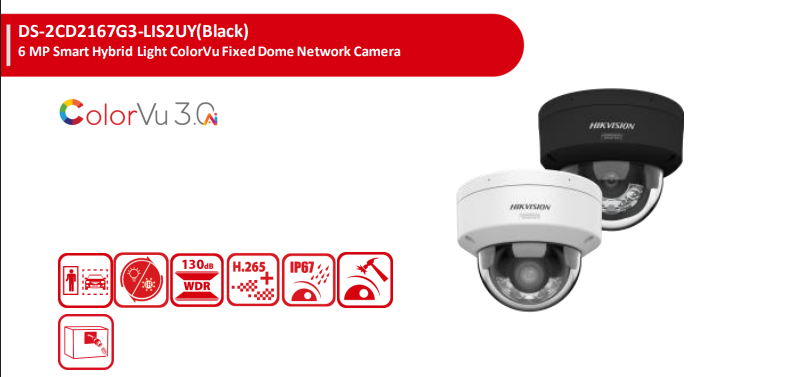

Hikvision DS-2CD2167G3-LIS2UY 6MP Smart Hybrid Light ColorVu Fixed Dome Network Camera with Dual Microphone, IP67, IK10 & NEMA 4X

Hikvision DS-2CD2167G3-LIS2UY 6MP Smart Hybrid Light ColorVu Fixed Dome Network Camera with Dual Microphone, IP67, IK10 & NEMA 4X

$377.40 AUD
$377.40 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.
Color

The Hikvision DS-2CD2167G3-LIS2UY is a professional 6MP Smart Hybrid Light ColorVu fixed dome network camera designed for high-quality indoor and outdoor CCTV surveillance, offering 24/7 vivid colour imaging, AI-powered person and vehicle classification, dual-microphone audio capture, IP67 weather resistance, IK10 vandal resistance and NEMA 4X anti-corrosion protection.

Built with Hikvision ColorVu technology, a 1/1.8" Progressive Scan CMOS sensor and an F1.0 super-aperture lens, the DS-2CD2167G3-LIS2UY captures bright, detailed images in low-light environments. The camera supports a maximum resolution of 3200 × 1800, Smart Hybrid Light with IR and white light, and up to 30 m supplemental light range. Australian product listings also confirm the model’s core positioning as a 6MP dome camera with Smart Hybrid Light, ColorVu imaging, dual microphone support, person/vehicle detection, IP67, IK10 and NEMA 4X protection.

For smarter security monitoring, the camera uses deep learning-based person and vehicle classification to help focus alerts on relevant targets. It also supports face capture, perimeter protection events, scene change detection and multiple recording/linkage actions including memory card recording, NAS/FTP upload, surveillance centre notification and email alerts.

With a vandal-resistant dome body, aluminium alloy base and cover, IP67 ingress protection and IK10 impact resistance, the DS-2CD2167G3-LIS2UY is well suited to exposed or public-facing areas such as entrances, schools, apartment buildings, retail sites, warehouses, offices and commercial perimeters.

What’s Included in the Box

  • Hikvision DS-2CD2167G3-LIS2UY 2.8mm 6MP fixed dome network camera
  • Mounting accessories
  • Installation guide / documentation
  • Product packaging

Box contents may vary depending on distributor package configuration.

Main Features

  • 6MP high-resolution imaging up to 3200 × 1800
  • 24/7 vivid colour imaging with Hikvision ColorVu technology
  • F1.0 advanced lens for enhanced low-light performance
  • HikAI-ISP for excellent noise reduction
  • Scene-adaptive 130dB WDR for challenging backlight conditions
  • Deep learning person and vehicle classification
  • Built-in arrayed dual microphone for real-time audio security
  • Smart Hybrid Light with IR and white light
  • Three supplemental lighting modes
  • Up to 30 m supplemental light range
  • Face capture support
  • Line crossing, intrusion, region entrance and region exiting detection
  • microSD/microSDHC/microSDXC support up to 512GB
  • IP67 water and dust resistance
  • IK10 vandal-resistant dome housing
  • NEMA 4X anti-corrosion protection
  • PoE IEEE 802.3af Class 3 and 12 VDC power support
  • ONVIF Profile S, Profile G and Profile T compatibility

Detailed Specifications

Camera

Specification Details
Image Sensor 1/1.8" Progressive Scan CMOS
Max Resolution 3200 × 1800
Minimum Illumination Colour: 0.0005 Lux @ F1.0, AGC ON; 0 Lux with light
Shutter Time 1 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°

Lens

Specification Details
Lens Type Fixed focal lens
Lens Options 2.8 mm / 4 mm
Lens Mount M16
Iris Type Fixed
Aperture F1.0
2.8 mm FOV Horizontal 108.8°, Vertical 56.4°, Diagonal 134.3°
4 mm FOV Horizontal 93.3°, Vertical 47.2°, Diagonal 114.2°
Depth of Field 2.8 mm: 3.3 m to ∞; 4 mm: 3.8 m to ∞

DORI Distance

Lens Detect Observe Recognise Identify
2.8 mm 89 m 35 m 17 m 8 m
4 mm 109 m 43 m 21 m 10 m

Illuminator

Specification Details
Supplement Light Type White Light, IR
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm

Video

Specification Details
Main Stream 50 Hz: 25 fps; 60 Hz: 30 fps at up to 3200 × 1800
Sub-Stream 50 Hz: 25 fps; 60 Hz: 30 fps at up to 1280 × 720
Third Stream 50 Hz / 60 Hz: 10 fps at up to 1920 × 1080
Video Compression Main: H.265/H.264/H.264+/H.265+; Sub: H.265/H.264/MJPEG; Third: H.265/H.264
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Scalable Video Coding H.264 and H.265
ROI 5 fixed regions for main stream and sub-stream

Audio

Specification Details
Audio Type Mono sound
Built-in Microphone Arrayed dual microphone
Audio Compression G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
Audio Bit Rate 64 Kbps G.711; 16 Kbps G.722.1/G.726; 16–64 Kbps AAC-LC; 32–192 Kbps MP2L2; 8–320 Kbps MP3
Audio Sampling Rate 8 kHz / 16 kHz / 32 kHz / 48 kHz
Environment Noise Filtering Yes
Audio Input 1 line input, two-core terminal block
Audio Output 1 line output, two-core terminal block

Network

Specification Details
Ethernet 1 × RJ45 10/100 Mbps self-adaptive Ethernet port
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View Up to 6 channels
API ONVIF Profile S, Profile G, Profile T, ISAPI, SDK, ISUP
Users Up to 32 users
User Levels Administrator, operator and user
Network Storage NAS via NFS or SMB/CIFS, Auto Network Replenishment
Client Software iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+


Specification Details
WDR 130 dB
Image Enhancement BLC, HLC, 3D DNR, Distortion Correction, Defog
SNR ≥ 52 dB
Image Stabilisation EIS
Privacy Mask 8 programmable polygon privacy masks
Day/Night Switch Day, Night, Auto, Schedule
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain and white balance

Interface

Specification Details
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Onboard Storage microSD/microSDHC/microSDXC card slot, up to 512GB
Audio Interface Built-in arrayed dual microphone, 1 line input, 1 line output
Alarm Interface 1 input, 1 output, max. 24 VAC/VDC, 1A
Reset Key Yes

Event & Analytics

Function Details
Basic Events Motion detection with human/vehicle target type support, video tampering alarm, exception
Smart Event Scene change detection
Deep Learning Person and vehicle classification
Face Capture Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting
Linkage Actions Upload to FTP/NAS/memory card, notify surveillance centre, trigger recording, trigger capture, send email, trigger alarm output

General

Specification Details
Power 12 VDC ±25%, 0.75 A, max. 9 W
PoE IEEE 802.3af, Class 3, max. 10.5 W
Material Base: aluminium alloy; cover: aluminium alloy

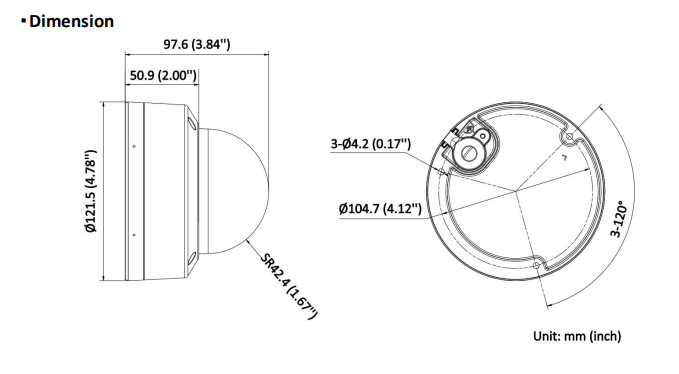

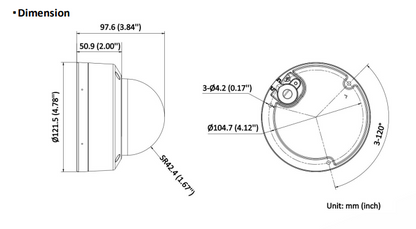

Dimensions Ø 121.5 mm × 97.6 mm
Package Dimensions 234 mm × 120 mm × 117 mm
Weight Approx. 600 g
Packaged Weight Approx. 825 g
Operating Conditions -30 °C to 60 °C; humidity 95% or less, non-condensing
Storage Conditions -30 °C to 60 °C; humidity 95% or less, non-condensing
General Functions Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding

Approvals & Protection

Category Details
EMC CE-EMC, RCM: AS/NZS CISPR 32:2015, IC, KC
Safety UL 62368-1, CB IEC 62368-1, CE-LVD EN 62368-1, BIS
Environment CE-RoHS, WEEE, REACH
Ingress Protection IP67: IEC 60529-2013
Impact Protection IK10: IEC 62262:2002
Anti-Corrosion Protection NEMA 4X: NEMA 250-2018



Optional Accessories

  • DS-1272ZJ-120 – Wall mount
  • DS-1272ZJ-120B – Wall mount
  • DS-1271ZJ-120 – Pendant mount
  • DS-1275ZJ-SUS – Vertical pole mount
  • DS-1276ZJ-SUS – Corner mount
  • DS-1280ZJ-DM46 – Junction box
  • DS-2280ZJ-WA120 – Junction box
  • DS-2210ZJ-WA-120 – Pendant mounting accessory
  • DS-2200ZJ-WA-120 – Wall mounting accessory
  • DS-2200ZJ-WAJ-120 – Wall mounting accessory

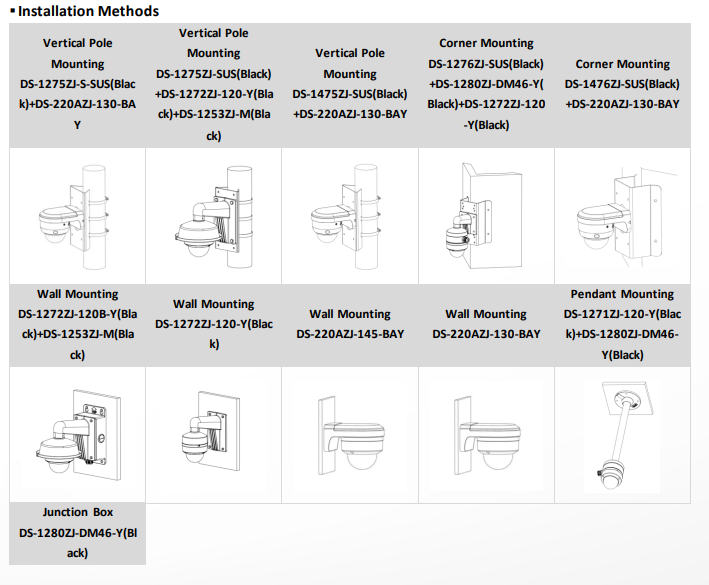

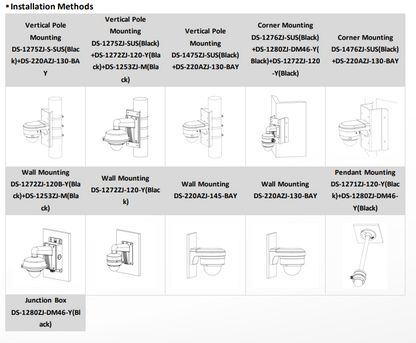

Installation Methods

  • Wall mounting
  • Pendant mounting
  • Vertical pole mounting
  • Corner mounting
  • Junction box mounting

Compatible combinations include the wall, pendant, pole, corner and junction box mounting accessories listed in the supplied specification.

Warranty Information

The Hikvision DS-2CD2167G3-LIS2UY is covered by the 3-year applicable Hikvision warranty terms for the Australian and New Zealand market.

Brand Description

Hikvision is a global provider of professional security and video surveillance solutions, offering IP cameras, network video recorders, access control systems, analytics and integrated security technologies for residential, commercial, industrial and public-sector applications. The DS-2CD2167G3-LIS2UY combines Hikvision’s ColorVu imaging, Smart Hybrid Light, AI detection and durable dome housing for dependable day and night surveillance.

Practical Use Scenarios

  • Residential entrances, driveways and front doors
  • Apartment building corridors and entry points
  • Retail stores, shopping areas and customer-facing spaces
  • Office reception areas and commercial building entrances
  • Schools, childcare centres and public facilities
  • Warehouses, stockrooms and logistics areas
  • Car parks, loading bays and external walkways
  • Exposed or public-facing areas requiring IK10 vandal resistance
  • Coastal or acid-rain affected areas requiring moderate anti-corrosion protection

Datasheets & Downloadable Resources

Excellence for the Australian and New Zealand Market

The Hikvision DS-2CD2167G3-LIS2UY is suitable for Australian and New Zealand CCTV projects requiring high-resolution dome surveillance, low-light colour imaging, audio security and durable outdoor installation. The supplied specification lists RCM: AS/NZS CISPR 32:2015, supporting alignment with Australian and New Zealand EMC requirements.

Its IP67 weather resistance, IK10 vandal resistance, NEMA 4X anti-corrosion protection and -30 °C to 60 °C operating range make it suitable for a wide range of local residential, commercial and industrial installations. NDSS approval is not applicable to this product category, as the DS-2CD2167G3-LIS2UY is a CCTV network camera, not a medical or diabetes-related product.

For reliable supply, product authenticity and after-sales support, this camera should be sourced through authorised Hikvision representatives or approved Australian and New Zealand distribution channels. Warranty support should be managed through the authorised seller or direct brand representative communication.

FAQs

Q1: What resolution does the Hikvision DS-2CD2167G3-LIS2UY provide?

The Hikvision DS-2CD2167G3-LIS2UY provides 6MP resolution with a maximum image size of 3200 × 1800, making it suitable for detailed CCTV monitoring.

Q2: Does the Hikvision DS-2CD2167G3-LIS2UY support colour night vision?

Yes. The Hikvision DS-2CD2167G3-LIS2UY uses Hikvision ColorVu technology with an F1.0 lens and Smart Hybrid Light to support vivid colour imaging in low-light environments.

Q3: Does the Hikvision DS-2CD2167G3-LIS2UY have built-in audio?

Yes. The Hikvision DS-2CD2167G3-LIS2UY includes a built-in arrayed dual microphone for real-time audio security and environmental sound capture.

Q4: Is the Hikvision DS-2CD2167G3-LIS2UY suitable for outdoor installation?

Yes. The Hikvision DS-2CD2167G3-LIS2UY has IP67 water and dust resistance, making it suitable for outdoor CCTV installations when installed correctly.

Q5: Is the Hikvision DS-2CD2167G3-LIS2UY vandal resistant?

Yes. The Hikvision DS-2CD2167G3-LIS2UY is rated IK10, providing vandal-resistant protection for public-facing and exposed installation areas.

Q6: What lens options are available for the Hikvision DS-2CD2167G3-LIS2UY?

The Hikvision DS-2CD2167G3-LIS2UY is available with 2.8 mm and 4 mm fixed lens options, allowing selection between wider coverage and a more focused viewing angle.

Q7: Does the Hikvision DS-2CD2167G3-LIS2UY support person and vehicle detection?

Yes. The Hikvision DS-2CD2167G3-LIS2UY supports deep learning-based person and vehicle classification, helping reduce unwanted alerts from irrelevant movement.

Q8: Can the Hikvision DS-2CD2167G3-LIS2UY record to a microSD card?

Yes. The Hikvision DS-2CD2167G3-LIS2UY includes an onboard memory card slot supporting microSD, microSDHC and microSDXC cards up to 512GB.

Q9: What is the illumination range of the Hikvision DS-2CD2167G3-LIS2UY?

The Hikvision DS-2CD2167G3-LIS2UY provides up to 30 m supplemental light range using its Smart Hybrid Light system with IR and white light.

Q10: Does the Hikvision DS-2CD2167G3-LIS2UY support PoE?

Yes. The Hikvision DS-2CD2167G3-LIS2UY supports PoE IEEE 802.3af Class 3, with maximum PoE power consumption of 10.5 W.

Q11: Is the Hikvision DS-2CD2167G3-LIS2UY suitable for Australian and New Zealand CCTV projects?

Yes. The Hikvision DS-2CD2167G3-LIS2UY is suitable for many Australian and New Zealand CCTV installations, with the supplied specification listing RCM: AS/NZS CISPR 32:2015, IP67 protection, IK10 vandal resistance and NEMA 4X anti-corrosion protection.
