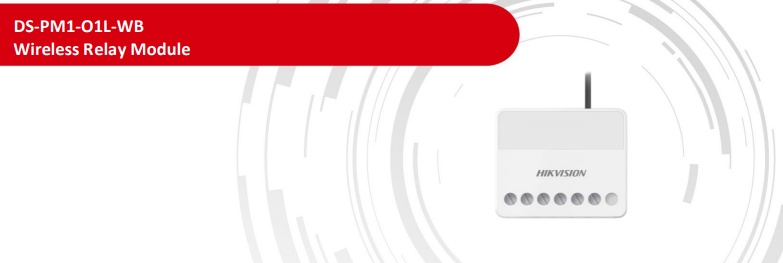

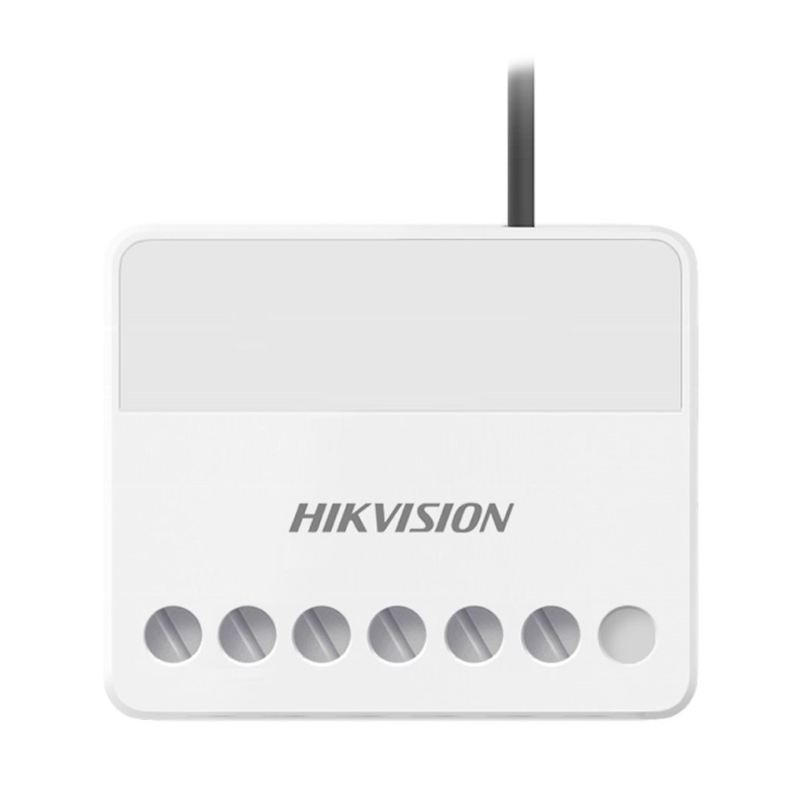

Hikvision AX PRO Series DS-PM1-O1L-WB Relay Module

The Hikvision DS-PM1-O1L-WB Wireless Relay Module is a compact and highly functional device designed for smart automation and alarm system integration. With 433 MHz two-way wireless communication, AES-128 encryption, and a discreet, small-case design, this module can be easily installed in hidden locations while providing secure and reliable relay control. It supports remote activation via the Hik-Connect App, keypad, or keyfob, enabling effortless automation and scenario-based control. Featuring tamper detection, LED status indicators, and customizable automation settings, the DS-PM1-O1L-WB is an essential component for enhanced security and smart home applications.

What's Included

• 1 x Hikvision DS-PM1-O1L-WB Wireless Relay Module
• Mounting Accessories
• User Manual

Key Features

• 433 MHz Two-Way Wireless Communication: Ensures stable and secure data transmission
• AES-128 Encryption: Provides high-level security protection
• Compact & Concealable Design: Small case design allows for hidden installations
• Remote Relay Control: Can be turned on/off via App, Keyfob, or Keypad
• Automation Scenario Settings: Customizable activation based on alarm, manual operation, system faults, or schedule
• Tamper Protection: Equipped with one tamper input, which can also function as a zone input for alarm systems
• LED Status Indicators: Provides real-time device status and relay activation display

Specifications

Software Features

• Function Button: 1 (for initialization)
• Scenario Settings:
  • By alarm
  • By manual operation
  • By fault detection
  • By scheduled events

Hardware Features

• Alarm Input: 1 (for tamper, NO/NC)
• Relay Output: 1 (NO/NC, 0 to 36 VDC, Max. 5A)
• Serial Port: 1 (for debugging)

Electrical Characteristics

• Power Supply: 7 VDC to 24 VDC

LED Status Indicators

• Register/Signal: Green/Red
• Power: Green
• Relay Status: Blue

Environmental & Physical Specifications

• Operating Temperature: -10°C to +55°C
• Humidity Resistance: 10% to 90%
• Shell Material: Plastic
• Color: White
• Installation Method: Wall Mounting
• Dimensions: 38mm x 25mm x 18mm
• Weight: 28.5g

Warranty Information

Hikvision provides a 1 year manufacturer-backed warranty, ensuring long-term reliability and technical support.

About the Brand – Hikvision

Hikvision is a global leader in security, automation, and smart home solutions, known for cutting-edge technology, advanced encryption, and seamless integration with modern security systems. Their high-performance wireless devices deliver exceptional reliability, security, and ease of use.

Ideal Use Cases

• Smart home automation requiring remote relay control
• Security systems needing tamper detection and alarm integration
• Commercial buildings looking for scenario-based automated event control
• Hidden or compact spaces where a discreet relay module is required

Excellence for the Australian and New Zealand Market

• Optimized for Australian and New Zealand security and automation standards
• AES-128 encryption and frequency hopping technology for superior data protection
• Seamless integration with Hikvision security and automation systems
• Sourced from authorized Hikvision distributors for warranty and technical support

Frequently Asked Questions (FAQs)

Q: What is the main function of the Hikvision DS-PM1-O1L-WB Wireless Relay Module?
A: This module allows for remote control of relay-based devices, supporting automation, alarm integration, and tamper detection.

Q: Can I control the relay module via the Hik-Connect App?
A: Yes, the relay can be remotely activated and deactivated via the Hik-Connect App, keypad, or keyfob.

Q: What is the maximum power input supported?
A: The relay supports 0 to 36 VDC with a maximum load of 5A.

Q: Can this module be hidden inside security panels?
A: Yes, the small and compact design makes it ideal for hidden installations.
