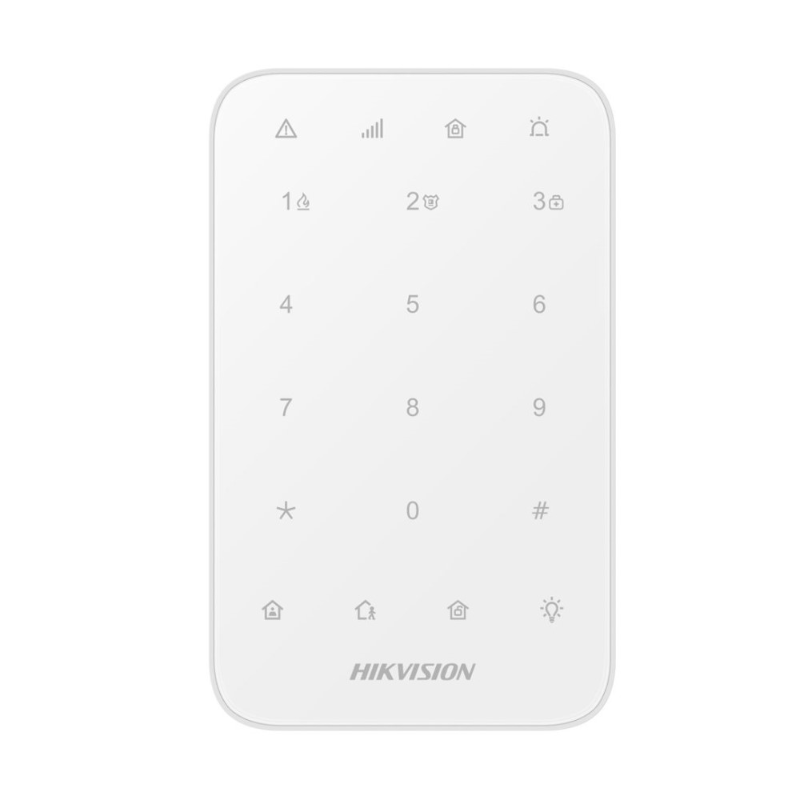

Hikvision AX PRO Series DS-PK1-E-WB Wireless Keypad

The Hikvision DS-PK1-E-WB Wireless Keypad is an advanced security control interface designed for seamless integration with AX PRO alarm systems. Featuring two-way 433 MHz wireless communication, AES-128 encryption, and a full-touch LED-backlit design, this keypad provides secure, reliable, and intuitive control for home and business security. Users can easily arm, disarm, and manage alarms, while built-in panic, fire, and medical emergency buttons ensure quick response in critical situations. With multiple enrollment options, remote configuration via the Hik-Connect app, and an easy battery replacement design, this keypad is an essential addition to any modern alarm system.

What's Included

• 1 x Hikvision DS-PK1-E-WB Wireless Keypad
• 4 x AA Batteries
• Mounting Accessories
• User Manual

Key Features

• 433 MHz Two-Way Wireless Communication: Stable and secure signal transmission
• AES-128 Encryption: Provides high-security protection against cyber threats
• Multiple Alarm Functions: One-push fire alarm, panic alarm, and medical alarm with silent/audible options
• Stay/Away Arming & Disarming: Control specific areas or all zones in the system
• LED Status Indicators: Displays fault, signal strength, arming status, and alarm notifications
• Full Touch Keypad with LED Backlight: Sleek, modern design for easy nighttime operation
• Remote Configuration via App: Adjust settings and manage functions through Hik-Connect
• Multiple Enrollment Methods: Easy installation with power-up, remote ID, or QR code scanning
• Reliable Performance: Frequency hopping technology ensures anti-jamming security
• Long Battery Life: Operates for over two years on standard AA batteries

Specifications

Wireless Communication

• Frequency: 433 MHz
• Modulation: 2GFSK
• Wireless Range: Up to 900m (open area)
• Protocol: Tri-X, Two-Way Communication

Interface & Components

• Tamper Protection: Front and rear panel tamper-proof design
• Power Switch: Power on/off button
• Buzzer: Built-in sound alert system
• LED Indicators:
  • Fault (Orange)
  • Enrollment/Signal Strength (Red/Green)
  • Arm (Blue)
  • Disarm (Green)
  • Alarm (Red)
• Backlight Color: White
• Keypad Layout:
  • Number Keys: 0 to 9
  • Function Keys: *, #, Stay Arming, Away Arming, Disarming, and Output

Power & Battery

• Battery Type: 4 x AA Batteries (Included)
• Voltage: 1.5V DC
• Quiescent Current: 180 μA
• Maximum Current: 251 mA
• Battery Life: Over two years under standard operation

Environmental & Physical Specifications

• Operating Temperature: -10°C to +55°C (14°F to 122°F)
• Humidity Resistance: 10% to 90% (Non-condensing)
• Color: White
• Installation Method: Screw mounting
• Dimensions: 140mm x 86mm x 22mm (5.50" x 3.38" x 0.87")
• Weight:
  • Without Batteries: 151g (5.33 oz)
  • Each Battery: 23g (0.81 oz)

Certifications & Compliance

• FCC Approved
• CE/CB Certified
• RCM Compliant
• RoHS/REACH/WEEE Compliant

Warranty Information

Hikvision provides a manufacturer-backed warranty, ensuring product reliability and technical support.

About the Brand – Hikvision

Hikvision is a global leader in security and smart technology solutions, providing highly secure, innovative, and reliable alarm systems for residential, commercial, and industrial applications. With cutting-edge encryption, wireless connectivity, and AI-driven security solutions, Hikvision is trusted worldwide.

Ideal Use Cases

• Residential homes needing secure and convenient alarm system control
• Commercial buildings and office spaces requiring wireless security access
• Emergency response scenarios with quick-access fire, panic, and medical alerts
• High-security environments where encrypted, interference-resistant devices are essential

Excellence for the Australian and New Zealand Market

• Optimized for Australian and New Zealand security standards
• AES-128 encryption and frequency hopping technology for superior data protection
• Seamless integration with Hikvision AX PRO security systems
• Sourced from authorized Hikvision distributors for warranty and technical support

Frequently Asked Questions (FAQs)

Q: Can the Hikvision DS-PK1-E-WB Wireless Keypad work with other alarm systems?
A: This keypad is designed to work seamlessly with Hikvision AX PRO alarm systems. Compatibility with other brands is not guaranteed.

Q: How far can this keypad communicate with the control panel?
A: The keypad supports wireless communication up to 900m (open space) using Tri-X technology.

Q: Does the keypad have backlighting for nighttime use?
A: Yes, the full-touch keypad features LED backlighting for visibility in low-light conditions.

Q: How long does the battery last?
A: The keypad operates on 4 x AA batteries, providing a standby life of over two years.

Let me know if you need any modifications or additional details!

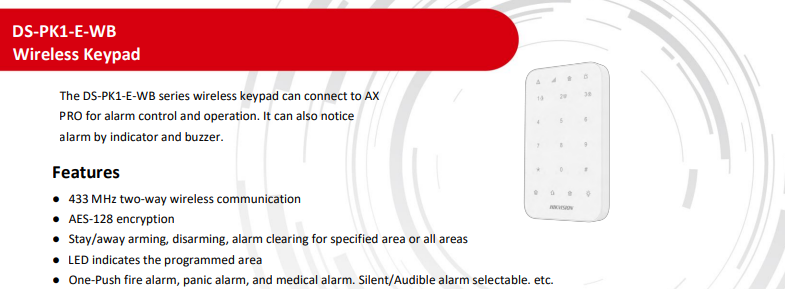

Download Datasheet
