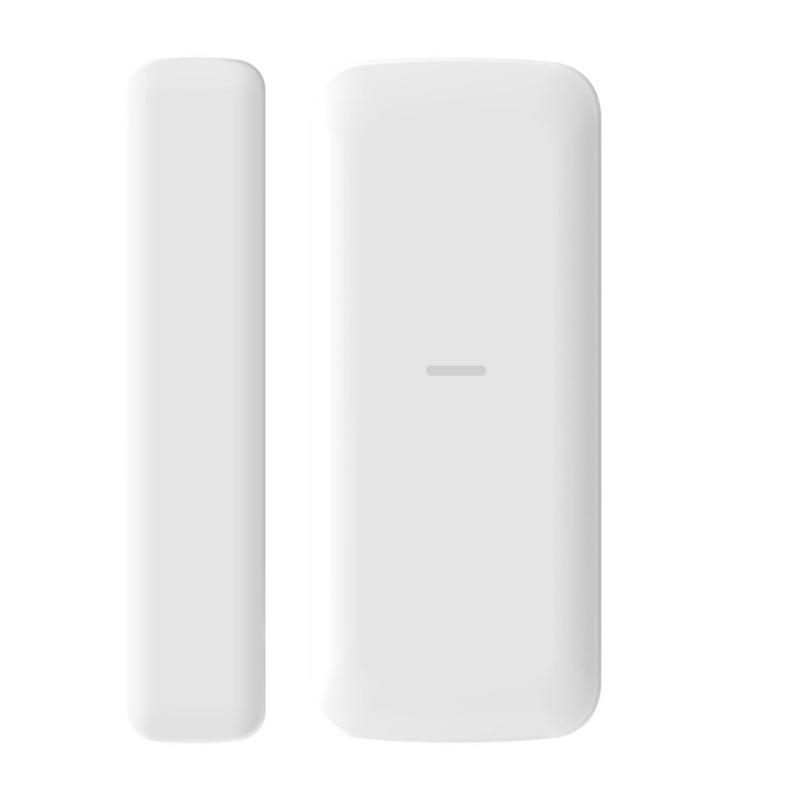

Hikvision AX PRO Series DS-PDMCS-EG2-WB Wireless Slim Magnetic Contact

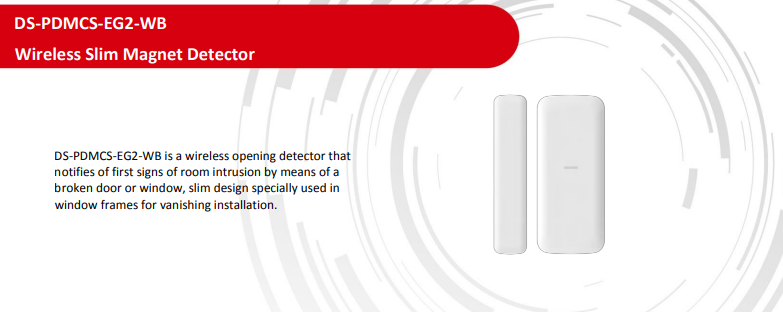

The Hikvision DS-PDMCS-EG2-WB Wireless Slim Magnet Detector is a discreet and highly effective intrusion detection device designed for seamless integration into security systems. Its ultra-slim design makes it ideal for window frames and vanishing installations, ensuring discreet protection against unauthorized entry. Featuring Tri-X wireless technology, AES-128 encryption, and frequency hopping for jamming resistance, this detector offers secure and reliable performance. With full remote configuration via the Hik-Connect app and easy installation, it is a perfect security solution for residential and commercial applications.

What's Included

• 1 x Hikvision DS-PDMCS-EG2-WB Wireless Slim Magnet Detector
• 1 x CR2450 Battery
• User Manual

Key Features

• Slim and Compact Design: Ideal for window frames and discreet installations
• Wide Detection Gap: Supports up to 52mm for opening detection
• Tri-X Wireless Technology: Ensures long-range, interference-resistant communication
• AES-128 Encryption & Frequency Hopping: Protects against jamming and signal interception
• Two-Way RF Wireless Transmission: Reliable signal transmission up to 1 km in free space
• Remote Configuration via App: Fully adjustable settings through the Hik-Connect App
• Multiple Enrollment Methods: Power Up, Remote ID, QR Code for easy installation

Specifications

Detection Performance

• Detection Method: Magnetic Contact
• Detection Gap: Up to 52mm

Advanced Features

• Digital Processing: Yes
• Tamper Protection: Front & Rear
• Environmental Indicators: Signal Strength & Temperature

Transmission

• Technology: Tri-X Wireless
• Frequency: 433MHz
• Security: AES-128 Encryption
• Range: Up to 1 km (Free Space)
• Jamming Protection: Frequency Hopping

Power & Battery

• Power Source: Battery Powered
• Battery Type: CR2450 x 1 (Included)
• Typical Voltage: 3V
• Battery Life: Up to 3 years

Environmental & Physical Specifications

• Operating Temperature: -10°C to 55°C (14°F to 131°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Humidity Resistance: 10% to 90%
• Dimensions:
  • Sensor: 29mm × 69mm × 10mm
  • Magnetic Stick: 14mm × 69mm × 10mm
• Weight: 38g
• Application: Indoor Use

Warranty Information

Hikvision provides a 2 year manufacturer-backed warranty, ensuring product reliability and technical support.

About the Brand – Hikvision

Hikvision is a globally recognized leader in security and surveillance solutions, offering innovative and reliable products for residential, commercial, and industrial applications. With advanced AI-driven technology and superior encryption standards, Hikvision sets the benchmark for modern security systems.

Ideal Use Cases

• Residential homes requiring discreet window and door intrusion detection
• Office buildings and commercial spaces needing compact security solutions
• High-security environments where encrypted, interference-resistant devices are required

Excellence for the Australian and New Zealand Market

• Fully optimized for Australian and New Zealand security standards
• Uses AES-128 encryption and frequency hopping for superior safety compliance
• Designed for seamless integration with Hikvision security systems
• Sourced from authorized Hikvision distributors for warranty and local technical support

Frequently Asked Questions (FAQs)

Q: What makes this detector different from standard magnetic sensors?
A: The ultra-slim design makes it perfect for window frames and concealed installations, providing discreet security.

Q: What is the maximum wireless range?
A: The detector supports a 1 km transmission range in free space using Tri-X Wireless technology.

Q: Does it work with Hikvision alarm systems?
A: Yes, this sensor is designed to seamlessly integrate with Hikvision alarm and security systems.

Q: How long does the battery last?
A: The included CR2450 battery provides up to 3 years of usage under standard operating conditions.
