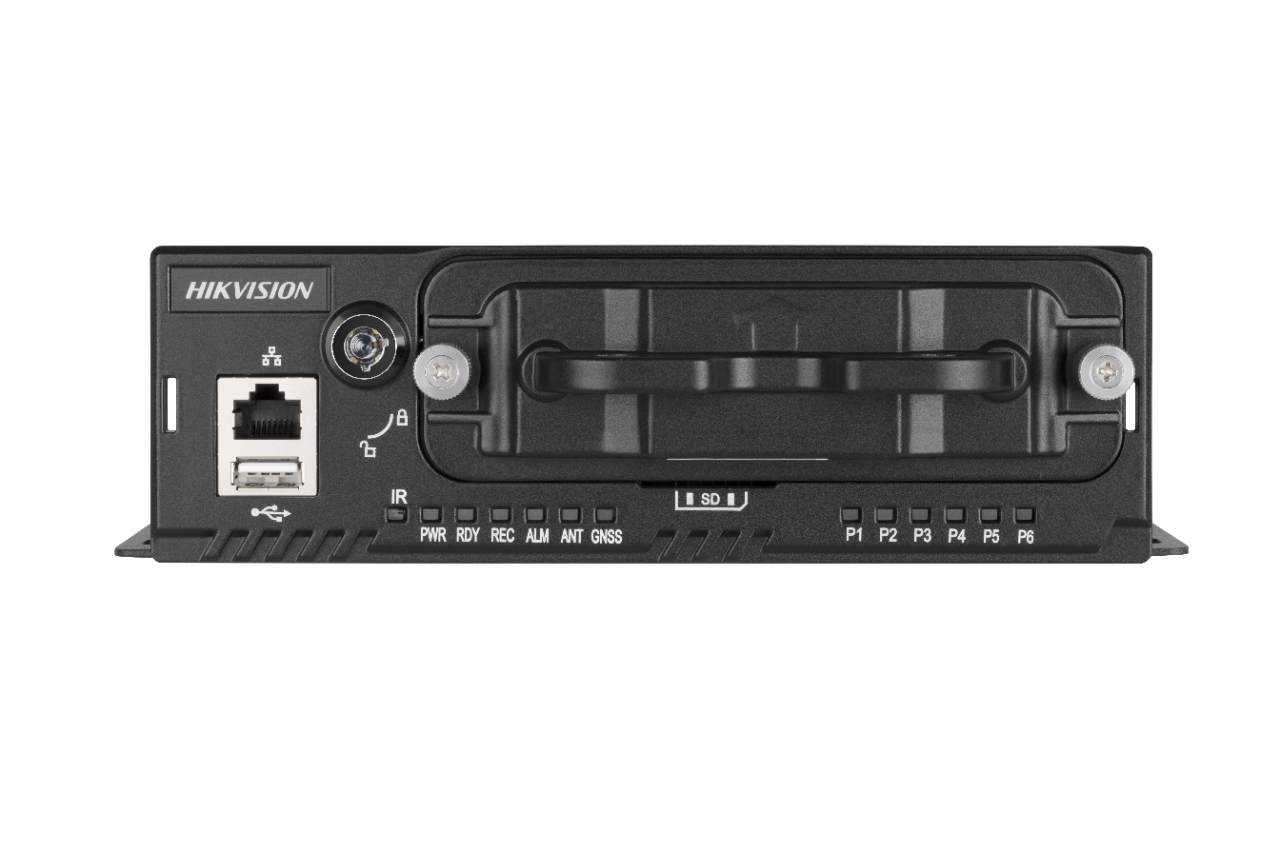

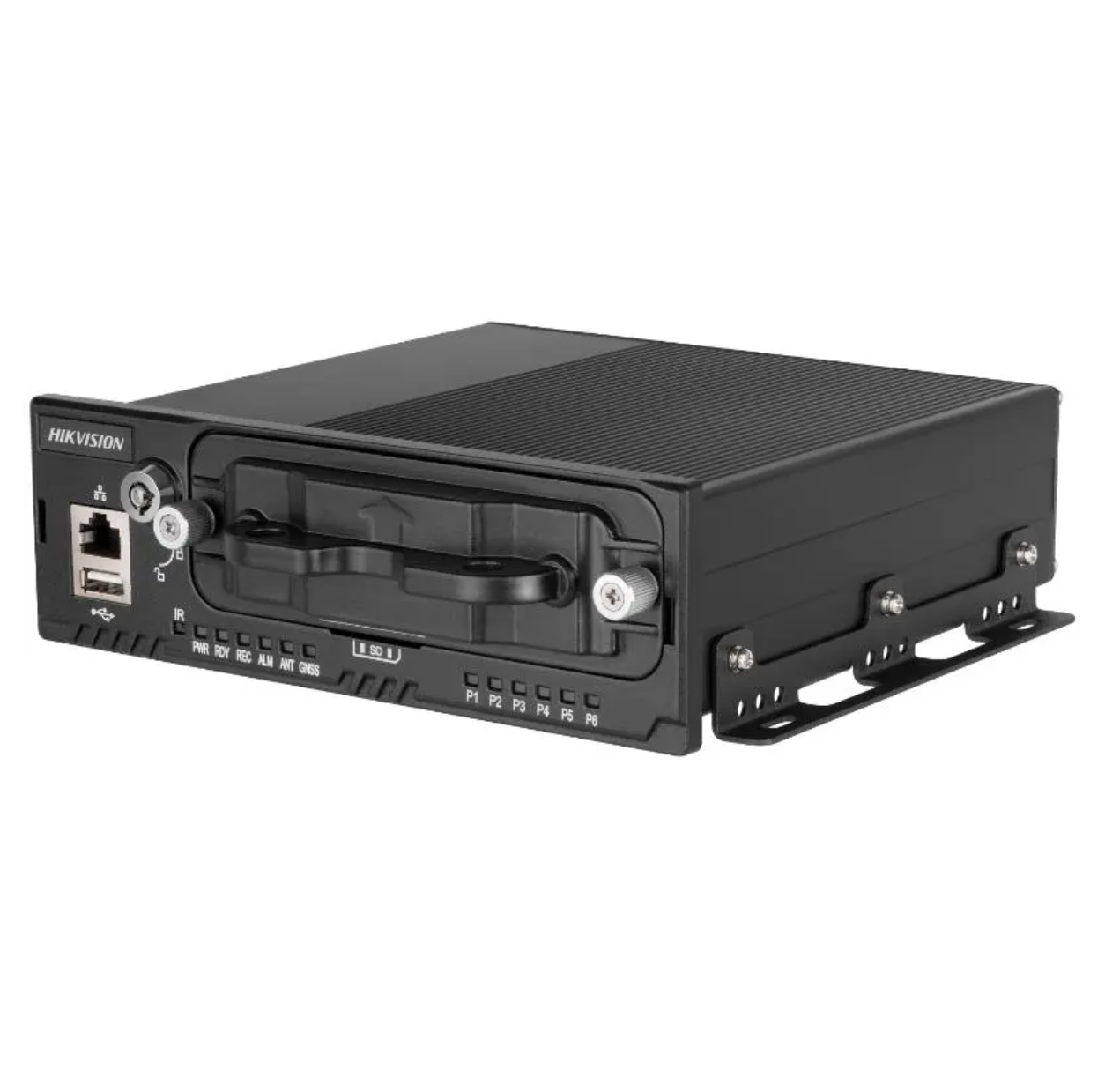

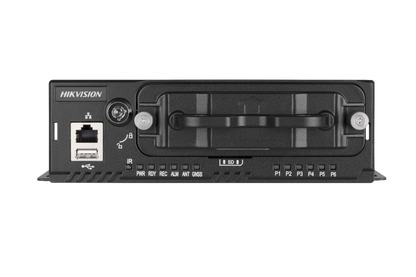

Hikvision AE-MN5043(RJ45) 4-Channel Mobile NVR with Dual HDD/SSD Bays, H.265/H.264, 4G & GPS - Vehicle CCTV

The Hikvision AE-MN5043(RJ45) is a professional-grade 4-channel mobile NVR engineered for vehicle video surveillance across buses, trucks, taxis, and fleet vehicles. Supporting H.265/H.264 compression, dual 2.5” HDD/SSD bays, built-in GPS, optional 4G/Wi-Fi modules, and wide 9–36V DC input, this rugged mobile recorder delivers reliable HD recording, secure data storage, and real-time remote transmission for demanding transport environments in Australia and New Zealand.

Product Description

The Hikvision AE-MN5043(RJ45) mobile NVR is purpose-built for vehicle-based surveillance and fleet management applications. Running on a stable embedded Linux operating system, it provides high-definition recording up to 5MP per channel (from firmware V5.6.4), dual-stream encoding, and advanced data protection features.

Designed for public transport, school buses, mining vehicles, logistics fleets, learner-driven vehicles, and taxis, this unit supports four IP cameras via PoE interfaces, with expansion capability via a PoE switch. Its aluminum die-cast, fanless chassis ensures durability in harsh environments, while the built-in super-capacitor and power-off protection safeguard critical recordings during sudden power loss.

With built-in GPS/GLONASS positioning, G-sensor integration, alarm I/O, and driving information interfaces (braking, reversing, turning), the AE-MN5043(RJ45) provides comprehensive vehicle monitoring and event recording.

Available options:

• No Storage (Bare Unit)

• 1TB Pre-installed Storage Option

What’s Included in the Box

• Hikvision AE-MN5043(RJ45) Mobile NVR

• Power Cord

• GPS Antenna

• Alarm Line

• Extension Cable

• 2 × Fuses

• Key

• User Documentation

Main Features

• 4-channel IP camera input via PoE (expandable to 8 via PoE switch)

• H.265 / H.264 video compression

• Supports up to 5MP per channel (firmware dependent)

• Dual 2.5” HDD/SSD bays (SSD up to 4TB, HDD up to 2TB each)

• Built-in GPS & GLONASS positioning

• Optional 4G module (FAKRA antenna interface)

• Optional dual-antenna Wi-Fi module (802.11B/G/N/AC)

• Alarm input/output & vehicle signal integration

• Built-in G-sensor

• Super-capacitor for safe shutdown

• Wide voltage input: +9V to +36V DC

• Aviation-grade connectors for vibration resistance

• Redundant HDD/SSD recording backup

• Web browser access support

• Software-based firewall

Technical Specifications

Video & Audio

• Video Compression: H.265 / H.264

• Audio Compression: G.711a/G.711u/G.722.1/G.726

• Frame Rate:

  • PAL: 1–25 fps

  • NTSC: 1–30 fps

• Main Stream: 1080P / 720P / WD1 / 4CIF

• Sub Stream: 720P / WD1 / 4CIF / 2CIF / CIF

• Dual Stream: Supported

Storage

• 2 × 2.5” HDD/SSD Bays

  • SSD: up to 4TB each

  • HDD: up to 2TB each

• 1 × SD Card Slot (up to 512GB)

• Local export via optional converter

• Optional heated hard disk case

Network & Connectivity

• Front: 1 × 10M/100M RJ45

• Rear: 10M/100M 6-pin aviation connector

• 4G: 1 × SIM slot + FAKRA antenna

• Wi-Fi: Optional module (1–2 antennas depending on standard)

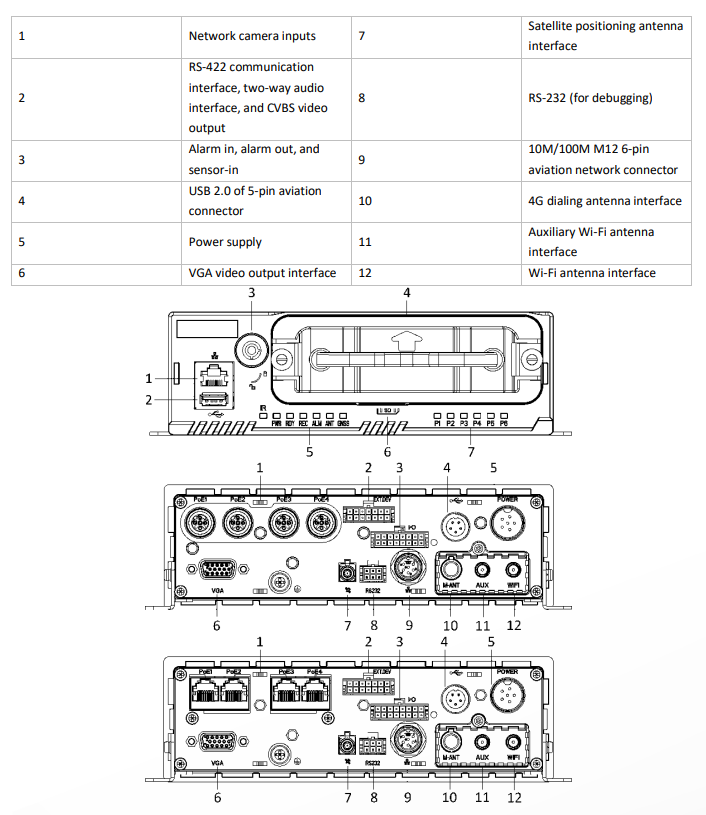

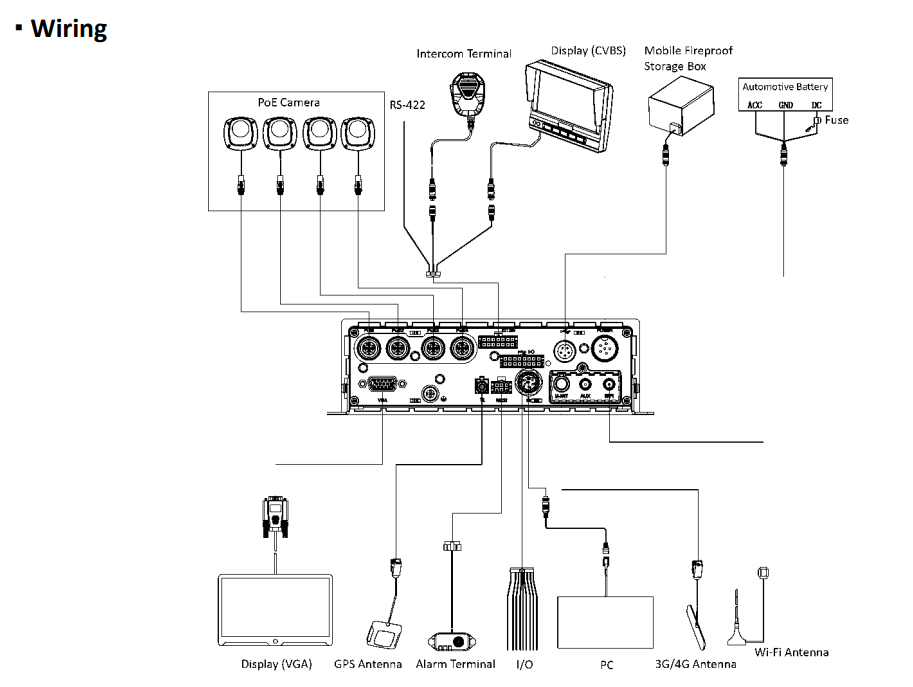

Interfaces

• 4 × Alarm inputs + 1 pulse + 1 button

• 2 × Relay alarm outputs

• 1 × RS-232

• 1 × RS-422

• VGA Output

• CVBS Output

Positioning & Sensors

• GPS & GLONASS

• Built-in G-Sensor

General

• Power Input: +9V to +36V DC

• Power Consumption:

  • Standby ≤ 0.5W

  • Full Load ≤ 55W

• Operating Temperature: -25°C to +70°C

• Humidity: 10%–95% (non-condensing)

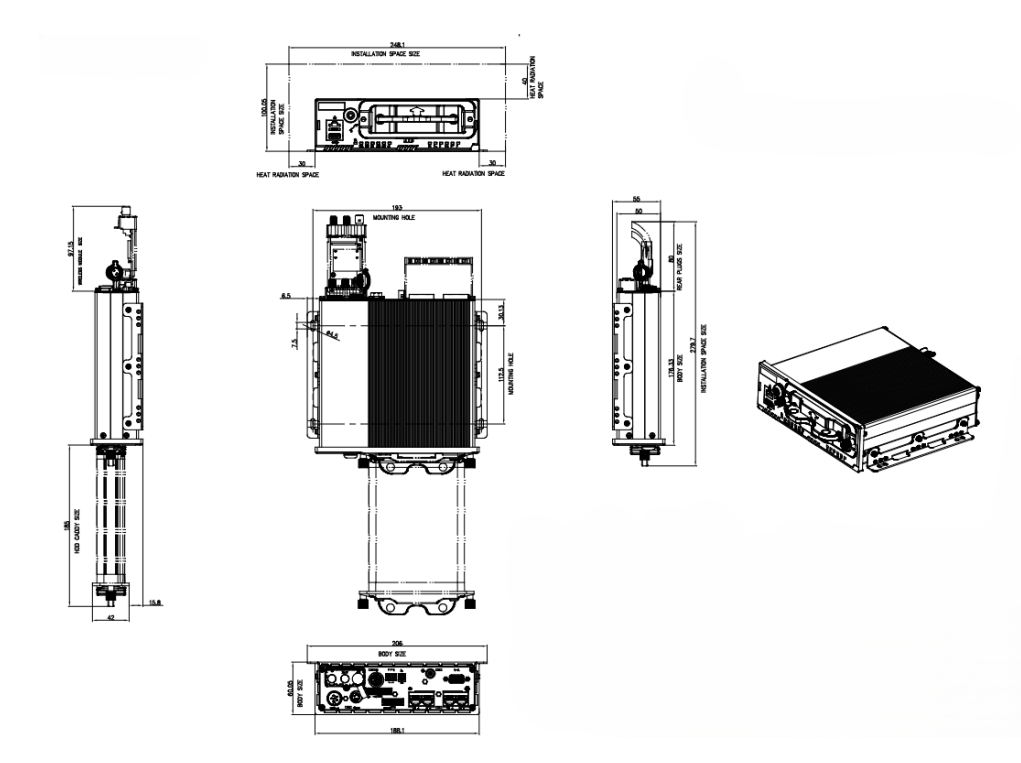

• Dimensions: 206 × 225.4 × 60.1 mm

• Weight (without storage): 1.66kg

• Fanless aluminum die-cast chassis

Certifications & Compliance

• CE / FCC

• E-Mark (ECE R10)

• EN50155 (Railway Standard)

• EN45545 (Fire Protection)

• ISO-7637-2

• RoHS 2.0

• IEC 62368-1

Designed for automotive and railway-grade compliance.

Practical Use Scenarios

• Public transport buses

• School buses

• Mining and industrial vehicles

• Trucking and logistics fleets

• Taxi and rideshare fleets

• Learner driver vehicles

• Coastal and high-corrosion environments

• Railway and specialty transport applications

Warranty Information

• 3 year Manufacturer warranty coverage

• Warranty support handled in coordination with authorized Hikvision distribution channels

• Full compliance documentation available upon request

Brand Information

Hikvision is a globally recognized manufacturer of professional video surveillance and security solutions. Known for innovation in AI-driven video systems, mobile surveillance, and enterprise-grade recording technologies, Hikvision products are widely deployed across transportation, infrastructure, and commercial sectors worldwide.

SKU

AE-MN5043-RJ45

(Storage options selectable: No Storage / 1TB)

Datasheets & Resources

• Product Datasheet (PDF)


Excellence for the Australian and New Zealand Market

The Hikvision AE-MN5043(RJ45) is engineered to meet demanding Australian and New Zealand operating conditions, including extreme temperature ranges and vehicle power fluctuations.

• Compliant with international automotive and railway standards

• Wide voltage tolerance (9–36V DC) ideal for AU/NZ fleet vehicles

• Rugged fanless design suited for mining, coastal, and industrial environments

• Sourced from authorized distribution channels

• Professional warranty handling and support coordination

• Designed for integration into compliant transport surveillance systems

FAQs – Hikvision AE-MN5043(RJ45)

1. Does the AE-MN5043(RJ45) support 5MP cameras?

Yes, the AE-MN5043(RJ45) supports up to 5MP resolution per channel (firmware V5.6.4 or later).

2. How many hard drives can the AE-MN5043(RJ45) support?

The AE-MN5043(RJ45) supports 2 × 2.5” HDD or SSD drives.

3. Is the AE-MN5043(RJ45) suitable for buses and trucks?

Yes, the AE-MN5043(RJ45) is specifically designed for vehicle environments including buses, trucks, taxis, and fleet vehicles.

4. Does the AE-MN5043(RJ45) have GPS tracking?

Yes, the AE-MN5043(RJ45) includes built-in GPS and GLONASS modules for vehicle positioning.

5. Can the AE-MN5043(RJ45) operate on 12V and 24V vehicle systems?

Yes, the AE-MN5043(RJ45) supports a wide input voltage range of 9V–36V DC.

6. Does the AE-MN5043(RJ45) support remote access?

Yes, the AE-MN5043(RJ45) supports web browser access and optional 4G/Wi-Fi modules for remote connectivity.

7. Is storage included with the AE-MN5043(RJ45)?

The AE-MN5043(RJ45) is available in no-storage and 1TB pre-installed storage options.

8. Does the AE-MN5043(RJ45) protect recordings during power loss?

Yes, the AE-MN5043(RJ45) includes a built-in super-capacitor and power-off protection system.
