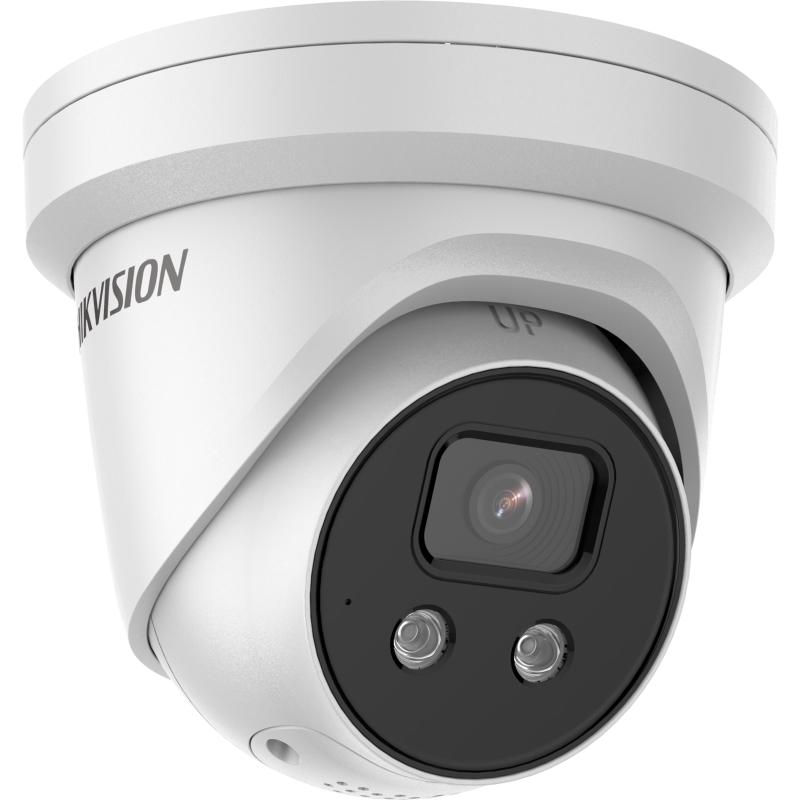

Hikvision Acusense DS-2CD2366G2-ISU/SL IP LIVEGUARD 6MP With Warning & Strobe Turret Network Camera 2.8mm

Name: Hikvision Acusense DS-2CD2366G2-ISU/SL IP LIVEGUARD 6MP With Warning & Strobe Turret Network Camera 2.8mm
Brand: CCTV Tradie
SKU: DS-2CD2366G2-ISU/SLSD-1
Price: 287.64 AUD
Availability: InStock

Hikvision Acusense DS-2CD2366G2-ISU/SL IP LIVEGUARD 6MP With Warning & Strobe Turret Network Camera 2.8mm

$287.64 AUD

~~$447.78 AUD~~ $287.64 AUD

Sale Sold out

Duties and taxes included. Shipping calculated at checkout.

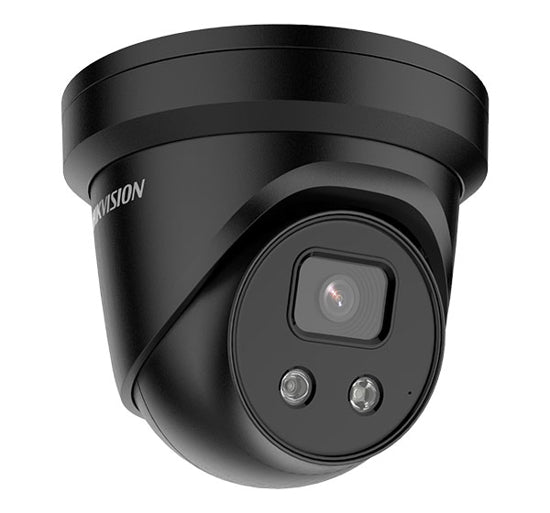

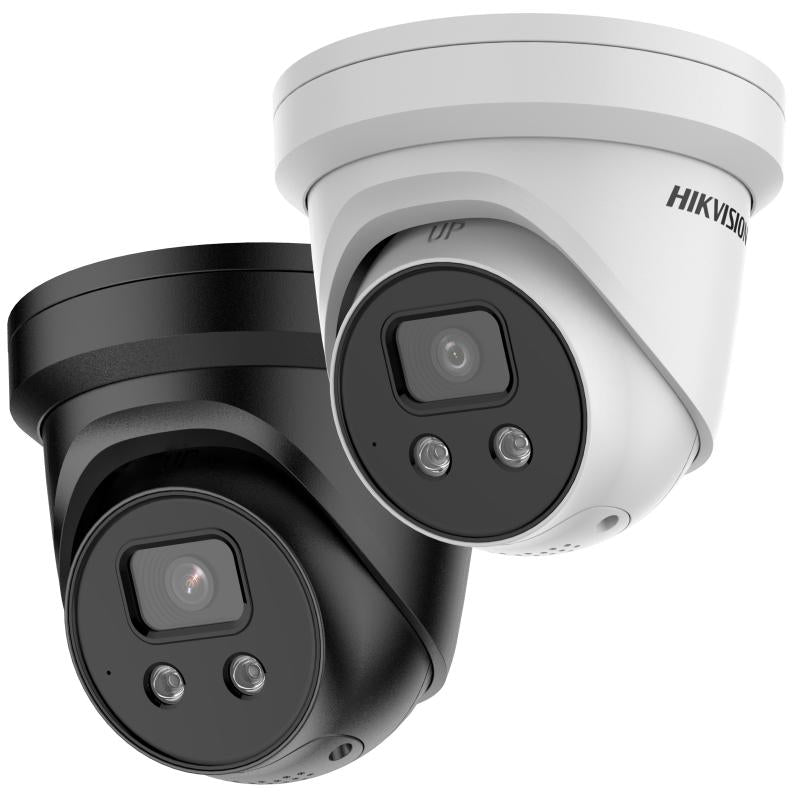

Color White Black (Special Order - Shipping could take longer than usual)

The Hikvision DS-2CD2366G2-ISU/SL is a high-performance 6 MP turret network camera designed with AcuSense technology. Leveraging deep learning algorithms, this camera focuses on human and vehicle classification, significantly improving alarm accuracy. It provides clear images even in challenging lighting conditions with DarkFighter technology for superior low-light performance. The camera is equipped with active deterrence features such as a strobe light and audible warning to ward off intruders, along with two-way audio for real-time communication.

Key Features:

6 MP Resolution: Delivers high-quality imaging with a maximum resolution of 3200 × 1800.
AcuSense Technology: Enhances alarm efficiency by focusing on human and vehicle targets, reducing false alarms.
DarkFighter Technology: Excellent low-light performance, providing clear images in near-darkness with a minimum illumination of 0.003 Lux in color mode.
120 dB True WDR: Wide Dynamic Range for clear imaging against strong backlight.
Active Deterrence: Strobe light and built-in audio alarm to deter intruders in real-time.
Two-Way Audio: Built-in microphone and speaker provide real-time communication.
H.265+ Compression: Efficient bandwidth usage and storage reduction without compromising video quality.
IP67 Rated: Dust and water-resistant, suitable for outdoor and harsh environments.

Camera Specifications:

Image Sensor: 1/2.4" Progressive Scan CMOS
Minimum Illumination: 0.003 Lux (color), 0 Lux with IR
Shutter Speed: 1/3 s to 1/100,000 s
Wide Dynamic Range: 120 dB
Lens: Fixed focal lens, available in 2.8 mm, 4 mm, and 6 mm options
IR Range: Up to 30 m with 850 nm IR wavelength

Lens and FOV Options:

2.8 mm: Horizontal FOV 105.1°, Vertical FOV 53.4°, Diagonal FOV 128.6°
4 mm: Horizontal FOV 83.9°, Vertical FOV 44.5°, Diagonal FOV 100.8°
6 mm: Horizontal FOV 47.5°, Vertical FOV 26°, Diagonal FOV 54.5°

Video Specifications:

Main Stream: Up to 30 fps at 3200 × 1800, 2688 × 1520, 1920 × 1080, and other resolutions
Sub-Stream: Up to 30 fps at 640 × 480, 640 × 360
Third Stream: Up to 10 fps at 1920 × 1080, 1280 × 720, 640 × 480, and 640 × 360
Compression: H.265+, H.265, H.264+, H.264
Bit Rate: 32 Kbps to 16 Mbps (adjustable based on CBR/VBR)

Audio Specifications:

Audio Input: 1-channel line-in (max. 3.3 Vpp, 4.7 kΩ)
Built-in Microphone and Speaker: Speaker power 1.2 W, maximum sound pressure level 95 dB at 10 cm
Audio Compression: G.711, G.726, MP2L2, MP3, AAC with noise filtering for clear sound
Two-Way Audio: Provides live communication for real-time interaction.

Intelligent Features:

Deep Learning-Based Target Classification: Accurate detection and classification of human and vehicle targets.
Face Capture: Supports face detection and perimeter protection, including line crossing, intrusion, and region entrance/exit detection.
Active Deterrence: Strobe light and built-in speaker for audio alarm to warn intruders off.
Smart Event Detection: Scene change detection and motion detection.

Network and Interface:

Network Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, and more.
Simultaneous Live View: Supports up to 6 channels.
Ethernet Interface: 1 RJ45 10M/100M Ethernet port.
Storage: Built-in microSD slot, supporting cards up to 256 GB.
API Support: Open Network Video Interface (ONVIF Profiles S, G, T), ISAPI, and SDK for integration with third-party systems.

Power and Environmental:

Power Supply: 12 VDC ± 25%, or PoE (802.3af Class 3)
Power Consumption: Max. 9.7 W via PoE
Operating Temperature: -30°C to 60°C (-22°F to 140°F), with up to 95% humidity (non-condensing)
Weatherproof Rating: IP67-rated, offering complete protection against dust and water ingress.

Dimensions and Weight:

Camera Dimensions: Ø138.3 mm × 112.1 mm (Ø5.4" × 4.4")
Weight: Approx. 820 g (1.8 lb.), with packaging approx. 1150 g (2.5 lb.)

Compliance and Certifications:

EMC Standards: FCC, CE-EMC, RCM, IC, KC
Safety Standards: UL, CB, CE-LVD
Environmental Standards: CE-RoHS, WEEE, Reach

Accessories (Optional):

Mounting Options: DS-1275ZJ-SUS (Pole Mount), DS-1273ZJ-140 (Wall Mount), DS-1280ZJ-DM21 (Junction Box), and more.

This 6 MP Hikvision AcuSense turret camera offers comprehensive security with advanced deep learning features, robust build quality, and multiple mounting options for versatile installation.
