Hikvision 6MP Custom CCTV Kit – Up to 8 Cameras with DS-2CD2366G2H-IU DarkFighter / DS-2CD2367G3-LIS2UY/SL ColorVu Cameras & 8-Channel PoE NVR /V-Pro Acuseek

The Hikvision 6MP custom CCTV kit is a professional IP security solution designed for homes, warehouses, retail stores, offices, farms, schools, and commercial sites across Australia and New Zealand. Configure your system with up to 8 Hikvision 6MP turret cameras, choose between DarkFighter low-light cameras or ColorVu Smart Hybrid Light cameras, and pair them with a reliable 8-channel Hikvision PoE NVR for high-resolution recording, smart detection, remote viewing, and scalable surveillance.

This kit is built around Hikvision’s advanced 6MP network camera range and 8-channel PoE NVR platforms. Camera options include the DS-2CD2366G2H-IU 6MP Powered by DarkFighter Fixed Turret Network Camera, offering excellent low-light performance, 120 dB WDR, H.265+ compression, human and vehicle classification, built-in microphone, IR illumination up to 30 m, and IP67 weather resistance. Hikvision’s official AU page confirms the DS-2CD2366G2H-I(U) model specifications, including 6MP resolution, 3200 × 1800 maximum resolution, 0.001 lux colour minimum illumination, and IP67 protection.

For enhanced colour night imaging and active deterrence, the kit can also be customised with the DS-2CD2367G3-LIS2UY/SL 6MP Smart Hybrid Light ColorVu Fixed Turret Network Camera. This camera includes ColorVu technology, HikAI-ISP noise reduction, dual microphones, two-way audio, active strobe light and audio alarm, smart hybrid IR/white light illumination, 130 dB WDR, NEMA 4X anti-corrosion protection, and IP67 weather resistance. Hikvision’s official AU page lists this model as a 6MP Smart Hybrid Light with ColorVu fixed turret network camera.

Choose your NVR from the DS-7608NI-M2/8P M Series 8K NVR or the DS-7608NXI-I2/8P/VPro AcuSeek NVR. The DS-7608NI-M2/8P supports up to 8 IP camera inputs, 8 independent PoE ports, up to 32MP camera input, H.265+/H.265/H.264+/H.264 formats, 128 Mbps incoming bandwidth, 8K HDMI output, and up to two SATA interfaces. Hikvision’s AU page confirms the DS-7608NI-M2/8P supports 8-channel IP video input and up to 32MP resolution. The DS-7608NXI-I2/8P/VPro adds AcuSeek and AcuSearch functionality, AI analytics, facial recognition support, 8-channel PoE, up to two SATA interfaces, and up to 20TB capacity per HDD bay according to Hikvision’s product documentation.

Important: This CCTV kit is supplied without hard drives. HDD storage must be selected separately based on your required recording duration, camera count, recording quality, and retention needs.

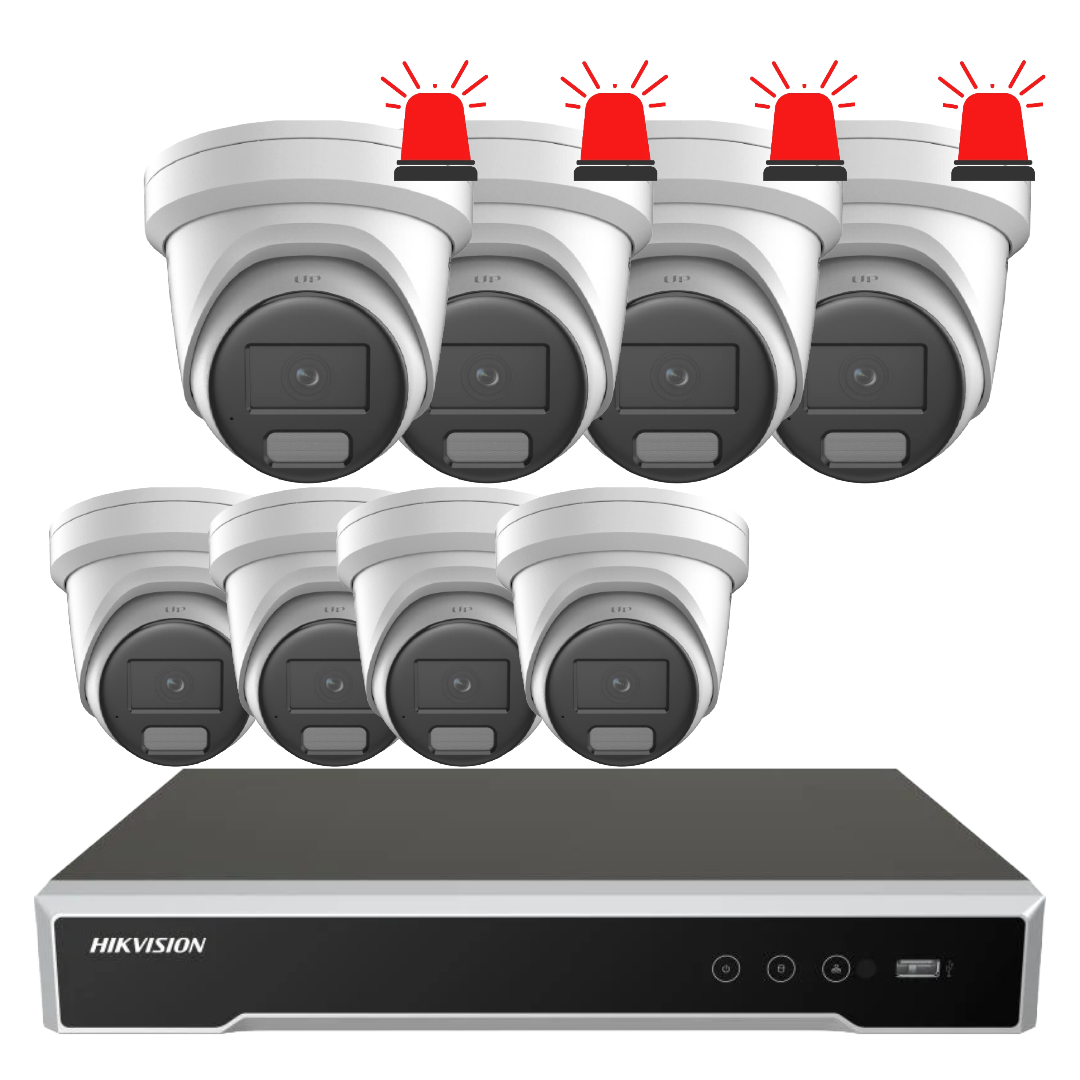

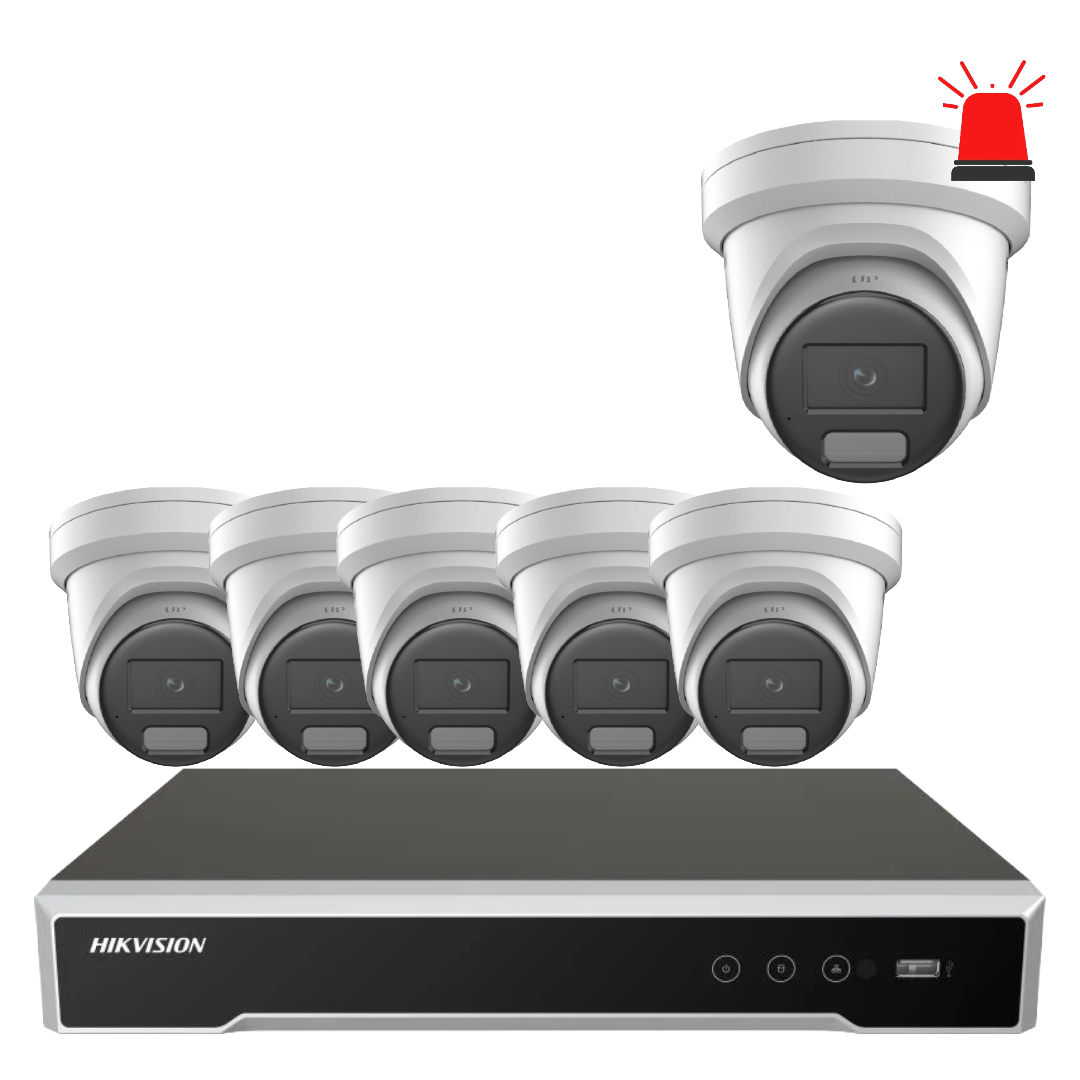

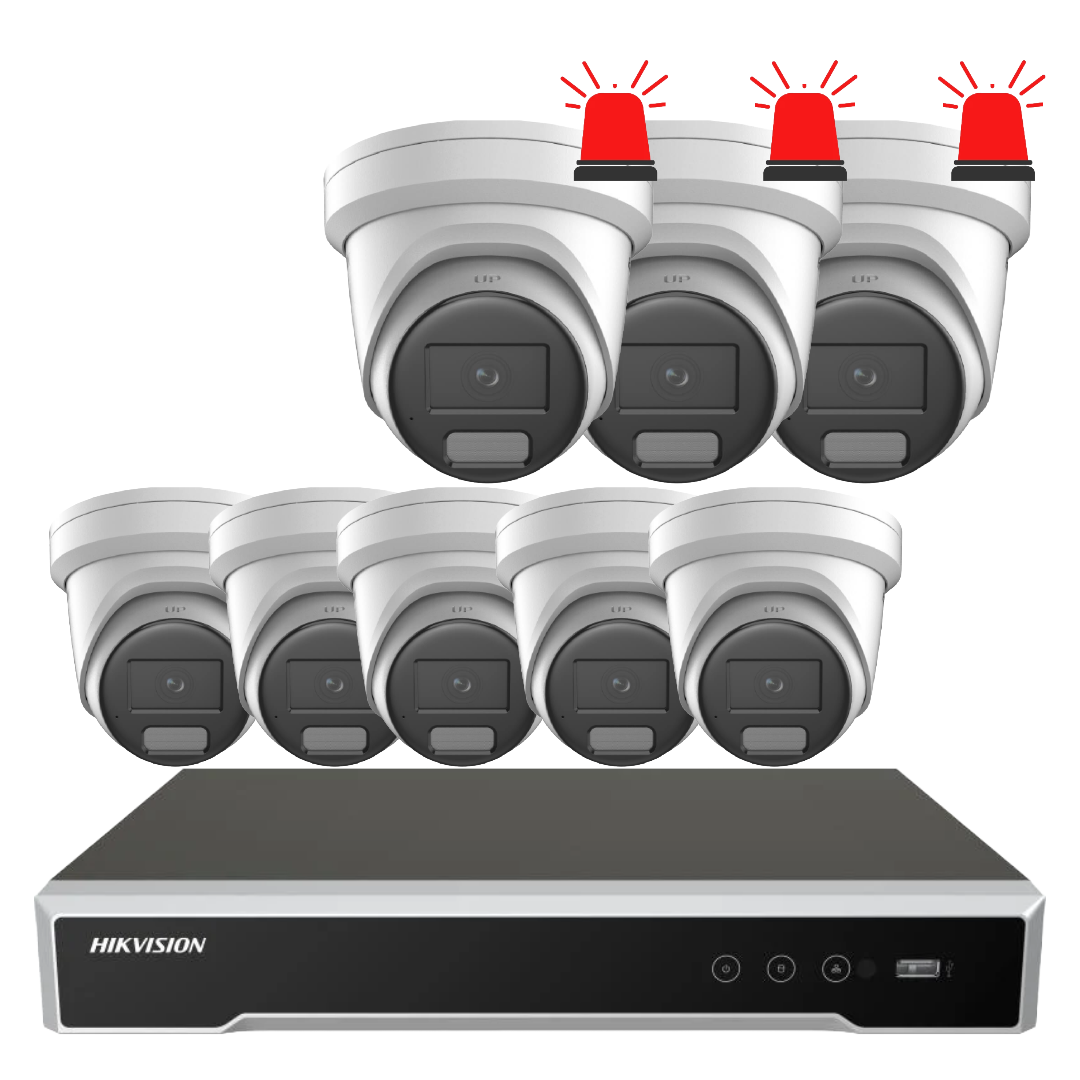

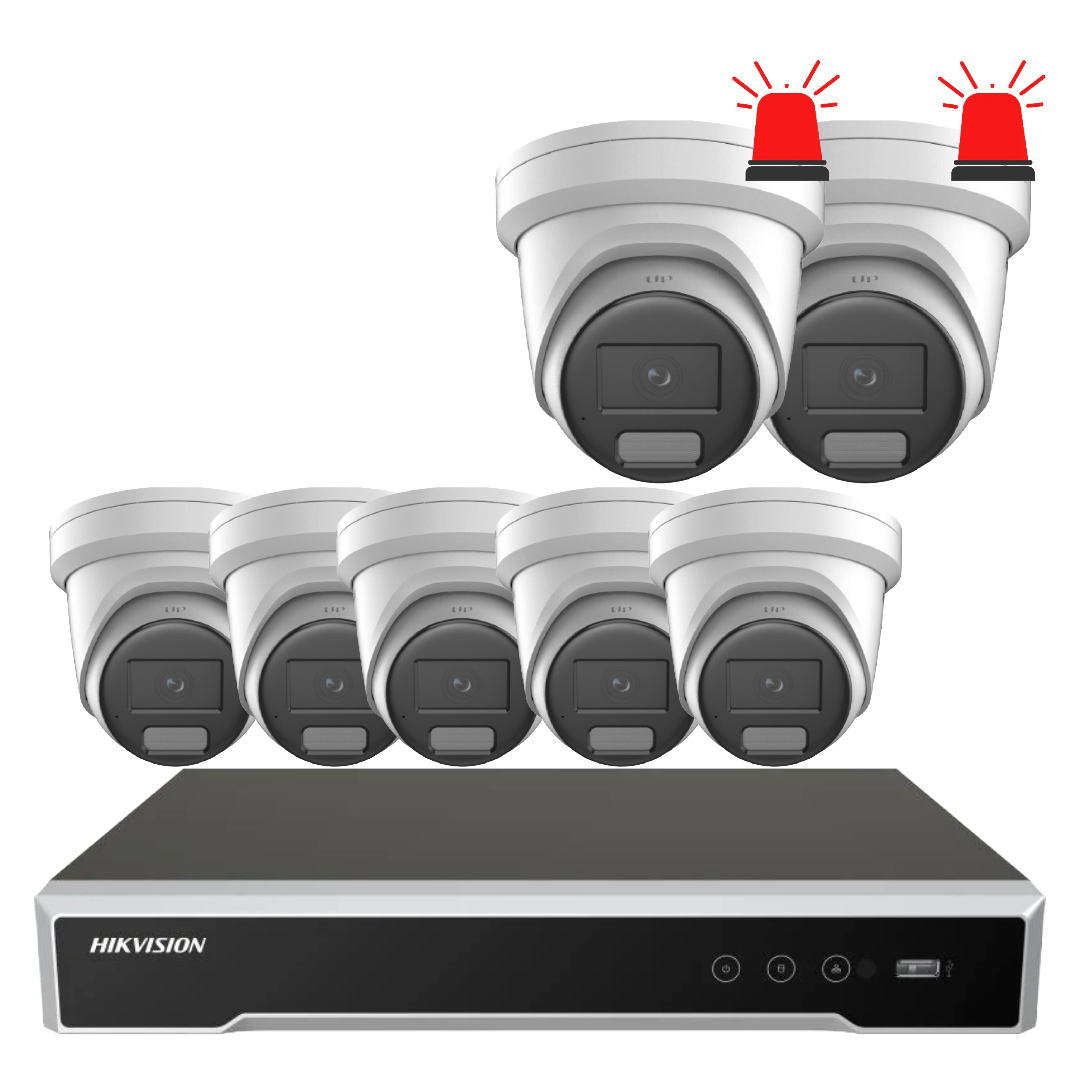

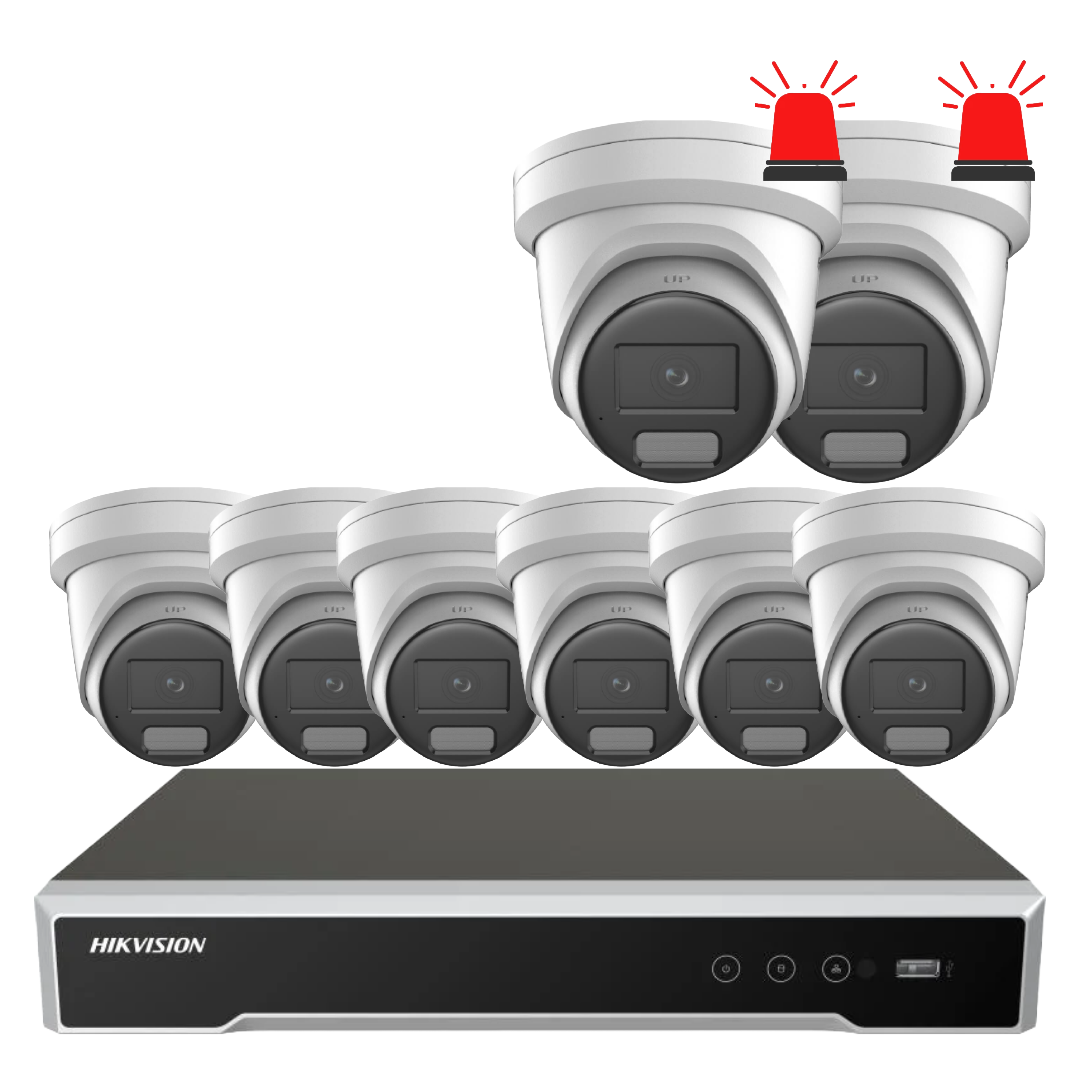

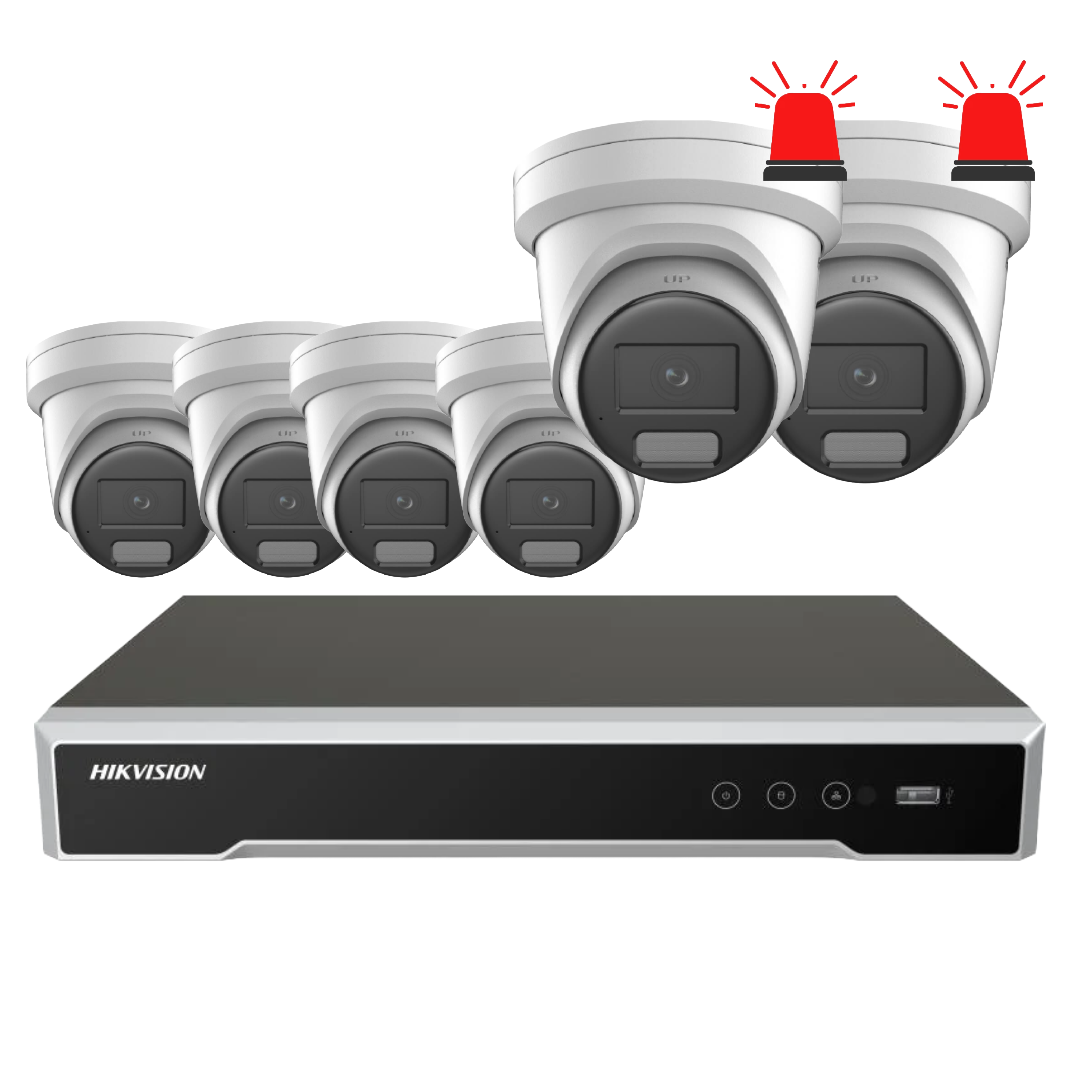

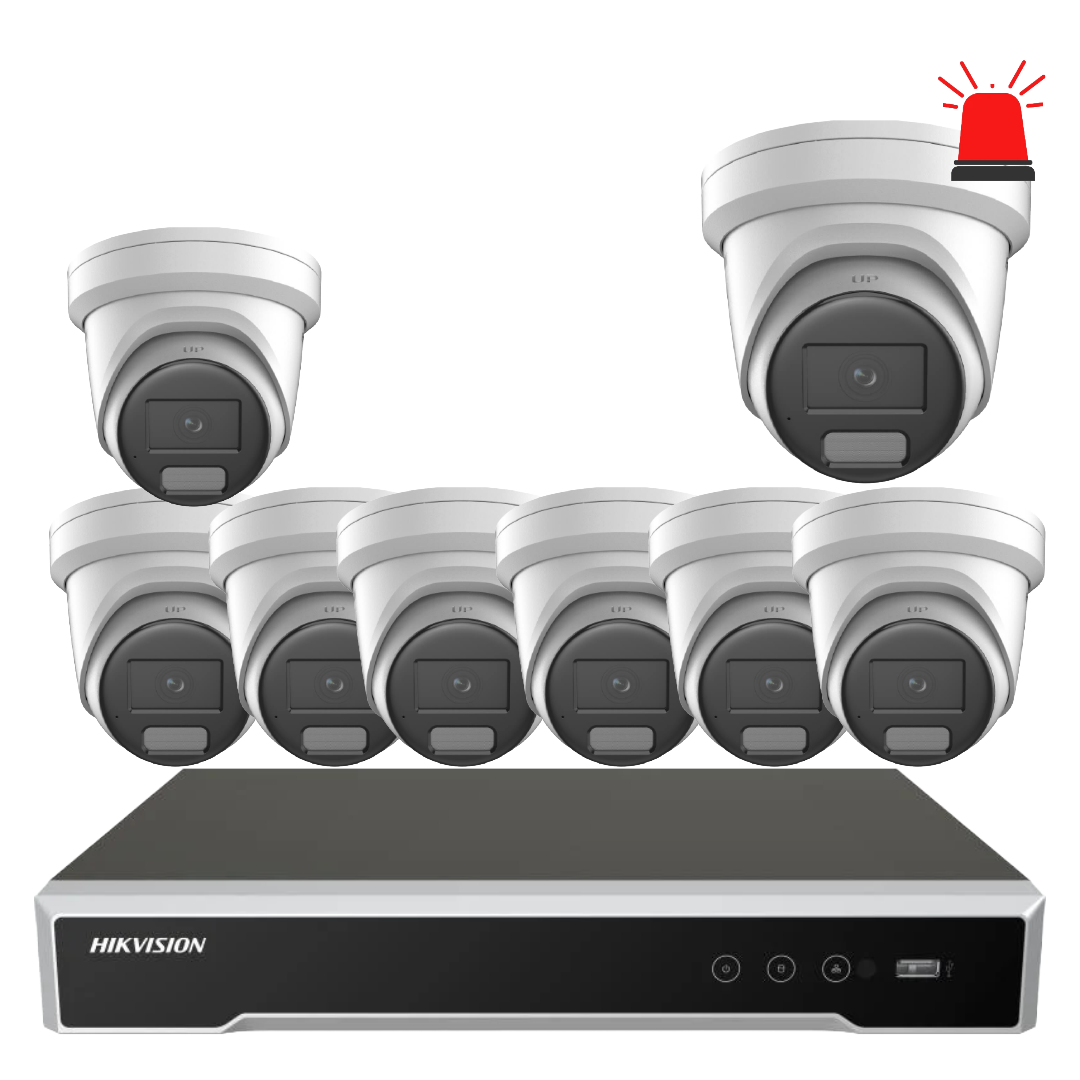

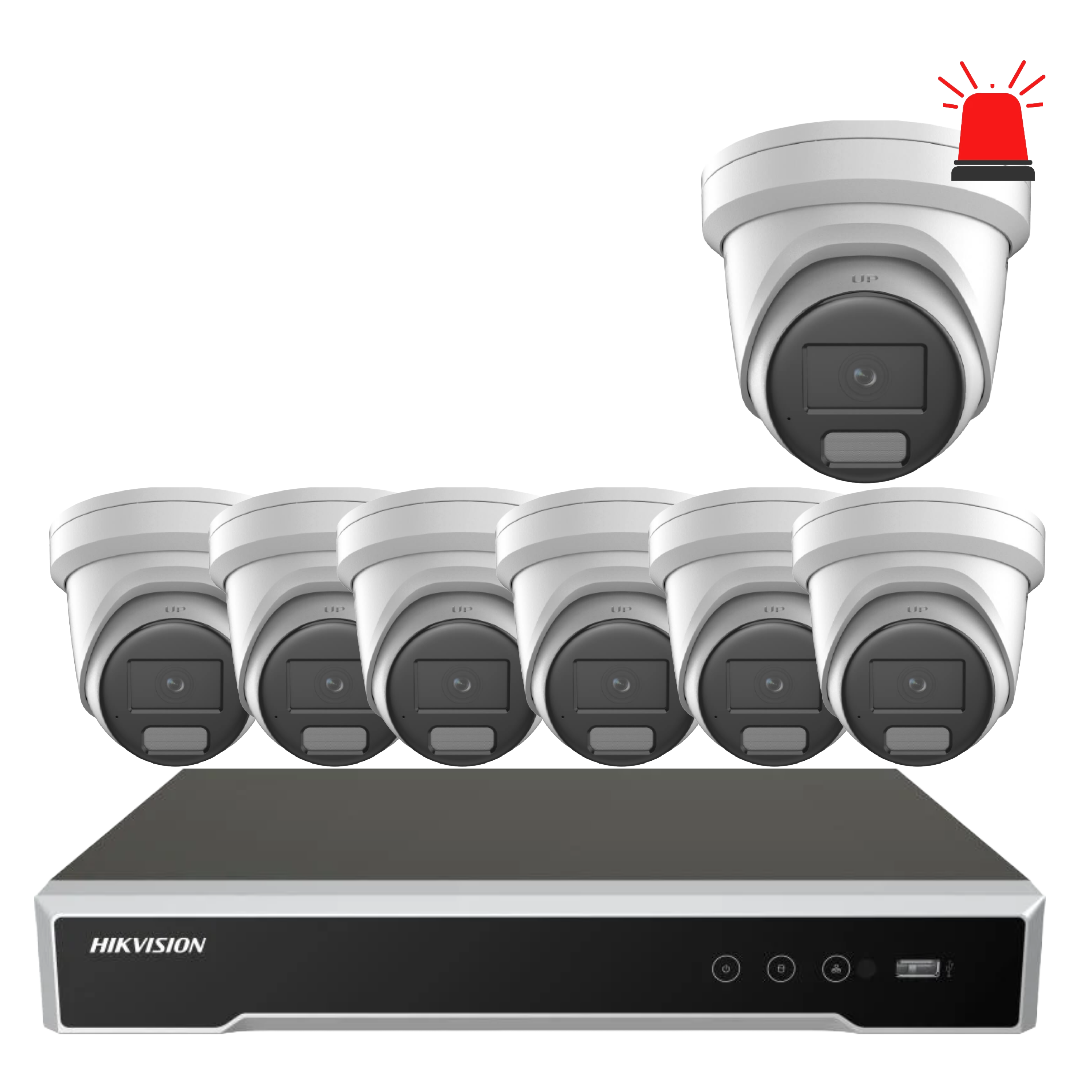

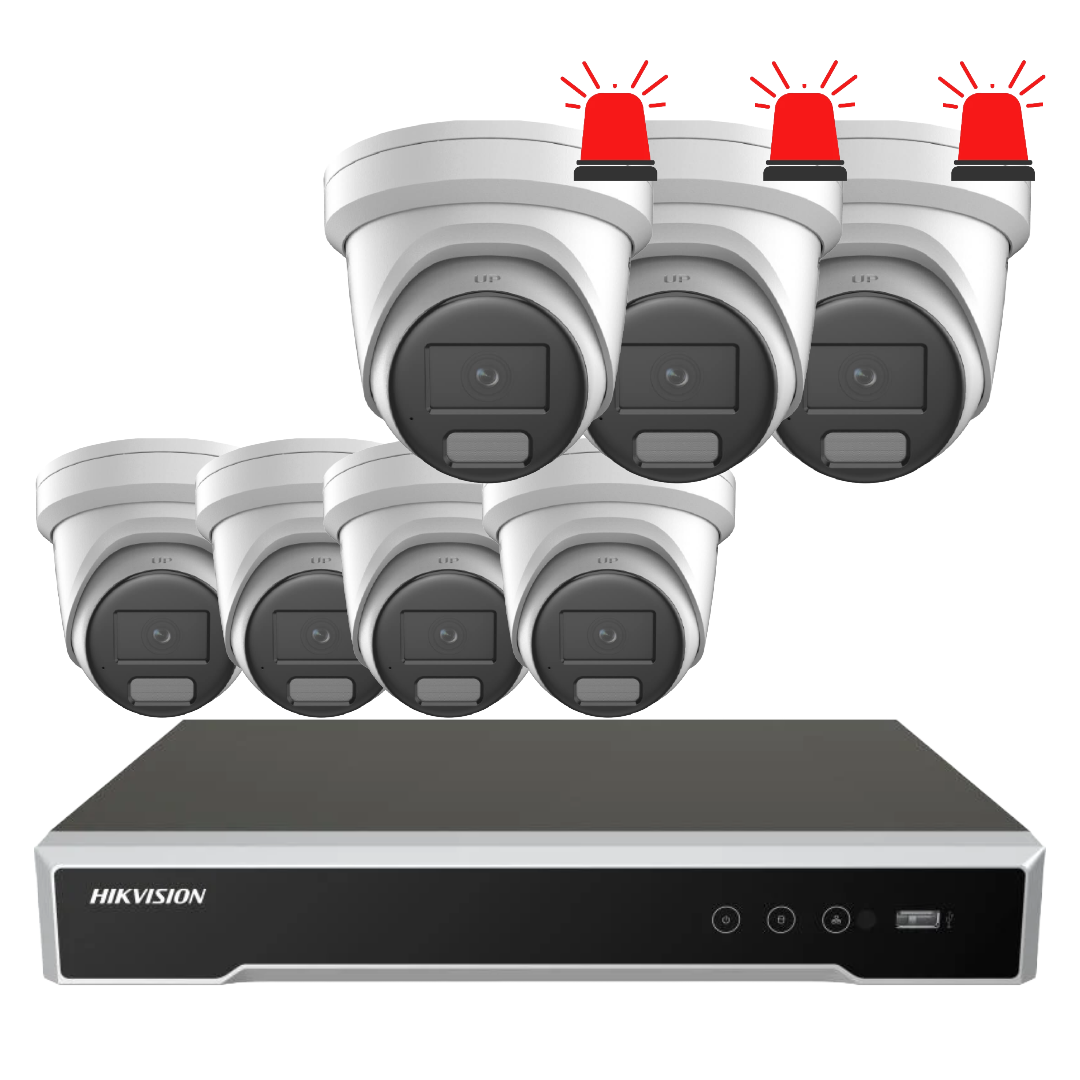

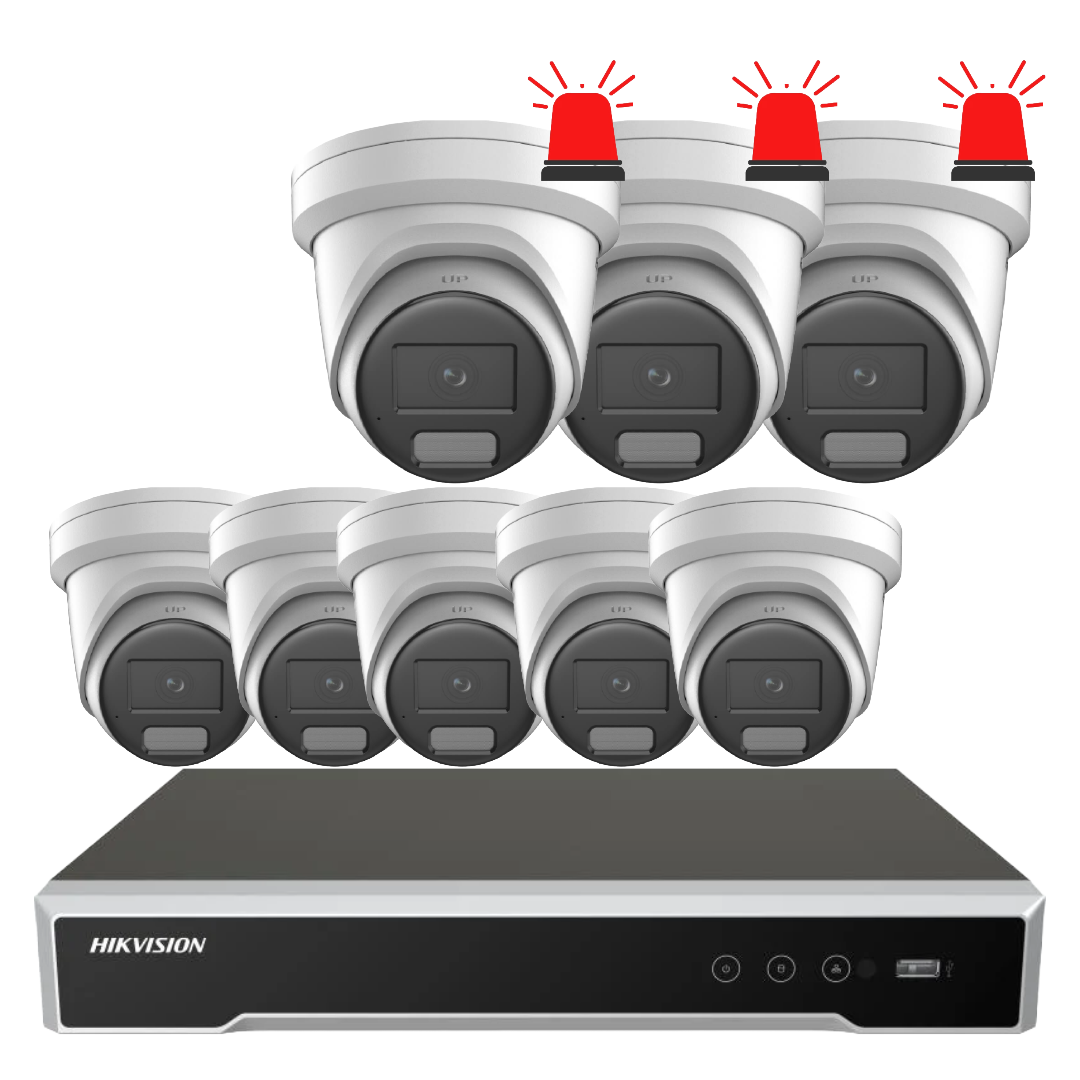

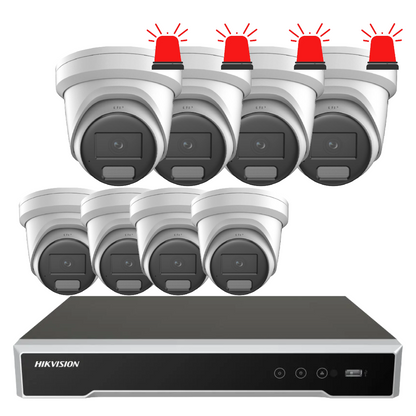

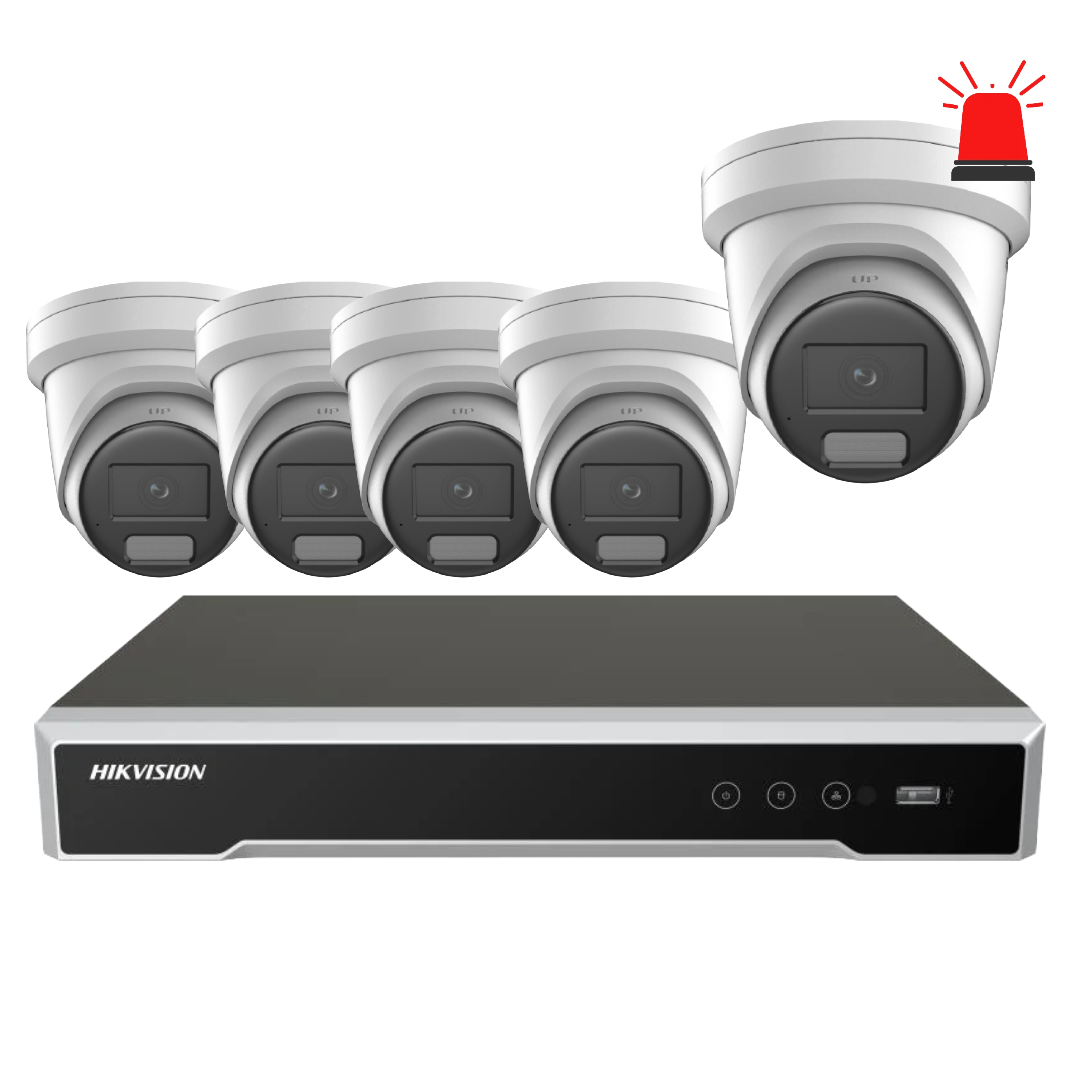

What’s Included in the Box

Configured according to customer selection:

• 1 × Hikvision 8-channel PoE NVR
  • Option 1: DS-7608NI-M2/8P M Series 8K NVR
  • Option 2: DS-7608NXI-I2/8P/VPro AcuSeek NVR
• Up to 8 × Hikvision 6MP turret cameras, customised to order
  • DS-2CD2366G2H-IU DarkFighter turret camera
  • DS-2CD2367G3-LIS2UY/SL ColorVu Smart Hybrid Light turret camera
• Manufacturer-supplied standard accessories and documentation
• 3-year warranty

Not included unless separately selected: HDD storage, monitor, HDMI/VGA display, network cabling, installation labour, optional junction boxes, wall mounts, pole mounts, pendant mounts, or corner mounts.

Main Features

Customisable 6MP CCTV Camera Kit

Choose the camera quantity and camera type to suit your property. This kit supports up to 8 Hikvision 6MP IP cameras through an 8-channel PoE NVR.

6MP Ultra-Clear Security Imaging

Both camera options provide 3200 × 1800 maximum resolution, delivering detailed surveillance footage suitable for entrances, driveways, warehouses, reception areas, loading docks, car parks, and general perimeter monitoring.

DarkFighter Low-Light Camera Option – DS-2CD2366G2H-IU

The DS-2CD2366G2H-IU provides excellent low-light performance with Powered by DarkFighter technology, IR illumination up to 30 m, 120 dB WDR, and deep-learning human and vehicle classification.

ColorVu Smart Hybrid Light Option – DS-2CD2367G3-LIS2UY/SL

The DS-2CD2367G3-LIS2UY/SL provides 24/7 colour imaging with ColorVu technology, smart hybrid IR/white light, dual microphones, two-way audio, active strobe light, audio alarm, and enhanced 130 dB WDR.

AI Human and Vehicle Detection

Both camera options focus on person and vehicle classification based on deep learning, helping reduce false alarms caused by irrelevant movement such as animals, shadows, leaves, or lighting changes.

Built-In Audio Security

The DS-2CD2366G2H-IU includes a built-in microphone, while the DS-2CD2367G3-LIS2UY/SL includes arrayed dual microphones, built-in speaker, and two-way audio functionality.

8-Channel PoE NVR

The included NVR provides 8 independent PoE camera ports, simplifying camera connection by carrying power and data through compatible network cabling.

H.265+ Efficient Video Compression

H.265+ compression helps reduce storage use while maintaining video quality, making the system more efficient for long-term recording.

Remote Viewing Support

Compatible with Hikvision client platforms such as Hik-Connect, iVMS-4200, and Hik-Central, depending on configuration and network setup.

Outdoor-Ready IP67 Camera Housing

Both listed camera models are IP67 water and dust resistant, making them suitable for indoor and outdoor installation.

Detailed Specifications

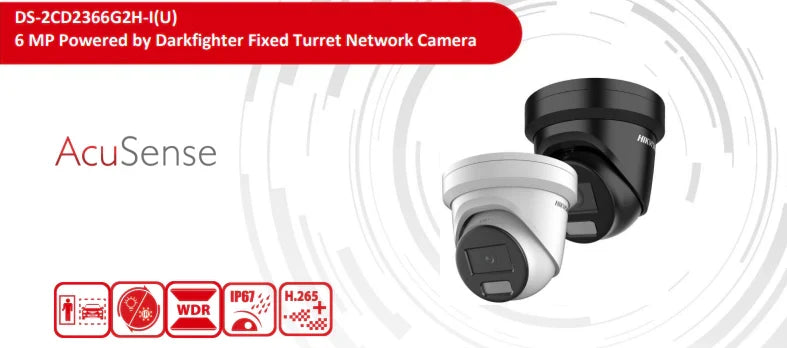

Camera Option 1: DS-2CD2366G2H-IU

Model: DS-2CD2366G2H-IU
Camera Type: 6MP Powered by DarkFighter Fixed Turret Network Camera
Image Sensor: 1/2.4" Progressive Scan CMOS
Maximum Resolution: 3200 × 1800
Minimum Illumination: Colour: 0.001 lux @ F1.0, AGC ON; B/W: 0 lux with IR
Lens Options: 2.8 mm or 4 mm fixed lens
Aperture: F1.0
Field of View:

• 2.8 mm: 114.8° horizontal, 60° vertical, 143.5° diagonal
• 4 mm: 94° horizontal, 50.2° vertical, 112° diagonal

IR Range: Up to 30 m
WDR: 120 dB
Video Compression: H.265, H.264, H.264+, H.265+
Audio: Built-in microphone on -U model
Smart Detection: Human and vehicle classification, line crossing, intrusion, region entrance, region exiting
On-Board Storage: microSD/microSDHC/microSDXC up to 512 GB
Network Interface: 1 × RJ45 10/100 Mbps Ethernet
Power: 12 VDC or PoE IEEE 802.3af
Protection: IP67
Operating Conditions: -30 °C to 60 °C, humidity 95% or less
Housing: Metal cover and metal body
Dimensions: Ø 138.3 mm × 115.4 mm
Weight: Approx. 770 g

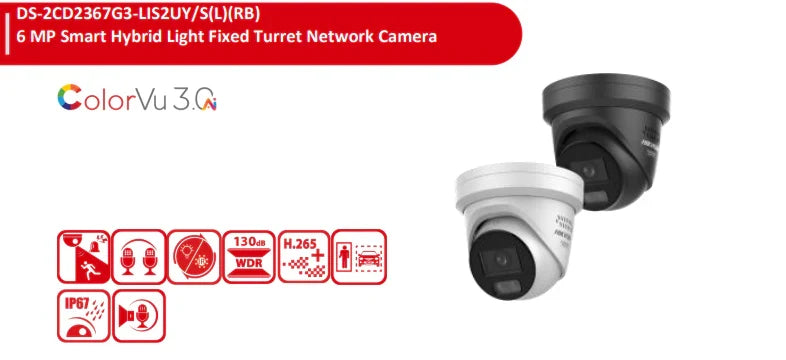

Camera Option 2: DS-2CD2367G3-LIS2UY/SL

Model: DS-2CD2367G3-LIS2UY/SL
Camera Type: 6MP Smart Hybrid Light ColorVu Fixed Turret Network Camera
Image Sensor: 1/1.8" Progressive Scan CMOS
Maximum Resolution: 3200 × 1800
Minimum Illumination: Colour: 0.0005 lux @ F1.0, AGC ON; 0 lux with light
Lens Options: 2.8 mm or 4 mm fixed lens
Aperture: F1.0
Field of View:

• 2.8 mm: 108.8° horizontal, 56.4° vertical, 134.3° diagonal
• 4 mm: 93.3° horizontal, 47.2° vertical, 114.2° diagonal

Supplement Light: White light and IR
Supplement Light Range: Up to 30 m
WDR: 130 dB
Video Compression: H.265, H.264, H.264+, H.265+
Audio: Arrayed dual microphones, built-in speaker, audio input/output
Alarm: 1 input, 1 output
Active Deterrence: Strobe light flashing and audible warning
Smart Detection: Human and vehicle classification, face capture, perimeter protection
On-Board Storage: microSD/microSDHC/microSDXC up to 512 GB
Network Interface: 1 × RJ45 10/100 Mbps Ethernet
Power: 12 VDC or PoE IEEE 802.3at
Protection: IP67, NEMA 4X anti-corrosion protection
Operating Conditions: -30 °C to 60 °C, humidity 95% or less
Housing: Metal cover and metal body
Dimensions: Ø 138.3 mm × 115.4 mm
Weight: Approx. 820 g

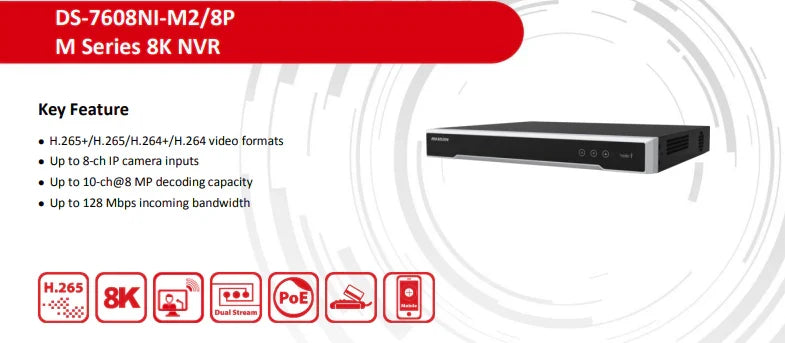

NVR Option 1: DS-7608NI-M2/8P

Model: DS-7608NI-M2/8P
NVR Type: 8-channel M Series 8K PoE NVR
IP Camera Inputs: 8 channels
PoE Ports: 8 × RJ45 10/100 Mbps PoE ports
LAN Interface: 1 × RJ45 10/100/1000 Mbps Ethernet
Incoming Bandwidth: 128 Mbps
Outgoing Bandwidth: 256 Mbps
Recording Resolution: Up to 32MP
Video Compression: H.265+, H.265, H.264+, H.264
HDMI Output: Up to 8K resolution
VGA Output: Up to 1920 × 1080
Synchronous Playback: 8 channels
SATA: 2 interfaces
HDD Capacity: Up to 16TB per HDD
PoE Power Budget: Up to 120 W
Operating Temperature: -10 °C to 55 °C
Dimensions: 385 × 315 × 52 mm
HDD Included: No

NVR Option 2: DS-7608NXI-I2/8P/VPro

Model: DS-7608NXI-I2/8P/VPro
NVR Type: 8-channel AcuSeek PoE NVR
IP Camera Inputs: 8 channels
PoE Ports: 8 × RJ45 10/100 Mbps PoE ports
LAN Interface: 1 × RJ45 10/100/1000 Mbps Ethernet
Incoming Bandwidth: 96 Mbps
Outgoing Bandwidth: 256 Mbps
Recording Resolution: Up to 32MP
Video Compression: H.265+, H.265, H.264+, H.264, MPEG4
HDMI Output: Up to 4K resolution
VGA Output: Up to 1920 × 1080
AI Functions: AcuSeek, AcuSearch, facial recognition, perimeter protection, motion detection 2.0, ANPR, people counting
Synchronous Playback: 16 channels
SATA: 2 interfaces
HDD Capacity: Up to 20TB per disk
PoE Power Budget: Up to 120 W
Operating Temperature: -10 °C to 55 °C
HDD Included: No

Warranty Information

This Hikvision 6MP CCTV kit includes a 3-year warranty. Warranty claims are handled through direct communication with the brand or authorised brand representative channels, subject to standard warranty conditions, correct installation, approved usage, and product eligibility.

Brand Description

Hikvision is a globally recognised video surveillance and security technology brand, offering IP cameras, NVRs, video management solutions, access control products, and smart security systems for residential, commercial, industrial, and government environments. Hikvision products are widely used for scalable CCTV systems requiring reliable imaging, remote viewing, smart analytics, and professional-grade recording solutions.

SKU

SKU: HIK-6MP-CUSTOM-8CH-KIT-NOHDD
Camera Codes: DS-2CD2366G2H-IU / DS-2CD2367G3-LIS2UY/SL
NVR Codes: DS-7608NI-M2/8P / DS-7608NXI-I2/8P/VPro

Practical Use Scenarios

This Hikvision 6MP CCTV kit is suitable for:

• Residential homes requiring driveway, entryway, garage, backyard, and perimeter surveillance
• Retail stores needing high-resolution footage at counters, aisles, entry points, and stock areas
• Warehouses and factories requiring PoE camera coverage across loading bays, access points, and work zones
• Offices and commercial premises needing reliable recording and smart motion alerts
• Farms, workshops, and sheds requiring outdoor IP67 camera protection
• Car parks and strata buildings requiring person and vehicle detection
• Sites needing a customised mix of DarkFighter low-light cameras and ColorVu active deterrence cameras

Datasheets & Downloadable Resources

NVR

• Vpro datasheet
• 7608NI - Data Sheet

Cameras

Darkfighter -

• Product Datasheet (PDF)

ColorVU

• Data Sheet



Excellence for the Australian and New Zealand Market

This Hikvision 6MP CCTV kit is suitable for professional security installations across the Australian and New Zealand market, offering high-resolution imaging, PoE connectivity, remote viewing, weather-resistant camera housings, and smart analytics for local residential and commercial applications.

The supplied camera and NVR specifications include relevant compliance details such as RCM: AS/NZS CISPR 32:2015 on the listed camera models and RCM certification on the DS-7608NXI-I2/8P/VPro documentation, supporting suitability for Australian and New Zealand electrical and EMC requirements where applicable.

Products should be sourced exclusively from authorised Hikvision brand representatives or approved distribution channels to support genuine product supply, correct regional firmware, warranty eligibility, and dependable after-sales support.

NDSS approval is not applicable to CCTV security equipment, so it has not been claimed for this Hikvision CCTV kit.

FAQs

Does the HIK-6MP-CUSTOM-8CH-KIT-NOHDD include hard drives?

No. The HIK-6MP-CUSTOM-8CH-KIT-NOHDD is supplied with no HDD included. Hard drives must be selected separately based on your required recording time and storage needs.

How many cameras can I add to the HIK-6MP-CUSTOM-8CH-KIT-NOHDD?

The HIK-6MP-CUSTOM-8CH-KIT-NOHDD supports up to 8 Hikvision IP cameras, depending on the selected NVR and system configuration.

Can I customise the cameras in the HIK-6MP-CUSTOM-8CH-KIT-NOHDD?

Yes. The HIK-6MP-CUSTOM-8CH-KIT-NOHDD can be customised with DS-2CD2366G2H-IU DarkFighter cameras, DS-2CD2367G3-LIS2UY/SL ColorVu cameras, or a mix of both camera types.

What is the difference between DS-2CD2366G2H-IU and DS-2CD2367G3-LIS2UY/SL in the HIK-6MP-CUSTOM-8CH-KIT-NOHDD?

The HIK-6MP-CUSTOM-8CH-KIT-NOHDD can use the DS-2CD2366G2H-IU for DarkFighter low-light IR surveillance or the DS-2CD2367G3-LIS2UY/SL for ColorVu colour imaging, smart hybrid lighting, two-way audio, strobe light, and active audio deterrence.

Does the HIK-6MP-CUSTOM-8CH-KIT-NOHDD support remote viewing?

Yes. The HIK-6MP-CUSTOM-8CH-KIT-NOHDD supports remote viewing through compatible Hikvision platforms such as Hik-Connect, subject to correct network setup and configuration.

Is the HIK-6MP-CUSTOM-8CH-KIT-NOHDD suitable for outdoor use?

Yes. The cameras listed for the HIK-6MP-CUSTOM-8CH-KIT-NOHDD are IP67 rated, making them suitable for indoor and outdoor installations.

Does the HIK-6MP-CUSTOM-8CH-KIT-NOHDD support human and vehicle detection?

Yes. The HIK-6MP-CUSTOM-8CH-KIT-NOHDD supports human and vehicle classification through compatible Hikvision camera analytics.

What warranty comes with the HIK-6MP-CUSTOM-8CH-KIT-NOHDD?

The HIK-6MP-CUSTOM-8CH-KIT-NOHDD includes a 3-year warranty, subject to standard warranty terms, correct installation, and authorised product supply.

Which NVR options are available with the HIK-6MP-CUSTOM-8CH-KIT-NOHDD?

The HIK-6MP-CUSTOM-8CH-KIT-NOHDD can be configured with either the DS-7608NI-M2/8P M Series 8K NVR or the DS-7608NXI-I2/8P/VPro AcuSeek NVR.

Is the HIK-6MP-CUSTOM-8CH-KIT-NOHDD suitable for businesses in Australia and New Zealand?

Yes. The HIK-6MP-CUSTOM-8CH-KIT-NOHDD is suitable for homes and businesses across Australia and New Zealand, including shops, warehouses, offices, farms, strata properties, and commercial facilities.
