Hikvision 6MP 4-Camera CCTV Security Kit with 4-Channel PoE NVR | DS-2CD2366G2-I(U) + DS-7604NI-M1/4P + HDD | AcuSense AI, Audio, IP67, DarkFighter

Protect your small business, office, or home with the Hikvision 4-Camera CCTV Kit, featuring 4x DS-2CD2366G2-I(U) 6MP AcuSense AI Turret Cameras and the compact yet powerful DS-7604NI-M1/4P 4-Channel NVR. Designed for plug-and-play simplicity, this complete solution delivers exceptional low-light performance, smart analytics, and remote viewing capabilities.

With Deep Learning-based detection, built-in microphones, and H.265+ compression, this surveillance system ensures accurate alerts and efficient recording. The NVR supports 8K HDMI output, dual-stream recording, and up to 16TB storage, making it the perfect entry-level pro surveillance kit.

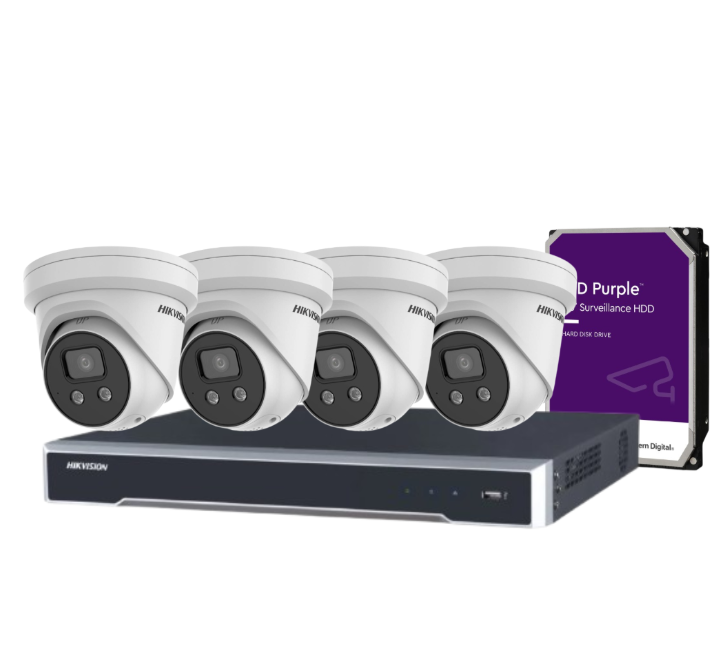

What's Included in the Box:

• 4x Hikvision DS-2CD2366G2-I(U) 6MP AcuSense Fixed Turret Cameras

• 1x Hikvision DS-7604NI-M1/4P 4-Channel PoE NVR

• 1x Surveillance-Grade HDD (Choose your HDD below)


• Power Adapter

• Quick Start Guide


Key Features:

• 6MP Ultra-HD Recording: Capture crystal-clear 3200 × 1800 resolution footage

• Human & Vehicle Classification: Reduce false alarms with advanced AI

• Built-In Microphones: Audio surveillance for enhanced security coverage

• Powered-by-DarkFighter: Superior low-light visibility, even in challenging environments

• 120dB True WDR: Clear video even in scenes with bright backlighting

• 8K HDMI Output: Future-ready high-definition display

• Integrated PoE Ports: Simplified setup with data and power in a single cable

• Expandable Storage: NVR supports up to 16TB via 1 SATA bay

• Weatherproof Cameras: IP67-rated for reliable outdoor performance

• Remote Access: Monitor your property anytime via Hik-Connect

Detailed Specifications:

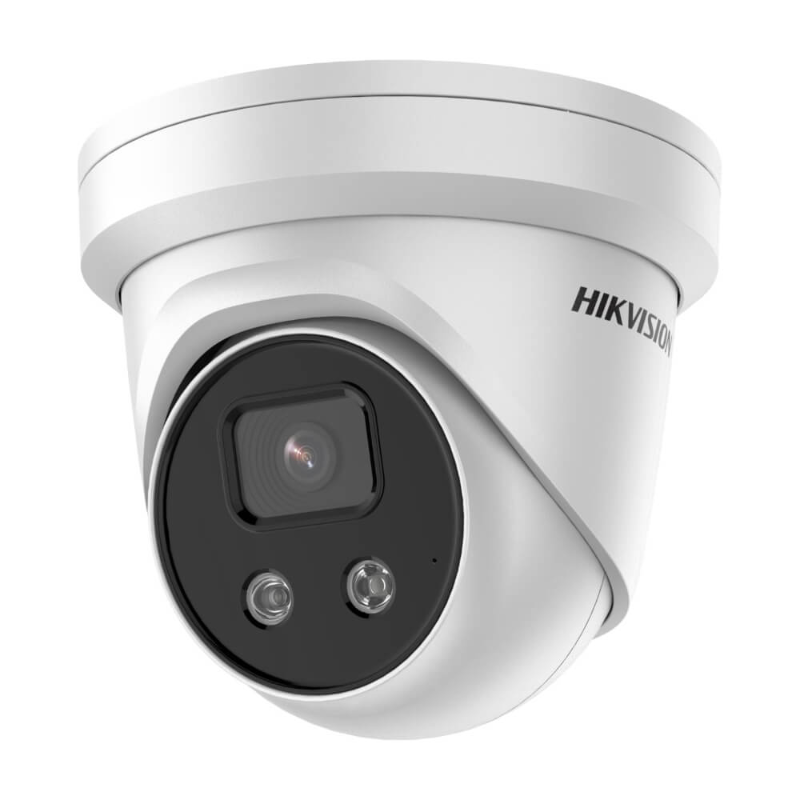

Camera – DS-2CD2366G2-I(U):

• Max Resolution: 6MP (3200 × 1800)

• IR Range: Up to 30m | Night Vision: Powered-by-DarkFighter

• Lens Options: 2.8 mm / 4 mm / 6 mm

• Audio: Built-in Microphone

• AI Features: Human/Vehicle Detection, Face Capture, Intrusion Detection

• Compression: H.265+/H.265/H.264+/H.264

• Operating Temp: -30°C to 60°C | IP67 Weatherproof

• On-Board Storage: MicroSD up to 256GB

• Power: 12VDC or PoE (802.3af)

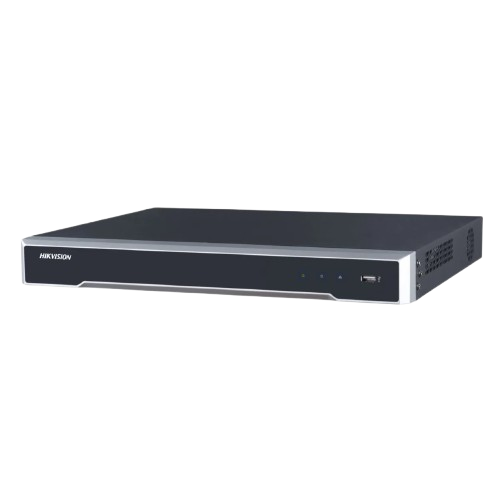

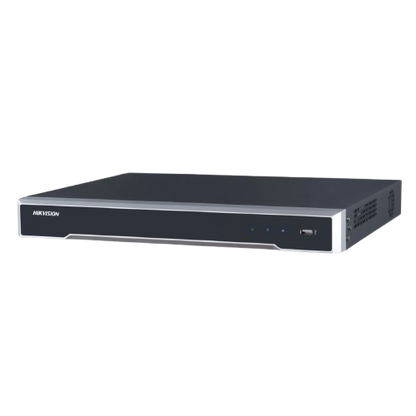

NVR – DS-7604NI-M1/4P:

• Channels: 4 IP Camera Inputs

• Max Resolution: Up to 32MP

• HDMI Output: Up to 8K @ 30Hz

• Bandwidth: 40 Mbps Incoming / 80 Mbps Outgoing

• PoE Ports: 4 × RJ-45 (IEEE 802.3af/at, ≤ 60W total)

• Storage: 1 × SATA Interface (up to 16TB HDD)

• Video Analytics: Motion Detection, VCA, Dual-Stream Recording

• USB: 2 × USB 2.0 Ports

• Power: 48V DC Adapter Included

• Dimensions: 320 × 240 × 48 mm

Warranty Information:

The DS-2CD2366G2-IU-KIT4CH comes with a 3-Year Manufacturer Warranty, covering all components including cameras, NVR, and HDD. Warranty support is provided locally in Australia and New Zealand through authorized Hikvision partners.

Brand Overview:

Hikvision is a globally trusted brand in advanced video surveillance technologies. From small-scale residential kits to large commercial systems, Hikvision leads with AI-powered security, exceptional video quality, and unmatched reliability.

SKU:

DS-2CD2366G2-IU-KIT4CH

Practical Use Scenarios:

• Retail Stores: Monitor entrances, cash registers, and aisles

• Small Offices: Secure access points and internal spaces

• Residential Homes: Monitor driveways, front doors, and perimeters

• Storage Facilities: Keep eyes on entry points and sensitive areas

• Medical Clinics: Enhance safety and accountability in waiting rooms and halls

Datasheets & Downloadable Resources:

• DS-2CD2366G2-I(U) Camera Datasheet

• DS-7604NI-M1/4P NVR Datasheet

Excellence for the Australian and New Zealand Market:

• ✅ Complies with Australian RCM Electrical & EMC Standards

• ✅ NDSS-Compliant & Ideal for Professional Installation

• ✅ Fully Compatible with AU/NZ Power and Network Specs

• ✅ Officially Sourced from Hikvision-Certified Distributors

• ✅ Warranty Support Available Directly Within Australia & New Zealand

Built for the AU/NZ market, this kit ensures optimal performance, long-term serviceability, and regulatory compliance.

Frequently Asked Questions (FAQs):

1. How many cameras can I connect to DS-2CD2366G2-IU-KIT4CH?
The system supports up to 4 IP cameras via its 4 integrated PoE ports.

2. Can I access DS-2CD2366G2-IU-KIT4CH remotely?
Yes, using the Hik-Connect app or browser-based client for live view, playback, and alerts.

3. Does DS-2CD2366G2-IU-KIT4CH support audio recording?
Yes, the -U model cameras feature built-in microphones for one-way audio capture.

4. Is DS-2CD2366G2-IU-KIT4CH weatherproof?
Yes, the cameras are IP67-rated, ideal for both indoor and outdoor use.

5. What is the maximum supported resolution in DS-2CD2366G2-IU-KIT4CH?
The cameras record in up to 6MP, while the NVR supports recording and playback up to 32MP.

6. What type of HDD is compatible with DS-2CD2366G2-IU-KIT4CH?
The NVR supports one SATA drive up to 16TB, compatible with surveillance-grade HDDs.

7. Is the DS-2CD2366G2-IU-KIT4CH system expandable?
This kit is designed for 4 cameras. For more scalability, consider 8/16-channel kits from the same series.
