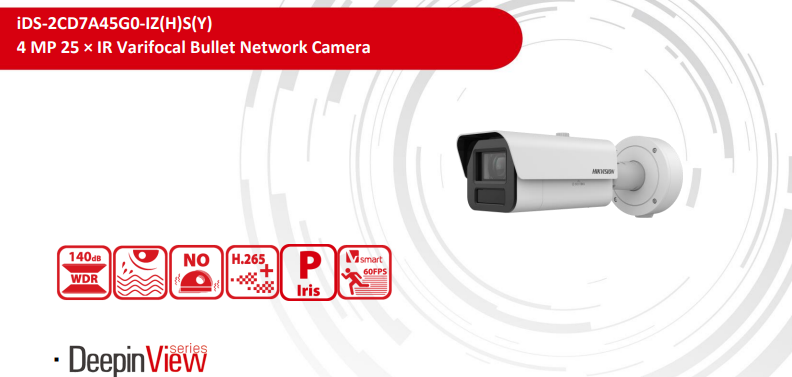

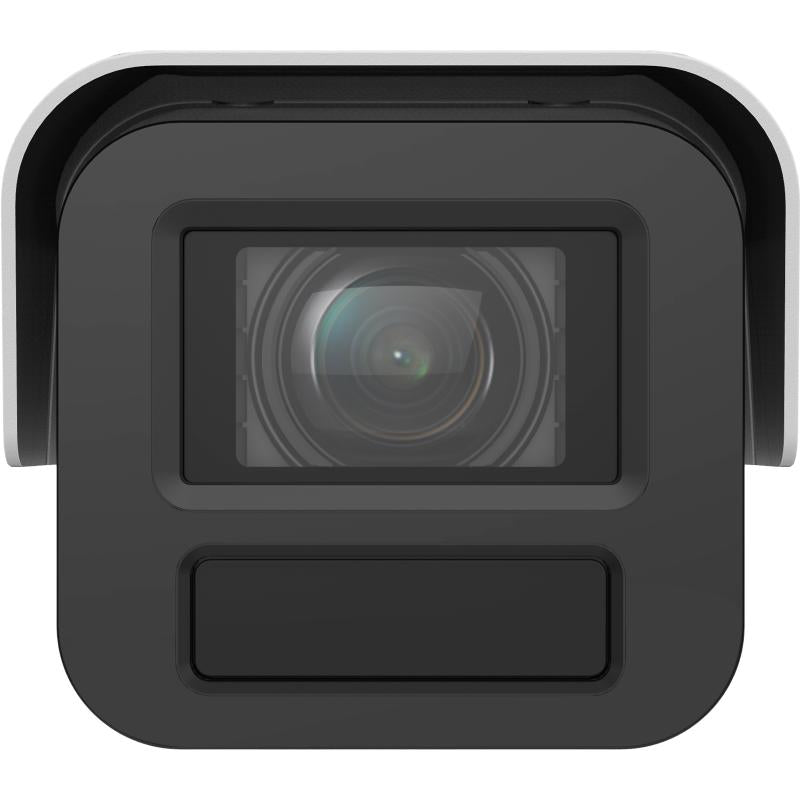

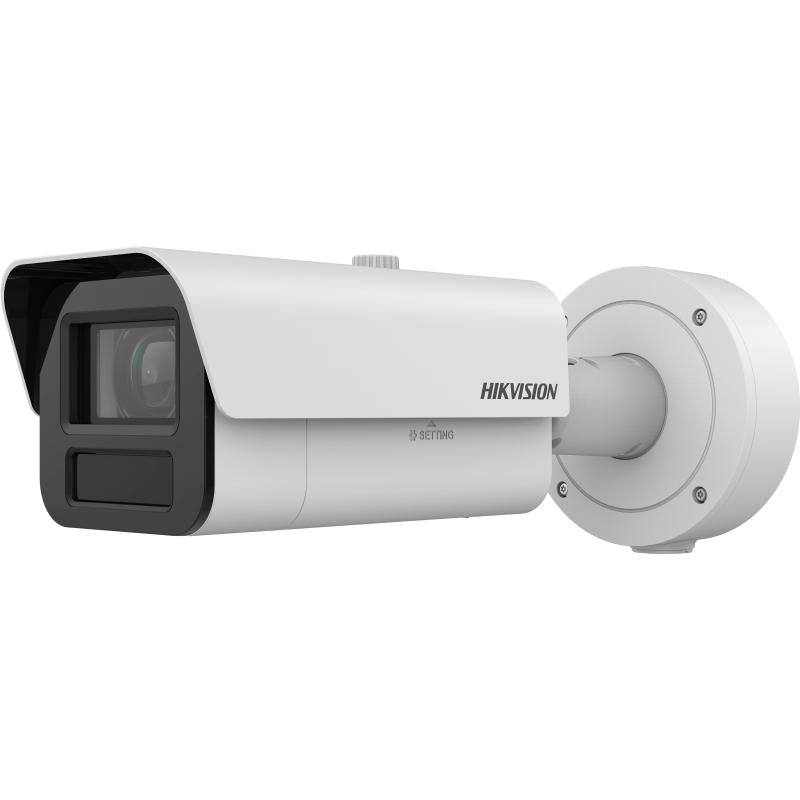

Hikvision 4MP Outdoor Motorised DeepInView VF Bullet Camera (iDS-2CD7A45G0-IZ(H)S(Y))

Overview

Elevate your security setup with the Hikvision 4MP Outdoor Motorised DeepInView VF Bullet Camera. Engineered for performance and reliability, this advanced surveillance camera integrates high-resolution imaging with intelligent features, ensuring comprehensive coverage for both residential and commercial applications.

Key Features

• High-Resolution Imaging:

  • Delivers stunning 4 MP resolution, capturing clear and detailed images even in challenging lighting conditions.

• Optical Zoom:

  • Equipped with a powerful 25× optical zoom (4.7–118mm), allowing for detailed observation in remote areas without sacrificing image quality.

• Exceptional Low-Light Performance:

  • Achieves visibility in complete darkness with a minimum illumination of 0.0018 Lux in B/W mode, thanks to its advanced infrared capabilities.

• Wide Dynamic Range (WDR):

  • Features 140 dB WDR technology to ensure clear imaging against strong backlight, making it ideal for varied lighting conditions.

• Built-in Heater:

  • The integrated heater keeps the camera's lens clear in snowy weather, ensuring reliable performance in harsh climates.

• Stability Assurance:

  • Incorporates a built-in gyroscope for stable image output, reducing motion blur and enhancing clarity.

• Robust Build Quality:

  • IP67 rating for water and dust resistance, and IK10 vandal-proof construction ensure durability in outdoor environments.

• Intelligent Functions:

  • Face Recognition: Utilizes deep learning algorithms to detect and analyze facial features such as gender, age, and expression, ensuring optimal image quality.
  • Perimeter Protection: Smart algorithms monitor for line crossing, intrusion, and area entry/exit, significantly reducing false alarms from environmental factors.
  • Multi-Target Recognition: Capable of detecting and identifying faces, human bodies, and vehicles simultaneously.

Technical Specifications

• Camera Type: Varifocal Bullet Network Camera
• Image Sensor: 1/2.5" Progressive Scan CMOS
• Max Resolution: 2688 × 1520
• Shutter Time: 1 s to 1/30,000 s
• Day & Night Mode: IR cut filter
• Lens Specifications:
  • Focal Length: 4.7–118mm
  • Aperture: F1.6 to F3.8
• IR Illuminator Range: Up to 200m
• Video Compression: H.265+/H.265/H.264+/H.264
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
• Network Protocols: TCP/IP, HTTP, HTTPS, FTP, and more
• Power Supply Options:
  • 12 VDC, 24 VAC, or PoE (802.3at)
• Weight: Approx. 2160 g (with heater), 2130 g (without heater)

Warranty

• Standard Warranty: 3-year limited warranty, ensuring peace of mind and product reliability.

Typical Applications

This Hikvision camera is perfect for:

• Perimeter Security: Enhance safety at residential homes, warehouses, and commercial establishments.
• Critical Infrastructure: Ideal for monitoring sensitive areas like docks, airports, and chemical plants.
• Retail Surveillance: Effective for loss prevention and customer monitoring in retail environments.

Conclusion

The Hikvision 4MP Outdoor Motorised DeepInView VF Bullet Camera combines state-of-the-art technology with rugged design, providing an exceptional solution for any security requirement. Invest in safety with a camera that guarantees high performance, reliability, and intelligent analytics.
