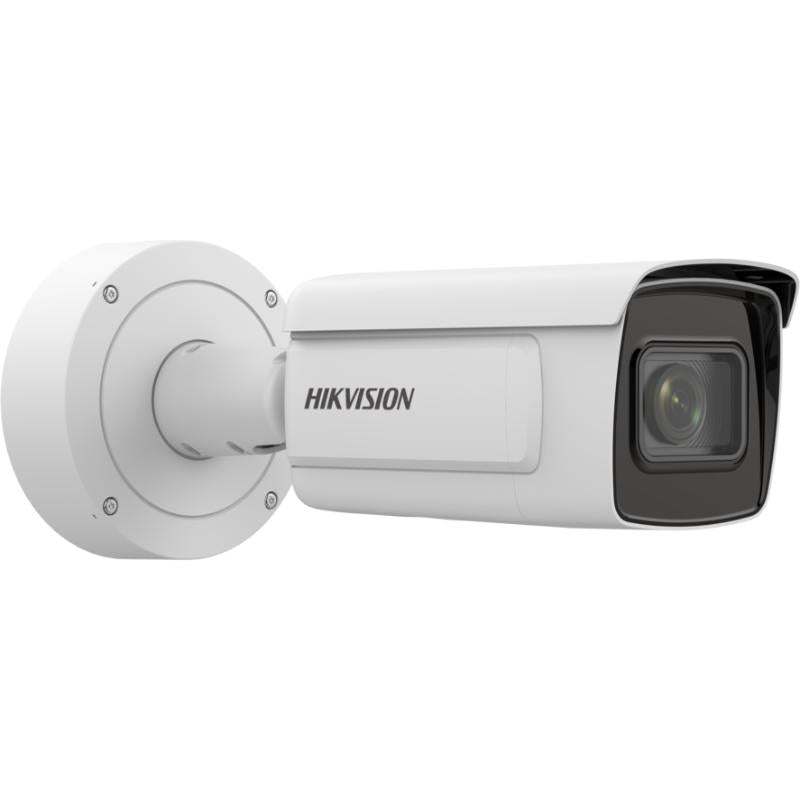

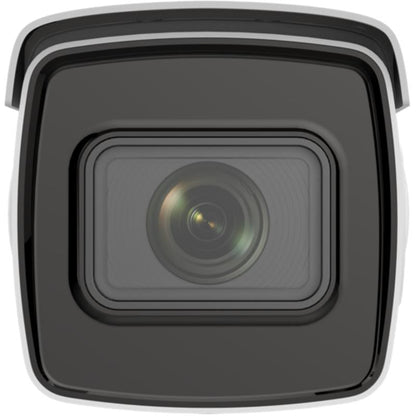

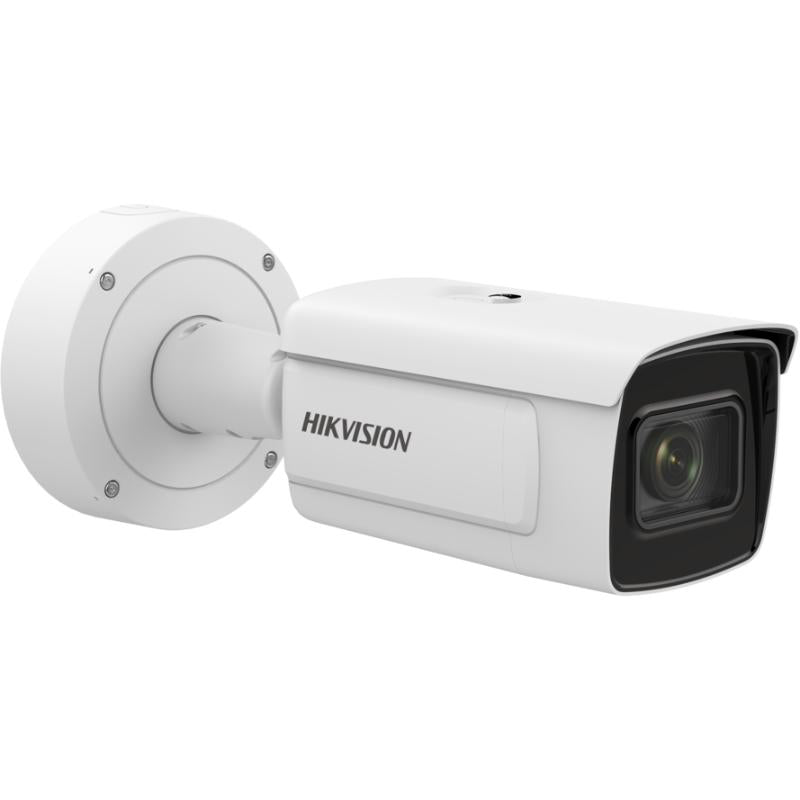

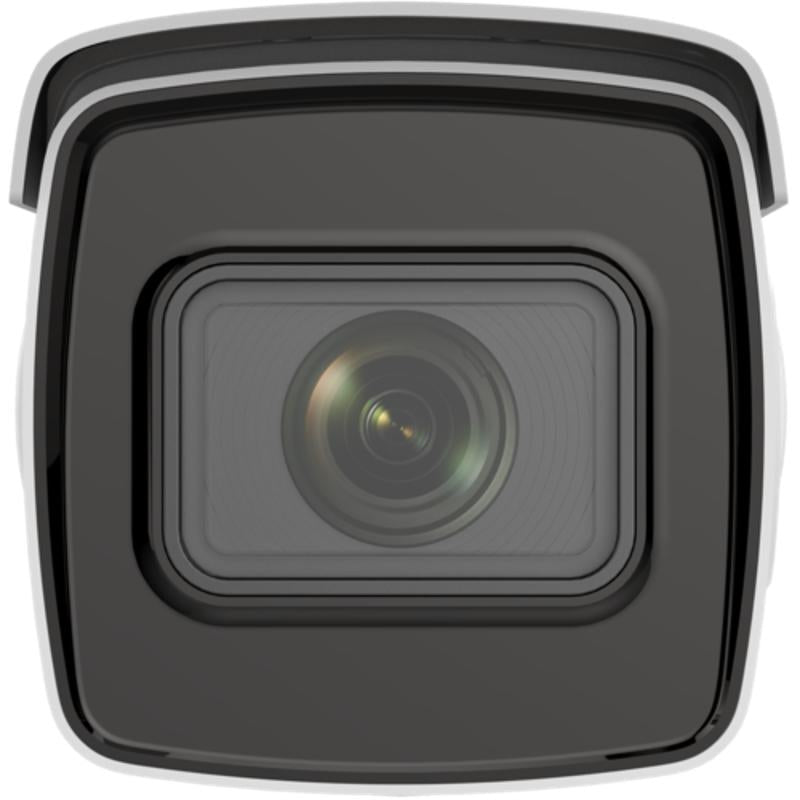

Hikvision 4MP Outdoor DeepInView Bullet AI CCTV Camera (iDS-2CD7A46G0-IZHS(Y))

Overview
The Hikvision 4MP Outdoor DeepInView Bullet AI Camera is designed for superior surveillance in a variety of environments. Featuring advanced AI technologies and robust construction, this camera not only delivers high-quality imaging but also ensures long-lasting performance. Whether for commercial or residential use, this camera provides unparalleled security features to safeguard your property.

Specifications

• Model: iDS-2CD7A46G0-IZHS(Y)
• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max Resolution: 2688 × 1520
• Min Illumination:
  • Color: 0.0005 Lux (F1.2, AGC ON)
  • B/W: 0.0001 Lux (F1.2, AGC ON), 0 Lux with IR
• Lens: Varifocal 2.8-12mm, P-iris
• Field of View:
  • Horizontal: 114.5° to 41.8°
  • Vertical: 59.3° to 23.6°
  • Diagonal: 141.1° to 48°
• Day & Night Function: IR cut filter
• Illuminator: IR, up to 50m (2.8-12mm) / 100m (8-32mm)
• Protection Rating: IP67, IK10, NEMA 4X

Features

• High-Quality Imaging: 4 MP resolution ensures crystal-clear images, even in low light conditions, thanks to DarkFighter technology.
• Wide Dynamic Range (WDR): With 140 dB WDR, the camera performs exceptionally well in challenging lighting conditions.
• AI-Driven Analytics:
  • Face Capture: Optimizes face image quality using deep learning algorithms.
  • Perimeter Protection: Monitors for intrusion and line crossing, effectively filtering out false alarms.
  • Multi-Target-Type Detection: Identifies and captures faces, human bodies, and vehicles simultaneously.
  • Queue Management: Tracks and reports on waiting times and queue lengths for enhanced operational efficiency.
  • Heat Map: Generates visual heat maps based on foot traffic and dwell time in designated areas.
• Smart Compression: H.265+ technology significantly reduces bandwidth and storage requirements without sacrificing quality.
• Robust Build: Designed for outdoor use, the camera is resistant to dust, water, and vandalism, making it suitable for various environments.

Warranty
Hikvision offers a standard warranty of 3 years on this camera, ensuring peace of mind and confidence in your purchase. For specific warranty conditions, please refer to the included documentation.

Typical Applications
This camera is ideal for:

• Commercial Spaces: Retail stores, shopping malls, and offices requiring stringent security measures.
• Residential Use: Homes needing robust surveillance capabilities.
• Industrial Areas: Factories, warehouses, and construction sites with a focus on safety and security compliance.

Conclusion
The Hikvision 4MP Outdoor DeepInView Bullet AI Camera is a state-of-the-art security solution that combines advanced technology with rugged construction, making it a reliable choice for all your surveillance needs. With its impressive array of features and robust protection ratings, this camera stands out as a top choice for ensuring the safety and security of your property.
