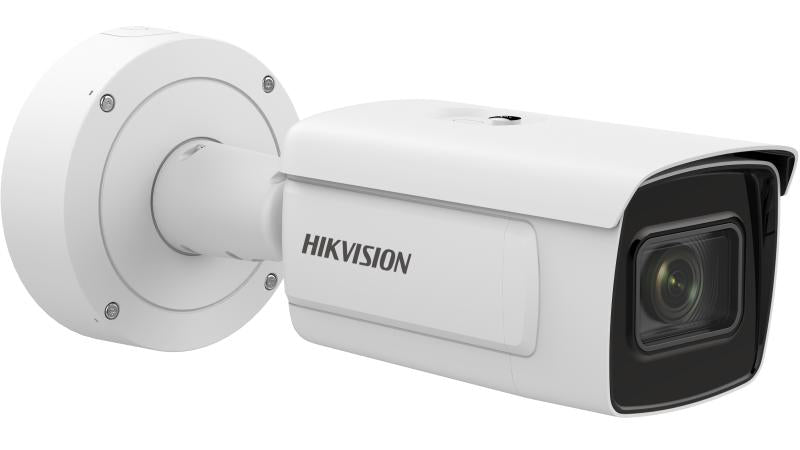

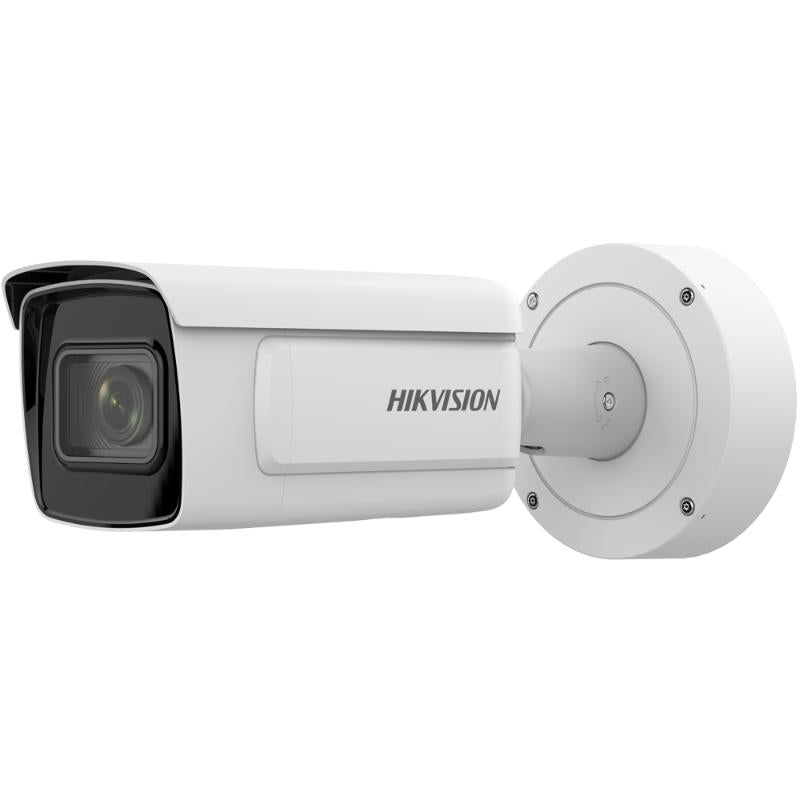

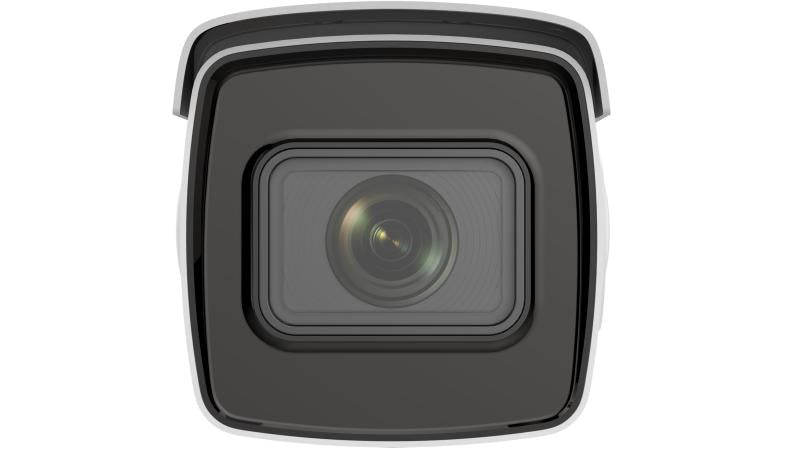

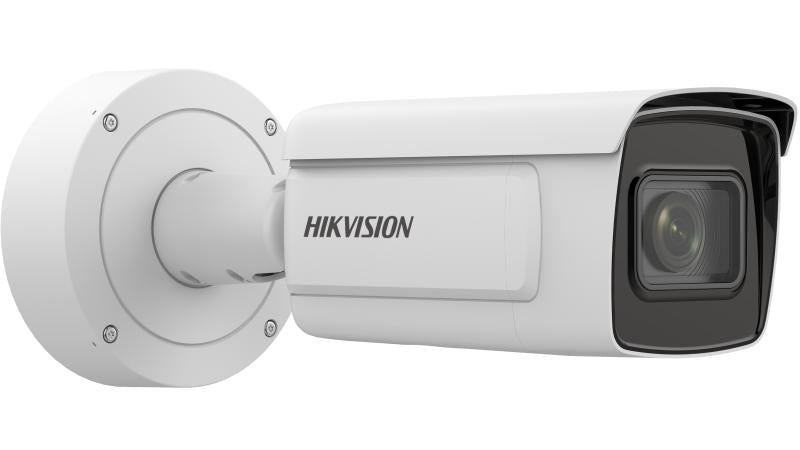

Hikvision 4MP ANPR Bullet Camera (iDS-2CD7A46G0/P-IZHS(Y))

Overview: Enhance your security infrastructure with the Hikvision 4MP ANPR Bullet Camera, designed specifically for accurate license plate recognition (LPR) and high-performance surveillance. This robust camera combines cutting-edge imaging technology with superior environmental protection, making it ideal for a variety of applications, including road traffic monitoring and vehicle detection.

Key Features:

• High-Quality Imaging:

  • Achieve stunning clarity with 4 MP resolution (2688 × 1520) for detailed surveillance footage.
  • Enhanced low-light performance through DarkFighter technology, ensuring visibility in challenging lighting conditions.

• Advanced WDR Technology:

  • The camera features 140 dB Wide Dynamic Range (WDR), delivering clear imaging even in high-contrast lighting situations.

• License Plate Recognition (ANPR):

  • Equipped with deep learning algorithms for accurate plate capture and recognition, capable of identifying both standard and complex-structured plates.
  • Supports blocklist and allowlist functionalities for effective vehicle management and alarm triggering.

• Efficient Video Compression:

  • Utilizes H.265+ compression technology to significantly reduce bandwidth and storage requirements without compromising video quality.

• Multiple Streaming Options:

  • Supports five streams for versatile applications, allowing simultaneous live viewing and recording.

• Robust Construction:

  • Rated IP67 for water and dust resistance, ensuring reliable operation in harsh weather conditions.
  • Vandal-proof with an IK10 rating, safeguarding against physical impacts.

Specifications:

• Camera Type: 4 MP ANPR IR Varifocal Bullet Network Camera
• Image Sensor: 1/1.8" Progressive Scan CMOS
• Minimum Illumination:
  • Color: 0.0005 Lux @ (F1.2, AGC ON)
  • B/W: 0.0001 Lux @ (F1.2, AGC ON); 0 Lux with IR
• Lens: Varifocal 2.8 to 12 mm, adjustable FOV (114.5° to 41.8° horizontal).
• Day/Night Functionality: IR cut filter with enhanced night vision capabilities.
• Illuminator: Smart IR with a range of up to 50 meters (2.8 to 12 mm) and 100 meters (8 to 32 mm).
• Network Protocols: Supports a wide range of protocols including TCP/IP, HTTP, and HTTPS.
• Power Supply: 12 VDC ± 20% or PoE (802.3at).

Applications:

• Ideal for traffic monitoring, law enforcement applications, parking management, and perimeter security.
• Can be integrated into existing security systems to enhance vehicle tracking and monitoring capabilities.

Warranty:

• The Hikvision 4MP ANPR Bullet Camera comes with a standard 3-year warranty covering manufacturing defects and malfunctions under normal usage conditions.

Accessories and Optional Mounts:

• Optional accessories for mounting include:
  • Vertical Pole Mount: DS-1475ZJ-Y, DS-1475ZJ-SUS
  • Pendant Mount: DS-2251ZJ
  • Corner Mount: DS-1476ZJ-Y, DS-1476ZJ-SUS

Conclusion: The Hikvision 4MP ANPR Bullet Camera (iDS-2CD7A46G0/P-IZHS(Y)) is a state-of-the-art solution for anyone needing reliable vehicle surveillance with exceptional image quality and robust performance. Enhance your security setup with this advanced ANPR camera, designed for the most demanding environments.
