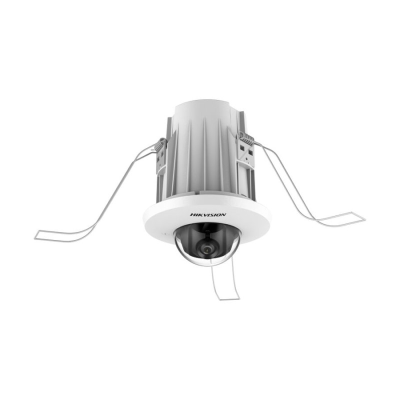

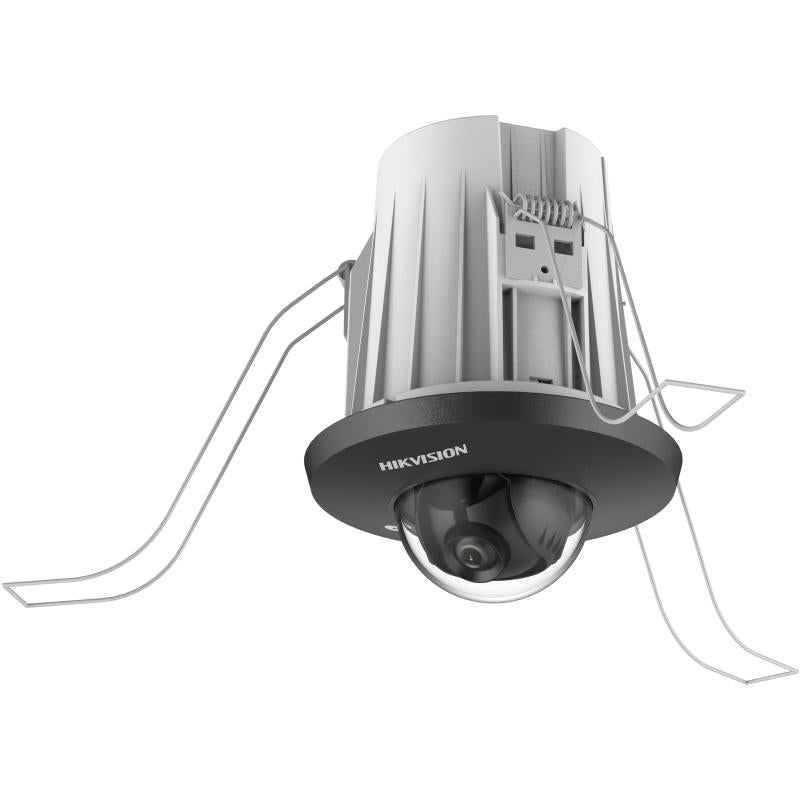

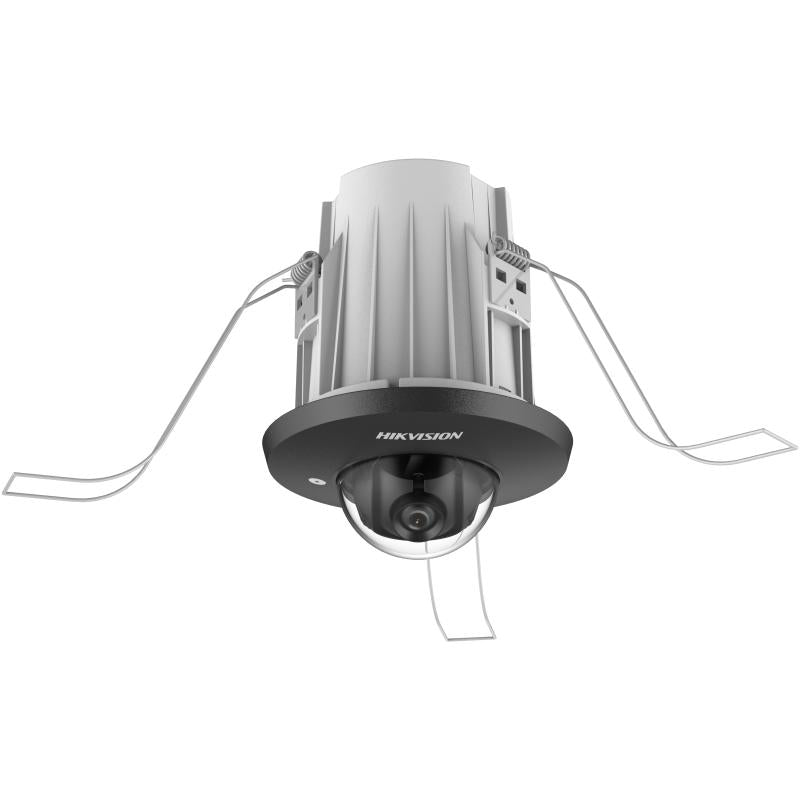

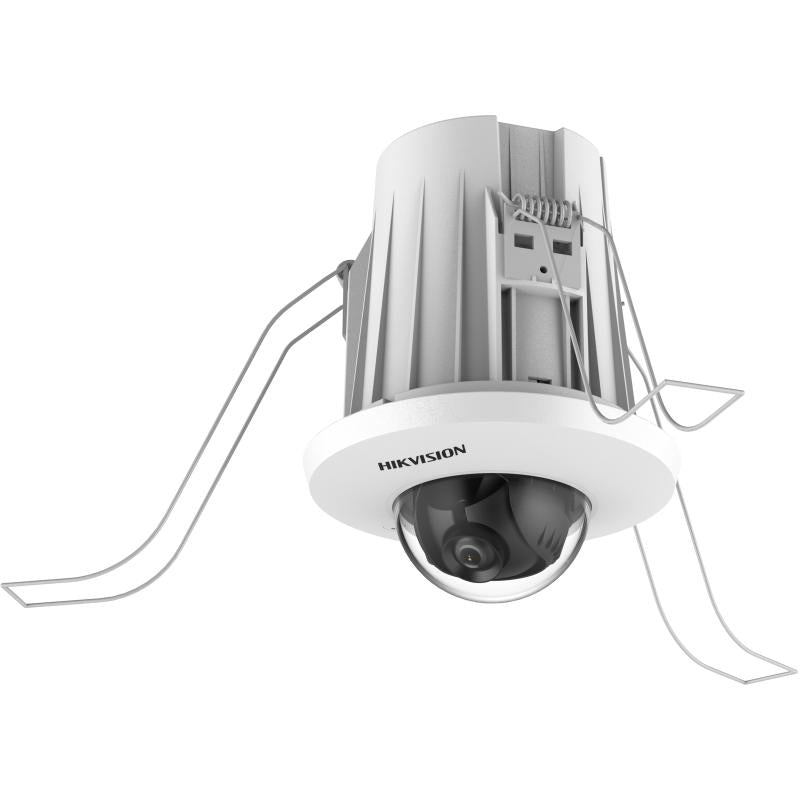

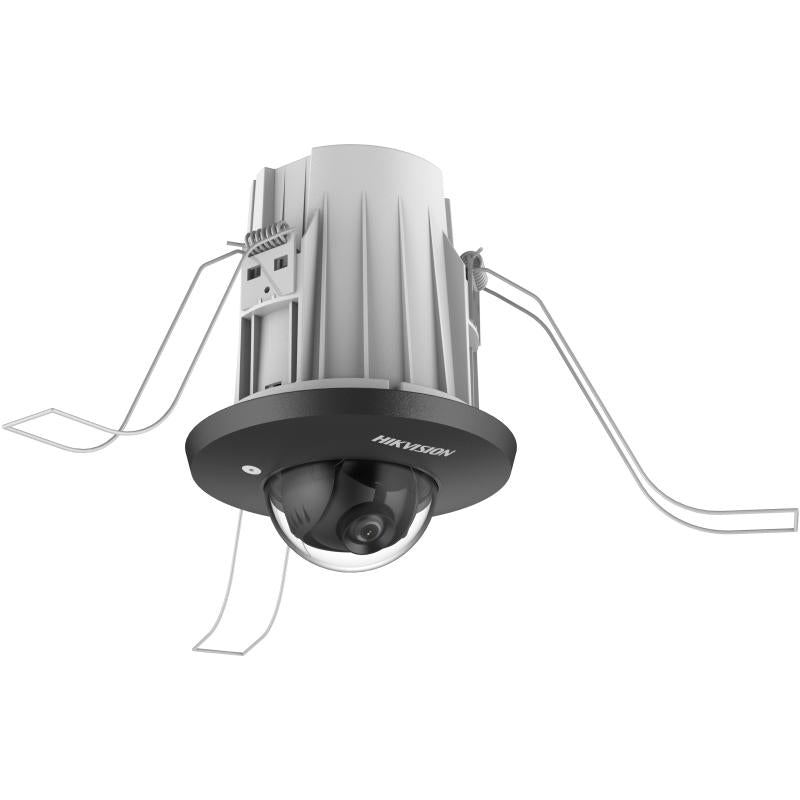

Hikvision 4MP AcuSense Gen 2 Mini Dome Camera In-Ceiling (DS-2CD2E43G2-U)

Overview

Introducing the Hikvision 4MP AcuSense Gen 2 Mini Dome Camera, a state-of-the-art security solution designed for enhanced surveillance capabilities. Empowered by advanced deep learning algorithms, this in-ceiling camera offers exceptional human and vehicle target classification, significantly improving alarm efficiency and effectiveness. Ideal for both residential and commercial settings, it ensures comprehensive monitoring while providing high-quality imaging and real-time audio security.

Key Features

• High-Quality Imaging: With a 4 MP resolution, this camera delivers crisp and clear images, ensuring no detail is missed.
• Wide Dynamic Range (WDR): Equipped with 120 dB WDR technology, it excels in environments with strong backlighting, providing clear imaging regardless of lighting conditions.
• Advanced Compression Technology: Utilizes H.265+ compression, significantly reducing bandwidth and storage requirements while maintaining video quality.
• Real-Time Audio: Built-in microphone allows for audio monitoring, enhancing situational awareness.
• Deep Learning Target Classification: Effectively distinguishes between human and vehicle targets, allowing for accurate alarm triggering and reducing false alarms.
• Flexible Installation: Designed for in-ceiling installation, the camera seamlessly blends into various environments.

Specifications

• Camera

  • Image Sensor: 1/3" Progressive Scan CMOS
  • Minimum Illumination: Color: 0.005 Lux @ (F1.6, AGC ON)
  • Max Resolution: 2688 × 1520
  • Shutter Speed: 1/3 s to 1/100,000 s
  • Angle Adjustment: Tilt: 0° to 75°

• Lens

  • Type & FOV:
    • 2.8 mm: Horizontal FOV 103°, Vertical FOV 55°
    • 4 mm: Horizontal FOV 84°, Vertical FOV 43°
  • Aperture: F1.6

• Video

  • Main Stream: Up to 25 fps at 2688 × 1520 (50 Hz)
  • Compression: H.265/H.264/H.264+/H.265+

• Audio

  • Noise Filtering: Yes
  • Audio Compression: G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC

• Network

  • Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, NTP, and more
  • User Access: Up to 32 users with multiple user levels

• General

  • Power Supply: 12 VDC ± 25% or PoE (802.3af)
  • Operating Conditions: -10 °C to 50 °C (14 °F to 122 °F), Humidity 95% or less
  • Dimensions: Ø 93.9 × 117.5 mm (Ø 3.7" × 4.6")
  • Weight: Approx. 155 g (0.3 lb.)

Warranty

The Hikvision 4MP AcuSense Mini Dome Camera comes with a 2-year limited warranty, ensuring peace of mind and protection against manufacturing defects.

Typical Applications

This camera is suitable for a variety of environments, including:

• Retail Stores: Enhance security monitoring and loss prevention.
• Office Spaces: Monitor entrance areas and common spaces for safety.
• Residential Areas: Ideal for home security and surveillance.
• Parking Lots: Effective vehicle monitoring and identification.

Conclusion

The Hikvision 4MP AcuSense Gen 2 Mini Dome Camera is the perfect choice for anyone looking to enhance their security system with advanced features, high-quality imaging, and reliable performance. With its deep learning capabilities and versatile installation options, this camera is designed to meet the demands of modern surveillance. Experience peace of mind with Hikvision's trusted technology.
