Hikvision 4 Channel 8MP AcuSense CCTV Kit – DS-7604NI-M1/4P 8K NVR + up to 4× DS-2CD2386G2H-IU Turret Cameras with PoE & AI Analytics

Upgrade your security system with the Hikvision 4 Camera 8MP CCTV Kit, featuring the powerful DS-7604NI-M1/4P 8K NVR and AcuSense turret cameras. Designed for homes and businesses, this system delivers ultra-clear 4K/8MP video, advanced AI detection, and reliable PoE connectivity for seamless installation and high-performance surveillance.

This professional-grade kit combines cutting-edge H.265+ compression, AI-powered human & vehicle detection, and 8K HDMI output, ensuring superior clarity, storage efficiency, and intelligent monitoring for modern security needs.

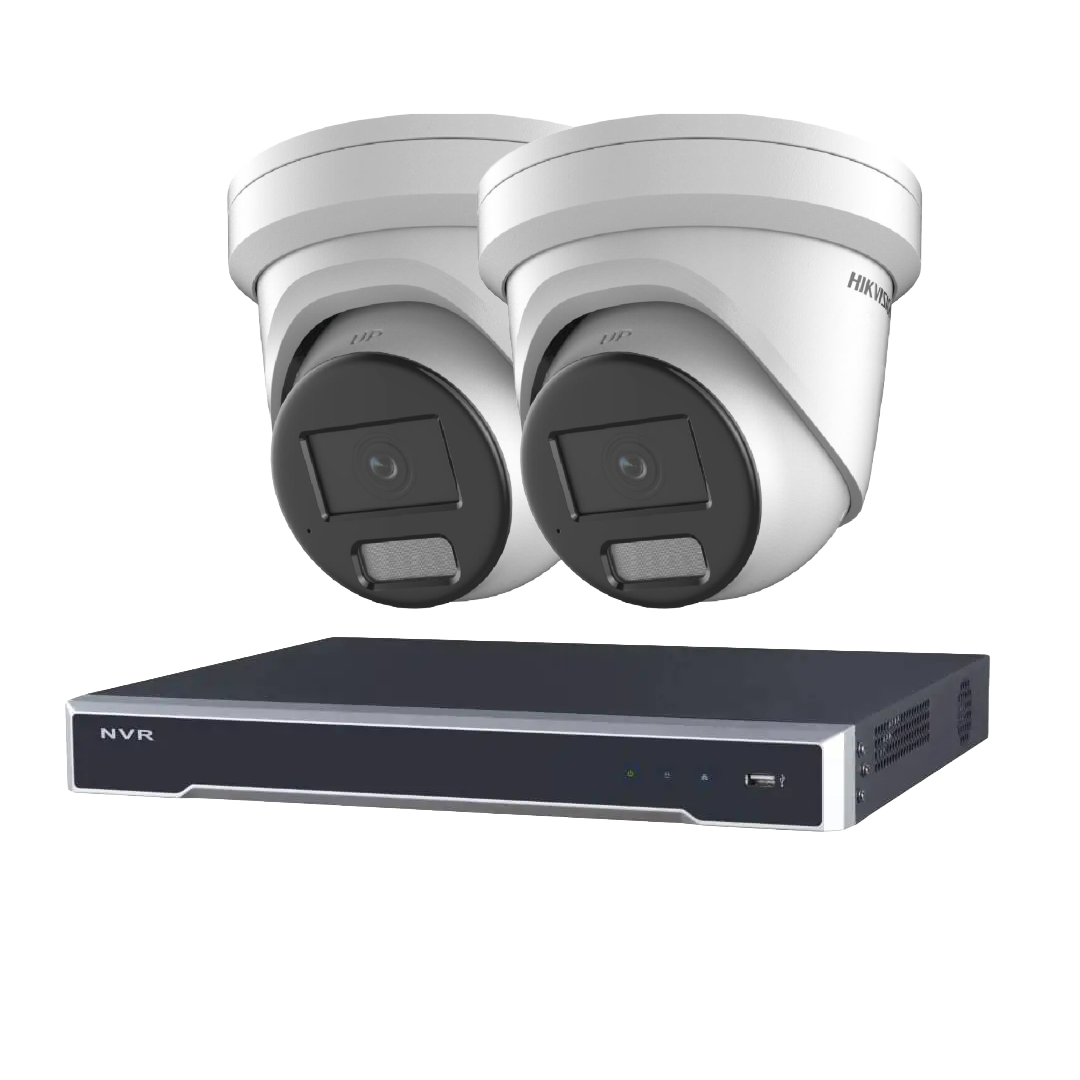

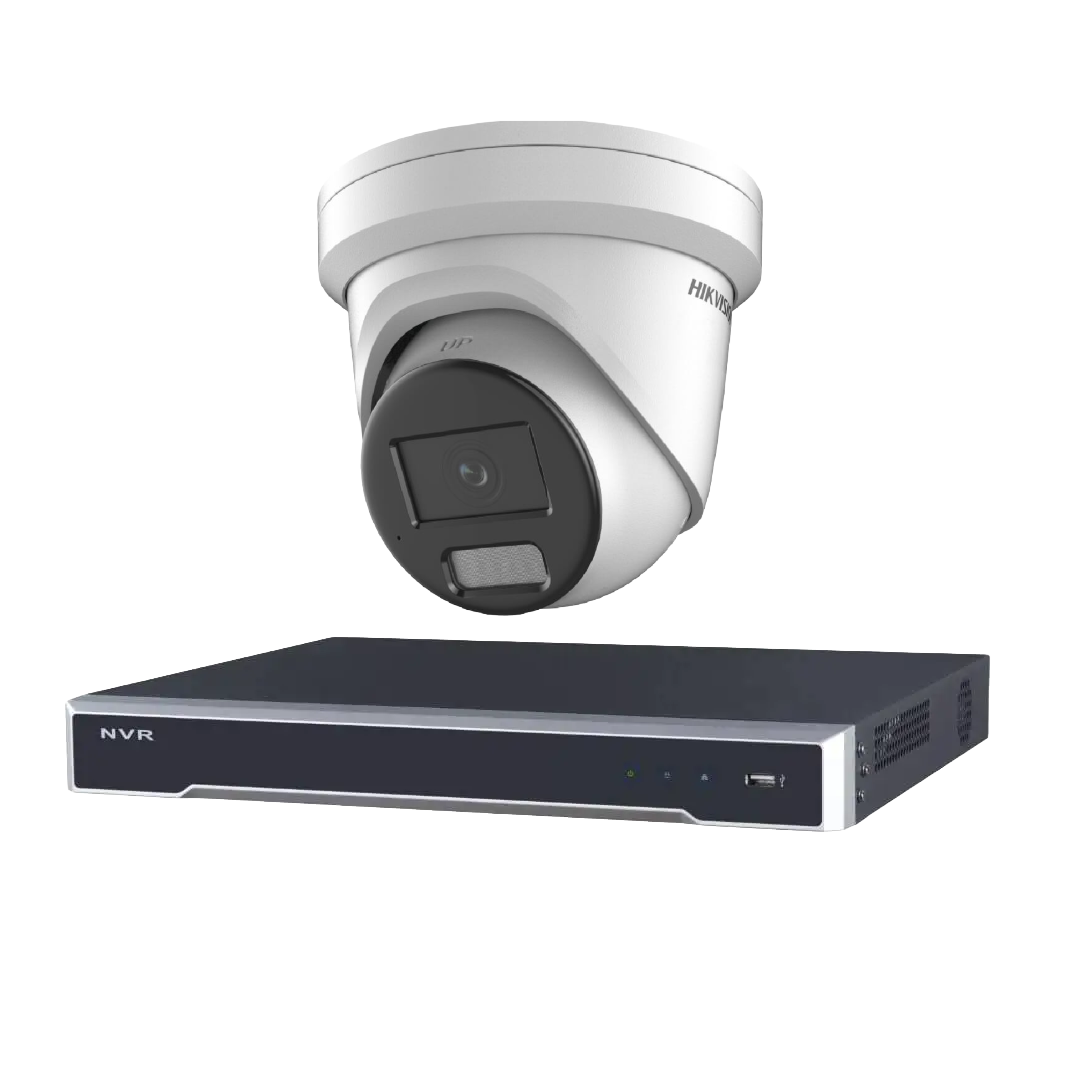

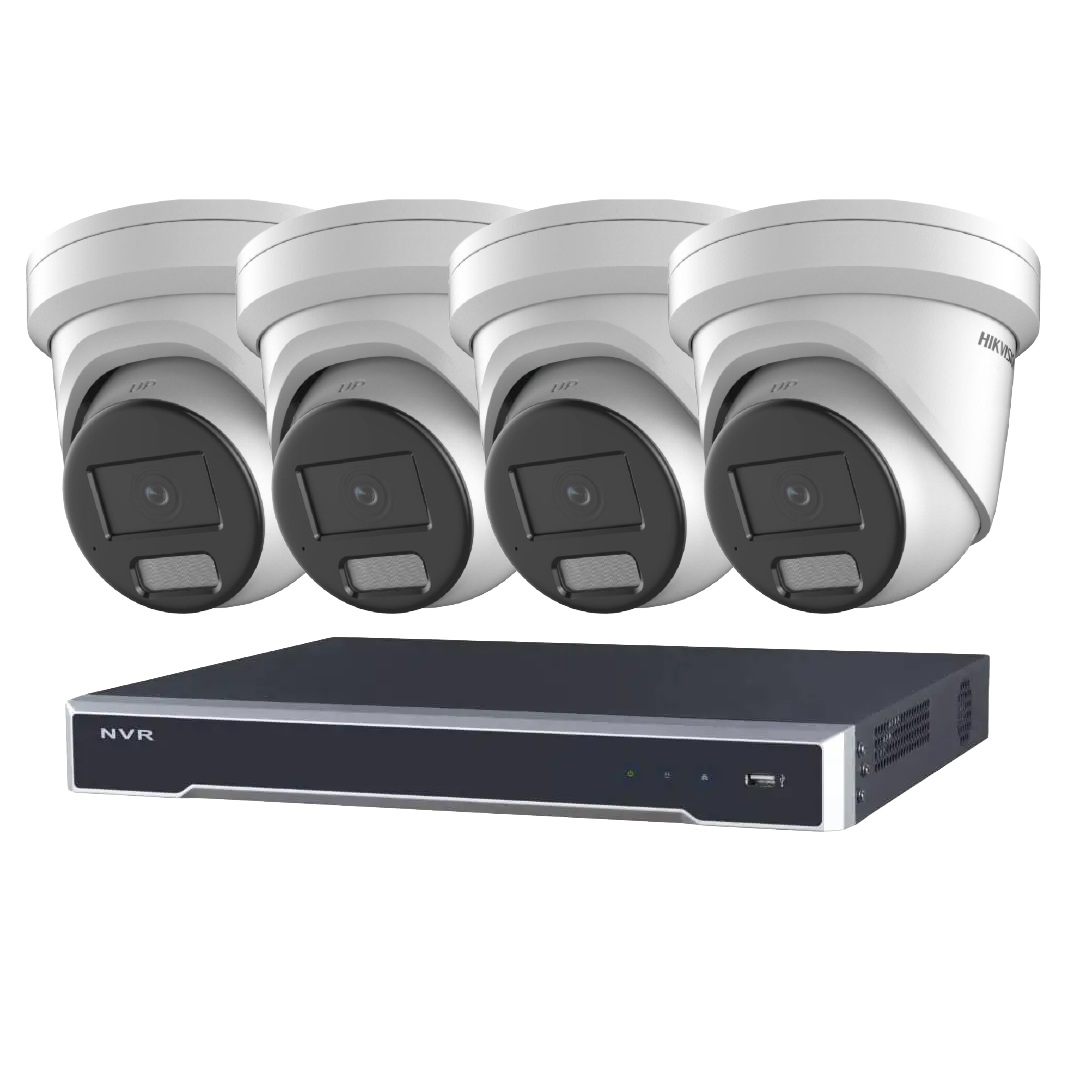

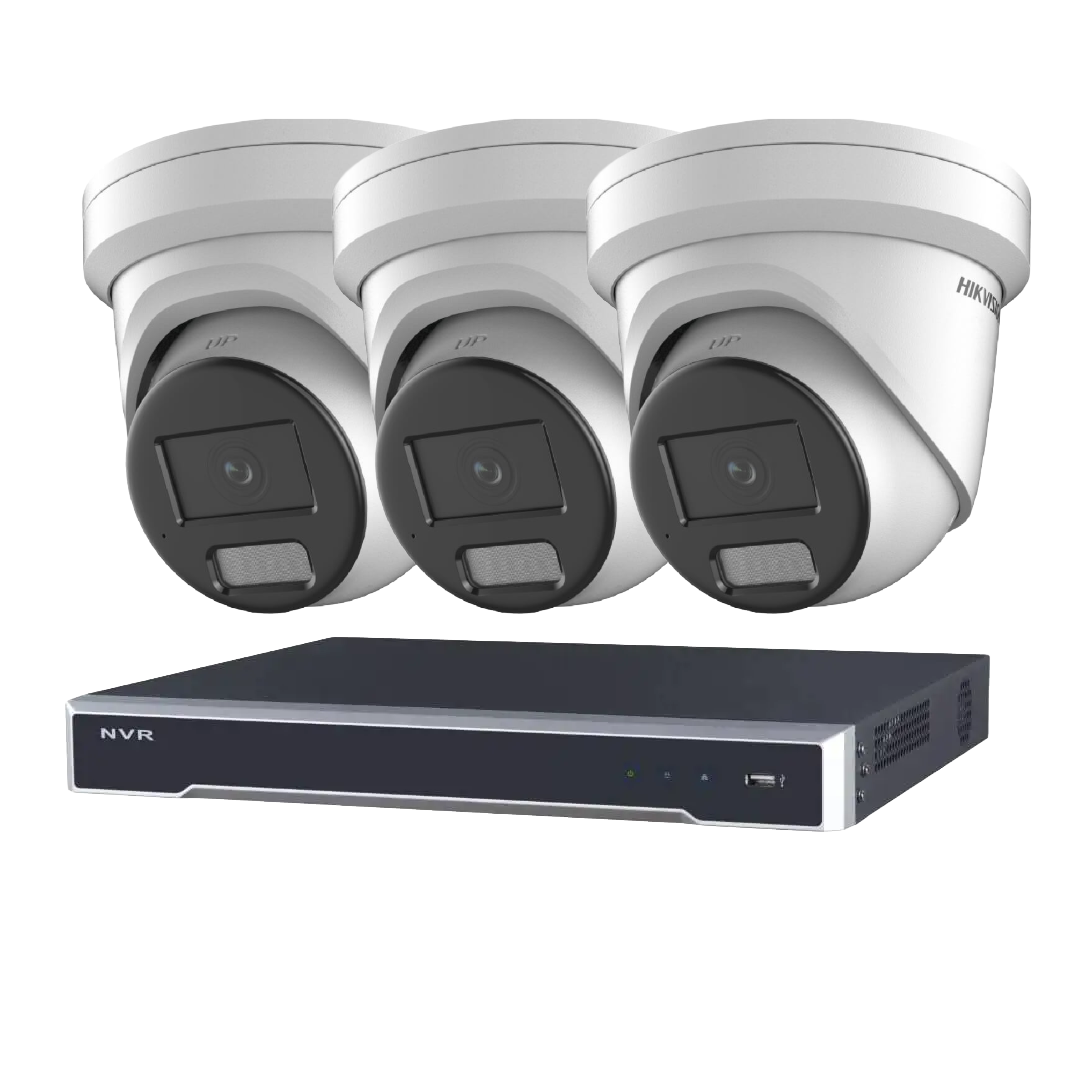

What’s Included in the Box

• 1 × Hikvision DS-7604NI-M1/4P 4-Channel 8K NVR
• choose up to 4 × Hikvision DS-2CD2386G2H-IU 8MP Turret Cameras
• 4 × Pre-configured PoE Ports (built into NVR)
• Power Supply for NVR
• Mouse for setup
• User Manual & Quick Start Guide
• Choose your HDD Below

Main Features

Ultra HD Surveillance Performance

• 8MP (4K) resolution cameras for crystal-clear footage
• HDMI output up to 8K resolution (7680 × 4320)
• Wide Dynamic Range (120 dB) for balanced lighting

Smart AI Detection (AcuSense Technology)

• Human & vehicle classification reduces false alarms
• Smart events: intrusion, line crossing, region detection
• Heat mapping, people counting, and ANPR support

Advanced Video Compression

• H.265+ reduces storage usage by up to 75%
• Dual-stream recording for bandwidth optimisation

Powerful 4-Channel NVR

• Supports up to 4 IP cameras (expandable resolution up to 32MP input)
• 40 Mbps incoming bandwidth
• 4-channel synchronous playback

Plug & Play PoE Setup

• 4 built-in PoE ports for easy installation
• No additional switches required
• Stable and secure connection

Superior Low-Light & Night Vision

• DarkFighter technology for ultra-low light performance
• IR night vision up to 30m
• 0 Lux with IR for complete darkness monitoring

Secure & Reliable System

• TLS encrypted video streaming
• Dual verification for playback/download
• Supports HTTPS, SSL/TLS security protocols

Detailed Specifications

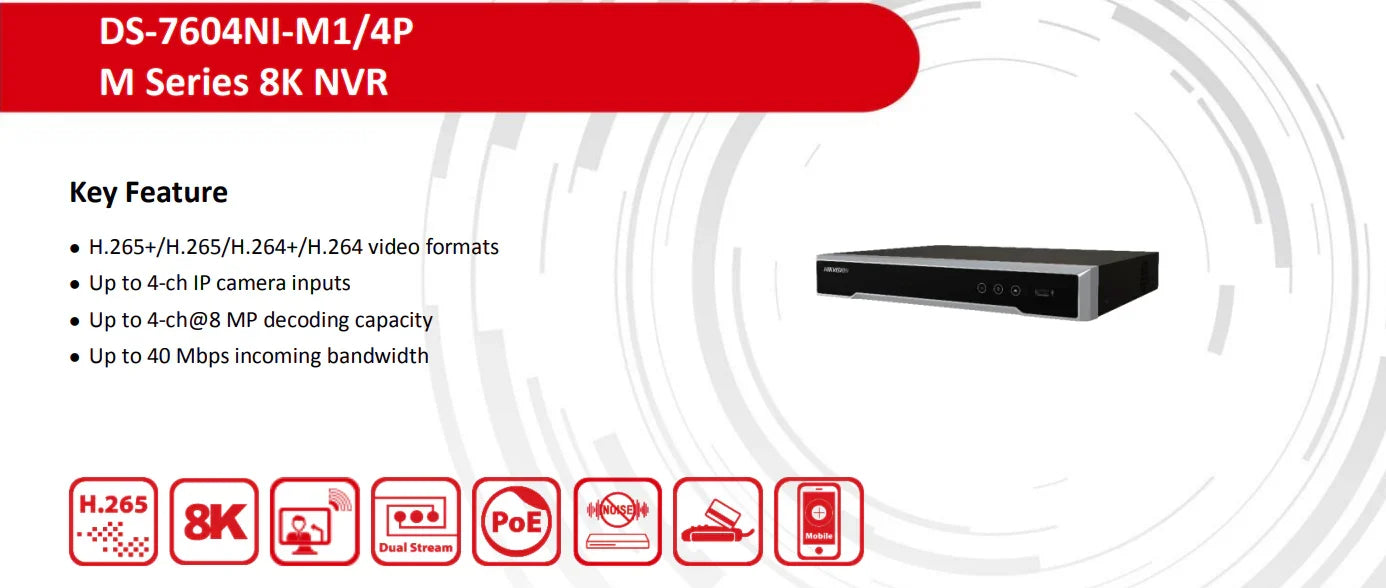

NVR (DS-7604NI-M1/4P)

• Channels: 4 IP channels
• Decoding: 4 × 8MP @ 30fps
• Video Output: HDMI (8K), VGA (1080p)
• Storage: 1 × SATA (up to 16TB)
• Network: Gigabit Ethernet
• PoE Ports: 4 × RJ45 (IEEE 802.3af/at)
• Playback: 4-channel synchronous

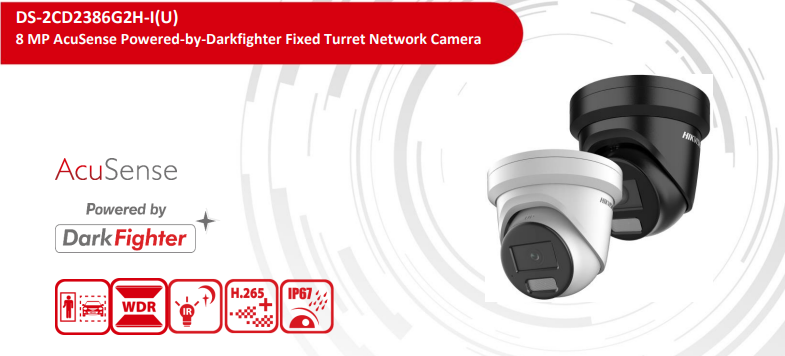

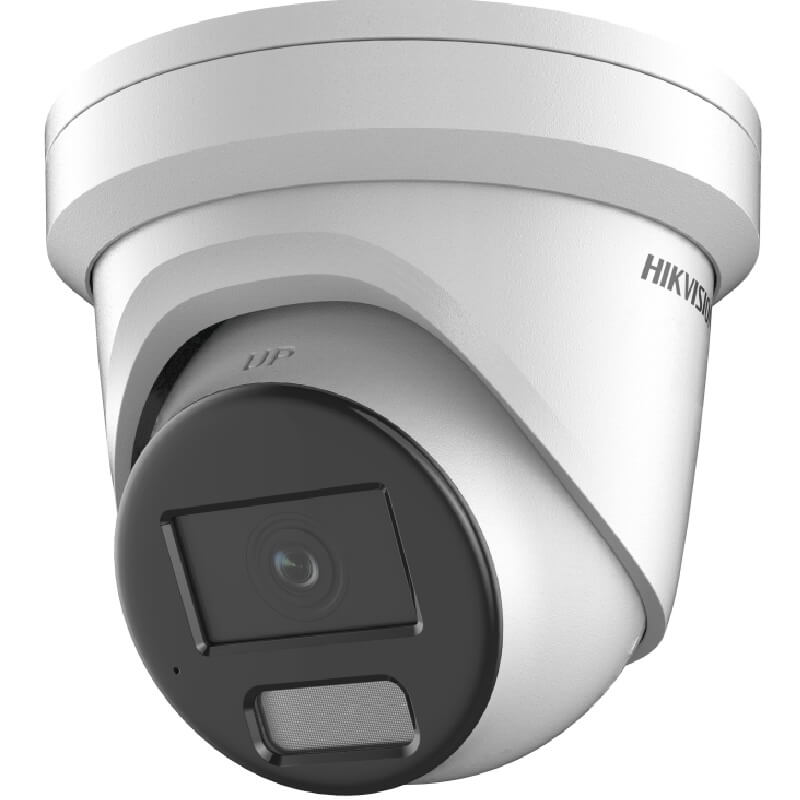

Camera (DS-2CD2386G2H-IU)

• Resolution: 8MP (3840 × 2160)
• Sensor: 1/1.8" CMOS
• Lens: 2.8mm or 4mm options
• Night Vision: Up to 30m IR
• Audio: Built-in microphone (-U models)
• Protection: IP67 weatherproof
• AI Features: Human/vehicle detection, perimeter protection

Practical Use Scenarios

• Residential homes (front yard, driveway, backyard)
• Retail shops & POS-integrated surveillance
• Warehouses & logistics monitoring
• Offices requiring smart intrusion alerts
• Small to medium commercial premises

Warranty Information

• Manufacturer Warranty: 3 Years
• Backed by official Hikvision distribution channels
• Local support and warranty handling available

About the Brand – Hikvision

Hikvision is a global leader in video surveillance solutions, known for its innovation in AI-powered security, reliable hardware, and enterprise-grade technology trusted worldwide.

SKU

DS-7604NI-M1/4P-KIT-4X2386G2H

Datasheets & Resources

• Camera Datasheet
• NVR Specifications:
• Data Sheet


  Quick Start Guide


  User Manual
• Software Support: Hik-Connect, iVMS-4200

Excellence for the Australian and New Zealand Market

This Hikvision CCTV kit is tailored for the Australian and New Zealand market, ensuring:

• Compliance with local electrical and safety standards
• RCM-certified components where applicable
• Reliable performance in Australian weather conditions (IP67 rated cameras)
• Sourced from authorised distributors only
• Full local warranty support with direct brand handling
• Optimised for NBN and local network environments

FAQs

Q1: Does the DS-7604NI-M1/4P-KIT-4X2386G2H support remote viewing?

Yes, the DS-7604NI-M1/4P-KIT-4X2386G2H supports remote viewing via Hik-Connect app and web browsers without plug-ins.

Q2: Can I upgrade storage on the DS-7604NI-M1/4P-KIT-4X2386G2H?

Yes, the DS-7604NI-M1/4P-KIT-4X2386G2H supports up to 16TB HDD via its SATA interface.

Q3: Are the cameras in DS-7604NI-M1/4P-KIT-4X2386G2H suitable for outdoor use?

Yes, all cameras in the DS-7604NI-M1/4P-KIT-4X2386G2H are IP67-rated, making them fully weatherproof.

Q4: Does DS-7604NI-M1/4P-KIT-4X2386G2H include audio recording?

Yes, the cameras include built-in microphones (-U models) for real-time audio recording.

Q5: Is installation easy for the DS-7604NI-M1/4P-KIT-4X2386G2H?

Yes, thanks to PoE plug-and-play functionality, the DS-7604NI-M1/4P-KIT-4X2386G2H is simple to install with minimal cabling.

Q6: What AI features are available in DS-7604NI-M1/4P-KIT-4X2386G2H?

The DS-7604NI-M1/4P-KIT-4X2386G2H supports human and vehicle detection, intrusion alerts, line crossing, and advanced analytics.
