Hanwha Wisenet upto x4 8MP Q-Core Cameras kit with 4 channel NVR with HDD QNE-C9013RL

The Hanwha Wisenet 8MP Q-Core Camera Kit with 4-Channel NVR is an advanced yet affordable surveillance solution designed for small to medium-sized applications, including retail, banking, offices, and transportation. The Q series AI Dual Light Camera ensures high-quality imaging in low-light conditions with its warm white LED and infrared (IR) lights, while the NVR delivers seamless recording and AI-powered analytics when paired with compatible AI cameras.

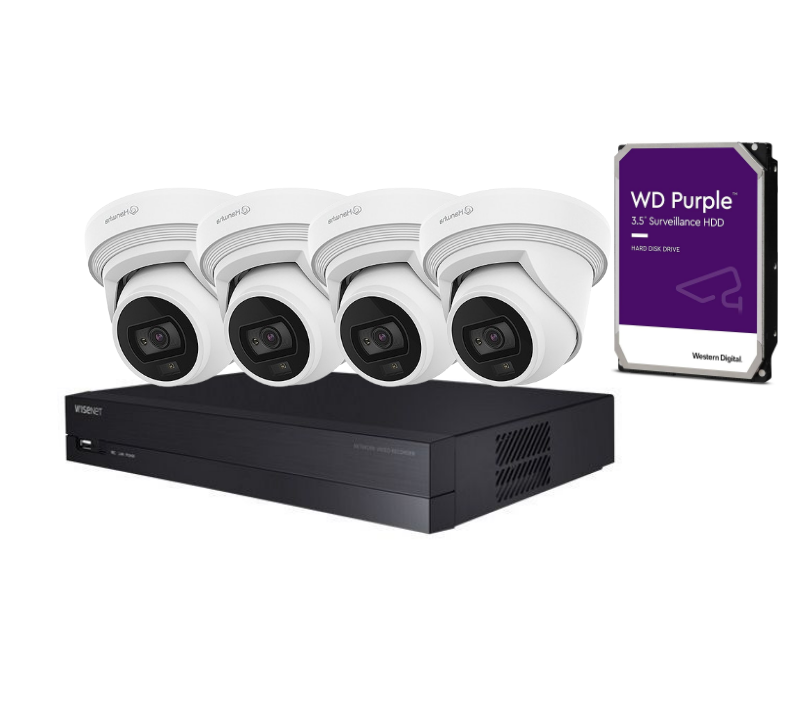

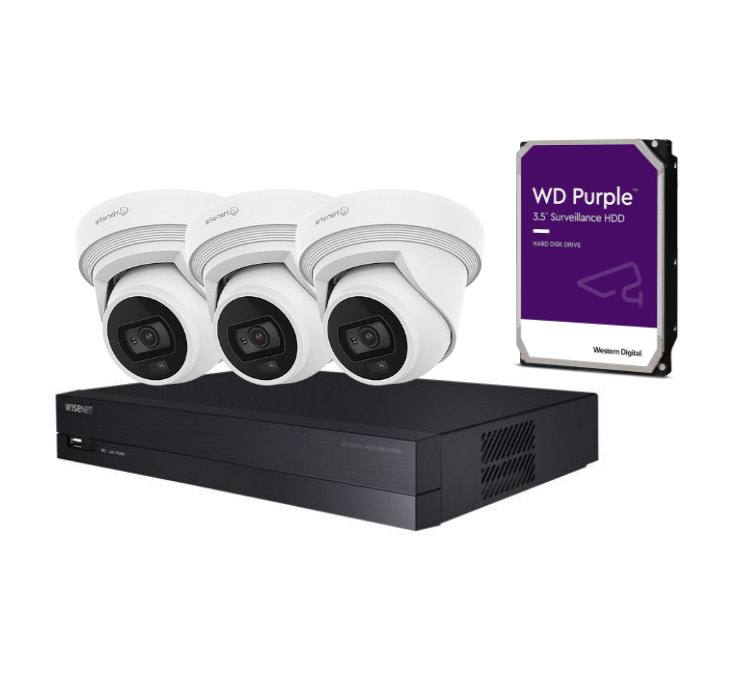

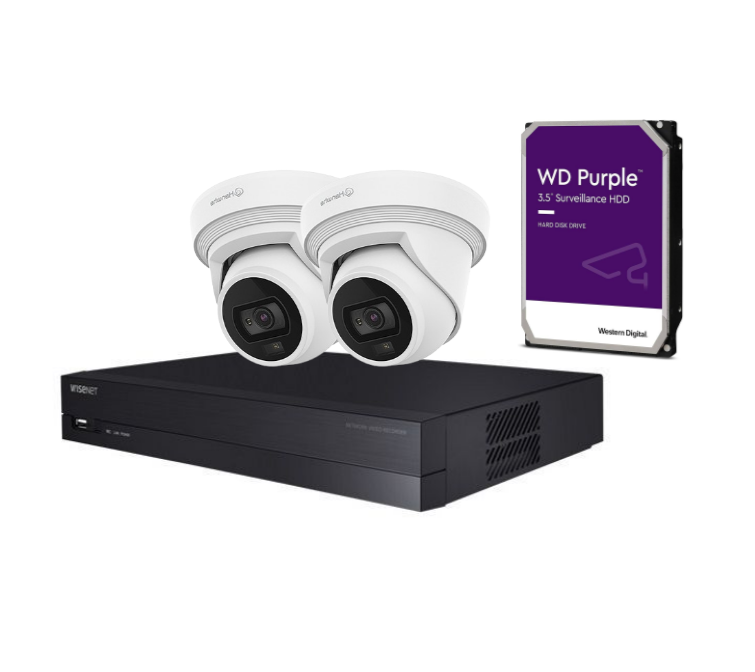

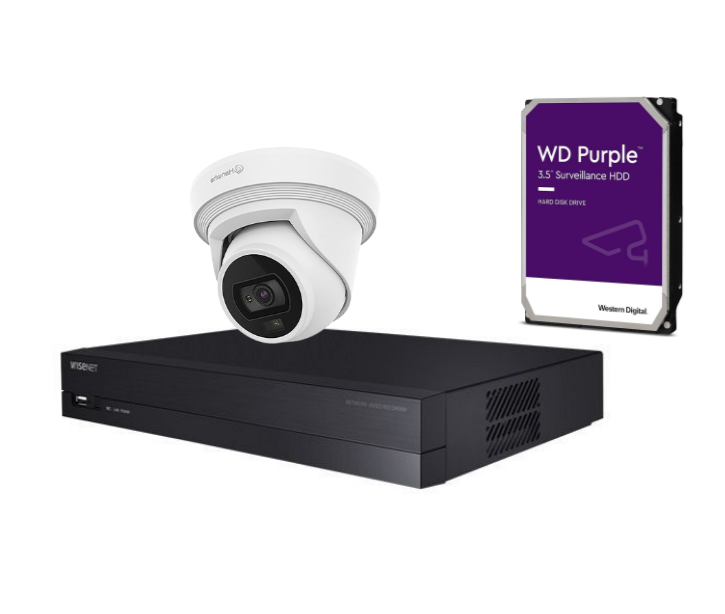

What's Included in the Box?

• Up to 4 x QNE-C9013RL 8MP AI Dual Light Flateye Cameras

• 1 x 4-Channel NVR (HV-QRN-430S or HV-XRN-420S, model selection required)

• Hard Disk Drive (HDD) (Choose your HDD below)

• Power Adapters and Cables

• Mounting Hardware

• Quick Start Guide

Main Features

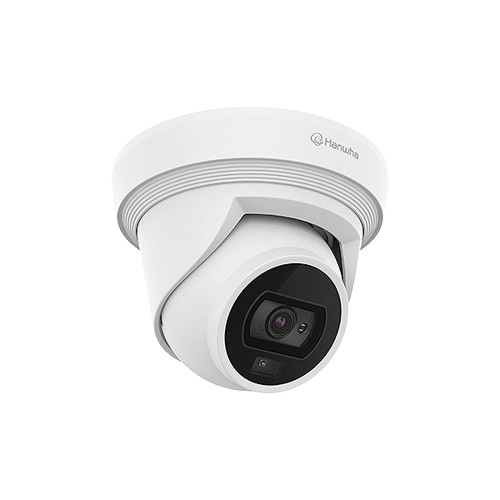

QNE-C9013RL Camera:

• Resolution: Max. 8MP (3840×2160) at 30fps

• Lens: 3.0mm fixed focal length, F1.6 aperture

• Compression: H.265, H.264, MJPEG codec with WiseStreamⅢ (AI-based optimization)

• Illumination: Warm white LED and IR with 30m range

• WDR & Noise Reduction: 120dB WDR and WiseNRⅡ (AI-powered noise reduction)

• AI Analytics: Object classification, detection, and attribute-based analysis

• Storage: Supports Micro SD / SDHC / SDXC (up to 256GB)

• Durability: IP66/IP67 weatherproof and IK10 impact-resistant

• Power: PoE only

NVR Options:

HV-QRN-430S (Q-Series NVR)

• Channels: Supports up to 4 cameras at 8MP resolution

• Recording Bandwidth: 40Mbps network camera recording

• Compression: H.265, H.264, MJPEG

• Storage: 1 HDD slot (Max. 6TB)

• Connectivity: 4 PoE ports for plug-and-play installation

• Output: HDMI output for local monitoring

• Remote Access: P2P service (QR code scan)

HV-XRN-420S (X-Series NVR)

• Channels: Supports up to 4 cameras at 8MP resolution

• Recording Bandwidth: 50Mbps

• Compression: H.265, H.264, MJPEG

• AI Search: Enables AI object attribute search (gender, age, clothing color, vehicle type, etc.) when used with AI cameras

• Storage: 1 HDD slot (Max. 6TB)

• Connectivity: 4 PoE ports, HDMI & VGA output for local monitoring

• Remote Access: P2P service (QR code scan)

• Advanced Features: ARB supported for reliable recording

Warranty Information

This product includes a 5-year warranty, ensuring reliable performance and long-term support.

Brand Description

Hanwha Vision is a global leader in video surveillance solutions, offering advanced, reliable, and innovative products tailored to modern security needs.

SKU

HV-QNE-C9013RL

Practical Use Scenarios

• Retail Stores: Capture clear surveillance footage with AI-based detection to prevent theft and monitor customer behavior.

• Banking & Financial Institutions: Ensure clear identification of individuals and vehicles around ATMs and entrances.

• Office Buildings: Secure entrances, exits, and restricted areas with high-resolution surveillance.

• Transportation & Parking Areas: Monitor vehicle movements and detect unauthorized access in transit hubs and parking lots.

Datasheets & Downloadable Resources

• QNE-C9013RL Datasheet

• HV-QRN-430S Datasheet

• HV-XRN-420S Datasheet

Excellence for the Australian and New Zealand Market

• Meets Australian quality standards and holds relevant certifications.

• Specifically optimized for the Australian and New Zealand markets.

• Sourced exclusively from authorized brand representatives.

• Warranty claims are handled directly with the brand for seamless support.

Frequently Asked Questions (FAQs)

Q: Does the NVR support AI analytics? A: The HV-XRN-420S model supports AI search features when paired with Wisenet AI cameras, allowing for object attribute searches. The HV-QRN-430S does not support AI analytics.

Q: What is the maximum storage capacity of the NVR? A: Both NVR models support 1 HDD up to 6TB for video storage.

Q: Are the cameras weatherproof? A: Yes, the QNE-C9013RL cameras are rated IP66/IP67, making them fully weatherproof and suitable for outdoor installations.

Q: How do I access my footage remotely? A: Both NVR models feature P2P connectivity with QR code scanning, allowing remote access via a mobile app.

Q: What is the illumination range for nighttime surveillance? A: The QNE-C9013RL cameras feature dual illumination (IR and warm white LED) with a range of up to 30 meters, ensuring excellent night vision clarity
