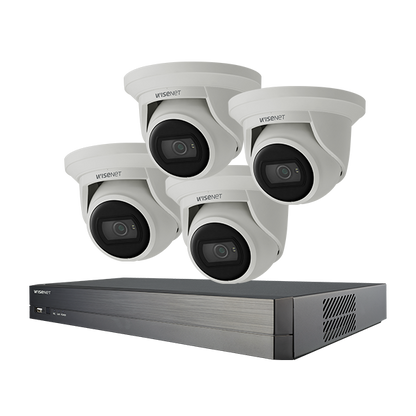

Hanwha Wisenet Q Surveillance Kit 4x Wisenet QNE-8011R / 5MP or 8MP AI FlatEye Camera, 4 Channel NVR with PoE + HDD

The Hanwha Wisenet Q Surveillance Kit provides cutting-edge surveillance technology tailored for security-conscious users. This package features 4 Wisenet QNE-8011R 5MP IR Flateye Cameras or the advanced HV-QNE-C9013RL 8MP AI FlatEye Cameras, paired with a 4CH 8MP H.265 NVR with PoE switch and a pre-installed 2TB HDD. Designed for superior performance and reliability, this kit ensures optimal image clarity, intelligent analytics, and efficient data management.

The Wisenet QNE-8011R delivers 5MP resolution with advanced low-light capabilities (0.15Lux color, 0Lux B/W with IR) and a robust design with IP66/IK10 resistance. Alternatively, the 8MP HV-QNE-C9013RL AI FlatEye Cameras offer exceptional 4K resolution and AI-powered features for enhanced security. The 4CH NVR supports up to 8MP resolution, WiseStream compression, and real-time streaming for a seamless surveillance experience.

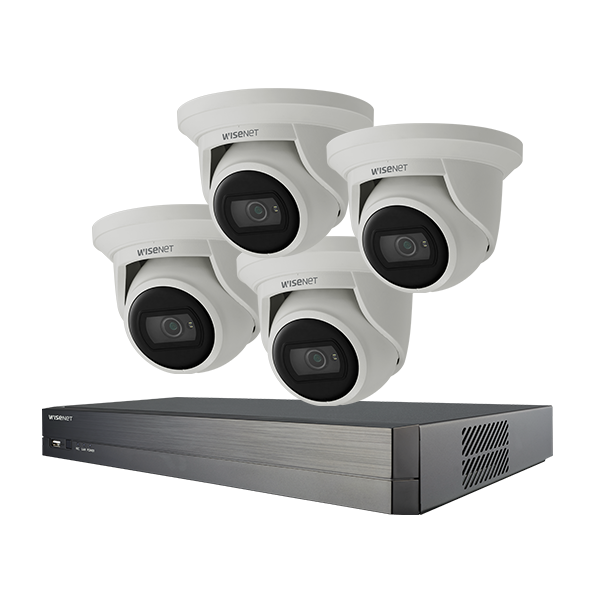

What’s Included in the Box

• 4x Wisenet QNE-8011R IR Flateye Cameras (or HV-QNE-C9013RL 8MP AI FlatEye Cameras)

• 1x CT-QRN-430S 4CH NVR with PoE switch

• 1x HDD (Choose your HDD below)

Main Features

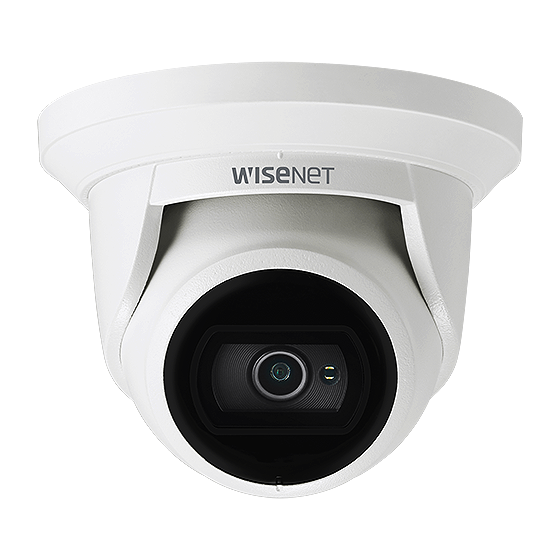

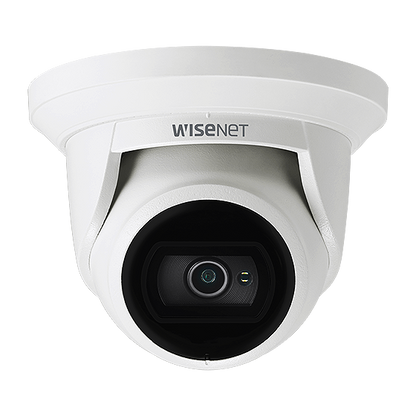

Cameras – Wisenet QNE-8011R

• Max. 5MP resolution (2592 x 1944)

• Fixed lens: 2.8mm/4mm

• Low-light performance: 0.15Lux (color), 0Lux (B/W with IR LED)

• 30fps@5MP video recording

• Codec support: H.265, H.264, MJPEG

• WiseStream II for bandwidth efficiency

• Day/Night, 120dB WDR, and tampering detection

• IR viewable length up to 20m

• Micro SD/SDHC/SDXC slot (up to 128GB)

• Hallway view and PoE support

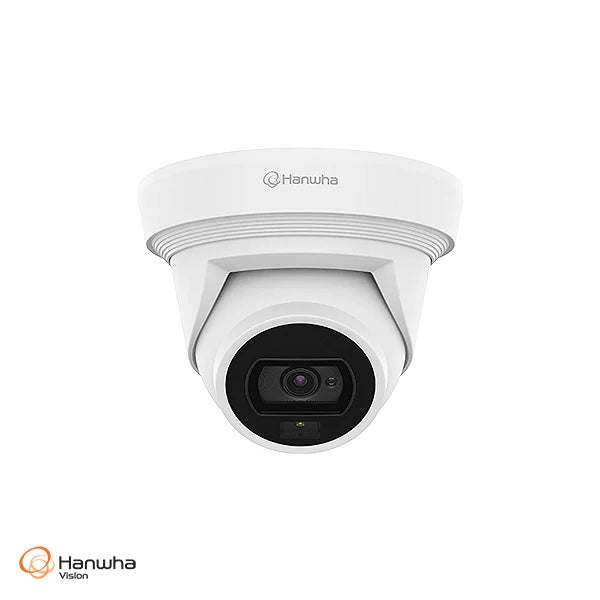

Cameras – HV-QNE-C9013RL 8MP AI FlatEye

• Max. 8MP resolution (3840 x 2160)

• Fixed lens: 3.0mm

• Advanced low-light performance: 0.034Lux (color), 0Lux (IR LED)

• AI analytics: Object classification and attribute detection

• Dual light (White LED and IR) illumination up to 30m

• WiseStream III (AI-based) for optimized performance

• IP66/IP67 and IK10 resistance for durability

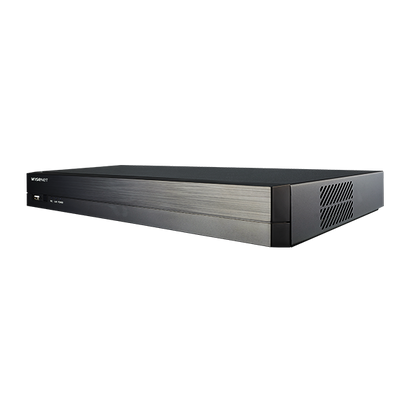

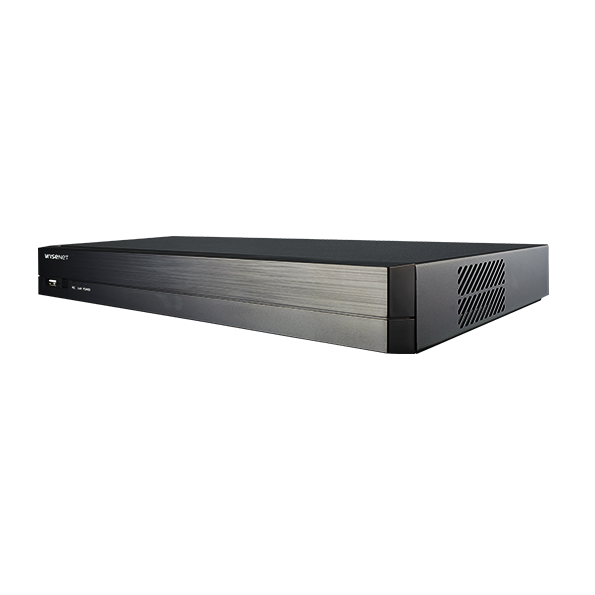

NVR – CT-QRN-430S

• 4-channel support for up to 8MP cameras

• H.265, H.264, MJPEG codec compatibility

• 40Mbps recording capacity

• 1 pre-installed HDD (2TB, upgradeable to 6TB)

• Plug-and-play PoE for easy setup

• HDMI/VGA output for live monitoring

• P2P support with QR code scanning

Specifications

Cameras:

• Image sensor: 1/2.8" CMOS

• Illumination: 0.15Lux (color), 0Lux (IR LED)

• Field of view: Horizontal 108°, Vertical 59°, Diagonal 127°

• IR Range: Up to 20m (QNE-8011R); 30m (HV-QNE-C9013RL)

• Weather/Impact Resistance: IP66/IK10

NVR:

• Recording Bandwidth: 40Mbps

• Codec: H.265/H.264/MJPEG

• Ports: 4 PoE, HDMI, VGA

• Storage: 2TB HDD (expandable to 6TB)

• Video Output: Full HD via HDMI/VGA

Warranty Information

The Hanwha Wisenet Q Surveillance Kit comes with a 5-year manufacturer’s warranty.

Brand Description

Hanwha Vision, a trusted leader in surveillance and imaging technologies, combines innovation with reliability. With decades of expertise, Hanwha delivers cutting-edge solutions tailored to meet diverse security needs.

SKU

CT-QNE-KIT-4CH4CAM

Practical Use Scenarios

• Residential Security: Protect your home with high-resolution monitoring and advanced analytics.

• Retail & Commercial Spaces: Monitor activities, prevent theft, and enhance operational efficiency.

• Industrial Sites: Maintain oversight of assets and ensure safety in demanding environments.

• Outdoor Surveillance: Weather-resistant and vandal-proof cameras ensure reliable performance in all conditions.

Datasheets and Resources

Download the datasheet for detailed technical specifications here.

Manual
Data Sheet
Brochure

Manual
Quick Guide
Data Sheet
Brochure

Excellence for the Australian and New Zealand Market

The Hanwha Wisenet Q Surveillance Kit meets rigorous Australian and New Zealand quality standards. With RCM compliance, it is optimized for performance in local conditions. All components are sourced exclusively from authorized representatives, ensuring genuine quality and reliability. Warranty claims and support are streamlined through direct communication with Hanwha, offering peace of mind for Australian and New Zealand customers.

Ensure top-tier surveillance with the Hanwha Wisenet Q Surveillance Kit – engineered for security, efficiency, and reliability.
