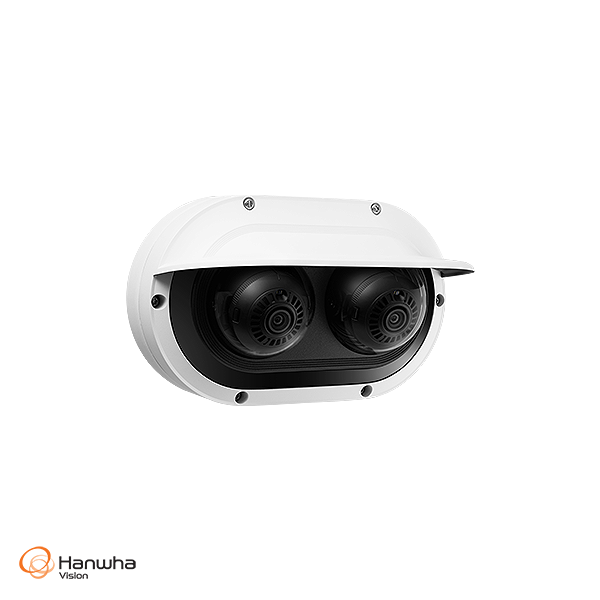

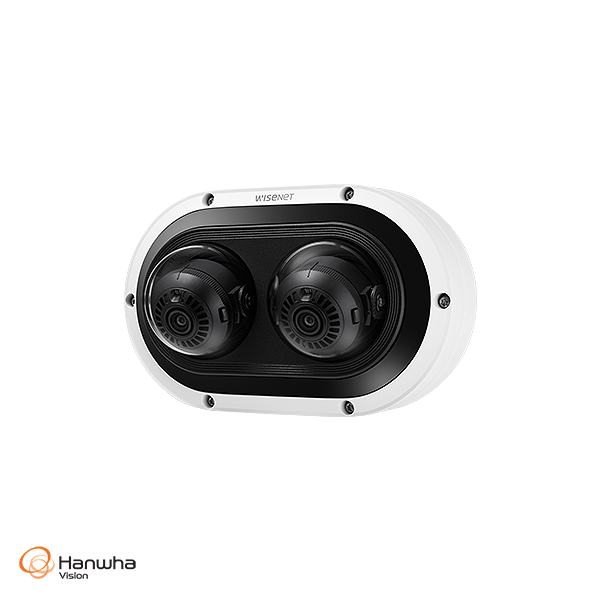

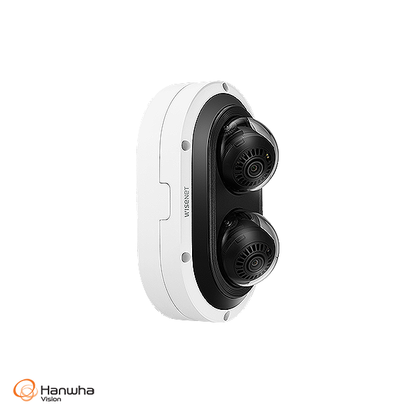

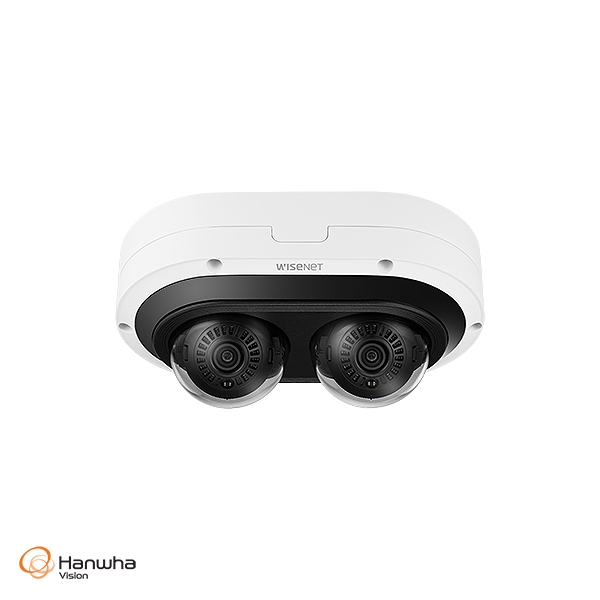

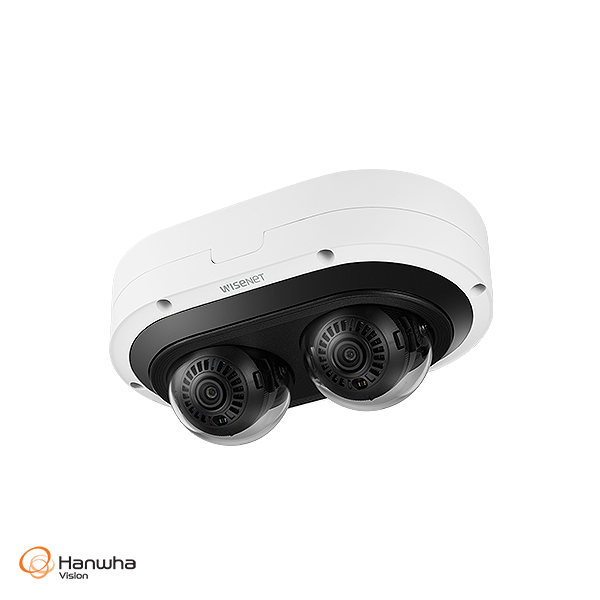

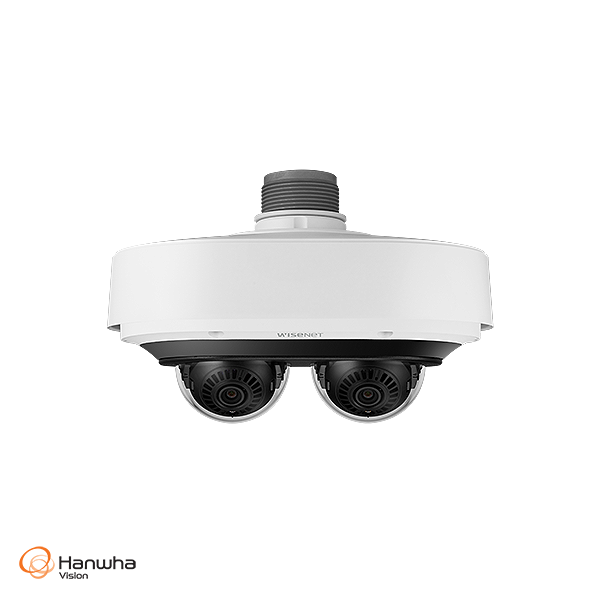

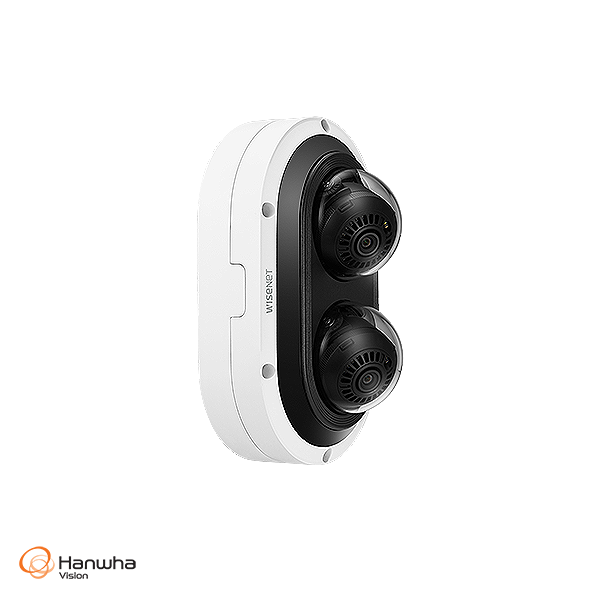

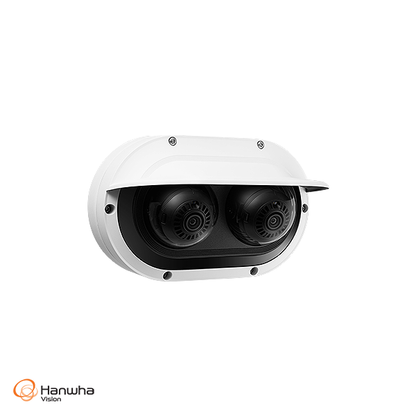

Hanwha Wisenet PNM-12082RVD 6MP x 2CH Multi-Directional Network Dome Camera with IR, Motorised Varifocal Lens, extremeWDR, WiseStream II, TPM 2.0, IP66/IP67 & IK10 PTZ P Series

The Hanwha Vision PNM-12082RVD is a professional 6MP x 2-channel multi-directional network security camera designed for wide-area surveillance, outdoor monitoring and high-detail video capture. With dual 6MP sensors, motorised varifocal lenses, IR night visibility up to 25m, extremeWDR 120dB, WiseNR, WiseStream II and rugged IP66/IP67, IK10 and NEMA4X-rated protection, the PNM-12082RVD is ideal for demanding commercial and infrastructure security environments.

Built for flexible coverage, the PNM-12082RVD combines two independently adjustable camera channels in one compact vandal-resistant dome body. Each channel supports up to 3328 x 1872 resolution at 15fps, helping reduce blind spots while simplifying installation compared with deploying multiple separate cameras.

The camera includes 3.54–6.69mm motorised varifocal lenses, Day & Night ICR, 0 lux operation with IR LEDs on, and advanced image enhancement technologies including extremeWDR 120dB, WiseNR, SSNR V, SSDR, defog support and hallway view. It also supports edge recording via microSD/SDHC/SDXC up to 512GB and secure network operation with TPM 2.0, FIPS 140-2 Level 2 security, secure boot, secure storage and ONVIF Profile S/T.

SKU

PNM-12082RVD

Product Code

PNM-12082RVD

What’s Included in the Box

• 1 x Hanwha Vision PNM-12082RVD 6MP x 2CH Multi-Directional Camera
• Manufacturer-supplied installation materials and documentation may be included depending on regional packaging.
• Exact box contents are not specified in the supplied datasheet and should be confirmed before purchase.

Main Features

• Dual 6MP multi-directional imaging with 2-channel camera coverage
• Maximum resolution of 3328 x 1872
• Maximum frame rate of 15fps at 6MP
• 3.54–6.69mm motorised varifocal lens with simple focus
• IR visibility up to 25m, depending on scene conditions
• extremeWDR 120dB for challenging lighting conditions
• WiseNR, SSNR V and WiseStream II for efficient, cleaner video streaming
• Day & Night ICR for 24/7 surveillance
• Analytics support including defocus detection, motion detection, tampering, virtual line and virtual area events
• Edge storage via microSD/SDHC/SDXC up to 512GB
• Secure platform with TPM 2.0, FIPS 140-2 Level 2, secure boot, secure OS and secure storage
• Outdoor-ready protection with IP66/IP67, IK10 and NEMA4X ratings
• PoE+ powered for simplified installation
• ONVIF Profile S/T and SUNAPI support for system integration

Detailed Specifications

Practical Use Scenarios

The PNM-12082RVD is suited to environments requiring reliable multi-angle surveillance from a single installation point, including:

• Commercial building perimeters
• Car parks and driveways
• Warehouses and loading docks
• Retail entrances and service corridors
• Schools, campuses and public facilities
• Industrial sites and infrastructure assets
• Outdoor areas requiring vandal-resistant and weather-resistant monitoring

Warranty Information

5 year warrenty

Warranty terms are subject to Hanwha Vision’s regional policies and the authorised reseller or distributor supplying the product. Warranty claims and product support should be handled through authorised Hanwha Vision channels.

Brand Description

Hanwha Vision, formerly known as Hanwha Techwin, is a global video surveillance brand offering professional security cameras, network video systems and intelligent imaging technologies for commercial, industrial and public-sector applications.

Datasheets & Downloadable Resources

• Datasheet

Excellence for the Australian and New Zealand Market

The Hanwha Vision PNM-12082RVD is well suited to Australian and New Zealand commercial security deployments requiring high-quality outdoor surveillance, strong vandal resistance and dependable network camera performance. The product specifications include RCM AS/NZS CISPR 32 Class A EMC compliance, supporting suitability for professional use in the Australian market.

This model is designed for demanding environments with IP66/IP67 weather protection, IK10 impact resistance and NEMA4X-rated durability, making it suitable for outdoor security applications across Australia and New Zealand.

For procurement confidence, the PNM-12082RVD should be sourced through authorised Hanwha Vision representatives or approved distribution channels. Warranty handling should be managed through direct communication with the brand or authorised brand channels. NDSS approval is not applicable to this product category, as this is a professional surveillance camera, not a medical or diabetes-related device.

FAQs

What is the PNM-12082RVD used for?

The PNM-12082RVD is used for professional multi-directional video surveillance in areas such as building perimeters, car parks, warehouses, commercial entrances and outdoor security zones.

What resolution does the PNM-12082RVD support?

The PNM-12082RVD supports a maximum resolution of 3328 x 1872 per channel, with dual 6MP imaging across 2 channels.

Does the PNM-12082RVD have night vision?

Yes, the PNM-12082RVD has built-in IR illumination with a viewable length of up to 25m, depending on scene conditions.

Is the PNM-12082RVD suitable for outdoor installation?

Yes, the PNM-12082RVD is designed for outdoor surveillance with IP66/IP67, IK10 and NEMA4X-rated protection.

Does the PNM-12082RVD support PoE?

Yes, the PNM-12082RVD supports PoE+ IEEE 802.3at Class 4, with a maximum power consumption of 18.3W.

What lens does the PNM-12082RVD use?

The PNM-12082RVD uses a 3.54–6.69mm motorised varifocal lens with simple focus.

Does the PNM-12082RVD support edge recording?

Yes, the PNM-12082RVD supports edge storage via microSD/SDHC/SDXC card up to 512GB.

What security features are included in the PNM-12082RVD?

The PNM-12082RVD includes TPM 2.0, FIPS 140-2 Level 2 security, HTTPS login authentication, digest login, IP filtering, 802.1X authentication, secure boot and secure storage.
