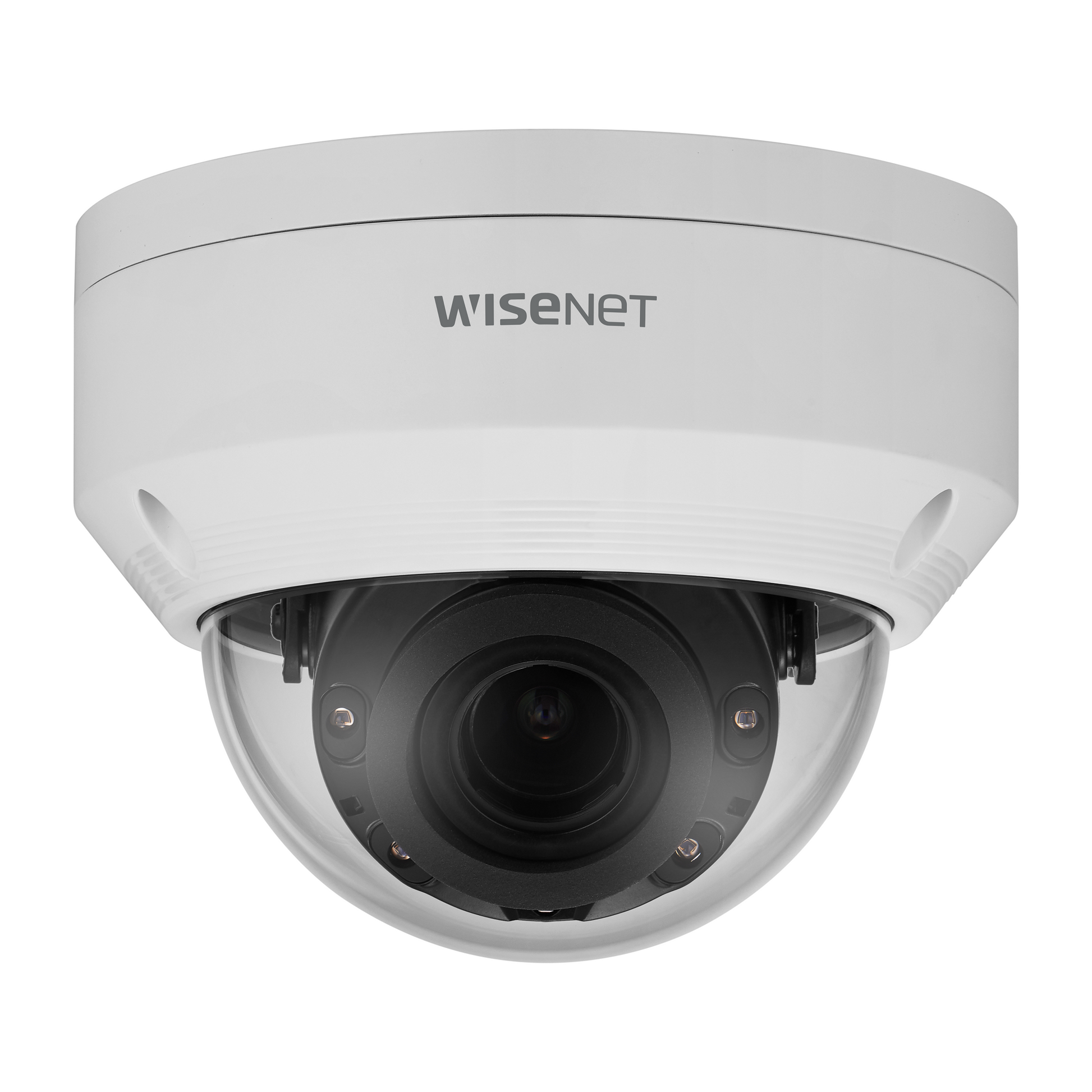

Hanwha Wisenet HV-ANV-L7082R 4MP IR Outdoor Vandal Dome IP Camera with Motorized Varifocal Lens and WDR

The Hanwha Wisenet HV-ANV-L7082R is a robust 4MP IR vandal dome camera designed for reliable surveillance in diverse environments. Part of Hanwha's A Series, this camera offers high-resolution imaging, advanced analytics, and durable construction, making it ideal for small to medium-sized installations such as retail stores, banks, and commercial properties.

What's Included

• Hanwha Wisenet HV-ANV-L7082R 4MP IR Vandal Dome Camera

• Mounting template

• Torx L-wrench

• Moisture absorbent

• Mount plate

• Machine screws (x3)

• Cable bushing

Key Features

• High-Resolution Imaging: Captures clear images with 4MP resolution (2560 x 1440) at up to 30fps

• Low-Light Performance: Color images at 0.1 Lux and black & white at 0 Lux with IR LEDs up to 30 meters

• Motorized Varifocal Lens: 3.3–10.3mm lens with remote zoom and focus (Simple Focus)

• Wide Dynamic Range (WDR): 120dB WDR ensures clarity in varied lighting

• Smart Analytics: Motion detection, tampering, defocus detection, directional and virtual line detection

• Durable Build: IP66 weather-rated and IK10 vandal-resistant housing

• Efficient Compression: H.265, H.264, MJPEG support with WiseStream II for bandwidth optimization

• Local Storage: microSD/SDHC/SDXC slot supports up to 128GB

Detailed Specifications

• Image Sensor: 1/2.8" CMOS

• Maximum Resolution: 2560 x 1440

• Lens: 3.3–10.3mm motorized varifocal, F1.6 (Wide) to F3.3 (Tele)

• Field of View: H: 94.8°–28.1°, V: 50.2°–15.8°, D: 112.9°–32.2°

• IR Distance: Up to 30m (98.43ft)

• Min. Illumination: Color: 0.1 Lux, B/W: 0 Lux with IR

• Video Compression: H.265, H.264, MJPEG with multiple streaming profiles

• Network Protocols: IPv4/IPv6, TCP/IP, UDP/IP, RTP, HTTP/S, FTP, SNMP, etc.

• Security Features: HTTPS, IP filtering, 802.1X authentication, user access logs

• Operating Temperature: -30°C to +55°C

• Power Supply: PoE (IEEE802.3af Class 3), Max. 8W

• Dimensions & Weight: Ø137.8 x 107.1mm, 550g

• Certifications: IP66 (weatherproof), IK10 (vandal-resistant)

Warranty Information

The Hanwha Wisenet HV-ANV-L7082R includes a 3-year manufacturer’s warranty, covering defects in materials and workmanship, with support from authorized service partners.

Brand Overview

Hanwha Vision, formerly Hanwha Techwin and originally Samsung Techwin, is a global leader in advanced video surveillance solutions. Known for their reliability and innovation, Hanwha security products are widely trusted across critical industries and infrastructures.

SKU

Product Code: HV-ANV-L7082R

Practical Use Scenarios

• Retail Security: Monitor high-traffic zones and deter shoplifting

• Banking Surveillance: Secure ATMs, teller counters, and vaults

• Commercial Facilities: Oversee entrances, hallways, and common areas

• Parking Management: Capture vehicle and pedestrian activity, day or night

• Education: Support campus-wide monitoring for student and staff safety

Datasheets & Resources

Manual
Data Sheet
Brochure

Excellence for the Australian and New Zealand Market

The Hanwha Wisenet HV-ANV-L7082R complies with stringent Australian and New Zealand quality standards and carries RCM certification. It is tailored for the regional climate and operating conditions, with full support and servicing available through Hanwha’s authorized representatives. Warranty claims and technical support are handled directly by Hanwha Vision, ensuring peace of mind for customers across Australia and New Zealand.

FAQs

Q1: What is the maximum storage capacity supported by the HV-ANV-L7082R?
A1: The HV-ANV-L7082R supports microSD, SDHC, and SDXC cards up to 128GB for local edge recording.

Q2: Can the HV-ANV-L7082R operate in low-light conditions?
A2: Yes, it delivers color footage at 0.1 Lux and black-and-white with IR illumination in total darkness, up to 30 meters.

Q3: Is the HV-ANV-L7082R suitable for outdoor use?
A3: Absolutely. With IP66 weatherproof and IK10 vandal-resistant ratings, it is designed for rugged outdoor environments.

Q4: Does the HV-ANV-L7082R support Power over Ethernet (PoE)?
A4: Yes, it is PoE-compatible (IEEE802.3af, Class 3), requiring only a single cable for power and data.

Q5: What video formats are supported by the HV-ANV-L7082R?
A5: The camera supports H.265, H.264, and MJPEG formats, with WiseStream II technology to optimize streaming efficiency.
