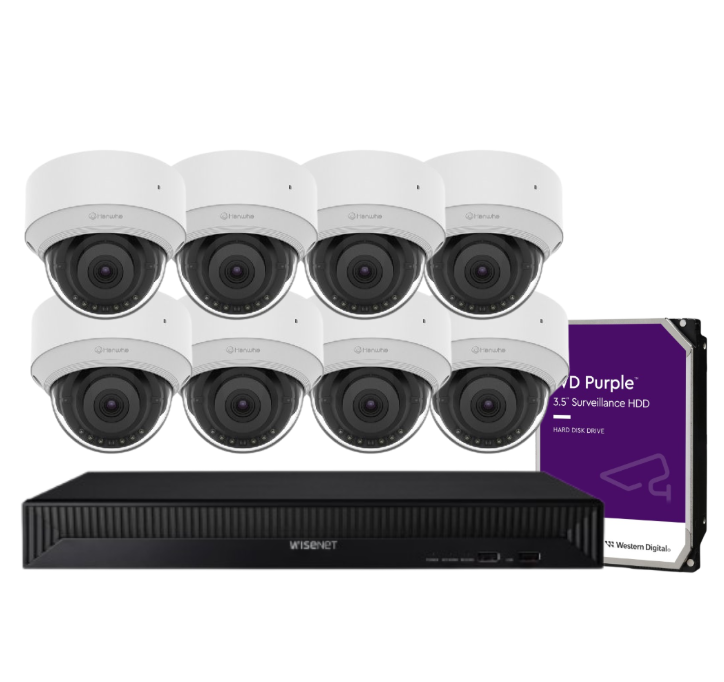

Hanwha Wisenet 8‑Camera CCTV Kit with 5 MP QND‑C8013R AI Dome Cameras & 8‑CH XRN‑815S PoE+ AI NVR (HDD Support)

Elevate your security with the Hanwha Wisenet CCTV kit, ideal for large homes, businesses, and commercial spaces in Australia and New Zealand. This comprehensive package includes up to eight 5 MP AI‑enhanced QND‑C8013R IR dome cameras paired with the 8‑channel XRN‑815S PoE+ AI NVR, offering superior image quality, advanced analytics, and seamless P2P setup. With robust recording capabilities, high-resolution viewing, and future-forward AI search, it's the perfect all-in-one surveillance system with optional HDD support.

📦 What’s in the Box

• 8 × Hanwha Wisenet QND‑C8013R 5 MP AI IR Dome Cameras

• 1 × Hanwha Wisenet XRN‑815S 8‑CH PoE+ AI NVR

• Power cord, Ethernet cables, and PoE injectors

• Mounting hardware and installation accessories

• Quick installation guide and warranty card

• (Choose your HDD below)

🔧 Main Features

QND‑C8013R 5 MP AI IR Dome Camera

• Delivers crisp 5 MP (2592×1944) resolution @ 30 fps

• 3 mm fixed lens with 129° diagonal FOV, ideal for wide spaces

• IR night vision up to 25 m, Day/Night ICR, 120 dB WDR, AI‑powered WiseNRⅡ denoise

• Triple-stream codecs (H.265/H.264/MJPEG) with WiseStreamⅢ efficiency

• AI detection: Person/vehicle, color attribute, BestShot, motion, virtual zones, dynamic privacy masking

• Built-in microphone, microSD storage up to 256 GB, PoE power support

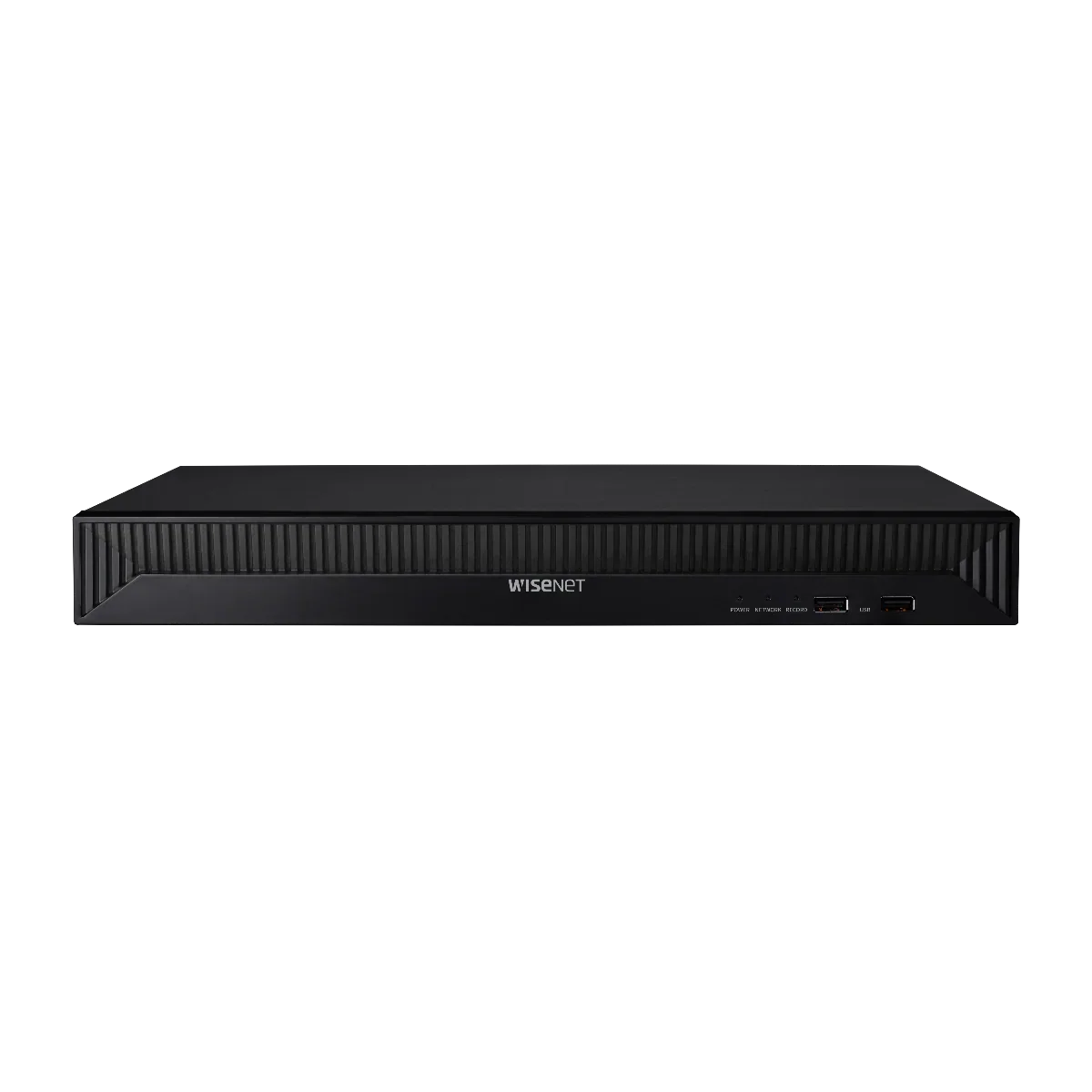

XRN‑815S 8‑CH PoE+ AI NVR

• Supports 8 channels, with up to 12 MP per camera resolution

• PoE+ power via 8 LAN ports + 1G WAN; 100 Mbps recording bandwidth

• Dual HDMI outputs (4K@30Hz and 1080p@60Hz) for flexible displays

• Advanced features: AI Search, ARB redundancy, playback up to 32 CH

• Dual SATA HDD bays supporting up to 20 TB total storage

• P2P QR-code setup for effortless remote viewing

• Supports ONVIF, SUNAPI protocols and dual-stream codecs

📋 Detailed Specifications

QND‑C8013R

• Sensor: 1/2.8″ CMOS

• Lens & FOV: 3 mm, 100° H / 73° V / 129° diagonal

• Illumination: Color 0.05 Lux; B/W 0.005 Lux; IR 0 Lux

• Analytics: Multiple virtual zones, BestShot, object/person/vehicle detection

• Power: PoE Class 3, max 8.1 W

• Storage: microSD up to 256 GB

• Operating Temperature: –10 °C to +45 °C

XRN‑815S

• Recording Bandwidth: 100 Mbps total

• Resolution: Supports 12 MP cameras

• Outputs: HDMI1 (4K), HDMI2 (1080p)

• Playback: Up to 32 CH simultaneous

• Storage: 2 × SATA bays, up to 10 TB each

• PoE Budget: 100 W

• Power Input: 100–240 VAC, max 165 W

• Operating Temperature: 0–40 °C

🛡️ Warranty Information

• QND‑C8013R cameras: 3 years manufacturer warranty

• XRN‑815S NVR: Standard 5 years manufacturer warranty

• Warranty service provided directly by authorized Hanwha distributors in Australia and New Zealand.

🏢 Brand Overview

Hanwha Vision (formerly Hanwha Techwin) is a world-renowned leader in secure video surveillance. Known for innovation, reliability, and advanced AI-based analytics, Hanwha delivers solutions trusted across residential, commercial, and industrial sectors.

🎯 Practical Use Scenarios

• Commercial complexes: widescale coverage, high-resolution analytics

• Educational campuses: record and search multiple zones simultaneously

• Warehouses/factories: track movements of people and vehicles

• Retail environments: queue management, heatmaps, customer tracking

• Large residential properties: indoor/outdoor surveillance blend

📥 Datasheets & Resources

• Detailed QND‑C8013R datasheet

• XRN‑815S technical datasheet

🇦🇺 Excellence for the Australian and New Zealand Market

This kit meets RCM electrical standards, EMC requirements, and aligns with Australian cybersecurity regulations. All components are sourced via authorized Hanwha Vision dealers. Local warranty and technical support ensure streamlined service and compliance across ANZ regions.

❓ FAQs

1. What is the maximum resolution of QND‑C8013R (SKU QND‑C8013R)?

   • It offers 5 MP (2592×1944) resolution @ 30 fps.

2. How many channels can the XRN‑815S NVR support (SKU XRN‑815S)?

   • Up to 8 camera channels with 100 Mbps recording bandwidth.

3. Can the XRN‑815S (SKU XRN‑815S) support dual-stream recording?

   • Yes, it supports H.265/H.264/MJPEG dual-stream codecs.

4. Does the QND‑C8013R (SKU QND‑C8013R) include privacy masking?

   • Yes, the camera supports dynamic masking for people and vehicles.

5. What is the maximum storage capacity of the XRN‑815S NVR (SKU XRN‑815S)?

   • Supports up to 20 TB (2×10 TB SATA HDDs).

6. Is PoE+ PoE available from the NVR (SKU XRN‑815S)?

   • Yes, PoE+ power is delivered on all 8 LAN ports with a 100 W power budget.
