Hanwha Wisenet 8‑Camera CCTV Kit – CT‑ANV‑L7082R 4 MP Dome + CT‑ARN‑810S 8‑Ch 8 MP AI NVR with HDD – Outdoor Vandal‑Resistant, H.265, PoE+

Secure your premises with this comprehensive Hanwha Wisenet CCTV Kit, including eight CT‑ANV‑L7082R 4 MP H.265 Outdoor Vandal Dome Cameras and a powerful CT‑ARN‑810S 8‑Channel 8 MP AI NVR with PoE+. Featuring advanced low-light visibility, motorized varifocal lenses, and robust analytics, this kit delivers high-end surveillance ideal for residential, commercial, and industrial environments.

The NVR supports up to 8 MP resolution per channel, comes equipped with PoE+ ports for easy installation, and provides both local 4K viewing and remote monitoring via the Wisenet App. Everything is included, from cameras to HDD—or choose a kit without HDD for custom storage.

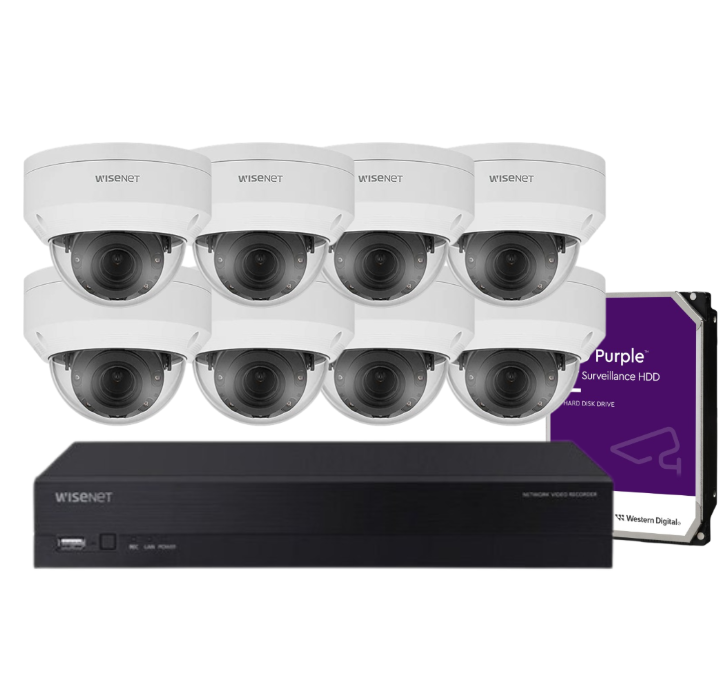

What’s Included in the Box

• 8 × Hanwha Wisenet CT‑ANV‑L7082R 4 MP Outdoor Vandal Dome Cameras

• 1 × Hanwha Wisenet CT‑ARN‑810S 8‑Channel 8 MP H.265 AI NVR with PoE+

• 1 ×  HDD (Choose your HDD below)

• 8 × Ethernet cables for PoE

• NVR power adapter & cable


• Quick Start Guides for cameras and NVR

🔍 Main Features

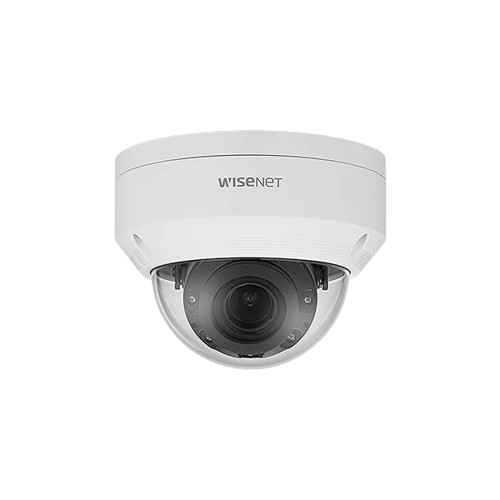

CT‑ANV‑L7082R Cameras (×8):

• Crystal-clear 4 MP resolution at 30 FPS

• 0.1 Lux minimum illumination (color) / 0 Lux (B/W, IR on); infrared range up to 30 m

• Motorized 3.3–10.3 mm varifocal lens with Simple Focus

• True Day/Night ICR and 120 dB WDR

• Analytics: defocus, directional, motion, enter/exit, tampering

• Viewing capabilities: hallway view, LDC, WiseStream II

• Codecs: H.265, H.264, MJPEG with multi-stream support

• Built for durability: IP66, IK10 ratings; micro-SD support up to 128 GB

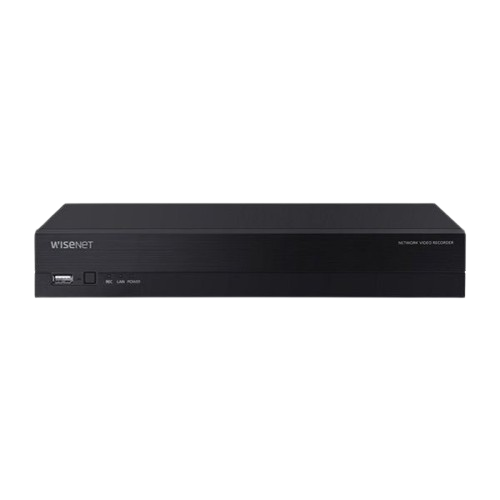

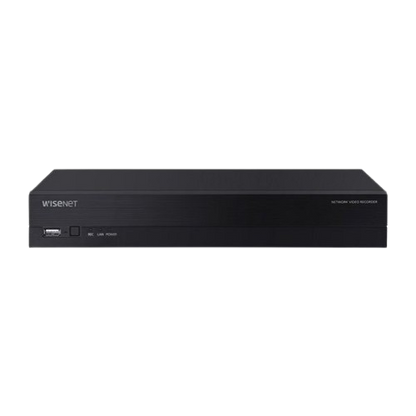

CT‑ARN‑810S NVR:

• 8-channel recording at up to 8 MP per stream; 60 Mbps aggregate bandwidth

• 8 PoE+ ports with 65 W power budget—simplifies installation

• Supports H.265, H.264, MJPEG codecs with dual-track recording

• 4 K HDMI local output for clear monitoring

• One 6 TB SATA HDD slot (included or optional)

• P2P connectivity and remote access via Wisenet Viewer/Mobile

📋 Detailed Specifications

CT‑ANV‑L7082R

• Sensor: 1/2.8″ CMOS

• Resolution: 2560×1440 @ 30 FPS

• Lens: 3.3–10.3 mm motorized varifocal

• IR Range: 30 m

• WDR: 120 dB

• Storage: micro-SD/HC/XC up to 128 GB

• Power: PoE (IEEE 802.3af, ~8 W)

• Operating Temp: –30 °C to +55 °C

• IK/IP Rating: IK10, IP66

CT‑ARN‑810S

• Video Input: 8× up to 8 MP

• Bandwidth: 60 Mbps

• PoE Ports: 8× (10/100 Mbps)

• LAN/WAN: 1× 1 GbE WAN

• HDMI: 4 K output

• HDD: SATA up to 6 TB

• Power: 54 V DC / 1.67 A; max 84 W with HDD

• Operating Temp: 0 °C to +40 °C

🛡️ Warranty Information

Hanwha Vision provides a 5-year manufacturer’s warranty on both cameras and NVR (for units sold after July 2023). Warranty claims are supported through authorised Australian/New Zealand service partners for seamless, local assistance.

🏢 Brand Overview

Hanwha Vision (formerly Samsung Wisenet) is a global leader in surveillance systems, recognised for robust hardware, intelligent analytics, and industry-leading reliability. Their A‑Series product line delivers high-performance features at competitive prices.

🔧 Practical Use Scenarios

Ideal for:

• Large homes & estates: comprehensive perimeter and entrance surveillance

• Retail complexes & warehouses: cover large areas with high-resolution imagery

• Office campuses: secure multiple zones via single NVR unit

• Educational institutions: monitor buildings, grounds, and access points

📄 Datasheets & Resources

• CT‑ANV‑L7082R Camera Datasheet

• CT‑ARN‑810S 8‑Ch NVR Datasheet

🇦🇺 Excellence for the Australian and New Zealand Market

• Fully RCM and NZ electricity regulation compliant

• Supplied via authorised local distributors—no grey-market units

• Built to withstand local climates (IP66/IK10 ratings, extended temp ranges)

• Local warranty and support through Hanwha Vision Australia/New Zealand

❓ Frequently Asked Questions (FAQs)

Q1: Are CT‑ANV‑L7082R cameras compatible with CT‑ARN‑810S NVR? (Product Code: CT‑ANV‑L7082R)
A1: Yes, they use H.265 and ONVIF features, ensuring full integration and recording on the CT‑ARN‑810S.

Q2: Can I choose HDD or no HDD in the kit? (Product Code: CT‑ARN‑810S)
A2: Absolutely—select a kit with pre-installed 6 TB HDD or choose the ‘no HDD’ option for custom storage.

Q3: What PoE power budget should I consider? (Product Code: CT‑ARN‑810S)
A3: The NVR provides 65 W total PoE+ power, sufficient for all cameras. For higher consumption installs, consider external PoE injectors.

Q4: How do I access the system remotely? (Product Code: CT‑ARN‑810S)
A4: Scan the QR code with Wisenet Viewer or Mobile apps to set up P2P remote viewing quickly and securely.

Q5: Do cameras support local recording? (Product Code: CT‑ANV‑L7082R)
A5: Yes, they support up to 128 GB micro‑SD storage for edge recording during network outages.

Q6: Are the cameras vandal-resistant? (Product Code: CT‑ANV‑L7082R)
A6: Yes, they feature IK10-rated metal housings built for extreme impact resistance and outdoor protection.

Q7: What warranty coverage applies in Australia? (Product Code: CT‑ANV‑L7082R & CT‑ARN‑810S)
A7: Both the cameras and NVR come with a 5-year manufacturer’s warranty, supported locally.
