Hanwha Wisenet 5MP CCTV Kit with 8 ANE-L8082R Cameras + 8-Channel NVR CT-ARN-810S + HDD | AI-Powered IR Surveillance System

Strengthen your security infrastructure with the Hanwha Wisenet 5MP CCTV Kit, featuring 8 powerful ANE-L8082R IR Flateye Cameras paired with the high-performance CT-ARN-810S 8-channel NVR. Designed for precision, efficiency, and scalability, this system is ideal for commercial, industrial, and expansive residential surveillance environments.

Each ANE-L8082R camera features advanced video analytics, excellent night vision, and a motorized varifocal lens for optimal coverage, while the NVR provides seamless plug-and-play setup, dual-track recording, and up to 6TB of storage.

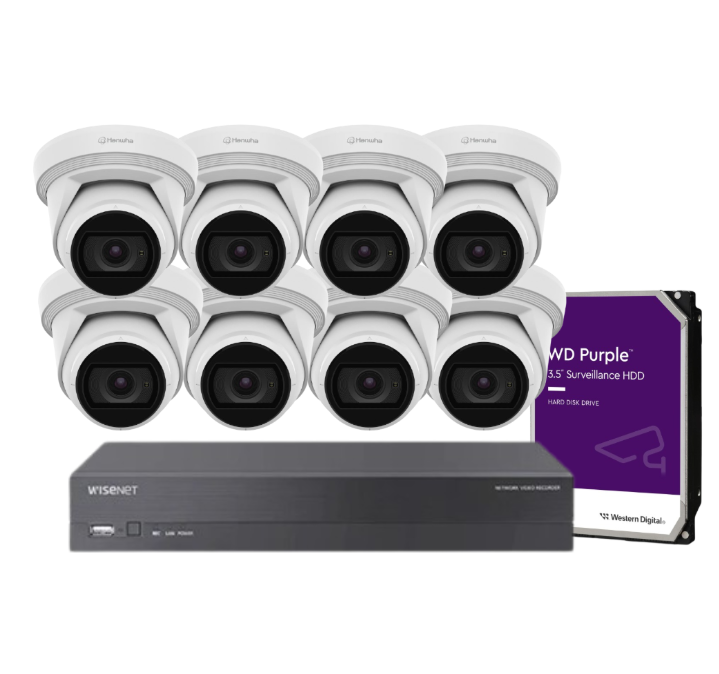

What's Included in the Box

• 8 × Hanwha Wisenet ANE-L8082R 5MP IR Flateye Cameras

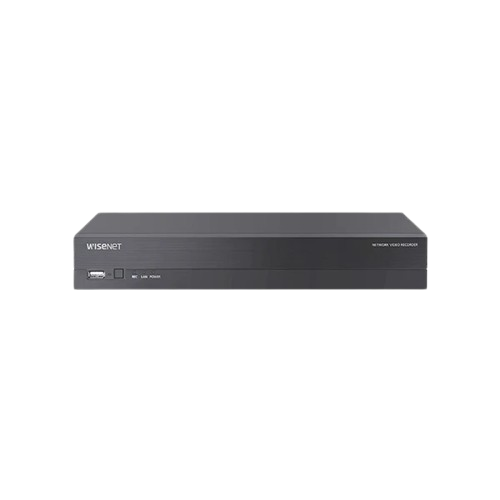

• 1 × Hanwha Vision CT-ARN-810S 8-Channel AI NVR with 8 PoE

• 1 × Power Adapter

• 1 × Quick Installation Guide

• 1 × HDD (Choose your HDD below)

Main Features

• 5MP resolution (2592 x 1944) on each camera

• 3.3~10.3mm motorized varifocal lens

• 120dB WDR, Hallway view, LDC support, and SSNR noise reduction

• Advanced video analytics: motion, tampering, defocus, intrusion, virtual line

• H.265/H.264/MJPEG encoding with WiseStream II compression

• 30m IR night vision, IP66/IP67, IK10 vandal resistance

• NVR with 8 PoE+ ports, 60Mbps recording, 4K HDMI local monitor support

• Dual recording tracks, up to 6TB storage capacity

• Remote access via Wisenet Viewer & Wisenet Mobile using QR code

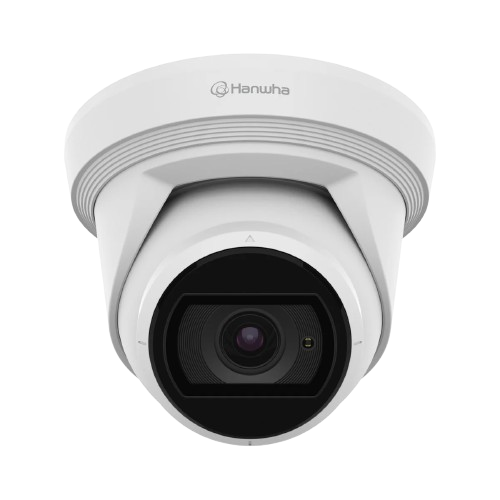

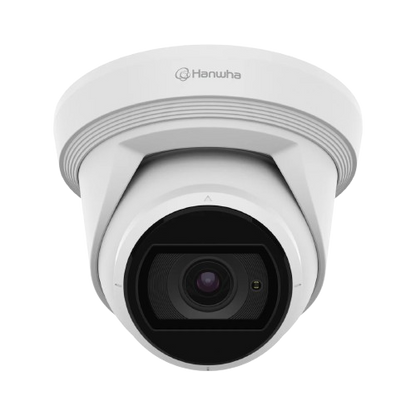

Detailed Specifications Camera Model: ANE-L8082R
Lens: 3.310.3mm motorized varifocal, F1.6F3.3
IR Range: 30m (850nm LEDs)
Min. Illumination: 0.04 Lux (color), 0 Lux (IR on)
WDR: 120dB
Operating Temp: -30°C ~ +60°C
Edge Storage: 128GB MicroSD slot
Certifications: IP66, IP67, IK10, RCM (AS/NZS CISPR 32 Class A)

NVR Model: CT-ARN-810S
Video Input: 8 channels up to 8MP
PoE Ports: 8 ports, total 65W budget
Recording Bandwidth: 60Mbps
HDD Support: 1x up to 6TB
Video Output: HDMI (4K), P2P access via QR code

Warranty Information All components include a 5-year manufacturer warranty, with full compliance under the Australian Consumer Law for support and replacement eligibility.

Brand Description Hanwha Vision (formerly Hanwha Techwin) is a global leader in professional-grade surveillance solutions. Combining AI technology, powerful analytics, and resilient hardware, Hanwha delivers dependable, scalable systems trusted by enterprises worldwide.

SKU HAN-ANE-L8082R-8KIT

Practical Use Scenarios

• Corporate Offices: Full perimeter and lobby monitoring with smart analytics

• Warehouses: Identify threats with precision under changing light conditions

• Retail Chains: Customer behavior analysis, theft prevention, and staff security

• Community Centers: Multi-zone coverage and event-based notifications

Datasheets & Resources

• Datasheets

• Datasheets

Excellence for the Australian and New Zealand Market

• Fully RCM-certified to meet Australian EMC standards

• Designed and tested for environmental durability across the AU/NZ climate

• Products sourced through Hanwha’s authorized distribution network only

• Warranty handled locally by Hanwha Vision’s approved service centers

❓ FAQs Q1: What is the product code for this model?
A: The product code is HAN-ANE-L8082R-8KIT.

Q2: Can the CT-ARN-810S NVR record in 4K?
A: Yes, it supports HDMI output at 4K resolution — Product Code HAN-ANE-L8082R-8KIT.

Q3: How many cameras can the CT-ARN-810S support?
A: Up to 8 channels — Product Code HAN-ANE-L8082R-8KIT.

Q4: Is the NVR compatible with third-party IP cameras?
A: Yes, it supports ONVIF Profiles S/G/T for broad compatibility — Product Code HAN-ANE-L8082R-8KIT.

Q5: What is the total storage capacity of this kit?
A: The NVR supports a single HDD up to 6TB — Product Code HAN-ANE-L8082R-8KIT.

Q6: Does this kit meet Australian standards?
A: Yes, the cameras and NVR are RCM-certified and optimized for the AU/NZ market — Product Code HAN-ANE-L8082R-8KIT.
