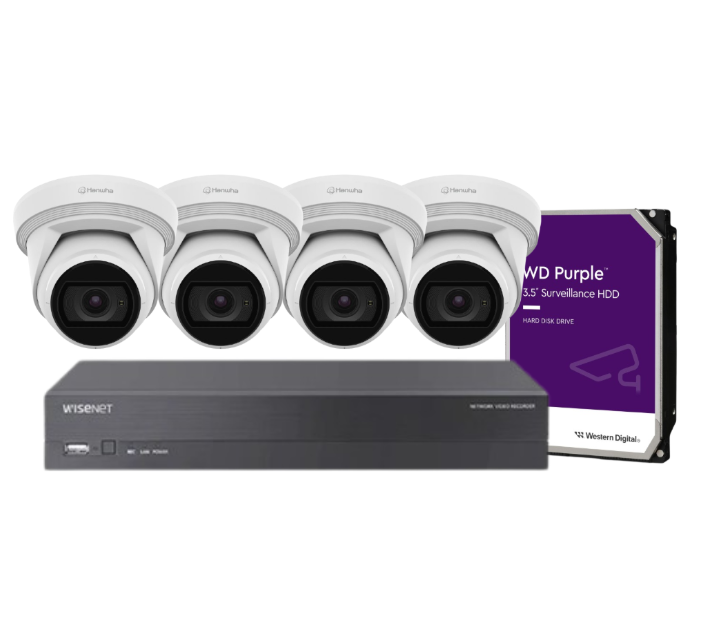

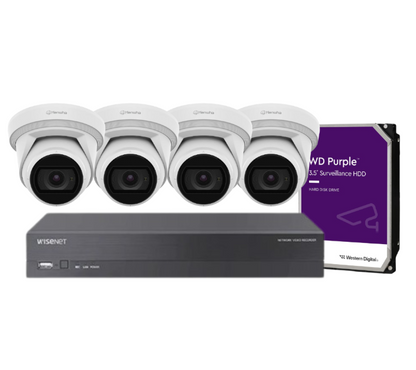

Hanwha Wisenet 5MP CCTV Kit with 4 Cameras and 4-Channel Recorder (HAN-ANE-L8082R-4KIT)

📦 What’s in the Box

• 4 × Hanwha Wisenet ANE-L8082R 5MP IR Flateye Cameras

• 1 × Wisenet CT-ARN-410S 4-Channel AI NVR

• Power Adapter & Cable

• Installation Screws & Quick Setup Guide

• Warranty and Compliance Documentation

🔧 Main Features

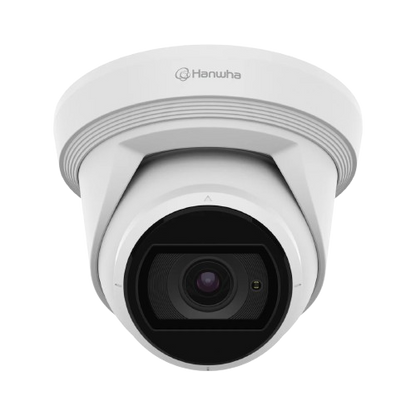

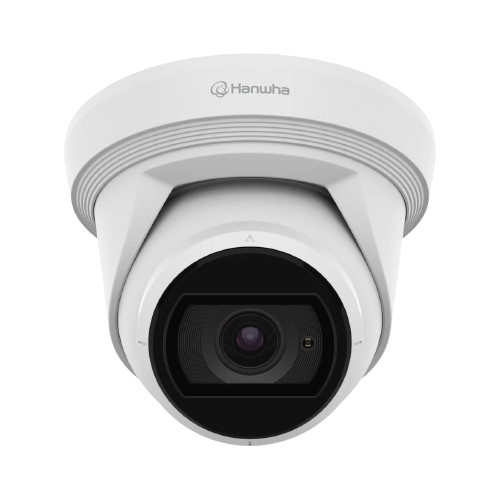

Cameras (ANE-L8082R):

• 5MP (2592×1944) CMOS sensor for high-resolution video

• Motorized varifocal lens: 3.3–10.3 mm with auto-focus

• Low-light sensitivity: 0.04 Lux (Color), 0 Lux with IR

• Smart analytics: motion detection, tampering, virtual zones and lines

• 120dB WDR and Day/Night (ICR) support for challenging lighting

• IR LED range up to 30m for superior night vision

• IP66/IP67 and IK10 certified for weather and impact resistance

• WiseStreamⅡ and H.265 compression for efficient storage

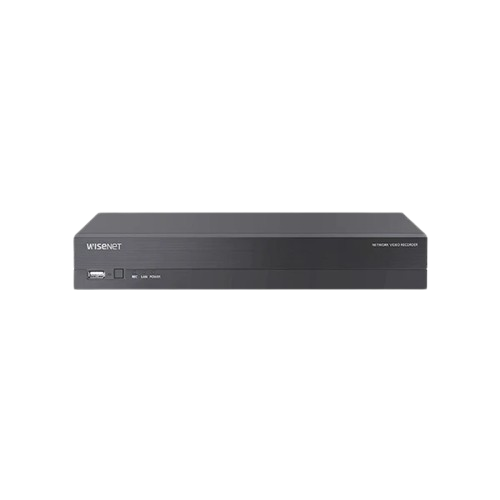

NVR (CT-ARN-410S):

• Supports up to 4 IP channels, 8MP max input resolution

• Integrated 4 PoE ports (IEEE802.3af) for easy plug-and-play setup

• Supports H.265, H.264, MJPEG with up to 40Mbps recording bandwidth

• HDMI output up to 4K UHD for crisp local monitoring

• 1 SATA HDD bay (supports up to 6TB HDD) (Choose your HDD below)

• Dual USB 2.0 ports

• Compact size and P2P remote viewing via Wisenet apps

🧩 Detailed Specifications

Cameras (ANE-L8082R)

• Resolution: Up to 5MP

• Lens: 3.3–10.3 mm, F1.6–F3.3

• IR Range: 30m

• Operating Temp: –30°C to +60°C

• Protection: IP66, IP67, IK10

• Analytics: Motion, Tampering, Virtual Line/Area

NVR (CT-ARN-410S)

• Video Input: 4CH (8MP Max)

• Storage: 1 HDD up to 6TB

• Outputs: 1 HDMI (4K UHD)

• PoE: 4 Ports

• USB: 2 × USB 2.0

• Power: 54V DC / 1.20A

🛡️ Warranty Information

Covered by Hanwha Vision's industry-leading 5-year warranty. Australian Consumer Law rights apply for added protection and confidence.

🏢 Brand Description

Hanwha Vision, formerly Hanwha Techwin, is a global leader in video surveillance technology. Their advanced security solutions offer smart analytics, robust performance, and trusted reliability tailored for diverse surveillance environments.

🛒 SKU

HAN-ANE-L8082R-4KIT

🔍 Practical Use Scenarios

• Retail: Monitor customer behavior and deter theft.

• Residential: Secure entry points, driveways, and garages.

• Small Business: Protect offices, reception areas, and storage rooms.

• Hospitality: Monitor guest areas, back-of-house, and cash counters.

📄 Datasheets & Resources

• Product datasheet and manuals included in the package

🇦🇺🇳🇿 Excellence for the Australian and New Zealand Market

• Certified to RCM, IP66/IP67, IK10 standards

• Fully compliant with local safety and performance regulations

• Exclusively sourced via authorized Hanwha Vision distributors

• Warranty and servicing handled directly by Hanwha Vision in AU/NZ

• Optimized for reliable operation across a wide temperature range

❓ FAQs

Q1: What is the product code for this system? A1: The product code is HAN-ANE-L8082R-4KIT.

Q2: Does the CT-ARN-410S NVR support 4K output? A2: Yes, the HDMI port supports up to 4K UHD resolution—Product Code HAN-ANE-L8082R-4KIT.

Q3: How many cameras can I connect to this system? A3: Up to 4 IP cameras—Product Code HAN-ANE-L8082R-4KIT.

Q4: Does this camera support advanced motion detection? A4: Yes, it includes motion, tampering, defocus detection, and virtual line/area analytics—Product Code HAN-ANE-L8082R-4KIT.

Q5: What is the maximum hard drive size supported by the NVR? A5: It supports a single SATA HDD up to 6TB—Product Code HAN-ANE-L8082R-4KIT.

Q6: Can I access this system remotely? A6: Yes, via the Wisenet Viewer and Mobile apps using the P2P QR scan feature—Product Code HAN-ANE-L8082R-4KIT.
