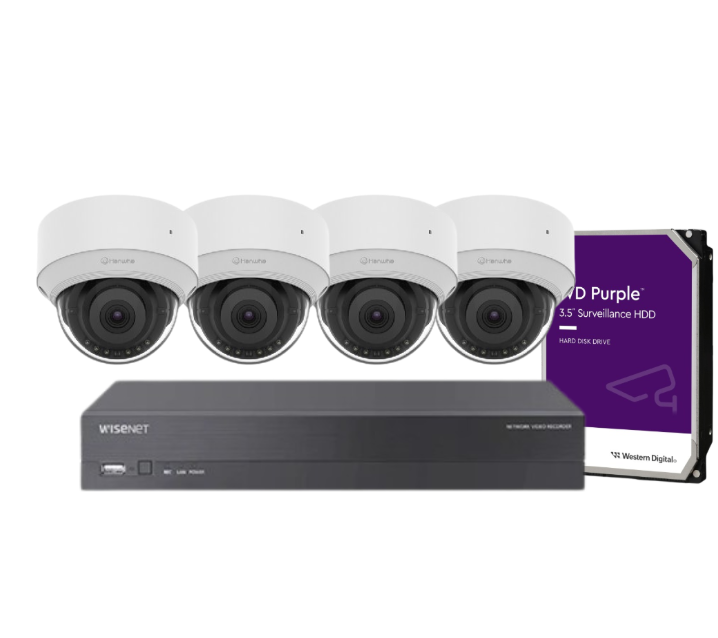

Hanwha Wisenet 4‑Camera CCTV Kit with 5 MP QND‑C8013R AI Dome Cameras & 4‑CH CT‑XRN‑420S PoE AI NVR (HDD Included)

Hanwha Wisenet 4‑Camera CCTV Kit with 5 MP QND‑C8013R AI Dome Cameras & 4‑CH CT‑XRN‑420S PoE AI NVR (HDD Included)

$1,836.00 AUD
$2,040.00 AUD $1,836.00 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.
Cameras

Introducing the premium Hanwha Wisenet CCTV kit—a comprehensive surveillance bundle ideal for homes, offices, and small businesses in Australia and New Zealand. It combines four 5 MP AI-powered QND‑C8013R dome cameras with the 4‑channel CT‑XRN‑420S PoE NVR, delivering top-tier clarity, intelligent analytics, and seamless installation. Enjoy advanced AI features like object detection, attribute search, and comprehensive recording via built-in PoE. A complete, ready-to-install solution with HDD storage included.

📦 What’s in the Box

  • 4 × Hanwha Wisenet QND‑C8013R 5 MP AI IR Dome Cameras

  • 1 × Hanwha Wisenet CT‑XRN‑420S 4‑CH PoE AI NVR (with HDD) (Choose your HDD below)

  • Ethernet cables & power adapters

  • Mounting accessories & screws

  • Quick installation guide

🔧 Main Features

QND‑C8013R 5 MP AI Dome Camera

  • Ultra HD 5 MP (2592×1944) resolution @ 30 fps

  • 3 mm fixed lens (H:100°, V:73°) for wide indoor coverage

  • IR night vision up to 25 m, Day/Night ICR, 120 dB WDR, WiseNRⅡ AI denoise

  • Triple codec (H.265/H.264/MJPEG), WiseStreamⅢ for network efficiency

  • AI analytics: Person/vehicle detection (car, truck bus, bicycle, motorcycle), color attribute, BestShot, motion, virtual lines/areas

  • Dynamic privacy masking, built‑in mic, micro SD support (up to 256 GB)

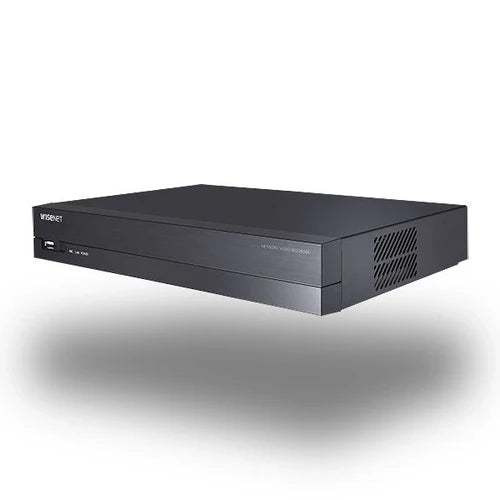

CT‑XRN‑420S 4‑CH PoE AI NVR

  • Supports up to 4 IP camera channels, recording up to 8 MP resolution

  • Efficient multi-codec support (H.265/H.264/MJPEG), 50 Mbps total recording bandwidth

  • Generates power via 4 PoE (LAN) ports, 1 PoE (WAN) port (50 W), HDMI/VGA outputs

  • AI Search: locate events by object type/attributes when paired with AI cameras

  • P2P via QR-code, ARB support, 1 HDD up to 6 TB (HDD included), dual USB ports

📋 Detailed Specifications

QND‑C8013R

Spec Detail
Image Sensor 1/2.8″ CMOS
Resolutions Up to 2592×1944
Lens & FOV 3 mm, H:100°/V:73°
Min. Illumination Color: 0.05 Lux, B/W: 0.005 Lux; IR: 0 Lux
Analytics Person/vehicle detection, virtual lines/areas, BestShot
Connectivity RJ‑45 (10/100BASE‑T), micro USB for setup
Power PoE (IEEE 802.3af Class 3), max 8.1 W
Storage Micro SD up to 256 GB
Environment –10 °C to +45 °C, 0–95% RH
Size & Weight Ø110×90 mm, 317 g

CT‑XRN‑420S

Spec Detail
Channels 4 (8 MP max)
Recording 50 Mbps total
PoE 4 LAN ports + 1 WAN port (50 W budget)
Storage 1× HDD (≤ 6 TB); 2 TB included
Outputs HDMI + VGA
Power 100–240 V AC; 67 W max
Dimensions 300×47×208 mm; 1.06 kg
Environment 0–40 °C, 20–85% RH

🛡️ Warranty Information

  • Hanwha Vision cameras: 3 years

  • CT‑XRN‑420S NVR: 3 years

🏢 Brand Overview

Hanwha Vision (formerly Hanwha Techwin) is a global leader in security and surveillance solutions. Known for AI-powered analytics, reliability, and ease of installation, Hanwha designs products to deliver professional-grade performance across residential and commercial settings.

🎯 Practical Use Scenarios

  • Home security: Indoor monitoring of entryways, living spaces

  • Small offices: Detect and manage staff and visitor movement

  • Retail stores: Customer counts, queue heatmaps, asset protection

  • Care centers: Movement detection, safety tracking in sensitive zones

📥 Datasheets & Resources

🇦🇺 Excellence for the Australian and New Zealand Market

This CCTV kit meets Australian standards (CE/UKCA, RCM, EMC) and comes with NDSS-ready credentials. Sourced exclusively via authorized Hanwha Vision representatives. We facilitate direct manufacturer warranty support and hassle-free service handling locally.

❓ FAQs

What is the maximum resolution of QND‑C8013R (SKU QND-C8013R)?

    • The camera supports up to 5 MP resolution (2592×1944) @ 30 fps.

  2. Can the CT‑XRN‑420S NVR (SKU CT-XRN-420S) support AI search features?

    • Yes, when paired with Hanwha AI cameras like QND‑C8013R, it supports advanced object/attribute search.

  3. What’s the maximum storage capacity in CT‑XRN‑420S (SKU CT-XRN-420S)?

    • It supports one HDD up to 6 TB; the kit includes a 2 TB drive installed.

  4. Does the QND‑C8013R camera (SKU QND-C8013R) offer privacy masking?

    • Yes, it includes dynamic privacy masking for people and vehicles.

  5. Is PoE included in this CCTV kit (SKU CT-XRN-420S)?

    • Yes, the NVR provides power via 4 PoE LAN ports and 1 PoE WAN port with 50 W budget.

  6. Are these components compatible with remote mobile viewing (SKU CT-XRN-420S)?

    • Yes, the NVR supports P2P QR-code setup for easy connection via the Wisenet Mobile app.
