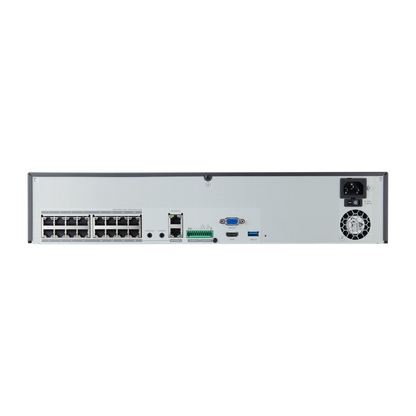

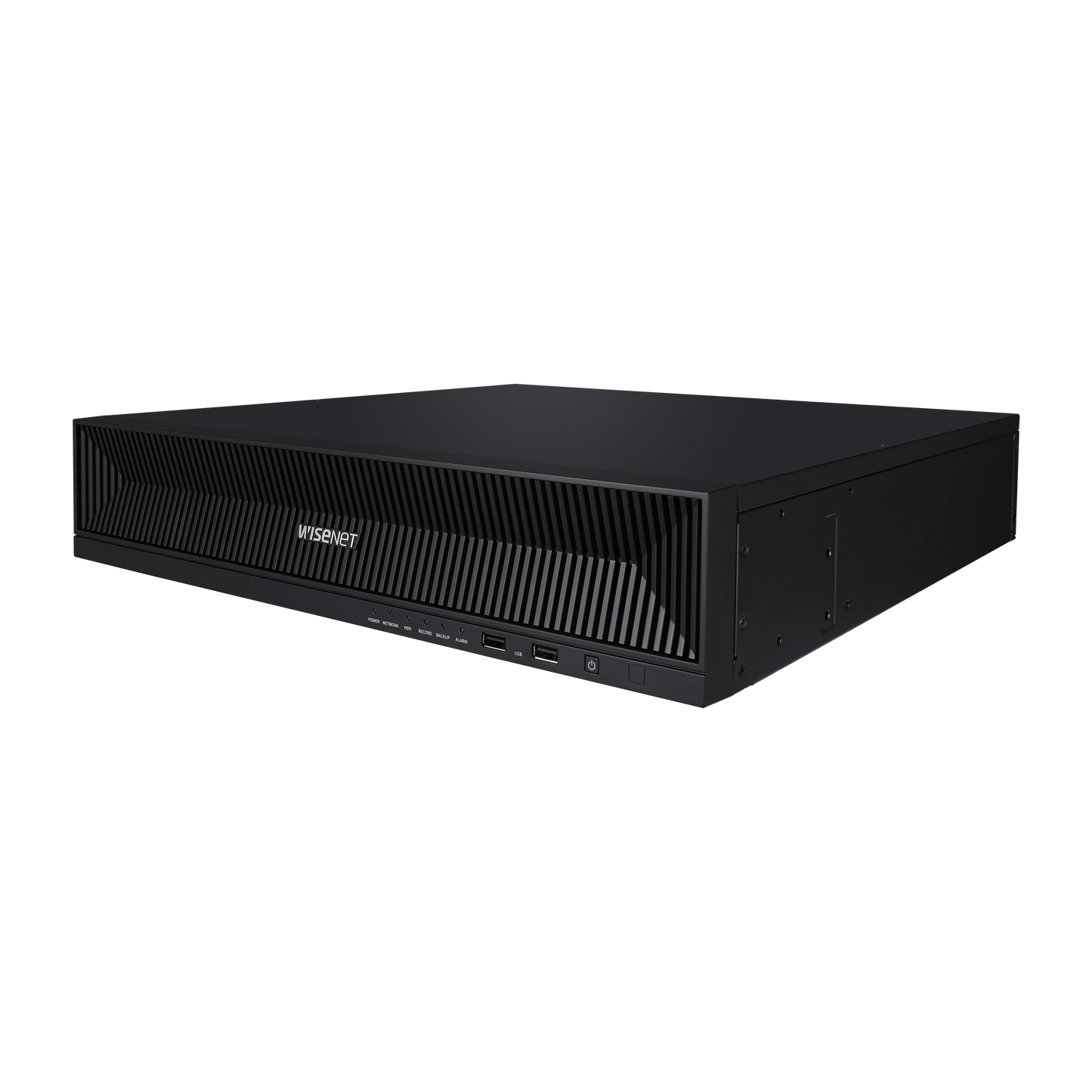

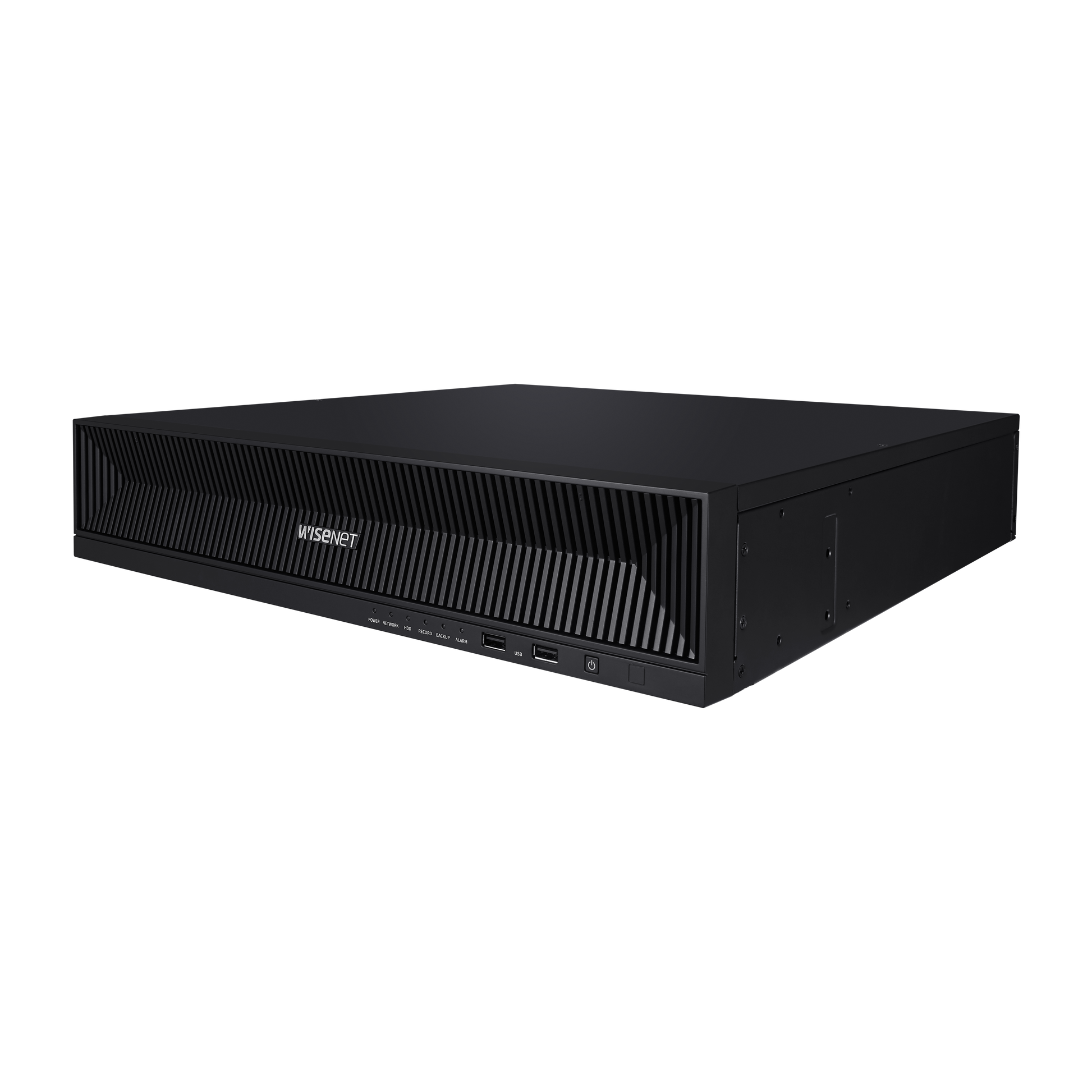

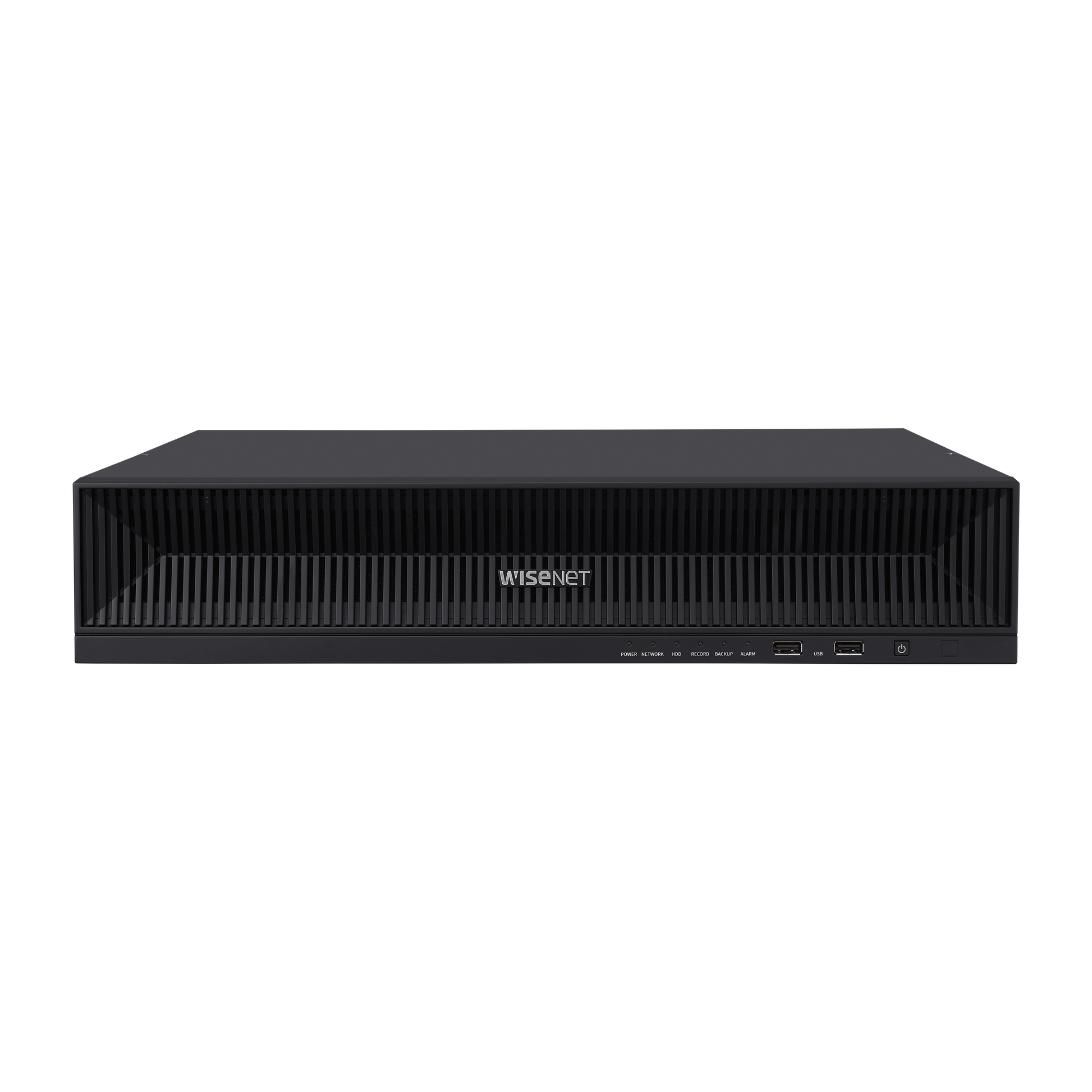

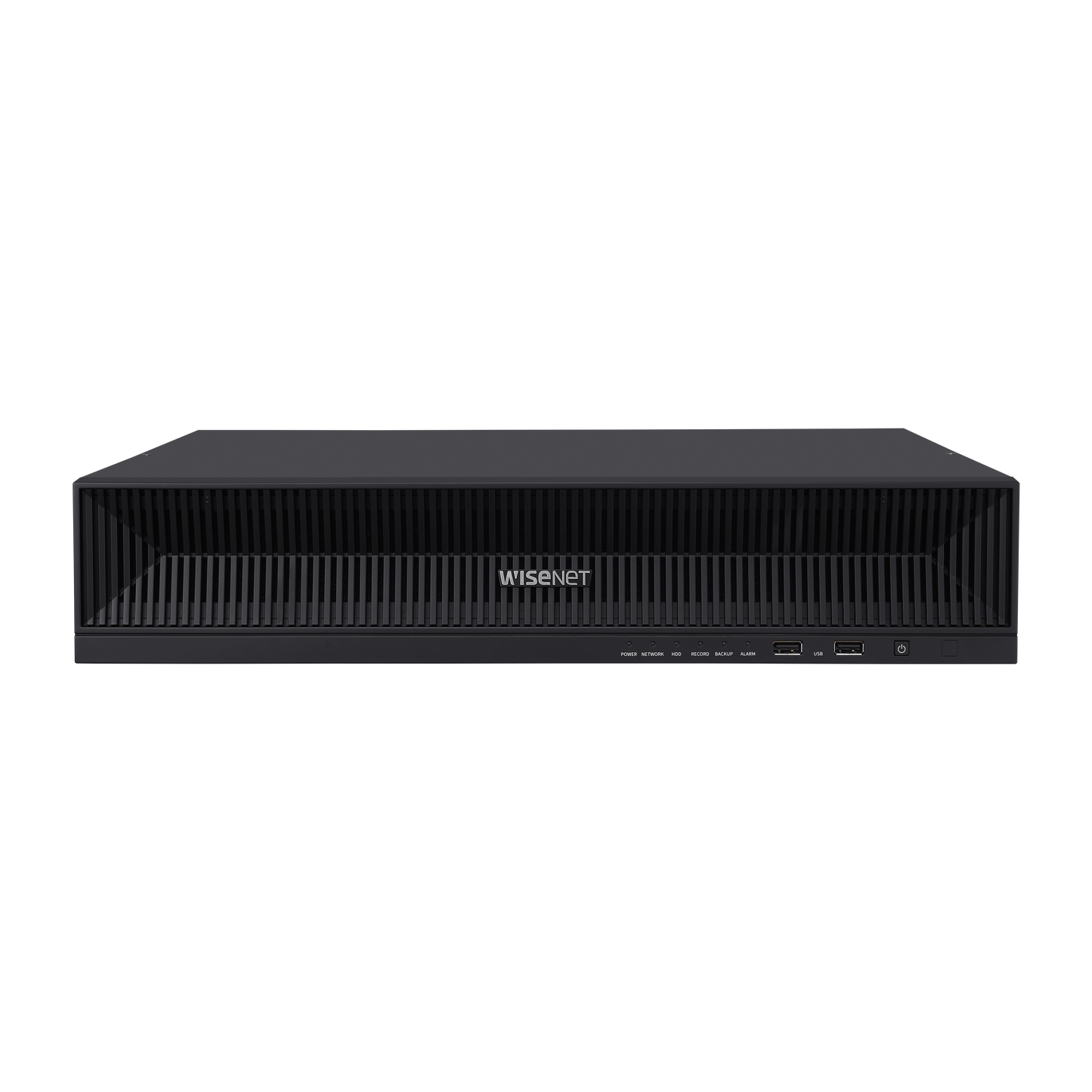

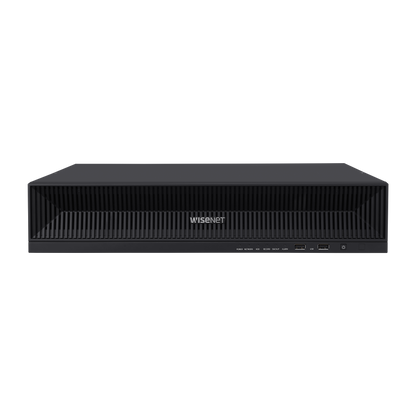

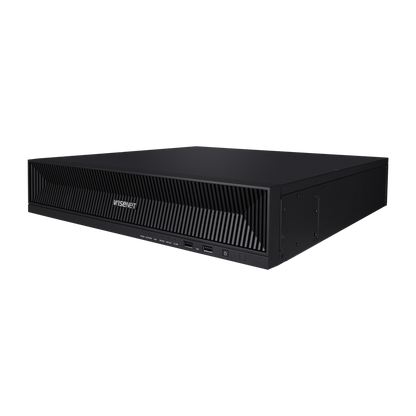

Hanwha Vision XRN-1620SB1 16CH AI Network Video Recorder (NVR)

The Hanwha Vision XRN-1620SB1 16CH AI NVR is a high-performance network video recorder designed to support AI-based search functions when integrated with Hanwha Vision P series AI cameras. This NVR enables users to efficiently search attributes related to people (such as gender, age, hat, bag, and clothing color) and vehicles (type and color), improving security monitoring and response times. With an intuitive user interface, robust recording capabilities, and advanced event management features, the XRN-1620SB1 is the ideal solution for professional surveillance applications.

Key Features

• Supports up to 16 channels at 32MP resolution

• 140Mbps network camera recording bandwidth

• HDMI/VGA outputs with dual and single monitor configurations

• AI search functionality for intelligent surveillance when used with Wisenet AI cameras

• Dynamic Event Support for new camera event functions without software updates

• H.265, H.264, and MJPEG codec compatibility for efficient video compression

• 16 PoE ports with a 200W PoE budget for plug-and-play camera connectivity

• Bookmark management for up to 100 sets

• Four SATA slots supporting up to 24TB of storage

• User-friendly UI/UX for easy operation and management

Technical Specifications

Display & Decoding

• Max Input Channels: 16CH

• Supported Resolution: 32MP ~ CIF

• Protocols: SUNAPI, ONVIF

• Multi-Screen Display:

  • Local Monitor: 1/2V/2H/3V/4/6/8/9/13/16/Sequence

  • Web: 1/2H/2V/3V/4/6/8/9

• Local Monitor Resolution:

  • FHD Clone Mode: Up to 32MP (15fps, H.265 Only)

  • UHD Single Mode: Up to 32MP (15fps, H.265 Only)

  • Expand Mode: Up to 9 divisions, Max 15fps

Performance & Recording

• Embedded Linux OS

• Compression: H.265, H.264, MJPEG

• Max. Recording Bandwidth: 140Mbps

• Recording Modes: Normal, Dual Stream, Continuous/Event, Bookmark

• Event Triggers: Alarm Input, Video Loss, Camera Events (Motion Detection, Video Analytics, Defocus, Audio)

• Event Actions: Email, Push Notifications, PTZ Preset, Alarm Out, Buzzer, Monitor Out

Storage & Backup

• Supported HDD: Up to 6TB per slot

• HDD Slots: 4 SATA (Max 24TB)

• Backup Formats: BU/Exe (GUI), JPG/AVI (Network)

Network & Security

• Network Protocols: IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTSP, NTP, HTTP, DHCP, SMTP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI

• Hanwha DDNS Support

• Security Features: IP Filtering, User Access Log, Encryption, 802.1x Authentication

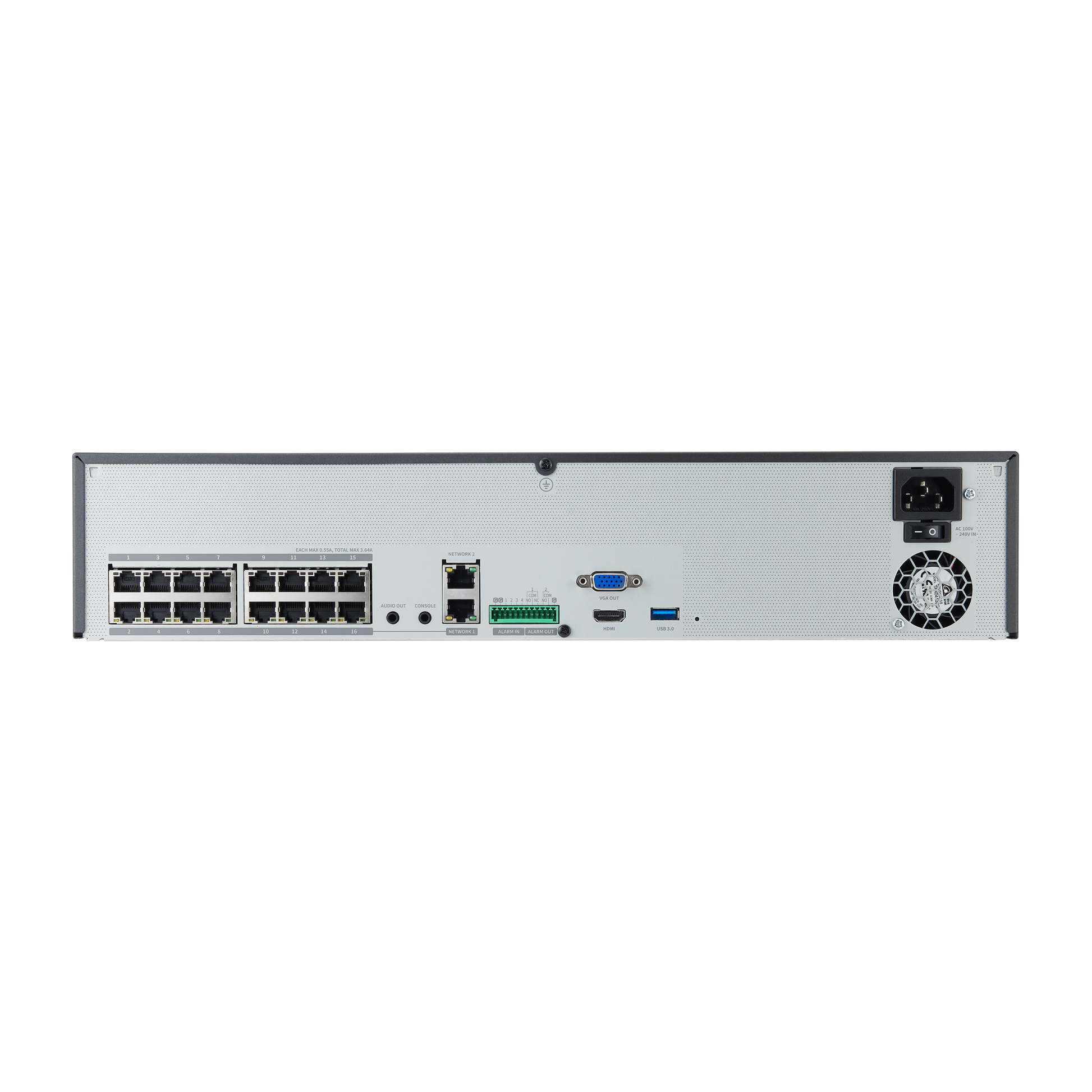

Interfaces

• HDMI Output: 1EA (3840x2160 30Hz)

• VGA Output: 1EA (1920x1080 60Hz)

• Audio Input/Output: 16CH (Network), 1EA Output

• Ethernet: 16 PoE Ports (LAN, 10/100), 2 x RJ-45 (LAN/WAN 1Gbps)

• Alarm In/Out: 4EA In, 2EA Out

• USB Ports: 3 (Front: 2 x USB 2.0, Rear: 1 x USB 3.0)

• Power Supply: 100 ~ 240 VAC, 50/60 Hz

• Power Consumption: Max. 310W

AI & Smart Features

• AI Search: Object Attribute Recognition (People & Vehicles) when paired with Wisenet AI Cameras

• PTZ Control: Via GUI, Web Viewer, SPC-2000 Controller

• Redundancy: N+1 Failover Support

• Easy Configuration: P2P (QR Code) Setup

Environmental & Mechanical

• Operating Temperature: 0°C to +40°C (32°F to 104°F)

• Operating Humidity: 20% ~ 85% RH

• Dimensions: 440 x 89.8 x 428.4 mm

• Weight: 5.76Kg

What’s in the Box?

• Hanwha Vision XRN-1620SB1 16CH AI NVR

• Power Adapter

• Quick Start Guide

• User Manual

Warranty Information

• Manufacturer Warranty: Standard 5-year Hanwha Vision warranty applies

Brand Information

Hanwha Vision, formerly known as Samsung Techwin, is a global leader in advanced security and surveillance solutions. Their innovative AI-driven video analytics and robust security products ensure high reliability, efficiency, and scalability for various applications.

Datasheets

Product Short Info	Hanwha Vision X-Series 16CH AI NVR with 16x PoE
Channels	16 Channels
Plug & Play by PoE	Yes
Resolution Supported	Up to 12 Megapixel
MAX Internal HDDs	4 HDDs
RAID Supported	No
Manual
Data Sheet
Brochure

Excellence for the Australian and New Zealand Market

• Complies with Australian security standards

• Meets NDSS and other relevant certifications

• Exclusively sourced from authorized distributors

• Warranty and customer support managed locally for seamless service

• Optimized for commercial, industrial, and government surveillance applications

Frequently Asked Questions (FAQs)

1. Does the XRN-1620SB1 support third-party cameras?

Yes, it supports ONVIF-compatible cameras for maximum flexibility.

2. Can this NVR perform AI-based searches without Wisenet AI cameras?

No, AI search features require Hanwha Vision P series AI cameras to function.

3. How many HDDs can be installed?

The NVR supports up to four SATA HDDs, with a total capacity of 24TB.

4. What is the maximum PoE budget?

The XRN-1620SB1 provides 200W PoE budget across 16 PoE ports.

5. Is remote access supported?

Yes, the NVR supports remote access via web browsers, Wisenet mobile app, and Hanwha Vision software solutions.
