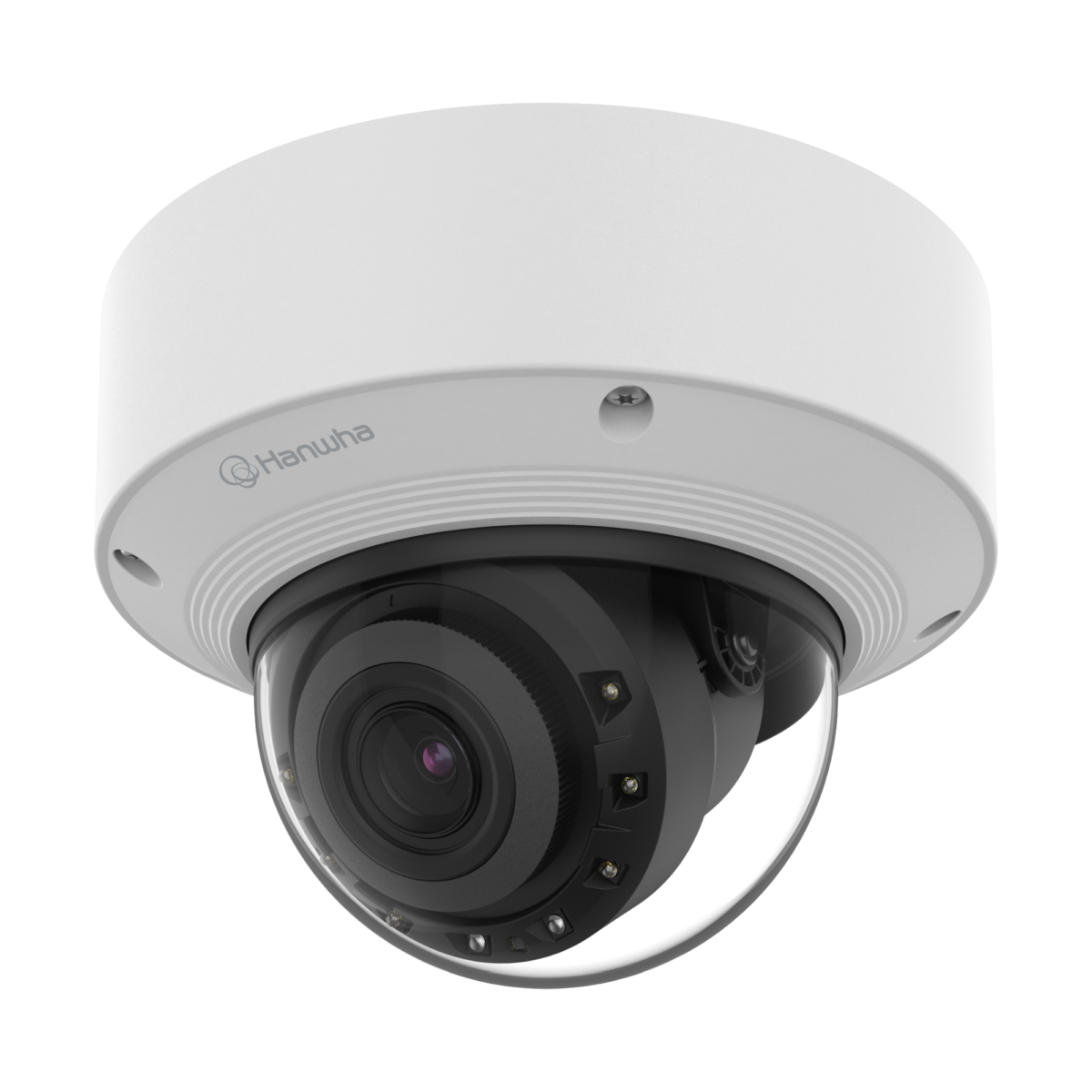

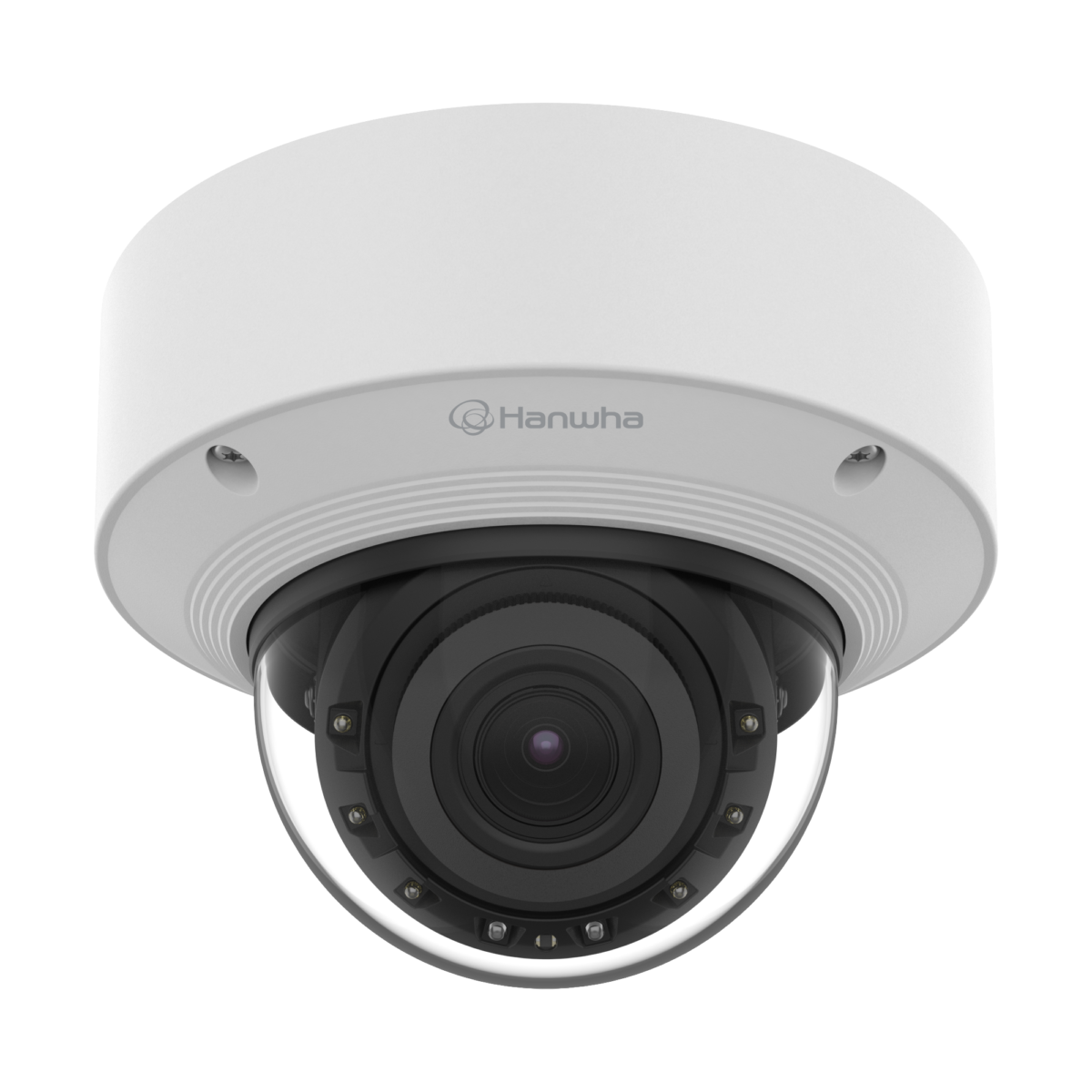

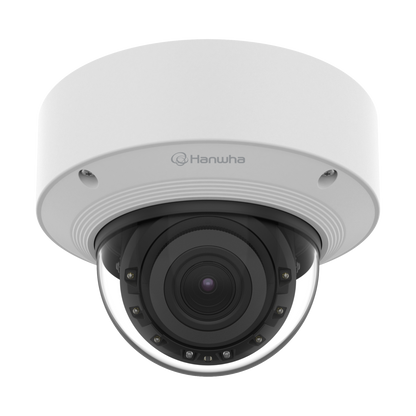

Hanwha Vision XNV-A9084R 8MP AI IR Vandal Dome Camera – Advanced AI Surveillance with Dual NPU and Superior IR Performance x series

Hanwha Vision XNV-A9084R 8MP AI IR Vandal Dome Camera – Advanced AI Surveillance with Dual NPU and Superior IR Performance x series

$1,399.44 AUD
$2,028.78 AUD $1,399.44 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

Experience cutting-edge surveillance with the Hanwha Vision XNV-A9084R, part of the second-generation P and X series powered by the new Wisenet 9 AI SoC. This advanced AI vandal dome camera delivers unmatched performance in image enhancement, object recognition, and business analytics. With its 8MP resolution, robust build, and sophisticated AI-driven features, it's engineered for environments demanding precision, security, and real-time intelligence.

What's Included in the Box

  • Hanwha Vision XNV-A9084R Camera Unit

  • Installation Guide

  • Mounting Template

  • Accessory Pack (Screws, Anchors, Waterproof Cap)

  • Micro USB Cable (for setup)

  • Quick Setup Guide

Main Features

  • AI-Powered Dual NPU: Enhances image quality, object classification, and supports intelligent analytics.

  • 4.4~9.3mm Motorized Varifocal Lens: Precision zoom and focus with wide 113° to narrow 47° horizontal FOV.

  • Advanced Analytics: Person, vehicle, face, and license plate detection; heat mapping, slip and fall, and mask detection.

  • Dynamic Privacy Masking: AI-driven masking with customizable zones and color options.

  • IR Performance: 40m WiseIR range with automatic IR intensity control.

  • Rugged Build: IP66/IP67, IK10, NEMA 4X, and NEMA TS-2 certified for extreme weather and impact resistance.

  • Cybersecurity Ready: Secure element storage, signed firmware, encrypted communications, and FIPS 140-3 compliance.

  • Environmental Friendly: Constructed with 4.49% recycled plastics and RoHS/REACH compliant.

Detailed Specifications

  • Image Sensor: 1/1.8” CMOS

  • Resolution: Up to 3840x2160 (8MP)

  • Frame Rate: 30fps (H.264/H.265), 5fps (MJPEG)

  • Min. Illumination: 0.04Lux (Color), 0.004Lux (B/W), 0Lux with IR

  • WDR: 120dB extremeWDR

  • Video Compression: H.264, H.265, MJPEG; WiseStream (AI-based)

  • Audio: Mic in/Line in, Line out, supports G.711, AAC-LC, OPUS

  • Storage: 1TB MicroSD/SDHC/SDXC support

  • Power: PoE (IEEE802.3af), Max. 11.2W

  • Operating Temp: -40°C to +50°C (up to +74°C with NEMA TS-2)

  • Dimensions/Weight: ø160x118mm, 1.22kg

  • Certifications: RCM, CE, FCC, IK10, IP66/IP67, EN 303 645

Warranty Information

Hanwha Vision products come with a standard 3-year manufacturer's warranty. Local support and warranty handling are provided through authorized channels within Australia and New Zealand for seamless service.

Brand Description

Hanwha Vision (formerly Hanwha Techwin) is a global leader in video surveillance, offering innovative, AI-driven security solutions with a commitment to performance, safety, and sustainability. Trusted worldwide for reliability and next-gen technology integration.

SKU: HV-XNV-A9084R

Practical Use Scenarios

  • Retail: Analyze customer behavior with heatmaps and queue management.

  • Public Spaces: Enforce social distancing and mask detection.

  • Industrial Sites: Detect vehicles, manage perimeter security, and respond to environmental changes.

  • Transport Hubs: Monitor high-traffic areas, identify suspicious activity, and enhance situational awareness.

  • Government and Critical Infrastructure: Protect assets with robust physical and cybersecurity.

Datasheets & Resources

Excellence for the Australian and New Zealand Market

  • Fully compliant with Australian RCM (AS/NZS CISPR 32) standards.

  • Certified for extreme conditions per NEMA TS-2 and IK10 impact resistance.

  • Sourced exclusively via authorized Hanwha Vision representatives in Australia and New Zealand.

  • Environmental compliance with RoHS and REACH ensures sustainability.

  • Warranty and technical support handled locally through official Hanwha Vision partners.

Frequently Asked Questions (FAQs)

Q1: What makes the HV-XNV-A9084R camera suitable for outdoor use?
A1: The HV-XNV-A9084R is IP66/IP67 and NEMA 4X certified, ensuring resistance to dust, water, and harsh weather, with IK10-rated vandal protection.

Q2: Can the HV-XNV-A9084R camera detect specific object types?
A2: Yes, the HV-XNV-A9084R supports AI-based detection for persons, vehicles, faces, and license plates, with further classification attributes.

Q3: How does the HV-XNV-A9084R support business intelligence?
A3: The HV-XNV-A9084R provides people counting, queue management, and heat mapping, ideal for retail and public environments.

Q4: Is the HV-XNV-A9084R compatible with ONVIF standards?
A4: Yes, the HV-XNV-A9084R is ONVIF Profile S/G/T/M compliant, ensuring broad interoperability with third-party systems.

Q5: Does the HV-XNV-A9084R support secure video storage?
A5: Yes, the HV-XNV-A9084R features encrypted SD card storage and secure boot mechanisms, meeting FIPS 140-3 and CC EAL6+ standards.
