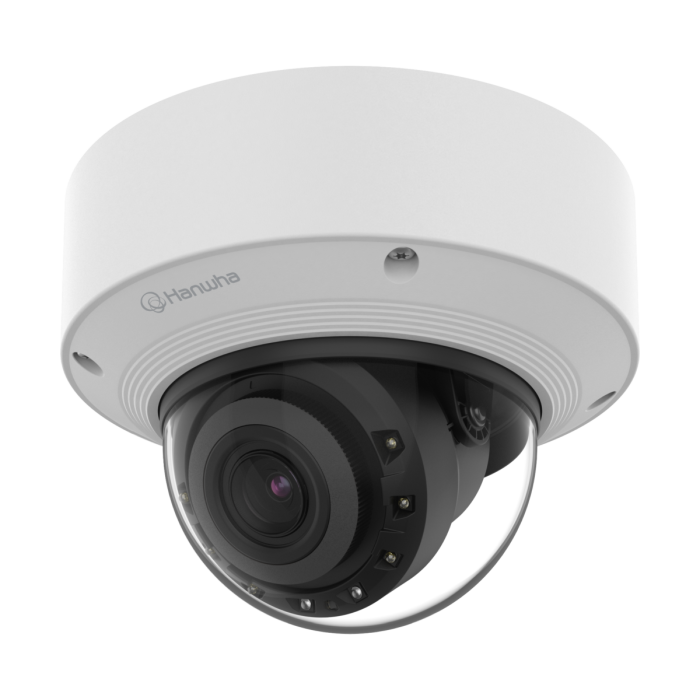

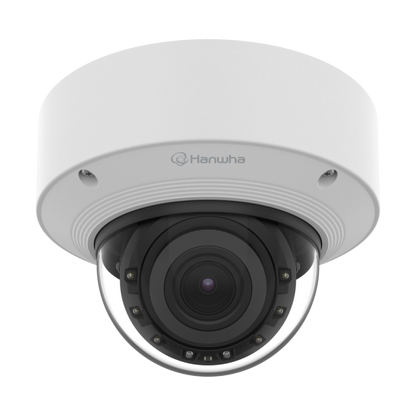

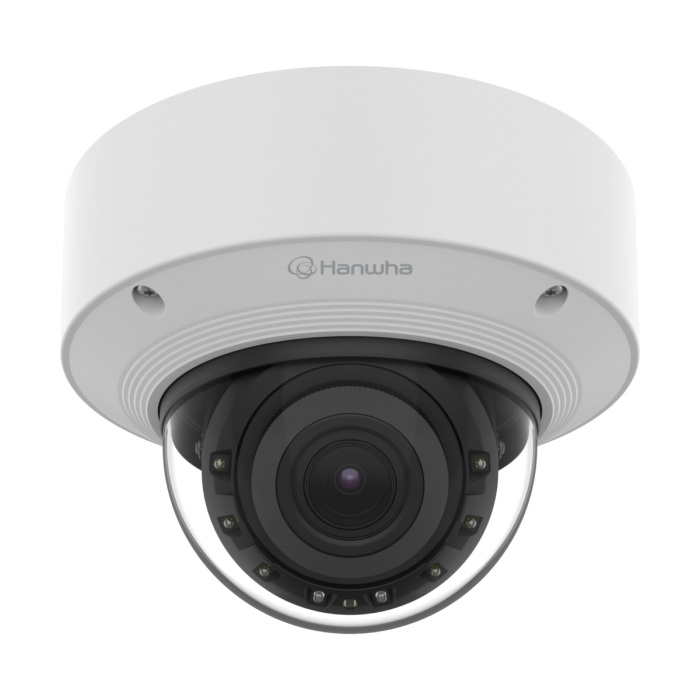

Hanwha Vision XNV-A8084R 5MP AI IR Vandal Dome Camera – Smart AI Surveillance for Precision and Reliability x series

The Hanwha Vision XNV-A8084R delivers next-generation surveillance powered by the Wisenet 9 AI chipset. Engineered for superior image processing, object recognition, and real-time analytics, this vandal-resistant dome camera is ideal for security-critical environments. Its advanced AI engine enhances not just security monitoring but also operational intelligence, ensuring a powerful and future-ready surveillance solution.

What's Included in the Box

• Hanwha Vision XNV-A8084R Camera Unit

• Mounting Accessories (screws, anchors, and installation guide)

• Quick Setup Guide

• Micro USB Setup Cable

• Waterproof Cap Kit

Main Features

• AI-Powered Dual NPU: Enhances object detection and image clarity through deep learning.

• 3.3~9.3mm Motorized Varifocal Lens: Wide to narrow view with motorized zoom and autofocus.

• Comprehensive AI Analytics: Person, vehicle, face, license plate detection, and crowd monitoring.

• Business Intelligence Tools: Queue management, people counting, and heat mapping.

• IR Night Vision: WiseIR with 40m range for clear vision in complete darkness.

• Weather and Impact Resistance: IP66/IP67 rated, IK10 vandal-proof, NEMA 4X and TS-2 compliant.

• Robust Cybersecurity: Secure boot, encrypted firmware, and FIPS 140-3 Level 3 secure element.

• Eco-Conscious Design: Manufactured with 4.52% recycled plastic and full RoHS/REACH compliance.

Detailed Specifications

• Imaging Device: 1/2.8” CMOS

• Resolution: Up to 2560x1920 (5MP)

• Frame Rate: 30fps (H.264/H.265), 5fps (MJPEG at 5MP)

• Minimum Illumination: 0.04Lux (Color), 0.004Lux (B/W), 0Lux (IR ON)

• WDR: 120dB extremeWDR

• Video Compression: H.264, H.265, MJPEG; AI-powered WiseStream

• Audio: Mic in/Line in, Line out, supports G.711, AAC-LC, OPUS

• Network: RJ-45 10/100BASE-T; ONVIF Profile S/G/T/M

• Storage: 1TB microSD/SDHC/SDXC slot

• Power: PoE IEEE802.3af, Max. 9.4W

• Operating Temperature: -40°C to +50°C, up to +74°C (NEMA TS-2)

• Dimensions / Weight: ø160x118mm, 1.21kg

Warranty Information

The XNV-A8084R includes a standard 3-year warranty. All servicing and technical support for Australia and New Zealand are managed locally through certified Hanwha Vision partners.

Brand Description

Hanwha Vision, formerly Hanwha Techwin, is a global pioneer in intelligent surveillance technology. Renowned for its innovation in AI security, Hanwha Vision delivers comprehensive and secure solutions for businesses, governments, and infrastructure globally.

SKU: HV-XNV-A8084R

Practical Use Scenarios

• Retail Environments: Track customer movement, manage queues, and gather business insights.

• Public Safety: Detect unauthorized activity, monitor large crowds, and enforce safety measures.

• Healthcare Facilities: Support social distancing and mask-wearing compliance.

• Logistics & Warehouses: Ensure secure perimeters and vehicle access.

• Smart Cities: Deploy for intelligent traffic, security, and environment monitoring.

Datasheets & Resources

• Download Full Datasheet (PDF)

Excellence for the Australian and New Zealand Market

• RCM-certified under AS/NZS CISPR 32 for electromagnetic compatibility.

• Withstands harsh environments: NEMA TS-2, IP66/IP67, IK10, and Type 4X certifications.

• Exclusively sourced from authorized Hanwha Vision distributors in Australia and New Zealand.

• Fully compliant with Australian safety and environmental regulations including RoHS and REACH.

• Localized warranty and product support through official regional service centers.

Frequently Asked Questions (FAQs)

Q1: What type of analytics does the HV-XNV-A8084R support?
A1: The HV-XNV-A8084R includes AI-based analytics such as person/vehicle/face detection, slip and fall alerts, social distancing, and queue management.

Q2: Can the HV-XNV-A8084R operate in extreme temperatures?
A2: Yes, the HV-XNV-A8084R is rated for -40°C to +50°C and up to +74°C under NEMA TS-2 conditions.

Q3: How does the HV-XNV-A8084R ensure data security?
A3: The camera features secure boot, encrypted firmware, AES-256 encrypted SD storage, and is compliant with FIPS 140-3 Level 3 and CC EAL6+ standards.

Q4: Is the HV-XNV-A8084R compatible with third-party video systems?
A4: Yes, it supports ONVIF Profile S/G/T/M for seamless integration with a wide range of VMS platforms.

Q5: Does the HV-XNV-A8084R come with night vision?
A5: Yes, it includes WiseIR technology with a 40-meter IR range for superior low-light performance.
