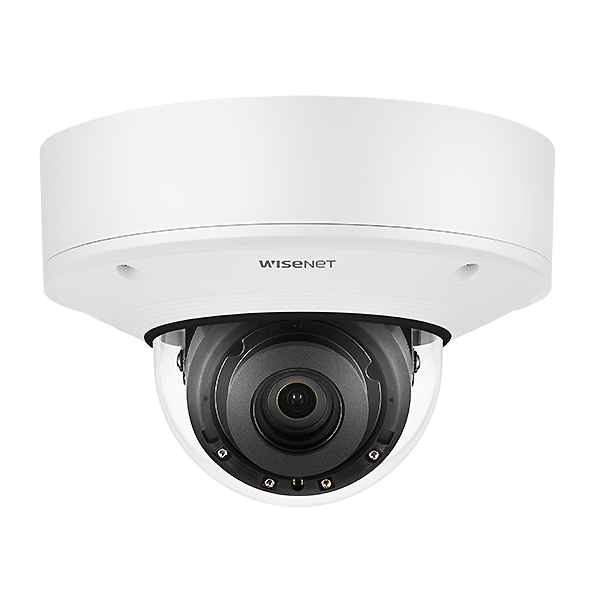

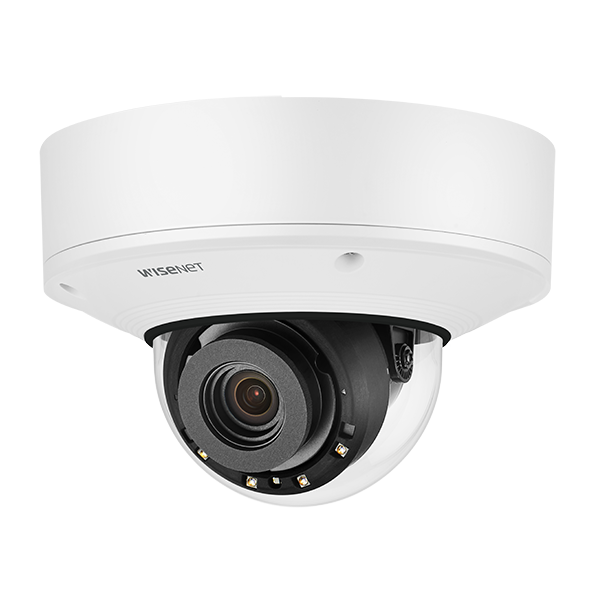

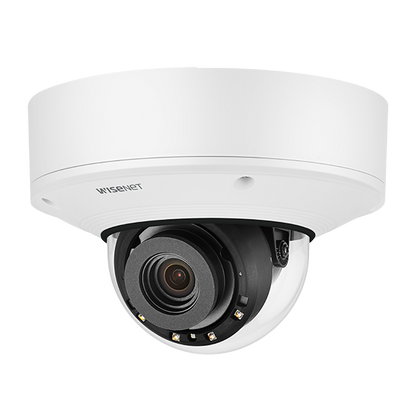

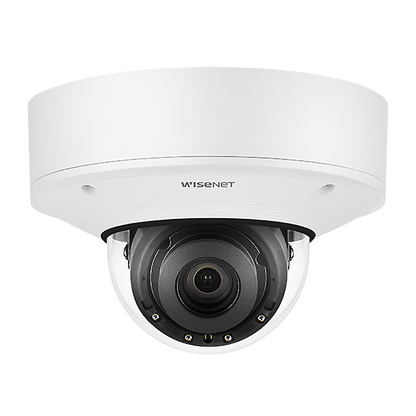

Hanwha Vision XNV-8082R 6MP IR Dome Camera – Rugged AI Surveillance with 150dB WDR (Wisenet7) x series

The Hanwha Vision XNV-8082R is a 6MP motorized varifocal dome camera built on the powerful Wisenet7 chipset. Designed for outdoor environments requiring high resilience, it offers extreme WDR at 150dB, AI-enhanced analytics, and a modular vandal-resistant housing. The camera captures sharp images even in low-light conditions with IR illumination up to 40 metres. Rated IP66/IP67/IP6K9K and IK10+, it’s engineered to withstand the harshest climates, making it ideal for public infrastructure, industrial zones, and perimeter surveillance.

What's Included in the Box

• Hanwha Vision XNV-8082R Camera Unit

• Micro USB Setup Cable

• Mounting Screws and Template

• Quick Start Guide

Main Features

• 6MP Resolution at 30fps: Sharp and fluid imaging at 3328x1872 resolution.

• 3x Motorized Varifocal Lens (2.8~8.4mm): Enables remote zoom/focus with wide to narrow FoV.

• 40m IR Night Vision: Equipped with Wise IR LEDs for 0Lux black-and-white night monitoring.

• 150dB Extreme WDR: Captures balanced footage in scenes with high contrast lighting.

• Gyro-Sensor DIS: Digital image stabilization reduces blur from vibrations.

• AI Video Analytics: Detects motion, direction, loitering, sound classification, and face/upper body.

• Queue Management & Heatmap: Built-in business intelligence tools.

• Weather & Impact Protection: IP66/IP67/IP6K9K, IK10+, and NEMA4X rated.

• Modular Construction: Simplified installation and maintenance access.

Detailed Specifications

• Sensor: 1/2.8” CMOS

• Min. Illumination: 0.05Lux (Color), 0Lux (B/W with IR)

• Lens: 2.8–8.4mm motorized, F1.2–F2.8, H: 114°–40.2°

• Pan/Tilt/Rotate: 360° / -45° to 85° / 355°

• Privacy Masking: Up to 32 polygon zones

• Smart Codec: H.265, H.264 (Main/High), MJPEG with WiseStream II

• Bitrate Control: CBR or VBR

• Audio: Mic-in/Line-in selectable, Line-out, G.711, G.726, AAC-LC

• Alarm I/O: 2 configurable ports, supports PTZ handover

• Storage: Dual SD/SDHC/SDXC up to 512GB (256GB x2)

• Network Protocols: IPv4/6, HTTPS, SRTP, SSL/TLS, SNMPv3, 802.1X

• ONVIF Compliance: Profiles S/G/T

• Power Input: PoE (IEEE802.3af), 12VDC, 24VAC

• Power Consumption: Max 13.5W (24VAC)

• Operating Temp: -50°C to +60°C

• Dimensions/Weight: Ø180x125mm / 1.9kg

DORI Range

• Detect: 49.9m (Wide), 209.9m (Tele)

• Observe: 19.9m (Wide), 83.9m (Tele)

• Recognize: 10.0m (Wide), 42.0m (Tele)

• Identify: 5.0m (Wide), 21.0m (Tele)

Warranty Information

Backed by Hanwha Vision’s 3-year standard warranty with support provided through accredited ANZ distributors and service centres.

Brand Description

Hanwha Vision is a global leader in AI surveillance solutions. Formerly known as Hanwha Techwin (Samsung Techwin), the brand is recognized for its powerful imaging, cybersecurity, and innovation-driven platforms like Wisenet7.

SKU: HV-XNV-8082R

Practical Use Scenarios

• Transportation Hubs: Protect terminals, platforms, and corridors with wide and precise views.

• Industrial Plants: Monitor heavy-duty environments with dust, water, and vibration resistance.

• Public Facilities: Track people flow, events, and safety compliance in stations and city centers.

• Retail Exteriors: Deter crime with IR night vision and analytics-enabled real-time alerts.

• Schools & Hospitals: Ensure campus safety with face detection and privacy masking zones.

Datasheets & Resources

• Download Datasheet (PDF)

Excellence for the Australian and New Zealand Market

• Fully compliant with RCM, AS/NZS CISPR 32.

• Designed for Australian outdoor conditions with -50°C startup capability and IP6K9K rating.

• Impact tested to IK10+ standards (40J).

• Distributed through certified Hanwha Vision ANZ partners.

• Environmental compliance includes RoHS and REACH standards.

• Warranty support managed locally for faster response and replacement.

Frequently Asked Questions (FAQs)

Q1: What is the IR range of the HV-XNV-8082R?
A1: The camera supports infrared visibility up to 40 meters for effective night surveillance.

Q2: How durable is the HV-XNV-8082R in extreme environments?
A2: It carries IP66/IP67/IP6K9K, IK10+, and NEMA4X ratings, suitable for high-impact and wet conditions.

Q3: What makes the Wisenet7 chipset significant in the HV-XNV-8082R?
A3: Wisenet7 provides enhanced image processing, cybersecurity, and AI analytics for superior video performance.

Q4: Can I use the HV-XNV-8082R for business intelligence?
A4: Yes, it includes people counting, queue management, heatmap, and object tracking analytics.

Q5: Does the camera support local storage?
A5: Yes, it supports dual SD card slots with up to 512GB total capacity.
