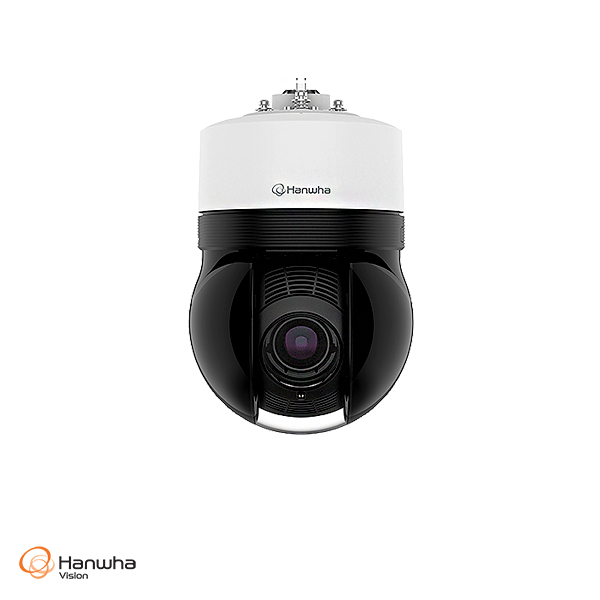

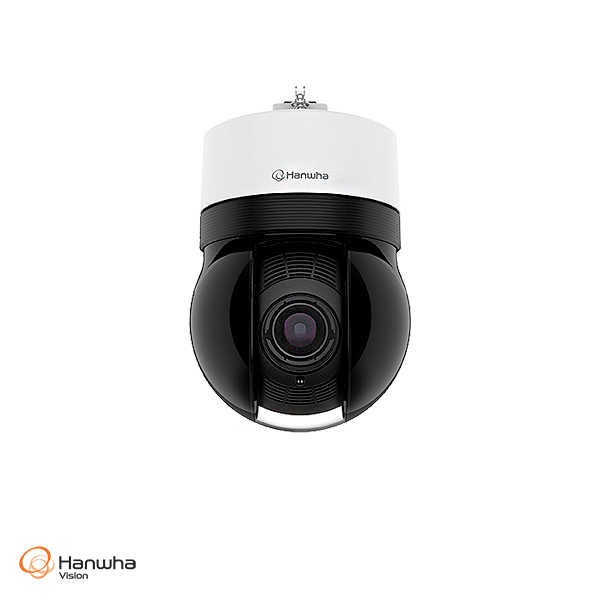

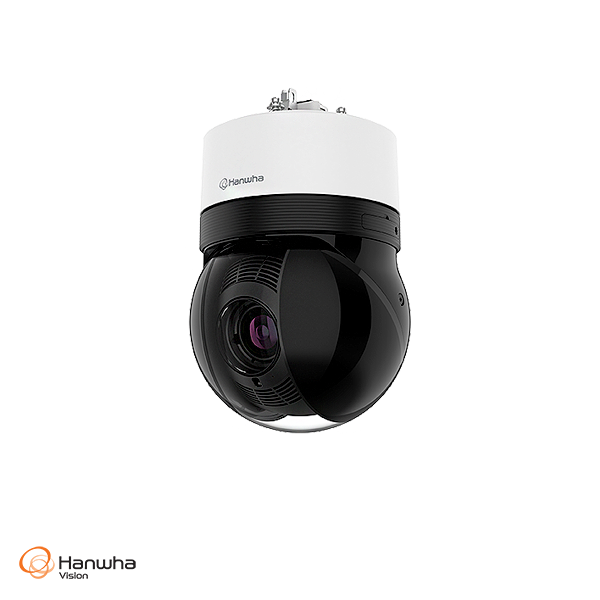

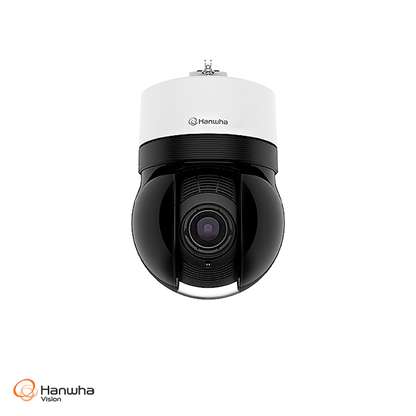

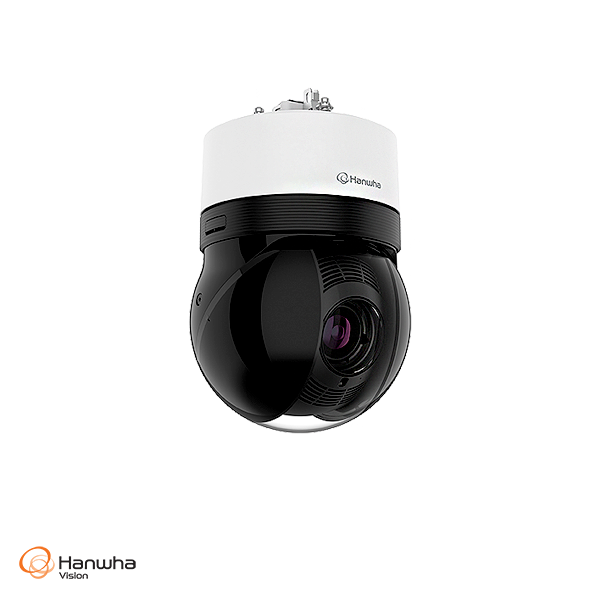

Hanwha Vision XNP-C9310R 8MP AI IR PTZ Camera with 31x Zoom (Powered by Wisenet7) x Series

The Hanwha Vision HV-XNP-C9310R is an advanced 8MP AI-powered IR PTZ camera designed for superior surveillance in both indoor and outdoor environments. With 4K resolution, a powerful 31x optical zoom, and AI-enhanced image processing, this camera delivers exceptional detail and clarity. It features Wise IR technology, extended IR visibility up to 250m, and reinforced durability for extreme weather conditions. Engineered with next-level cybersecurity protections and ONVIF compliance, the HV-XNP-C9310R is the ideal choice for high-security applications.

What's Included in the Box

• HV-XNP-C9310R 8MP AI IR PTZ Camera

• Installation Manual

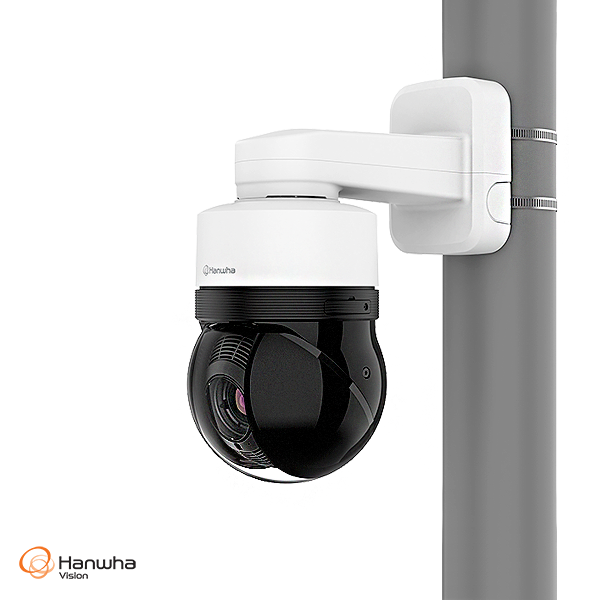

• Mounting Hardware

• Warranty Card

Main Features

• Ultra-High 4K Resolution: Delivers stunningly detailed images at a maximum resolution of 8MP.

• 31x Optical Zoom: Motorized varifocal lens (6.91~214.7mm) for long-range surveillance.

• Wise IR Technology: Extended infrared visibility up to 250m (820ft) for clear nighttime imaging.

• Low-Light Performance: 0.06Lux (Color) and 0.006Lux (B/W with IR LED on) for superior image capture in low-light conditions.

• Advanced AI Processing: WDR (120dB), WiseNRⅡ noise reduction, and AI-driven WiseStreamⅢ video compression.

• Multiple Video Codecs: Supports H.265, H.264, and MJPEG with WiseStreamⅡ & WiseStreamⅢ for optimized bandwidth management.

• Digital Image Stabilization (DIS): Built-in gyro sensor minimizes motion blur and camera shake.

• Rugged & Durable Design: IP66/IP67, IK10, NEMA4X certified for extreme weather conditions and impact resistance.

• ONVIF & API Support: ONVIF Profile S/G/T/M, SUNAPI (HTTP API), and Wisenet Open Platform compatibility.

• Cybersecurity Protection: TPM with FIPS 140-2 Level 2 certification for advanced security against cyber threats.

Detailed Specifications

• Sensor: 8MP CMOS sensor

• Resolution Options: 4K UHD (3840x2160), 1920x1080, 1280x720, and more

• Lens: Motorized varifocal 6.91~214.7mm (31x optical zoom)

• IR Distance: Up to 250m (820ft) with Wise IR technology

• Minimum Illumination:

  • Color: 0.06Lux (F1.36)

  • Black/White (IR ON): 0.006Lux

• Wide Dynamic Range: 120dB for optimal image balance in high-contrast scenes

• Video Compression: H.265, H.264, MJPEG with WiseStreamⅡ & WiseStreamⅢ

• Image Stabilization: Digital Image Stabilization (DIS) with built-in gyro sensor

• Durability Ratings: IP66/IP67 (weatherproof), IK10 (impact-resistant), NEMA4X (industrial-grade protection)

• Security Features: TPM with FIPS 140-2 Level 2 certification for next-generation cybersecurity protection

• Network Interface: RJ-45 (10/100BASE-T), ONVIF compliant

• Operating Temperature: -40°C to +55°C (-40°F to +131°F)

• Power Consumption: Typical 22W, Max 28W

• Certifications: IP66, IP67, IK10, NEMA4X

Warranty Information

• Warranty: 5-year manufacturer warranty covering defects in materials and workmanship.

Brand Information

Hanwha Vision, formerly known as Hanwha Techwin, is a leading provider of advanced video surveillance solutions. The company specializes in high-quality imaging, AI-enhanced analytics, and innovative cybersecurity protections to meet the evolving demands of global security markets.

SKU

HV-XNP-C9310R

Practical Use Scenarios

• Critical Infrastructure Protection: Monitor airports, power plants, and government facilities with AI-powered surveillance.

• Traffic & Transportation Monitoring: Ideal for highways, railway stations, and transportation hubs.

• Perimeter Security: Protect large commercial and industrial sites with long-range IR visibility and PTZ tracking.

• City Surveillance: Ensure urban safety with AI-driven analytics and high-resolution zoom capabilities.

Datasheets & Resources

Manual
Data Sheet
Brochure
Accessory Selector

Excellence for the Australian and New Zealand Market

• Compliant with Australian and New Zealand security regulations.

• Designed for high-performance operation in ANZ’s diverse climate conditions.

• Available through authorized Hanwha Vision distributors in Australia and New Zealand.

• Backed by local technical support and warranty services.

Frequently Asked Questions (FAQs)

Q: Is the HV-XNP-C9310R suitable for outdoor use?
A: Yes, the camera is IP66/IP67 and IK10-rated, making it highly durable for outdoor environments.

Q: What type of zoom does this camera offer?
A: The camera features a 31x optical zoom with a motorized varifocal lens for precise long-range surveillance.

Q: Can the camera operate in extreme temperatures?
A: Yes, it has an operating temperature range of -40°C to +55°C (-40°F to +131°F), ensuring reliable performance in harsh weather conditions.

Q: Does the camera support AI-based analytics?
A: Yes, it includes AI-enhanced features such as WiseNRⅡ noise reduction, WDR, and AI-driven WiseStreamⅢ compression for improved image quality and efficiency.

Q: What is the warranty period for the HV-XNP-C9310R?
A: The camera is backed by a 5-year manufacturer warranty.
