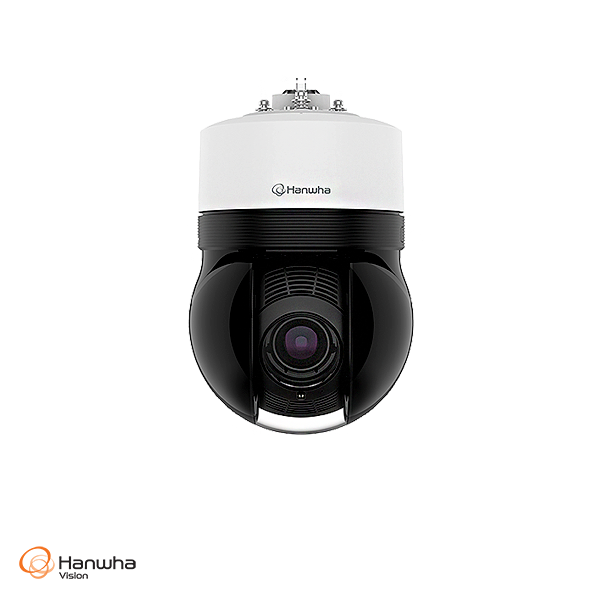

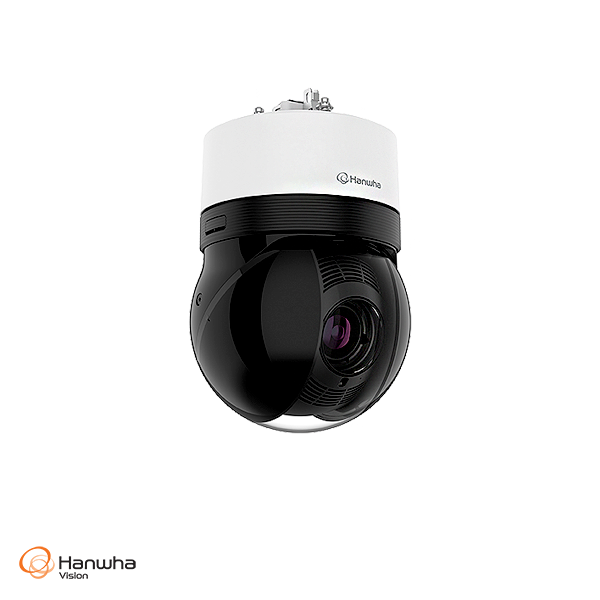

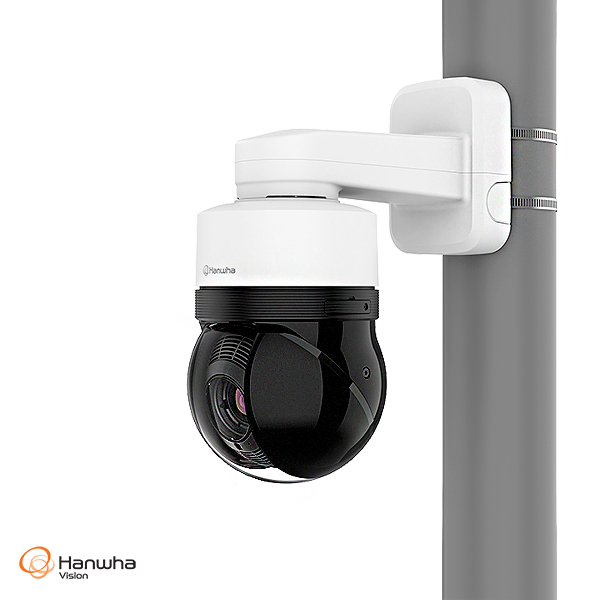

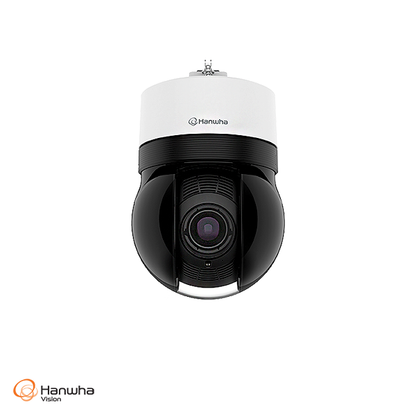

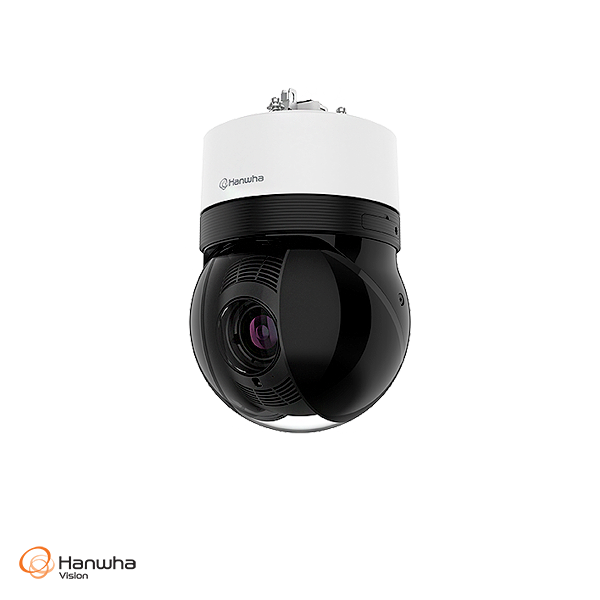

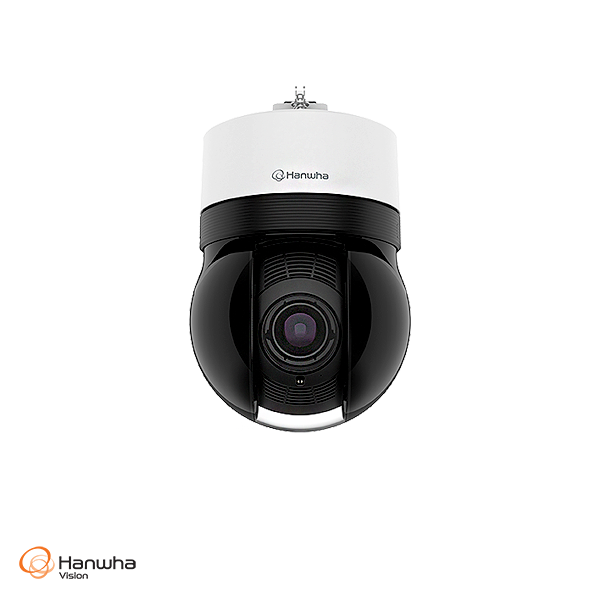

Hanwha Vision XNP-C9310R 8MP AI IR PTZ Camera – Ultimate 4K Precision and Coverage with 31x Optical Zoom x series

The Hanwha Vision XNP-C9310R is a top-tier PTZ (Pan-Tilt-Zoom) camera featuring ultra-clear 8MP resolution and 31x optical zoom powered by the Wisenet 7 platform. With advanced AI-driven analytics, robust environmental protection, and a 250m WiseIR range, this PTZ camera is ideal for large-area monitoring in transportation hubs, city surveillance, critical infrastructure, and high-risk facilities. Combining ultra-long-range zoom, precision tracking, and next-level cybersecurity, it delivers maximum situational awareness with full remote control.

What's Included in the Box

• Hanwha Vision XNP-C9310R PTZ Camera Unit

• High-PoE Injector (IEEE802.3bt, Class 8)

• Mounting Accessories

• Quick Start Guide

• Micro USB Setup Cable

Main Features

• 4K Resolution (3840x2160): Ultra-high-definition video clarity.

• 31x Optical Zoom (6.91~214.7mm): Covers vast distances with up to 3397m detection range.

• 250m IR Night Vision: WiseIR with adaptive illumination for long-range low-light coverage.

• AI Analytics: Detects and classifies persons, faces, vehicles, license plates with tracking and virtual zones.

• Smart Video Enhancements: AI-based WiseNRⅡ noise reduction, extremeWDR (120dB), digital defogging.

• DIS with Gyro Sensor: Digital image stabilization ensures steady footage.

• Auto Tracking & Target Lock: Automatically follows moving subjects with precise locking.

• Rugged Construction: IP66/IP67, IK10, NEMA 4X, and NEMA TS-2 certified.

• Advanced Cybersecurity: Secure boot, FIPS 140-2 Level 2 TPM, encrypted firmware and SD storage.

Detailed Specifications

• Sensor: 1/1.8” CMOS

• Resolution Options: Multiple including 8MP, 5MP, Full HD

• Frame Rate: 30fps (H.264/H.265), 5fps (MJPEG at 8MP)

• Min. Illumination: 0.06Lux (Color), 0.006Lux (B/W), 0Lux (IR ON)

• Field of View: Horizontal 60.6°–2.59°, Vertical 35.1°–1.45°, Diagonal 68.8°–2.97°

• PTZ Range: 360° endless pan, 110° tilt, speeds up to 550°/sec

• Storage: Dual SD slots, up to 1TB (512GB x2)

• Power: High-PoE (IEEE802.3bt Class 8), Max. 62W

• Operating Temperature: -50°C to +55°C, up to +74°C NEMA TS-2

• Weight / Dimensions: 4.4kg, Ø188 x 264.9mm

Warranty Information

The XNP-C9310R is covered by a 3-year manufacturer warranty. Warranty services and technical support are handled through official Hanwha Vision channels in Australia and New Zealand.

Brand Description

Hanwha Vision, previously known as Hanwha Techwin, is a global leader in intelligent video surveillance. Known for high-performance, AI-powered security solutions, the brand combines technical innovation, cybersecurity strength, and sustainability.

SKU: HV-XNP-C9310R

Practical Use Scenarios

• City Surveillance: Monitor wide urban areas and intersections with precision zoom and AI alerts.

• Airports and Seaports: Secure terminals and monitor perimeters with long-range PTZ functionality.

• Critical Infrastructure: Monitor power plants, data centers, and restricted zones.

• Transportation Corridors: Use in highways and rail systems for traffic flow and incident detection.

• Industrial Zones: Enable facility-wide surveillance with robust AI-based tracking and analytics.

Datasheets & Resources

• Download Full Datasheet (PDF)

Excellence for the Australian and New Zealand Market

• Certified to RCM standards under AS/NZS CISPR 32 for EMI compliance.

• Extreme weather durability (-50°C to +74°C) with IP66/IP67, IK10, NEMA 4X, and NEMA TS-2 certifications.

• Fully sourced from official Hanwha Vision partners in Australia and New Zealand.

• Eco-certified under RoHS, REACH, and compliant with ethical sourcing.

• Local technical and warranty support by trained Hanwha representatives.

Frequently Asked Questions (FAQs)

Q1: What zoom capabilities does the HV-XNP-C9310R offer?
A1: The HV-XNP-C9310R features 31x optical zoom and 32x digital zoom, providing up to 992x total zoom coverage with a max detect range of 3397m.

Q2: Is the HV-XNP-C9310R suitable for outdoor use in extreme conditions?
A2: Yes, it’s certified IP66/IP67, IK10, NEMA 4X, and NEMA TS-2 for operation in harsh environments from -50°C to +74°C.

Q3: What AI functions does the HV-XNP-C9310R support?
A3: It detects/classifies people, faces, vehicles, and license plates. Supports virtual lines/areas, loitering detection, auto-tracking, and more.

Q4: How is the HV-XNP-C9310R powered?
A4: It operates on High-PoE (IEEE802.3bt Type 4, Class 8) and comes with a power injector included.

Q5: What makes the HV-XNP-C9310R cybersecurity-compliant?
A5: Features include TPM with FIPS 140-2 Level 2, encrypted firmware, secure boot, encrypted SD storage, and 802.1X network authentication.
