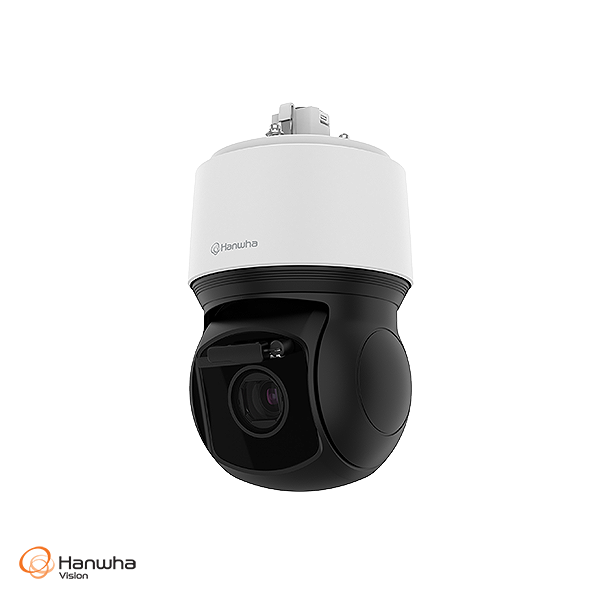

Hanwha Vision XNP-C9303RW 8MP AI PTZ Camera – All-Weather Surveillance with 960x Zoom and Wiper System x series

Designed for high-precision outdoor surveillance, the Hanwha Vision XNP-C9303RW delivers 8MP UHD resolution, a powerful 30x optical zoom, and advanced AI tracking. With its built-in wiper, PTZ PLUS design, and military-grade environmental resilience, this camera ensures reliable performance in extreme weather. Enhanced by Wisenet7’s AI analytics and robust cybersecurity features, it’s ideal for critical infrastructure, transportation, and city-wide surveillance.

What's Included in the Box

• Hanwha Vision XNP-C9303RW PTZ Camera Unit

• High-PoE Injector (IEEE802.3bt, Class 6)

• Setup Cable (Micro USB)

• Installation Hardware

• Quick Start Guide

Main Features

• 30x Optical Zoom + 32x Digital Zoom: 5~150mm lens offering a total of 960x zoom power.

• Built-in Wiper System: Keeps the lens clear during rain or dust conditions.

• AI Auto-Tracking: Tracks objects like persons and vehicles with target lock accuracy.

• Extreme WDR (120dB): Handles high-contrast lighting with precision.

• DIS with Gyro Sensor: Stabilized video under movement or vibration.

• Smart Event Detection: Motion, fog, shock, tampering, intrusion, loitering, and audio detection.

• Compact PTZ PLUS Design: Lightweight, easier to install, and service-friendly.

• Wise IR: Night visibility up to 200m with automatic IR adjustments.

Detailed Specifications

• Sensor: 1/2.8” CMOS

• Resolution Options: Up to 3840x2160 (8MP UHD), supports multiple lower resolutions

• Frame Rate: Up to 30fps (H.264/H.265), 5fps max for MJPEG at 8MP

• Min. Illumination: 0.1Lux (Color), 0Lux (IR on)

• Pan Range: 360° Endless | Tilt Range: -20° to 90° | Max Pan/Tilt Speed: 500°/350° per second

• Privacy Masking: 32 zones, multi-color and mosaic options

• DORI Range:

  • Detect: Up to 4018.1m

  • Observe: Up to 1607.2m

  • Recognize: Up to 803.6m

  • Identify: Up to 401.8m

• IR Range: 200 meters with WiseIR

• Power: HPoE (Class 6), 46W max

• Durability: IP66, IK10, NEMA 4X, NEMA TS-2

• Operating Temp: -40°C to +74°C (NEMA TS-2), startup ≥ -30°C

• Dimensions / Weight: Ø184.9 x 318.8mm | 5.6kg

Warranty Information

The HV-XNP-C9303RW is covered by a 3-year warranty. All warranty claims are managed locally through Hanwha Vision's authorized support network in Australia and New Zealand.

Brand Description

Hanwha Vision, formerly Hanwha Techwin, is a global leader in advanced video surveillance solutions. With powerful AI, best-in-class cybersecurity, and rugged designs, Hanwha Vision products deliver secure and intelligent monitoring across sectors.

SKU: HV-XNP-C9303RW

Practical Use Scenarios

• Transport Infrastructure: Ideal for monitoring roadways, rail lines, and aviation hubs.

• Critical Facilities: Secure power plants, airports, and government perimeters.

• Port & Maritime Surveillance: Handles extreme weather with its wiper and corrosion-resistant housing.

• Urban Surveillance: Tracks individuals and vehicles across cityscapes with AI precision.

• Border & Perimeter Security: Provides long-range detail even under poor lighting or weather conditions.

Datasheets & Resources

• Download Full Datasheet (PDF)

Excellence for the Australian and New Zealand Market

• Fully RCM-certified (AS/NZS CISPR 32), meeting EMC and electrical safety standards.

• Designed for extreme climates and urban challenges with NEMA TS-2 and IK10/IP66 protection.

• Distributed exclusively through authorized Hanwha Vision ANZ channels.

• Compliant with regional eco-regulations (RoHS, REACH), designed for sustainability.

• Local service support, parts, and warranty backed by Hanwha’s certified service centers.

Frequently Asked Questions (FAQs)

Q1: What makes the HV-XNP-C9303RW ideal for harsh environments?
A1: Its IP66/IK10/NEMA 4X/NEMA TS-2 ratings and built-in wiper make it ideal for wet, dusty, or high-vibration conditions.

Q2: How far can the HV-XNP-C9303RW see at night?
A2: With WiseIR, it provides up to 200 meters of IR visibility in complete darkness.

Q3: Does the HV-XNP-C9303RW offer auto-tracking?
A3: Yes, it supports person/vehicle auto-tracking and target lock using Wisenet7’s AI engine.

Q4: What cybersecurity measures are in place for the HV-XNP-C9303RW?
A4: Includes TPM 2.0, secure boot, firmware encryption, HTTPS, SRTP, and 802.1X network authentication.

Q5: Can the HV-XNP-C9303RW store footage locally?
A5: Yes, it has two SD card slots supporting up to 1TB of edge storage.
