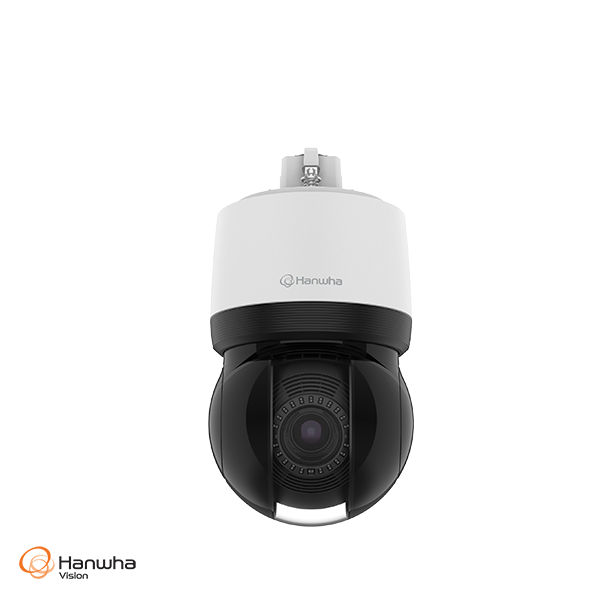

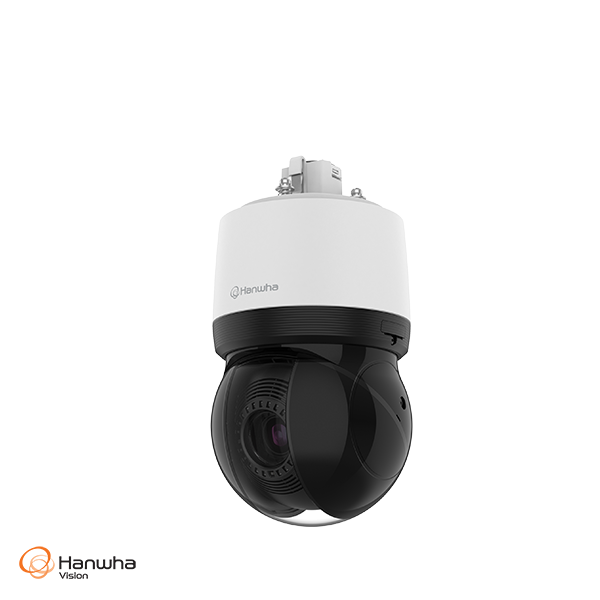

Hanwha Vision XNP-C9253 8MP AI PTZ Camera – High-Definition Intelligence with 800x Total Zoom x series

The Hanwha Vision XNP-C9253 is a compact yet powerful 8MP AI PTZ camera equipped with 25x optical zoom and advanced video analytics, designed for high-precision surveillance in wide outdoor areas. Featuring Wisenet7’s industry-leading imaging engine, it provides extreme clarity, object auto-tracking, and resilient performance in tough environments. With 800x total zoom and superior cybersecurity, it’s perfect for transport, infrastructure, and perimeter surveillance.

What's Included in the Box

• Hanwha Vision XNP-C9253 PTZ Camera Unit

• Mounting Accessories

• Setup Cable (Micro USB)

• Quick Start Guide

Main Features

• 25x Optical Zoom (5–125mm): Up to 800x total zoom with 32x digital for exceptional detail at distance.

• 4K UHD Video (3840x2160): Delivers crisp, high-resolution imagery.

• AI-Based Analytics: Auto-tracking for people and vehicles, virtual line/area detection, loitering, intrusion.

• Intelligent Event Triggers: Tamper, motion, shock, fog detection, and alarm-based handover.

• Weather & Impact Ready: Rated IP66, IK10, NEMA 4X, and NEMA TS-2 for all-weather deployment.

• Cybersecure Platform: Secure boot, signed firmware, TPM 2.0 with FIPS 140-2 Level 2 compliance.

Detailed Specifications

• Sensor: 1/2.8" CMOS

• Max Resolution: 3840x2160 (8MP)

• Frame Rate: 30fps (H.264/H.265); MJPEG up to 5fps at 8MP

• Min. Illumination: Color: 0.1Lux; B/W: 0.01Lux

• FOV: H 57.42°–2.71°, V 33.54°–1.55°

• Pan/Tilt Range: 360° endless pan, 110° tilt (-20° to 90°), up to 700°/s pan speed

• Auto Tracking: Person/Vehicle tracking, target lock

• Storage: Dual microSD slots (up to 1TB)

• Power: PoE+ (IEEE802.3at, Class 4), Max. 25.5W

• Operating Temp: -40°C to +55°C, up to +74°C (NEMA TS-2)

• Weight / Size: 3.2kg, Ø158 x 293.3mm

DORI (Detection, Observation, Recognition, Identification) Range

• Detect: Up to 3246.9m

• Observe: Up to 1298.7m

• Recognize: Up to 649.4m

• Identify: Up to 324.7m

Warranty Information

Includes a 3-year manufacturer warranty with full support and servicing by Hanwha Vision's official channels in Australia and New Zealand.

Brand Description

Hanwha Vision is a globally trusted surveillance brand offering innovative, secure, and intelligent video monitoring systems. Leveraging AI, analytics, and sustainable design, Hanwha Vision is a leader in smart security solutions across industries.

SKU: HV-XNP-C9253

Practical Use Scenarios

• City Surveillance: Monitor traffic intersections, public spaces, and urban centers with smart AI tracking.

• Logistics & Ports: Oversee large terminals, docks, and freight yards with high-zoom visibility.

• Airports & Transit Hubs: Watch terminal perimeters and runways from secure control centers.

• Large Infrastructure: Secure utility zones, bridges, and tunnels with real-time analytics.

• Critical Sites: Protect military bases, government sites, and data centers with intelligent detection.

Datasheets & Resources

• Download Full Datasheet (PDF)

Excellence for the Australian and New Zealand Market

• Fully RCM-certified and compliant with AS/NZS CISPR 32 standards.

• Designed for extreme weather, shock, and vibration environments, including NEMA TS-2 applications.

• Environmentally responsible, conforming to RoHS and REACH.

• Available through official Hanwha Vision distributors across Australia and New Zealand.

• Localized service and warranty management via certified support partners.

Frequently Asked Questions (FAQs)

Q1: What is the zoom capability of the HV-XNP-C9253?
A1: It features 25x optical zoom and 32x digital zoom for a total zoom capability of 800x, ideal for long-distance identification.

Q2: Does the HV-XNP-C9253 offer AI-based tracking?
A2: Yes, it supports auto-tracking and target lock for people and vehicles, using advanced analytics for real-time situational awareness.

Q3: How durable is the HV-XNP-C9253 in outdoor installations?
A3: It meets IP66, IK10, NEMA 4X, and NEMA TS-2 standards, with operating tolerance from -40°C to +74°C.

Q4: What storage options does the HV-XNP-C9253 support?
A4: It includes dual microSD slots, each supporting up to 512GB, for a total of 1TB edge storage.

Q5: How secure is the HV-XNP-C9253 from a cybersecurity perspective?
A5: It’s equipped with TPM 2.0 (FIPS 140-2 Level 2), secure boot, encrypted firmware, and full HTTPS/SRTP protocols for data security.
