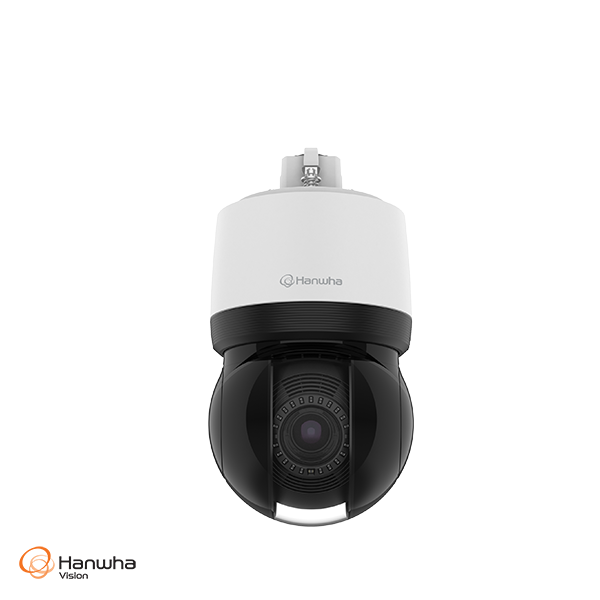

Hanwha Vision XNP-C8253R 6MP AI PTZ Camera – Compact Smart Surveillance with 800x Zoom and Built-In Analytics x series

The Hanwha Vision XNP-C8253R delivers high-performance PTZ surveillance with 6MP resolution and a powerful 25x optical zoom lens. Featuring the PTZ PLUS compact design and AI-powered analytics from the Wisenet7 platform, this camera excels in auto-tracking people or vehicles and intelligent detection. With robust environmental ratings and next-gen cybersecurity, it's a compact solution for large-scale monitoring across transport, infrastructure, and critical facilities.

What's Included in the Box

• Hanwha Vision XNP-C8253R Camera Unit

• Mounting Accessories

• Micro USB Setup Cable

• Installation Guide

Main Features

• 6MP Resolution (3328x1872): Delivers crystal-clear imaging with wide format options.

• 25x Optical Zoom (5~125mm): Up to 800x total zoom with 32x digital.

• Intelligent Auto-Tracking: Tracks persons or vehicles with target lock capability.

• DIS with Gyro Sensor: Ensures stabilized images under movement or vibration.

• Extreme WDR (120dB): Enhances visibility in challenging lighting conditions.

• Compact PTZ PLUS Design: Lightweight, easy-to-install design with simplified cabling.

• Advanced AI Analytics: Virtual zones, object detection, loitering, tamper, fog, and shock detection.

• Cybersecure: TPM 2.0 (FIPS 140-2 Level 2), encrypted firmware, secure boot, signed OS.

Detailed Specifications

• Image Sensor: 1/2.8” CMOS

• Resolutions: Multiple formats from 6MP down to 320x240

• Frame Rate: Up to 30fps (H.264/H.265), 5fps max with MJPEG at 6MP

• Min. Illumination: 0.1Lux (Color), 0.01Lux (B/W)

• Field of View: H 57.42°–2.71°, V 33.54°–1.55°

• Pan/Tilt Range: 360° endless pan, -20°~90° tilt

• Pan/Tilt Speed: Up to 700°/s pan, 500°/s tilt

• Privacy Masking: 32 polygonal zones, multiple color/mosaic options

• Storage: Dual SD slots, up to 1TB total

• Power: PoE+ (IEEE802.3at, Class 4), Max 25.5W

• Operating Temp: -40°C to +55°C, +74°C (max NEMA TS-2)

• Dimensions/Weight: Ø158 x 293.3mm, 3.2kg

DORI (Detection, Observation, Recognition, Identification) Ranges

• Detect: Up to 2813.9m

• Observe: Up to 1125.6m

• Recognize: Up to 562.8m

• Identify: Up to 281.4m

Warranty Information

Covered under a 3-year manufacturer's warranty with dedicated support through authorized service providers in Australia and New Zealand.

Brand Description

Hanwha Vision continues the legacy of Hanwha Techwin with leading-edge AI video solutions. With innovation focused on security, sustainability, and ease of integration, Hanwha Vision delivers smart surveillance to meet today’s most demanding requirements.

SKU: HV-XNP-C8253R

Practical Use Scenarios

• Campus Security: Monitor open areas and entryways with intelligent zoom and tracking.

• Transport Terminals: Secure airport tarmacs, train platforms, and bus stations.

• Public Safety: Manage city intersections, squares, and critical access points.

• Utilities and Industry: Oversee power substations, refineries, and manufacturing zones.

• Smart Buildings: Integrate with access control and automation systems.

Datasheets & Resources

• Download Full Datasheet (PDF)

Excellence for the Australian and New Zealand Market

• Certified under RCM (AS/NZS CISPR 32) for local compliance.

• Ruggedized for harsh environments (IP66, IK10, NEMA 4X, NEMA TS-2).

• Officially supplied via authorized Hanwha Vision distributors in Australia and New Zealand.

• Designed to meet eco-standards (RoHS, REACH) and conflict-free sourcing.

• Fully supported with localized technical assistance and warranty service.

Frequently Asked Questions (FAQs)

Q1: What zoom capabilities does the HV-XNP-C8253R offer?
A1: It includes 25x optical zoom and 32x digital zoom, reaching a combined 800x zoom range.

Q2: Does the HV-XNP-C8253R include IR for night vision?
A2: No, this model does not feature built-in IR. It's recommended for well-lit or externally illuminated areas.

Q3: What AI analytics are included with the HV-XNP-C8253R?
A3: It includes person/vehicle detection, loitering, virtual line/area crossing, and tamper/fog/shock detection.

Q4: Is the HV-XNP-C8253R suited for harsh outdoor conditions?
A4: Yes, it is IP66, IK10, NEMA 4X, and NEMA TS-2 certified for high durability.

Q5: How secure is the HV-XNP-C8253R for enterprise use?
A5: It includes TPM 2.0 (FIPS 140-2 Level 2), secure boot, firmware encryption, and support for SRTP, HTTPS, and 802.1X.
