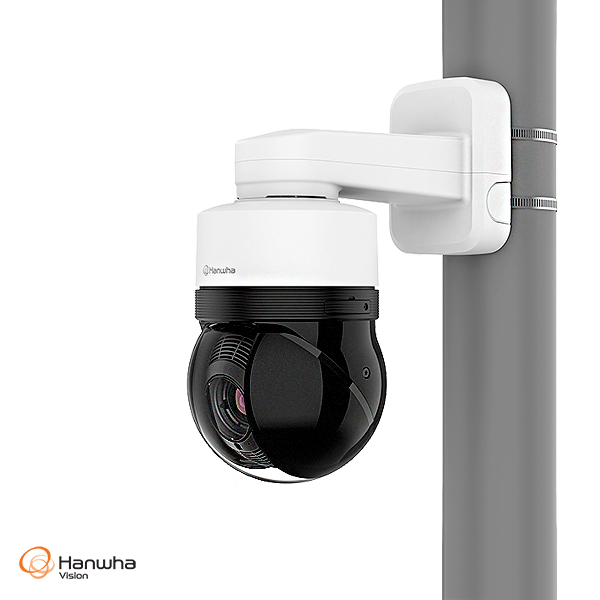

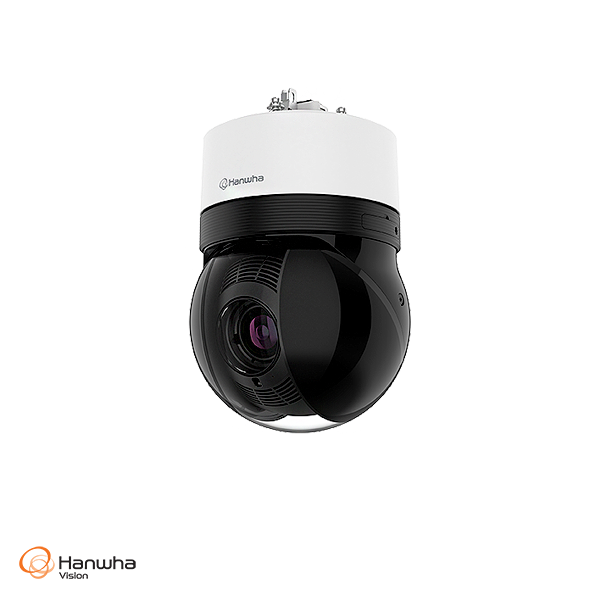

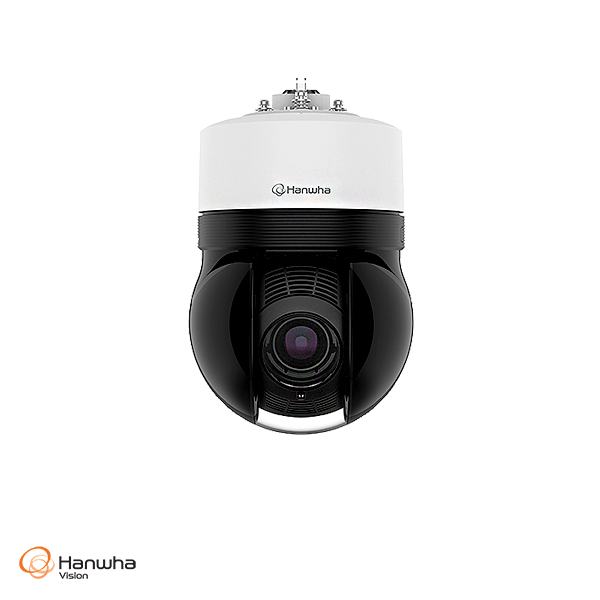

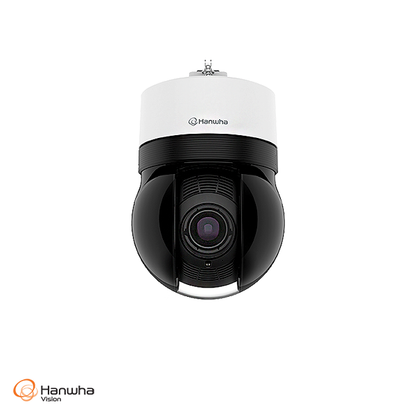

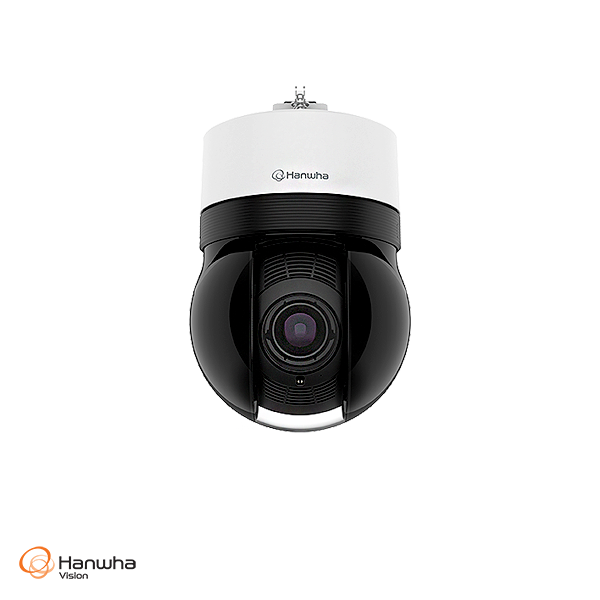

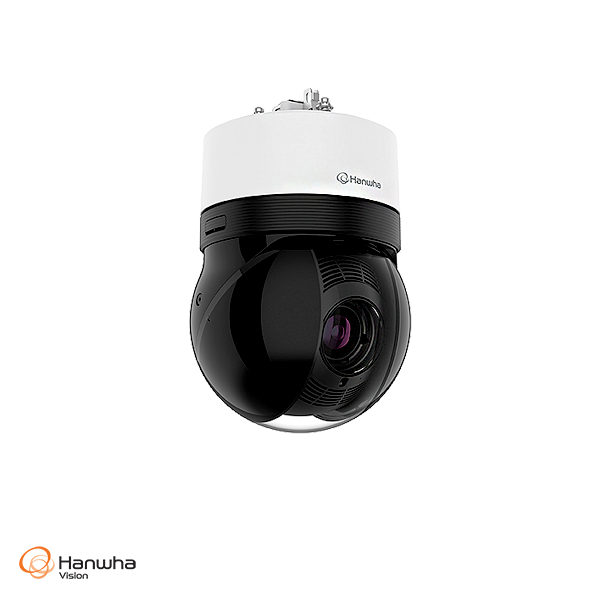

Hanwha Vision XNP-C7310R 4MP AI IR PTZ Camera – Long-Range Precision with AI Tracking and 300m IR x series

Built for large-scale surveillance, the Hanwha Vision XNP-C7310R offers unmatched visibility and control with its 4MP resolution, 31x optical zoom, and industry-leading 300m WiseIR range. Powered by the Wisenet 7 chipset and AI analytics engine, this PTZ camera combines advanced tracking, real-time classification, and robust cybersecurity, making it an exceptional solution for critical infrastructure, city surveillance, transport, and industrial security needs.

What's Included in the Box

• Hanwha Vision XNP-C7310R Camera Unit

• High-PoE Injector (IEEE802.3bt, Class 8)

• Mounting Hardware

• Quick Start Guide

• Setup Cable (Micro USB)

Main Features

• 31x Optical Zoom: Covers extensive areas with 6.91–214.7mm motorized varifocal lens (total 992x zoom with digital).

• 300m IR Visibility: WiseIR tech ensures powerful low-light clarity across large distances.

• AI Object Detection & Tracking: Detect and classify people, vehicles, license plates, and more with auto-tracking.

• Dynamic Image Enhancements: WiseNRⅡ noise reduction, extremeWDR (120dB), digital defog, DIS with gyro sensor.

• DORI Range: Identify up to 233.8m, recognize at 467.7m, observe at 935.3m, detect at 2338.4m.

• High Durability: Rated IP66/IP67, IK10, NEMA 4X; performs from -50°C to +74°C.

• Secure by Design: Features TPM with FIPS 140-2 Level 2, encrypted firmware, SD encryption, and secure boot.

Detailed Specifications

• Image Sensor: 1/1.8” CMOS

• Max Resolution: 2592x1520 (4MP)

• Frame Rate: H.265/H.264 – 60fps (WDR off), 30fps (WDR on); MJPEG – 5fps at 4MP

• Illumination: 0.04Lux (Color), 0.004Lux (B/W), 0Lux with IR ON

• FOV: H 59.4°~2.54°, V 35.8°~1.49°, D 68.2°~2.95°

• PTZ Movement: 360° endless pan; 110° tilt; 550°/s preset speed

• Smart Codec: H.265, H.264, MJPEG; WiseStream II & III

• AI Analytics: Virtual line/area, loitering, intrusion, direction detection, audio classification (via optional I/O box)

• Storage: Dual microSD slots (up to 1TB, 512GB x 2)

• Network: ONVIF S/G/T/M, SUNAPI, IPv4/6, HTTPS, 802.1X, SRTP

• Power: High-PoE (62W max), injector included

• Dimensions / Weight: Ø188 x 264.9mm, 4.4kg

Warranty Information

The XNP-C7310R is backed by a 3-year warranty. All warranty claims and service are supported by authorized Hanwha Vision partners in Australia and New Zealand.

Brand Description

Hanwha Vision is a leading force in intelligent video surveillance. Formerly Hanwha Techwin, the brand combines innovative hardware, cutting-edge AI, and unmatched cybersecurity to deliver surveillance systems that professionals trust worldwide.

SKU: HV-XNP-C7310R

Practical Use Scenarios

• City & Government Surveillance: Monitor vast urban areas and public facilities with high zoom and AI tracking.

• Transportation Hubs: Airports, train stations, and ports benefit from large-scale PTZ coverage.

• Perimeter Security: Ideal for securing borders, industrial zones, and sensitive facilities.

• Critical Infrastructure: Monitor energy plants, data centers, and strategic zones under all conditions.

• Industrial Surveillance: Gain visibility in warehouses, refineries, and large outdoor areas.

Datasheets & Resources

• Download Full Datasheet (PDF)

Excellence for the Australian and New Zealand Market

• RCM certified under AS/NZS CISPR 32 for EMC compliance.

• Rugged design built for the harshest regional environments: -50°C to +74°C operational range.

• Distributed exclusively through authorized Hanwha Vision resellers across ANZ.

• Designed to meet NEMA TS-2, NEMA 4X, IP66/IP67, and IK10 standards.

• Full local warranty and technical support with eco-certification (RoHS/REACH).

Frequently Asked Questions (FAQs)

Q1: What makes the HV-XNP-C7310R suitable for large-area surveillance?
A1: The HV-XNP-C7310R features a 31x optical zoom and 300m IR range, plus AI auto-tracking for detailed coverage of large environments.

Q2: Can the HV-XNP-C7310R operate in extreme outdoor conditions?
A2: Yes, it’s certified IP66/IP67, IK10, NEMA 4X, and operates between -50°C to +74°C, ideal for ANZ climates.

Q3: What are the AI capabilities of the HV-XNP-C7310R?
A3: The camera classifies people, vehicles, license plates, and supports virtual lines, intrusion zones, object auto-tracking, and target lock.

Q4: Is the HV-XNP-C7310R secure for government use?
A4: Yes, it includes secure boot, TPM (FIPS 140-2 Level 2), encrypted firmware, SD card protection, and advanced network security protocols.

Q5: How is the HV-XNP-C7310R powered?
A5: It uses High-PoE (IEEE802.3bt, Class 8), and includes a compatible power injector in the box.
