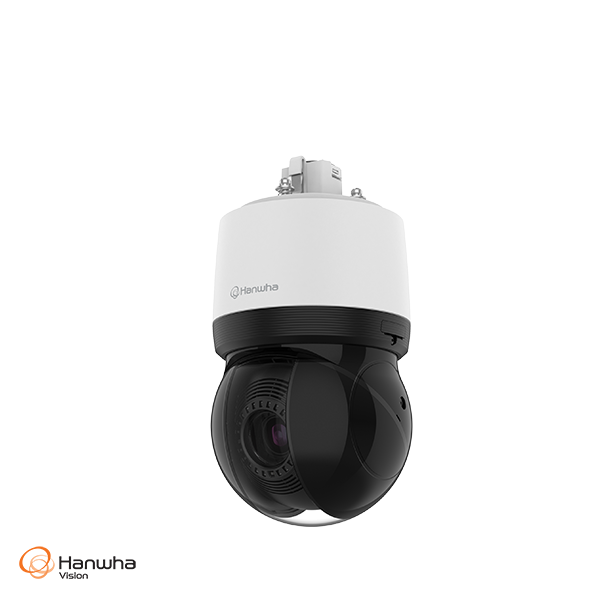

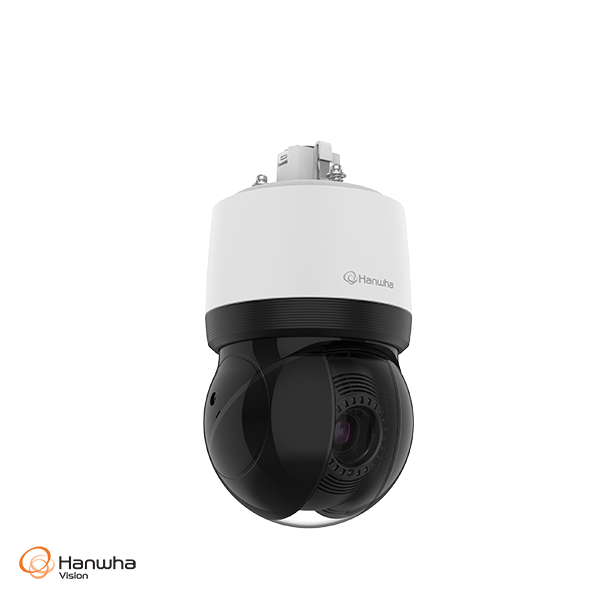

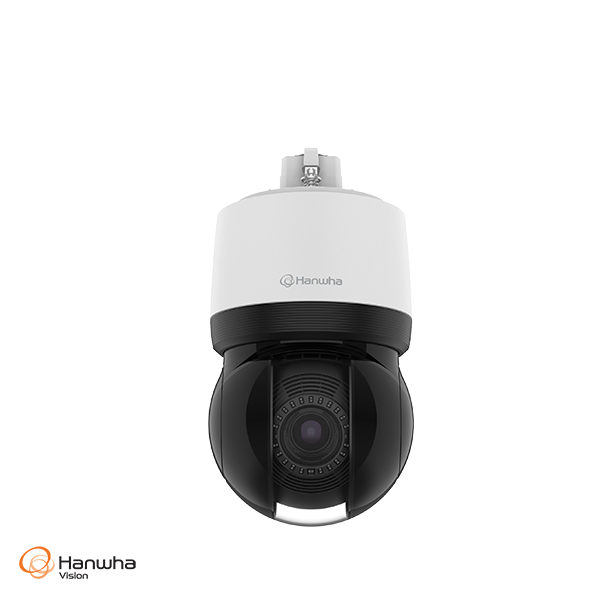

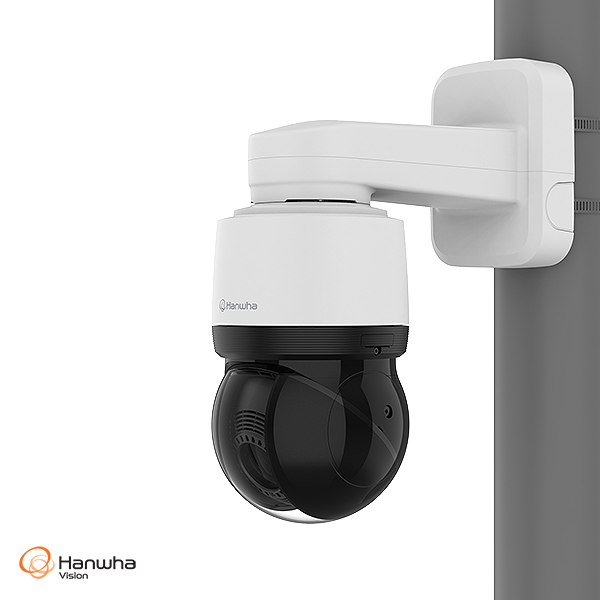

Hanwha Vision XNP-C6403R 2MP AI PTZ Camera – Ultra-Zoom Performance with AI Tracking and 150dB WDR x series

The Hanwha Vision XNP-C6403R delivers high-performance PTZ surveillance with 2MP resolution and a powerful 40x optical zoom. Built on the Wisenet7 platform, it offers AI-driven tracking, extreme 150dB WDR, and durable design suited for industrial and infrastructure security. With ultra-fast pan/tilt control and up to 1280x zoom (optical + digital), this camera provides reliable, detailed footage in even the most demanding outdoor conditions.

What's Included in the Box

• Hanwha Vision XNP-C6403R Camera Unit

• High PoE Injector (IEEE802.3bt, Class 6, Type 3)

• Setup Cable (Micro USB)

• Mounting Accessories

• Quick Start Guide

Main Features

• 2MP Full HD (1920x1080): High clarity video with wide resolution options.

• 40x Optical Zoom (4.25~170mm): Up to 1280x total zoom with 32x digital.

• Extreme WDR (150dB): Unmatched dynamic range in bright and shadowed scenes.

• AI Auto-Tracking: Tracks vehicles or people in real-time, with target lock.

• Stabilized Imaging: DIS with built-in gyro sensor for shake-free video.

• Robust Analytics: Object detection, intrusion, tampering, motion, fog, and defocus alerts.

• Secure by Design: TPM 2.0 with FIPS 140-2 Level 2, signed firmware, HTTPS, SRTP, and 802.1X.

• Compact PTZ PLUS Architecture: Lighter, simpler, and faster to install.

Detailed Specifications

• Image Sensor: 1/2.8” CMOS

• Min. Illumination: 0.05Lux (Color), 0Lux (IR mode)

• Pan Range: 360° endless | Pan Speed: Up to 700°/sec

• Tilt Range: -20° to +90° | Tilt Speed: Up to 500°/sec

• Field of View: H 65.66°~1.88°, V 39.4°~1.09°

• DORI Range:

  • Detect: Up to 2340.4m

  • Observe: Up to 936.2m

  • Recognize: Up to 468.1m

  • Identify: Up to 234.0m

• Frame Rate: 60fps (H.265/H.264), 30fps (MJPEG)

• Edge Storage: Dual SD slots, up to 1TB total

• Power Input: HPoE (Max 40W)

• Operating Temp: -40°C to +74°C (startup ≥ -30°C)

• Certifications: IP66, IK10, NEMA 4X, NEMA TS-2

• Dimensions / Weight: Ø158 x 293.3 mm / 3.2kg

Warranty Information

Includes a 3-year limited warranty with local support available through Hanwha Vision-authorized partners across Australia and New Zealand.

Brand Description

Hanwha Vision, a continuation of the Hanwha Techwin legacy, provides industry-leading AI-powered surveillance solutions. With Wisenet7 technology, Hanwha offers unparalleled imaging quality, security, and operational intelligence for demanding security needs.

SKU: HV-XNP-C6403R

Practical Use Scenarios

• Transport Corridors: Capture vehicle detail across long distances.

• Public Venues: Ensure safety in parks, plazas, or stadium perimeters.

• Industrial Facilities: Monitor production yards and restricted zones.

• Airports & Ports: Secure entry/exit zones and high-traffic areas.

• Utilities & Remote Infrastructure: Long-range monitoring for substations and pipelines.

Datasheets & Resources

• Download Full Datasheet (PDF)

Excellence for the Australian and New Zealand Market

• Certified to RCM and AS/NZS CISPR 32 EMC standards.

• Built to endure Australia’s climate extremes and infrastructure demands (NEMA TS-2, IP66, IK10).

• Distributed via Hanwha’s official ANZ supply chain with full warranty support.

• Environmentally compliant (RoHS, REACH) and optimized for regional deployment.

• Service and repair facilities located within Australia and New Zealand.

Frequently Asked Questions (FAQs)

Q1: How far can the HV-XNP-C6403R zoom?
A1: The camera features a 40x optical and 32x digital zoom, reaching up to 1280x total zoom.

Q2: Is the HV-XNP-C6403R suited for outdoor industrial use?
A2: Yes, it’s IP66, IK10, and NEMA 4X certified with operating temperatures from -40°C to +74°C.

Q3: What video compression options does the HV-XNP-C6403R support?
A3: It supports H.265, H.264 (Main/Baseline/High), and MJPEG formats.

Q4: What cybersecurity protections are built into the HV-XNP-C6403R?
A4: It includes TPM 2.0, signed firmware, secure boot, HTTPS, SRTP, and 802.1X for robust data security.

Q5: Does the HV-XNP-C6403R support local video storage?
A5: Yes, it supports up to 1TB via dual SD card slots for edge recording.
