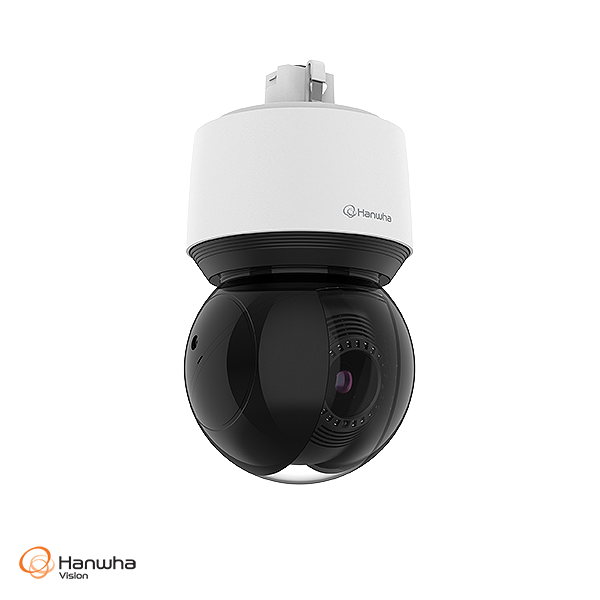

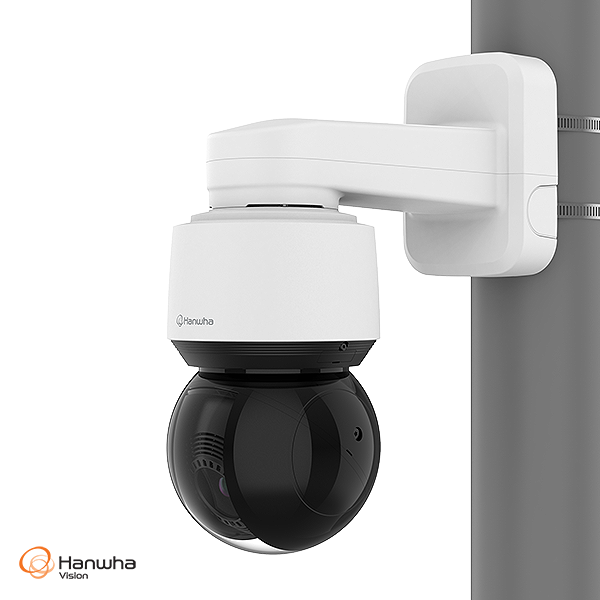

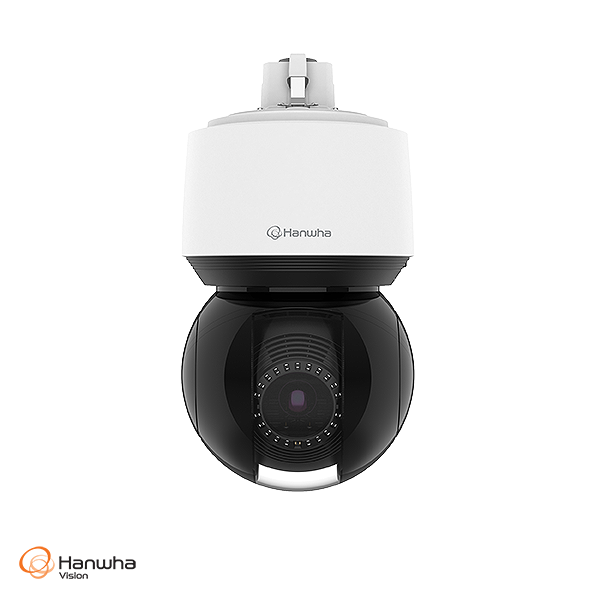

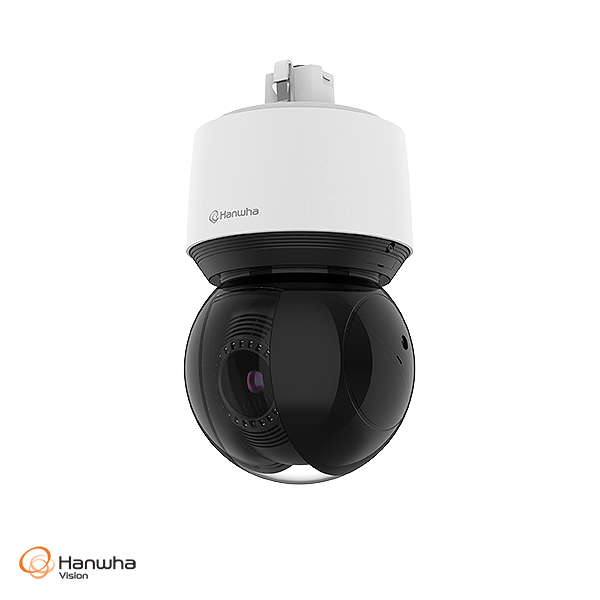

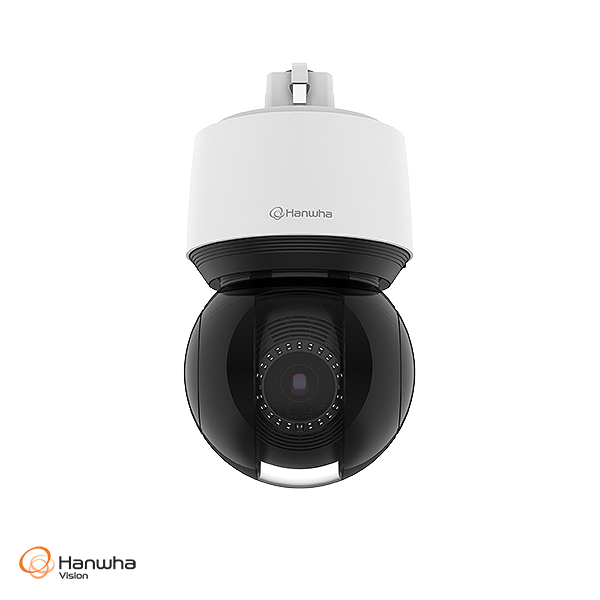

Hanwha Vision XNP-6400 X Series 2MP Network H.265 40x PTZ Camera

The Hanwha Vision XNP-6400 is a high-performance 2MP PTZ camera engineered for professional surveillance applications. Featuring a powerful 40x optical zoom and intelligent tracking capabilities, this camera ensures comprehensive coverage and high-quality imaging in any environment. With its durable, weather-resistant design and advanced analytics, the XNP-6400 is ideal for both indoor and outdoor security solutions.

What's Included in the Box

• XNP-6400 2MP 40x PTZ Camera

• Installation Manual

• Mounting Hardware

• Warranty Card

Main Features

• High-Resolution Imaging: Captures full HD 2MP (1920x1080) resolution for detailed and clear footage.

• Powerful 40x Optical Zoom: 4.25~170mm lens with an additional 32x digital zoom, achieving up to 1280x zoom.

• Day & Night Functionality: Infrared Cutfilter Removable (ICR) for superior low-light performance.

• Extreme WDR (150dB): Ensures balanced exposure in high-contrast lighting conditions.

• Digital Image Stabilization: Built-in gyro sensor minimizes camera shake for steady footage.

• Intelligent Analytics: Supports object auto-tracking (person/vehicle) and target lock tracking.

• Rugged Design: IP66, IK10, NEMA4X, and NEMA-TS 2 certified for durability in extreme weather conditions.

• Efficient Video Compression: Supports H.264, H.265, and MJPEG with WiseStream II for optimized bandwidth usage.

• Advanced PTZ Functionality: 360° endless pan, 110° tilt, and up to 700°/sec speed for fast, responsive movement.

Detailed Specifications

• Sensor: 1/2.8" CMOS

• Resolution Options: 1920x1080, 1280x1024, 1280x960, 1280x720, and more

• Frame Rate: H.265/H.264 (up to 60fps); MJPEG (up to 30fps)

• Minimum Illumination:

  • Color: 0.05Lux (F1.6, 1/30sec)

  • Black/White: 0.005Lux (F1.6, 1/30sec)

• Lens: DC auto iris, 4.25~170mm

• Field of View: Horizontal 65.66° (Wide) ~ 1.88° (Tele)

• Pan/Tilt Speed:

  • Pan: Max. 700°/sec, Manual: 0.024°/sec ~ 250°/sec

  • Tilt: Max. 500°/sec, Manual: 0.024°/sec ~ 250°/sec

• Privacy Masking: Up to 32 zones with configurable colors

• Motion Detection: 8 polygonal zones

• Intelligent Analytics: Face detection, motion detection, tampering, loitering, virtual line, directional detection, fog detection

• Alarm Triggers: Analytics, network disconnect, alarm input (with NW I/O box)

• Alarm Events: File upload via FTP/email, SD/SDHC/SDXC recording, notification alerts

• Edge Storage: Dual Micro SD/SDHC/SDXC slots (up to 1TB)

• Network Interface: RJ-45 (10/100BASE-T), ONVIF compliant

• Security Features: HTTPS, SSL, IP filtering, user access log, 802.1X authentication

• Operating Temperature: -40°C to +50°C (-40°F to +122°F)

• Power Consumption: Typical 20W, Max 25W

• Certifications: IP66, IK10, NEMA4X, NEMA-TS 2

Warranty Information

• Warranty: 5-year manufacturer warranty covering defects in materials and workmanship.

Brand Information

Hanwha Vision, formerly known as Hanwha Techwin, is a globally recognized leader in video surveillance and security technology. The company is committed to delivering innovative solutions with high-quality imaging, intelligent analytics, and robust cybersecurity measures.

SKU

HV-XNP-6400

Practical Use Scenarios

• City Surveillance: Monitor streets, intersections, and public areas with intelligent tracking.

• Transportation Hubs: Secure airports, train stations, and bus terminals with high-zoom monitoring.

• Industrial Facilities: Oversee large production sites with 360° PTZ coverage.

• Critical Infrastructure: Protect power plants, ports, and government buildings with advanced security analytics.

Datasheets & Resources

Manual
Quick Guide
Data Sheet
Brochure

Excellence for the Australian and New Zealand Market

• Designed to meet Australian and New Zealand security standards.

• IP66-rated for optimal performance in extreme weather conditions.

• Available exclusively from authorized Hanwha Vision distributors in ANZ.

• Backed by local technical support and warranty services.

Frequently Asked Questions (FAQs)

Q: Is the XNP-6400 suitable for outdoor use?
A: Yes, the camera is IP66 and IK10-rated, making it highly durable in harsh weather conditions.

Q: What type of zoom does this camera offer?
A: The camera features a 40x optical zoom with an additional 32x digital zoom, totaling 1280x zoom capability.

Q: Can the camera track moving objects automatically?
A: Yes, it supports intelligent auto-tracking for both people and vehicles, enhancing surveillance efficiency.

Q: Does the XNP-6400 support edge storage?
A: Yes, it has dual Micro SD/SDHC/SDXC slots supporting up to 1TB of storage.

Q: What is the warranty period for the XNP-6400?
A: The camera comes with a 5-year manufacturer warranty.
