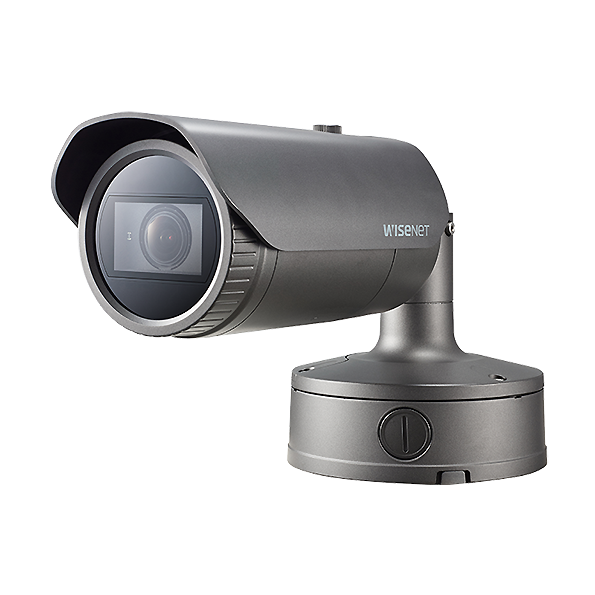

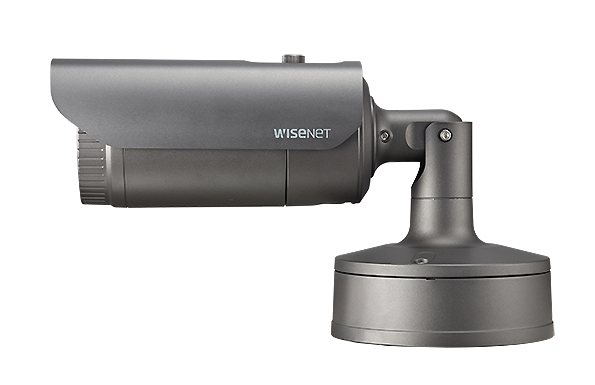

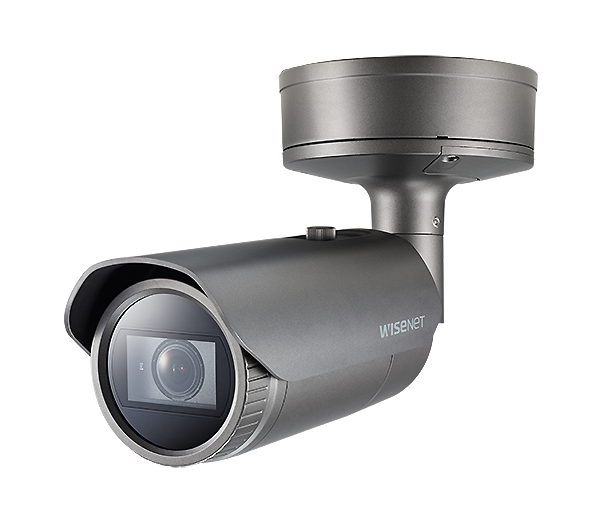

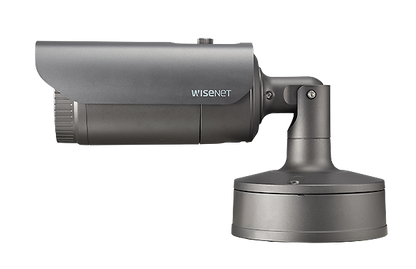

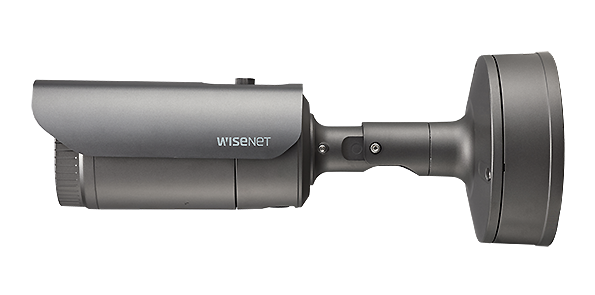

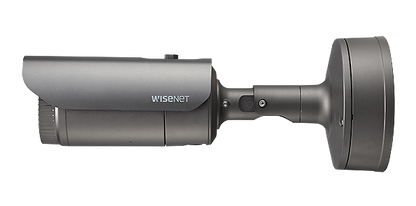

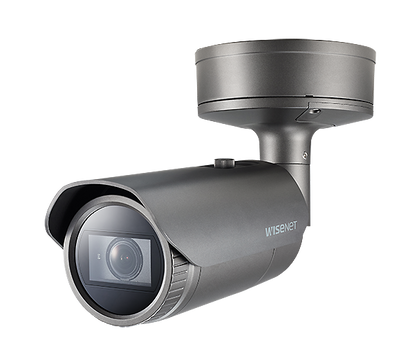

Hanwha Vision XNO-9082R 4K IR Bullet Camera – Rugged AI Surveillance with 150dB WDR and Modular Build (Wisenet7) x series

The Hanwha Vision XNO-9082R is a 4K ultra-HD bullet camera engineered for high-resolution surveillance in extreme outdoor conditions. Powered by Wisenet7, it features advanced analytics, modular design, and outstanding image clarity in low light, thanks to a 3x motorized zoom and IR range of 40 metres. Ideal for public areas, perimeter protection, and industrial facilities, this camera excels with its 150dB extreme WDR, gyro-based stabilization, and IP66/IK10/NEMA4X certifications.

What's Included in the Box

• Hanwha Vision XNO-9082R Camera Unit

• Mounting Bracket and Screws

• Micro USB Setup Cable

• Quick Start Guide

Main Features

• 4K Resolution (3840x2160): Capture fine details for accurate forensic analysis.

• 3x Motorized Varifocal Lens (2.8–8.4mm): Remote zoom and focus with P-iris for enhanced depth.

• IR Night Vision (40m): Built-in IR LEDs ensure visibility in complete darkness.

• 150dB Extreme WDR: Balanced exposure in high contrast lighting conditions.

• Gyro Sensor-Based DIS: Minimizes image blur caused by vibration or wind.

• AI-Enhanced Video Analytics: Includes face/upper body detection, tampering, sound classification, line crossing, and more.

• Queue Management & Heatmaps: Business intelligence features for public and retail spaces.

• Modular Structure: Simplifies maintenance and installation.

Detailed Specifications

• Sensor: 1/2.8" CMOS

• Min. Illumination: 0.05Lux (Color), 0Lux (IR on)

• View Angle: H: 114°–40.2°, V: 62.0°–22.5°, D: 133.0°–46.3°

• IR Range: Up to 40m

• WDR: 150dB (extremeWDR)

• Smart Codec: H.265, H.264 (Main/High), MJPEG + WiseStream II

• Framerate: Up to 30fps at 4K for H.264/H.265

• Privacy Masking: 32 polygonal zones

• Audio I/O: Mic-in/Line-in selectable, Line-out, supports G.711, G.726, AAC-LC

• Event Triggers: Motion, analytics, tampering, audio, network disconnect

• Alarm I/O: 2 configurable ports

• Storage: Dual SD/SDHC/SDXC slots up to 512GB (256GB x2)

• Power Input: PoE (IEEE802.3af), 12VDC, 24VAC

• Power Consumption: Max 14.5W (24VAC)

• Operating Temp: -50°C to +60°C

• Dimensions / Weight: Ø91 x 368.6mm / 2.2kg

• DORI Ranges:

  • Detect: Up to 209.9m

  • Observe: 83.9m

  • Recognize: 42.0m

  • Identify: 21.0m

Warranty Information

Standard 3-year warranty supported through authorized Hanwha Vision service centers in Australia and New Zealand.

Brand Description

Hanwha Vision, the successor of Samsung Techwin, is globally trusted for its cutting-edge video surveillance products powered by Wisenet technology. With a focus on security, AI, and performance, Hanwha Vision serves mission-critical industries worldwide.

SKU: HV-XNO-9082R

Practical Use Scenarios

• Transport Infrastructure: Monitor highways, tunnels, or train platforms with 4K precision.

• Warehousing and Logistics: Secure entry points and loading bays with long-range analytics.

• Perimeter Security: Ideal for fence lines and building exteriors with wide IR coverage.

• Smart Cities: Use AI analytics for people and vehicle monitoring in public spaces.

• Utilities and Industrial Facilities: Detect unauthorized access and safety breaches.

Datasheets & Resources

• Download Full Datasheet (PDF)

Excellence for the Australian and New Zealand Market

• Fully compliant with AS/NZS EMC regulations (RCM).

• Designed for environmental extremes with -50°C startup capability.

• Certified to IP66/IP67, IK10, and NEMA 4X for weather and vandal resistance.

• Supports localized warranty through ANZ-authorized Hanwha partners.

• Eco-conscious production meeting RoHS and REACH standards.

Frequently Asked Questions (FAQs)

Q1: What is the IR night vision range of the HV-XNO-9082R?
A1: The camera provides 40 metres of IR illumination, supporting 0Lux black-and-white video in total darkness.

Q2: Can the HV-XNO-9082R record locally?
A2: Yes, it supports dual SD card slots (up to 512GB total) for local edge recording.

Q3: Is the HV-XNO-9082R suitable for high-vibration areas?
A3: Yes, its built-in gyro sensor ensures digital image stabilization in windy or vibrating conditions.

Q4: What kind of analytics does the HV-XNO-9082R support?
A4: It includes motion, loitering, face/upper body detection, audio classification, tampering alerts, and queue management.

Q5: How is the HV-XNO-9082R powered?
A5: It supports PoE, 12VDC, or 24VAC with typical power usage ranging from 9.4W to 14.5W.
