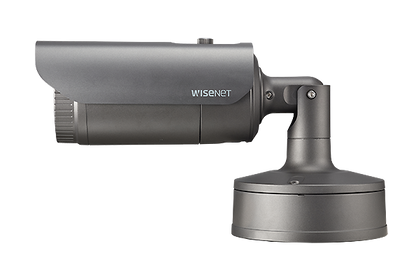

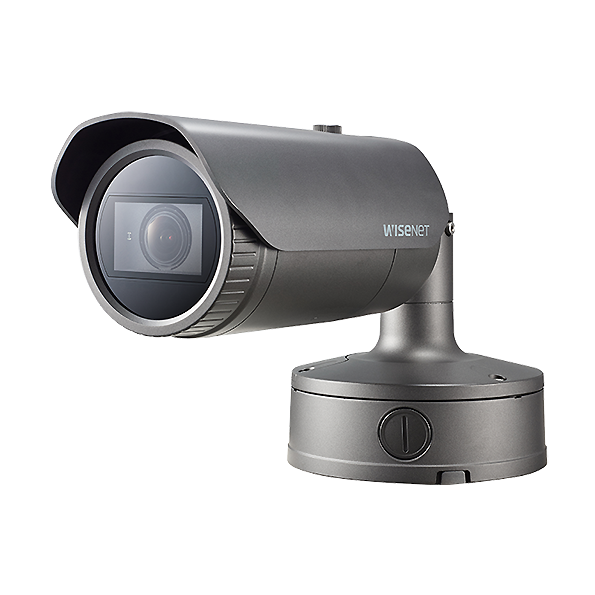

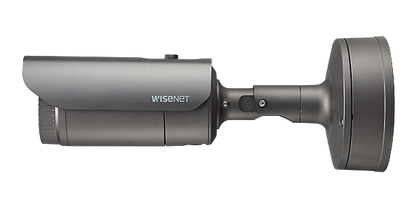

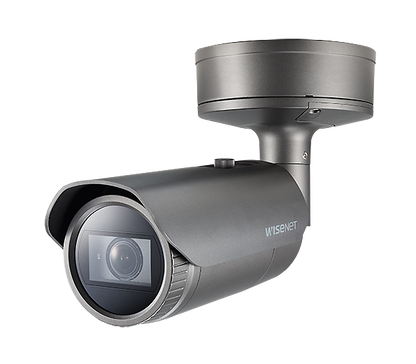

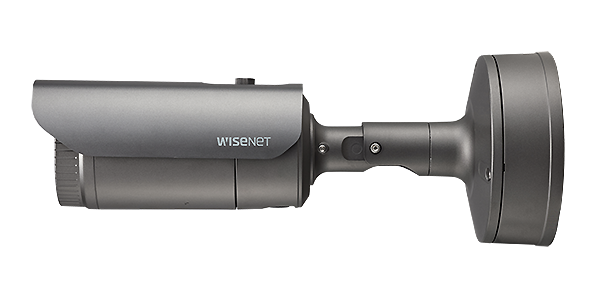

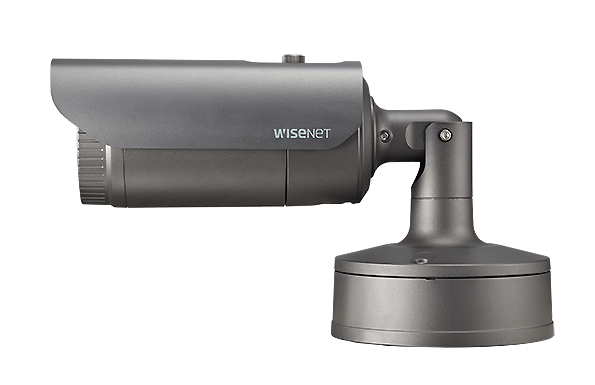

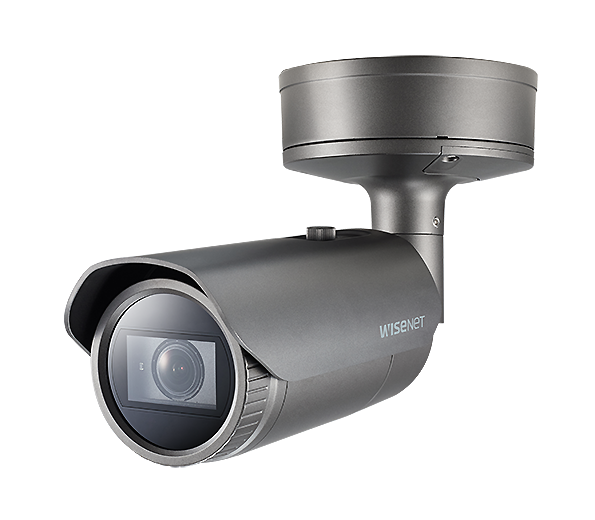

Hanwha Vision XNO-8082R 6MP IR Bullet Camera – Modular Wisenet7 Security with AI Analytics & 150dB WDR x series

The Hanwha Vision XNO-8082R is a robust 6MP outdoor bullet camera designed for professional-grade video surveillance in tough environments. Built with Wisenet7 technology, it delivers excellent image clarity, AI-based video analytics, and extreme 150dB WDR for high-contrast scenes. With a 3x motorized varifocal lens and 40m IR range, this camera is ideal for perimeter protection, critical infrastructure, and industrial applications requiring reliability, intelligence, and low-light performance.

What's Included in the Box

• Hanwha Vision XNO-8082R Camera Unit

• Micro USB Setup Cable

• Mounting Bracket with Hardware

• Quick Start Installation Guide

Main Features

• 6MP Resolution at 30fps: Delivers 3328x1872 ultra-clear imagery.

• 3x Motorized Zoom (2.8–8.4mm): Provides a horizontal field of view from 114° to 40.2°.

• 40m IR Range: Supports 0Lux night-time monitoring with Wise IR LED illumination.

• 150dB extremeWDR: Maintains image visibility in high contrast light environments.

• Built-in Gyro Sensor DIS: Stabilizes image during vibration or wind interference.

• AI Analytics: Includes face/upper body detection, directional and motion detection, loitering, shock/audio/tampering alerts.

• Business Intelligence Tools: Heatmaps, queue management, and people counting included.

• Dual SD Card Slots: Supports up to 512GB local edge storage.

• Rugged Build: Certified IP66/IP67, IK10, NEMA4X for harsh outdoor conditions.

Detailed Specifications

• Image Sensor: 1/2.8” CMOS

• Minimum Illumination: Color: 0.05 Lux @F1.2, B/W: 0 Lux with IR

• Video Outputs: CVBS (720x480), Micro USB (1280x720) for setup

• Lens Type: DC Auto Iris, P-Iris

• IR Illumination: Up to 40m (131.2 ft)

• Analytics: Defocus, directional, loitering, line crossing, appear/disappear, face/upper body detection, tampering

• Audio I/O: Mic-in/Line-in selectable, Line-out; G.711, G.726, AAC-LC codecs supported

• Alarm I/O: 2 configurable ports with event-based triggers and PTZ handover

• DORI Ranges:

  • Detect: 49.9m (wide), 209.9m (tele)

  • Observe: 19.9m / 83.9m

  • Recognize: 10.0m / 42.0m

  • Identify: 5.0m / 21.0m

• Network Protocols: IPv4/6, HTTPS, SRTP, ONVIF Profiles S/G/T

• Compression: H.265, H.264 (Main/High), MJPEG with WiseStream II

• Edge Storage: 2x MicroSD/SDHC/SDXC slots (max. 256GB each)

• Operating Temp: -50°C to +60°C (startup above -30°C)

• Power Input: PoE (IEEE802.3af), 12VDC, 24VAC

• Power Consumption: Max 14.5W

• Dimensions / Weight: Ø91 x 368.6 mm / 2.2 kg

Warranty Information

Includes a 3-year standard warranty from Hanwha Vision, fully supported by authorized Australian and New Zealand distribution partners.

Brand Description

Hanwha Vision is a global leader in video surveillance innovation. Powered by Wisenet AI and decades of security expertise, Hanwha Vision offers cutting-edge, reliable solutions for commercial and critical infrastructure applications.

SKU: HV-XNO-8082R

Practical Use Scenarios

• Urban Surveillance: Monitor public pathways and transport hubs with clear wide-angle and zoom coverage.

• Industrial Zones: Rugged IP66/IK10/NEMA4X casing resists harsh environmental conditions.

• Retail Exteriors: Capture license plates, entry points, and queue patterns.

• School & Campus Security: Monitor perimeters and respond to alerts like loitering or shock detection.

• Critical Infrastructure: Reliable in temperature extremes and vibration-heavy sites.

Datasheets & Resources

• Download Full Datasheet (PDF)

Excellence for the Australian and New Zealand Market

• Fully compliant with AS/NZS electromagnetic and safety standards.

• IP66/IP67, IK10, and NEMA4X rated for use in unpredictable weather and vandal-prone areas.

• Certified to operate from -50°C to +60°C – ideal for both desert and alpine conditions.

• Exclusively distributed through authorized ANZ suppliers.

• Warranties and repairs locally managed through Hanwha-certified partners.

Frequently Asked Questions (FAQs)

Q1: What is the night vision range of the HV-XNO-8082R?
A1: The camera offers up to 40 metres of infrared visibility in total darkness.

Q2: How durable is the HV-XNO-8082R?
A2: It features an IP66/IP67 weather rating, IK10 impact resistance, and NEMA4X certification for extreme environments.

Q3: What video analytics are included in the HV-XNO-8082R?
A3: Face and upper body detection, motion, directional, tampering, shock, audio, line crossing, people counting, and queue management.

Q4: Can I store footage directly on the HV-XNO-8082R?
A4: Yes, it supports dual SD cards (256GB each), totaling up to 512GB of onboard storage.

Q5: What are the power options for the HV-XNO-8082R?
A5: It can be powered via PoE, 12VDC, or 24VAC with a maximum draw of 14.5W.
