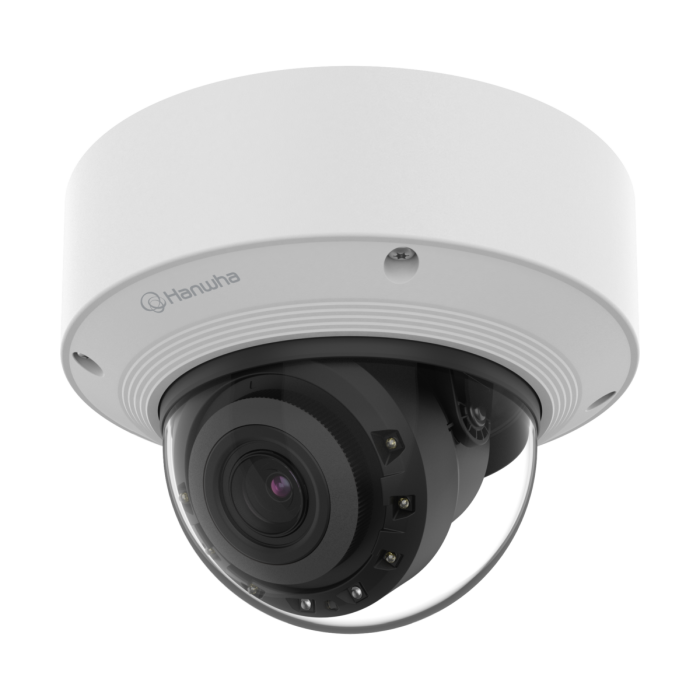

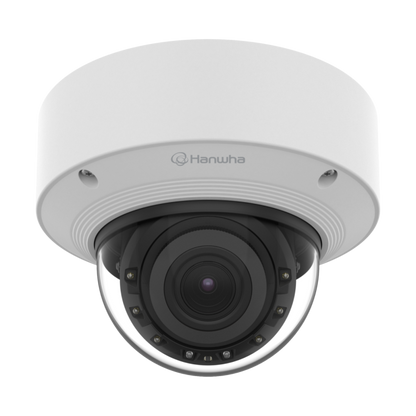

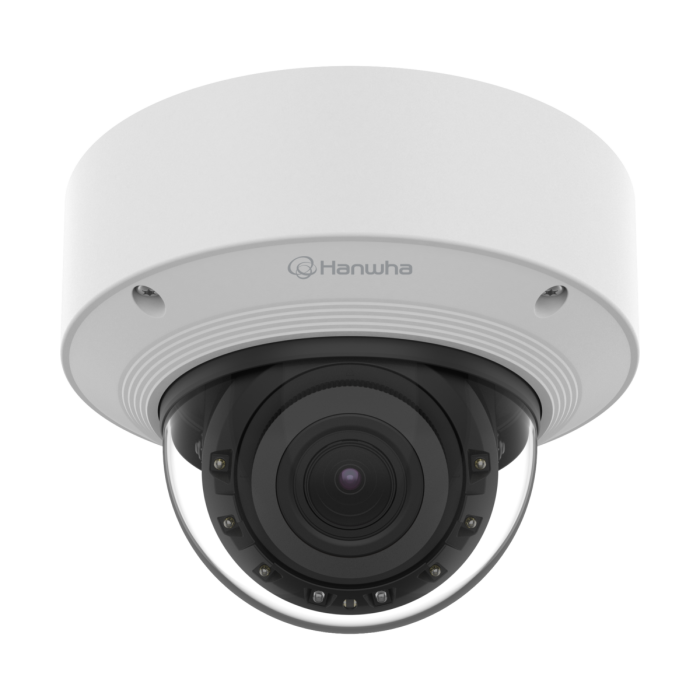

Hanwha Vision XND-A8084RV 5MP AI IR Dome Camera – Compact and Intelligent Indoor Surveillance x series

The Hanwha Vision XND-A8084RV dome camera offers intelligent, AI-enhanced video surveillance within a compact and vandal-resistant indoor form factor. Powered by the Wisenet 9 SoC and dual NPUs, this 5MP dome camera delivers real-time object classification, business intelligence, and enhanced cybersecurity features. Ideal for indoor and semi-sheltered settings, it provides precise monitoring with a balance of reliability, environmental responsibility, and smart analytics.

What's Included in the Box

• Hanwha Vision XND-A8084RV Camera Unit

• Mounting Accessories (screws, anchors, back box)

• Micro USB Type C Setup Cable

• Installation Guide

• Quick Start Guide

Main Features

• 3.3~9.3mm Motorized Varifocal Lens: 2.8x zoom range offering 99° to 31° horizontal FOV.

• AI Engine with Dual NPU: Enables object detection, attribute extraction, and scene analytics.

• AI Analytics: Detects people, vehicles, faces, license plates, mask usage, crowd density, and more.

• Dynamic Privacy Masking: Smart zoning with up to 32 configurable zones and 8-point polygons.

• IR Night Vision: Up to 40m with WiseIR for effective low-light performance.

• Compact and Durable: IP52 and IK10 certified; ideal for indoor and sheltered outdoor applications.

• Sustainable Design: Made from 10.72% recycled plastic and RoHS/REACH certified.

Detailed Specifications

• Imaging Sensor: 1/2.8” CMOS

• Resolution: 2560x1920 (5MP max), supports multiple lower resolutions

• Frame Rate: H.264/H.265 up to 30fps; MJPEG up to 5fps (5MP)

• Minimum Illumination: 0.04Lux (Color), 0.004Lux (B/W), 0Lux (IR ON)

• WDR: 120dB extremeWDR

• Audio: Mic in/Line in, Line out; G.711, G.726, AAC-LC, OPUS supported

• Network: RJ-45, ONVIF Profile S/G/T/M compliant

• IR Range: 40m with WiseIR

• Power: PoE (IEEE802.3af), Max. 9.4W

• Operating Temp: -10°C to +50°C

• Storage: 1TB MicroSD/SDHC/SDXC

• Size / Weight: Ø160 x 118mm, 1.01kg

Warranty Information

The XND-A8084RV comes with a standard 3-year manufacturer warranty. Warranty and support are fully managed through authorized service centers across Australia and New Zealand.

Brand Description

Hanwha Vision, formerly Hanwha Techwin, is a trusted leader in video surveillance innovation. Known for developing AI-based, secure, and sustainable solutions, Hanwha Vision empowers organizations globally with reliable and intelligent security technologies.

SKU: HV-XND-A8084RV

Practical Use Scenarios

• Corporate Environments: Monitor lobbies, hallways, and entrances with people-counting and face analytics.

• Public Institutions: Deploy for non-intrusive surveillance in schools, libraries, or healthcare settings.

• Retail: Enhance customer behavior analytics and reduce shrinkage with heatmaps and queue monitoring.

• Transport Terminals: Monitor sheltered platforms and passenger flows while detecting safety violations.

• Smart Buildings: Integrate with automation and building management systems for centralized control.

Datasheets & Resources

• Download Full Datasheet (PDF)

Excellence for the Australian and New Zealand Market

• Certified to RCM standards (AS/NZS CISPR 32) for local regulatory compliance.

• Fully built using eco-friendly materials and RoHS/REACH guidelines.

• Distributed through official Hanwha Vision partners within Australia and New Zealand.

• Full warranty and technical service handled locally by certified professionals.

• Meets cybersecurity and safety certifications including FIPS 140-3 Level 3 and CC EAL6+.

Frequently Asked Questions (FAQs)

Q1: What indoor environments is the HV-XND-A8084RV best suited for?
A1: The HV-XND-A8084RV is ideal for retail spaces, schools, offices, hospitals, and transport hubs with sheltered or controlled climates.

Q2: Does the HV-XND-A8084RV offer reliable night vision?
A2: Yes, it uses WiseIR with a 40m range, providing detailed imaging in total darkness.

Q3: What types of AI analytics are supported by the HV-XND-A8084RV?
A3: The camera includes object detection, slip and fall, mask detection, people counting, heatmaps, and queue management.

Q4: Can the HV-XND-A8084RV be integrated with third-party VMS platforms?
A4: Yes, it supports ONVIF Profile S/G/T/M and is compatible with most third-party systems.

Q5: What makes the HV-XND-A8084RV environmentally friendly?
A5: The device uses over 10% recycled plastic, adheres to RoHS/REACH, and avoids conflict minerals in its construction.
