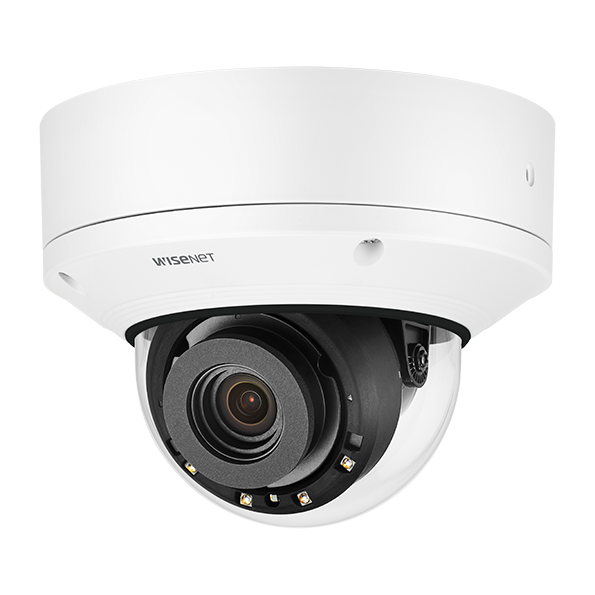

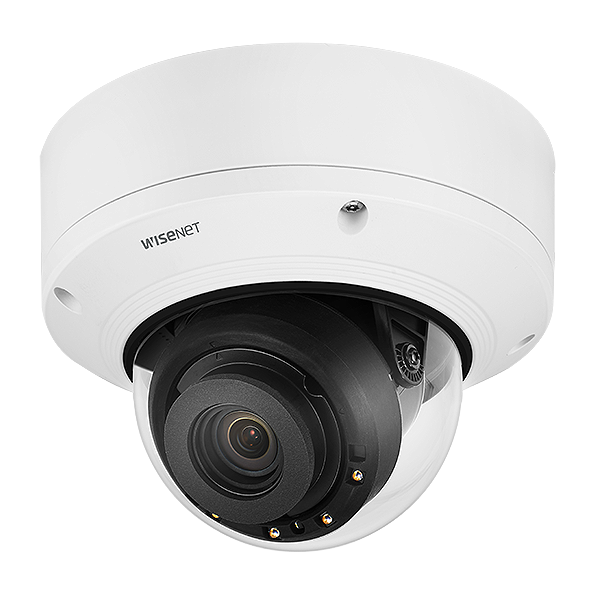

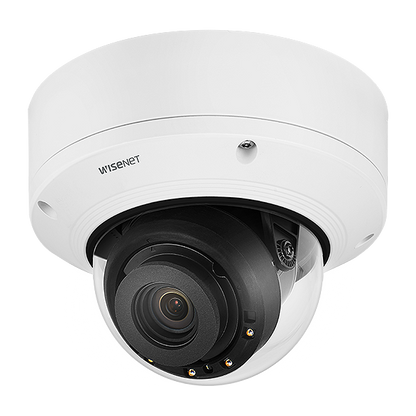

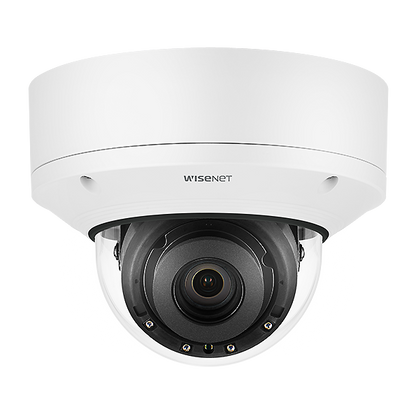

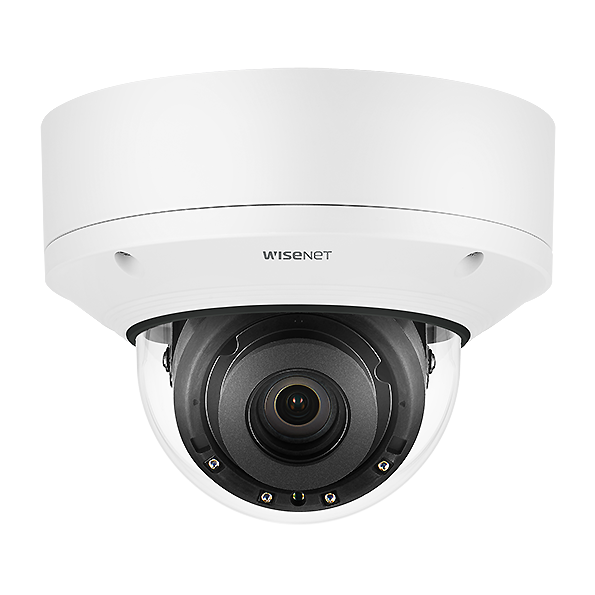

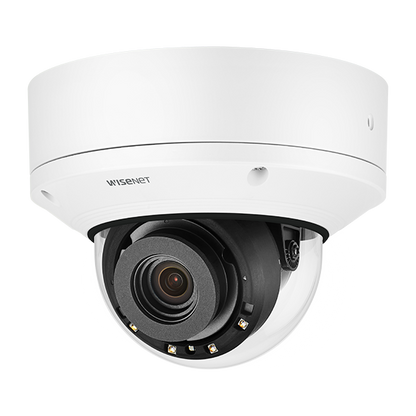

Hanwha Vision XND-9082RV 4K Vandal Dome Camera – Intelligent Surveillance with 150dB WDR & Modular Wisenet7 Design x series

The Hanwha Vision XND-9082RV is a high-performance 4K vandal dome camera built with Wisenet7 technology for top-tier video surveillance. Offering ultra-high-definition imaging, AI-enhanced analytics, and 150dB extreme WDR, this camera excels in high-traffic environments such as transportation hubs, commercial complexes, and educational institutions. Its motorized zoom, modular structure, and advanced cybersecurity features make it a trusted choice for professional installations.

What's Included in the Box

• Hanwha Vision XND-9082RV Dome Camera

• Mounting Hardware Kit

• Quick Start Installation Guide

• Setup Cable (USB/Micro USB)

Main Features

• 4K UHD Resolution (8MP) at 30fps for detailed surveillance imagery.

• 3x Motorized Varifocal Lens (2.8–8.4mm): Remote zoom and focus with DC Auto Iris and P-Iris.

• 40m Infrared Illumination: Ensures 0Lux performance in complete darkness.

• 150dB extremeWDR: Captures clear images even in challenging lighting conditions.

• AI-Enhanced Analytics: Face/upper body detection, defocus, loitering, directional detection, audio analysis, and more.

• Dual SD Card Slots: Supports up to 512GB of edge storage (256GB per slot).

• DIS with Gyro Sensor: Enhances stability for crisp video during vibrations.

• Compact Vandal-Resistant Build: IK10 certified and IP52 weather-rated.

Detailed Specifications

• Image Sensor: 1/2.8" CMOS

• Min Illumination: Color: 0.05 Lux @ F1.2 / B&W: 0 Lux (IR on)

• Field of View: H: 114°–40.2°, V: 62.0°–22.5°, D: 133.0°–46.3°

• Pan/Tilt/Rotate: 360° / -45° to 85° / 355°

• IR Range: Up to 40 metres

• Audio: Mic-in, Line-in, Built-in mic; Line-out supported

• Alarms: 2 configurable I/O, event triggers include analytics and disconnection

• Video Compression: H.265, H.264 (Main/High), MJPEG

• Streaming: Multistream (10 profiles), Unicast (20 users), Multicast

• Smart Compression: WiseStream II

• Resolutions Supported: 3840x2160 down to 320x240

• Network Protocols: IPv4/6, HTTPS, RTSP, SRTP, ONVIF Profiles S/G/T

• Power Supply: PoE (IEEE802.3af) or 12VDC

• Power Consumption: Max 12.95W (PoE), Max 11.5W (12VDC)

• Operating Temp: -25°C to +60°C

• Dimensions / Weight: Ø160 x 125mm / 1.6 kg

DORI Distances

• Detect: 49.9m (wide) / 209.9m (tele)

• Observe: 19.9m / 83.9m

• Recognize: 10.0m / 42.0m

• Identify: 5.0m / 21.0m

Warranty Information

Comes with a 3-year Hanwha Vision warranty, supported locally in Australia and New Zealand through official distribution channels.

Brand Description

Hanwha Vision, formerly Samsung Techwin, is a global leader in surveillance technology. Powered by Wisenet7 AI, Hanwha Vision delivers top-quality imaging, cybersecurity, and video analytics for next-generation monitoring.

SKU: HV-XND-9082RV

Practical Use Scenarios

• Airports & Stations: Ideal for wide-angle terminal monitoring and queue analysis.

• Retail & Shopping Centres: Track crowd flow and secure sensitive zones.

• Education & Healthcare: Monitor high-traffic interior spaces securely and discreetly.

• Office Buildings: Smart threat detection with minimal false alarms.

• Banks & Institutions: 4K detail for forensic clarity and regulatory compliance.

Datasheets & Resources

• Download Product Datasheet (PDF)

Excellence for the Australian and New Zealand Market

• Certified to meet AS/NZS safety and EMC standards.

• IP52-rated for indoor/semi-exposed settings, and IK10-rated vandal resistance.

• Modular design ensures simplified installation and upgrades.

• Supplied through approved Australian and New Zealand distribution partners.

• All warranty and service handled locally via certified Hanwha Vision agents.

Frequently Asked Questions (FAQs)

Q1: What IR range does the HV-XND-9082RV support?
A1: This camera supports up to 40 metres of infrared night vision in complete darkness.

Q2: Is the HV-XND-9082RV suitable for outdoor use?
A2: It is IP52-rated, making it ideal for sheltered or semi-outdoor use. For full exposure, consider IP66 models.

Q3: Can I store footage locally on the HV-XND-9082RV?
A3: Yes, it supports two SD card slots, each up to 256GB, for a total of 512GB local storage.

Q4: What makes this model vandal-resistant?
A4: It is IK10-rated, designed to withstand physical impacts and tampering.

Q5: What smart analytics are included with the HV-XND-9082RV?
A5: It includes facial detection, loitering, motion, tampering, sound classification, and heatmaps, among others.
