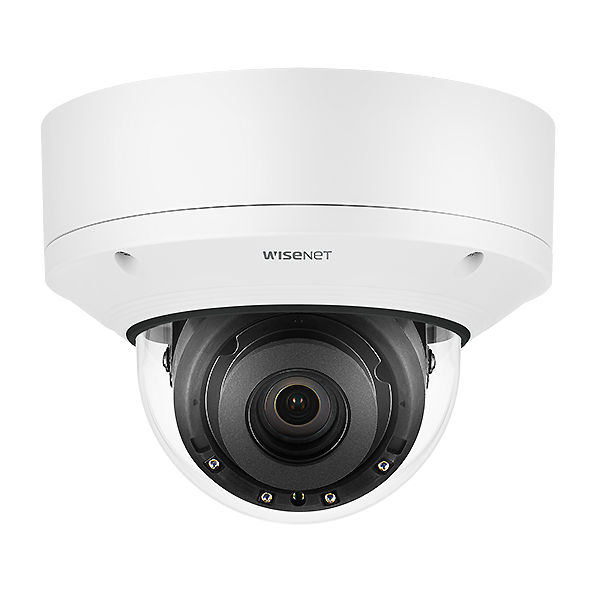

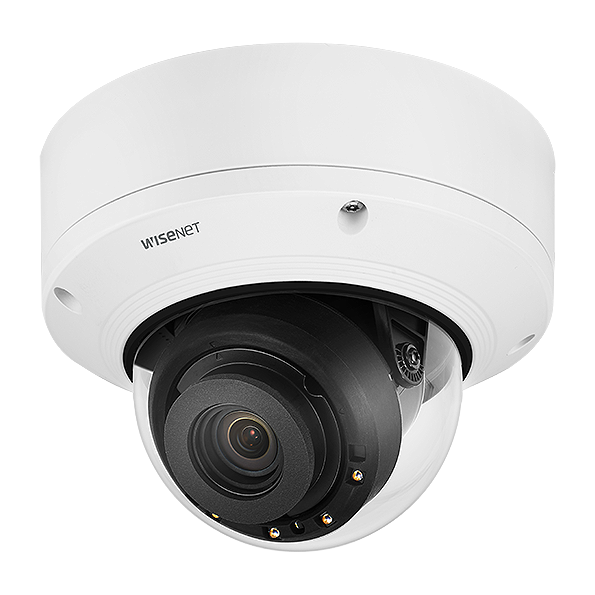

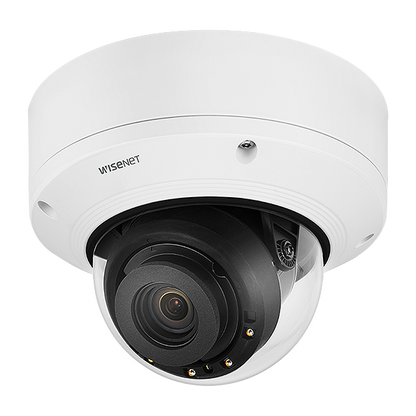

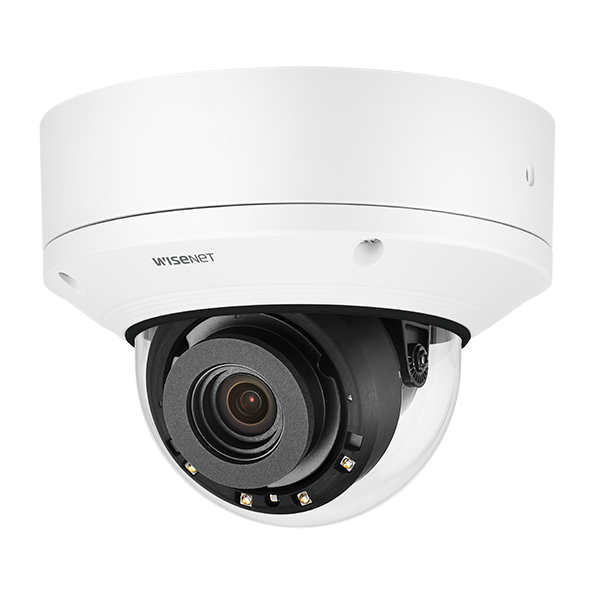

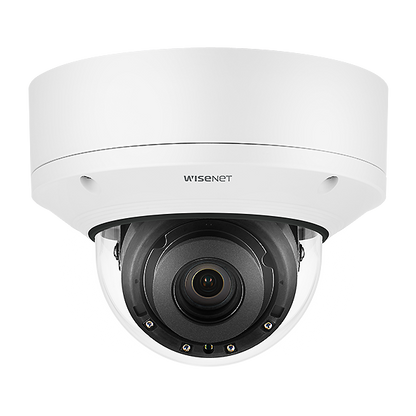

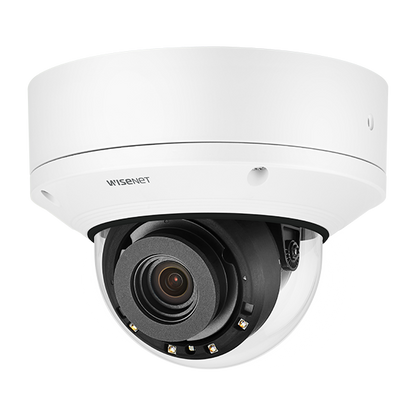

Hanwha Vision XND-8082RV 6MP IR Vandal Dome Camera – Wisenet7 AI Surveillance with Modular Design and 150dB WDR x series

The Hanwha Vision XND-8082RV is a compact yet powerful 6MP vandal-resistant dome camera engineered with Wisenet7 AI imaging and analytics. Offering crystal-clear resolution, 150dB extreme WDR, and IR night vision up to 40 metres, this camera is a secure choice for high-traffic areas like lobbies, retail entrances, and educational institutions. Its modular structure supports simple installation, and with dual SD slots and intelligent analytics, the XND-8082RV ensures real-time event response and detailed situational awareness.

What's Included in the Box

• Hanwha Vision XND-8082RV Camera Unit

• Dome Cover & Mounting Accessories

• Micro USB Installation Cable

• Quick Start Guide

Main Features

• 6MP at 30fps: High-definition video at 3328x1872 resolution.

• 3x Motorized Varifocal Lens (2.8–8.4mm): Adjust FoV remotely with P-Iris and DC Auto Iris.

• 40m IR Night Vision: Reliable black-and-white imaging in zero-light conditions.

• 150dB Extreme WDR: Captures balanced imagery in dynamic lighting environments.

• Built-in Gyro Sensor for DIS: Reduces blur from motion and vibrations.

• Advanced Analytics: Includes defocus, face/upper body detection, tampering, motion, line crossing, loitering, and sound classification.

• Business Intelligence Tools: Queue management, people counting, and heatmap analytics.

• Dual SD Storage Slots: Supports up to 512GB (256GB x2) for edge storage redundancy.

• Durability Ratings: IP52 dust/water resistance and IK10 impact rating.

Detailed Specifications

• Imaging Sensor: 1/2.8” CMOS

• Minimum Illumination: 0.05Lux (Color), 0Lux (IR On)

• Lens View: H: 114°–40.2°, V: 62.0°–22.5°, D: 133.0°–46.3°

• Pan/Tilt/Rotate: 360° / -45° to 85° / 355°

• Privacy Masking: 32 zones, polygonal with mosaic effect

• Audio I/O: Built-in Mic / Line-in / Line-out

• Alarm I/O: 2 configurable ports

• Analytics Events: Tampering, motion, audio, shock, virtual line, loitering, appear/disappear

• Resolution Options: 4K to 320x240

• Smart Compression: H.265, H.264 (Main/High), MJPEG with WiseStream II

• Bitrate Control: CBR or VBR

• Streaming: Up to 10 profiles; 20 users (Unicast) or Multicast

• Edge Storage: Dual SD/SDHC/SDXC up to 512GB

• Network: IPv4/6, HTTPS, SRTP, SNMPv3, ONVIF Profiles S/G/T

• Operating Temp / Humidity: -25°C to +60°C / <95% RH

• Power Supply: PoE (IEEE802.3af), 12VDC

• Power Consumption: Max 12.95W

• Dimensions / Weight: Ø160 x 125mm / 1.6 kg

DORI Ranges

• Detect: 49.9m (wide) / 209.9m (tele)

• Observe: 19.9m / 83.9m

• Recognize: 10.0m / 42.0m

• Identify: 5.0m / 21.0m

Warranty Information

Includes a 3-year standard warranty. Supported locally in Australia and New Zealand through authorized Hanwha Vision service providers.

Brand Description

Hanwha Vision (formerly Samsung Techwin) delivers next-generation surveillance solutions powered by the Wisenet platform. Combining AI-enhanced analytics with cyber-secure architecture, Hanwha Vision leads the industry in innovation, performance, and reliability.

SKU: HV-XND-8082RV

Practical Use Scenarios

• Retail Security: Monitor entrances, track customer flow, and detect suspicious behavior.

• Education: Secure corridors, campus perimeters, and high-traffic zones.

• Corporate Buildings: Real-time alerts for tampering, noise events, or unauthorized access.

• Healthcare Facilities: Protect patient zones with discreet and durable installation.

• Banking & ATMs: High-resolution detail for forensic evidence in low-light conditions.

Datasheets & Resources

• Download Full Datasheet (PDF)

Excellence for the Australian and New Zealand Market

• Complies with RCM and AS/NZS EMC standards.

• IK10 certified dome provides maximum vandal resistance.

• Reliable in semi-outdoor or challenging interior environments (e.g., car parks, transport hubs).

• Supplied via authorized ANZ distributors for seamless local support.

• Warranties and replacements processed through official regional partners.

Frequently Asked Questions (FAQs)

Q1: What is the IR night vision range of the HV-XND-8082RV?
A1: It offers up to 40 metres of infrared coverage in complete darkness.

Q2: Can this camera record without a network connection?
A2: Yes, with dual SD slots supporting up to 512GB local edge storage.

Q3: How vandal-resistant is the HV-XND-8082RV?
A3: It is IK10-rated, meaning it withstands high-impact physical attacks.

Q4: What video analytics features are supported?
A4: Includes facial detection, loitering, directional movement, tampering, motion detection, and queue management.

Q5: Is the HV-XND-8082RV suitable for outdoor use?
A5: It has IP52 protection, suitable for indoor or sheltered outdoor settings. For full exposure, consider IP66-rated models.
