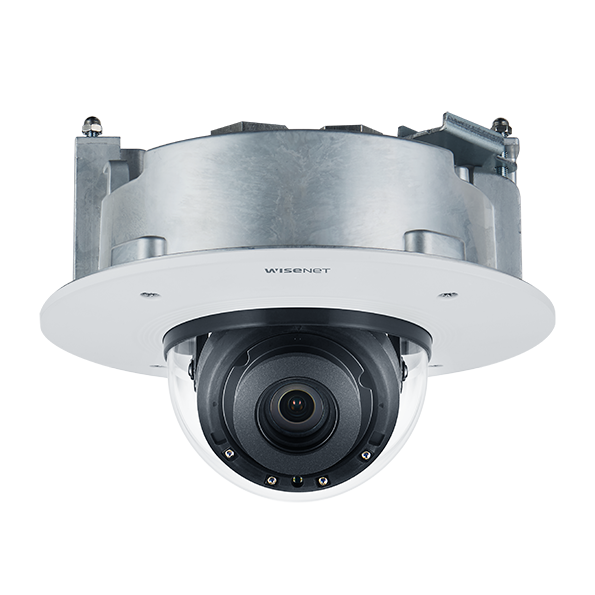

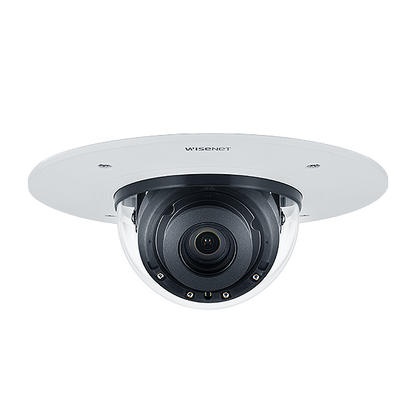

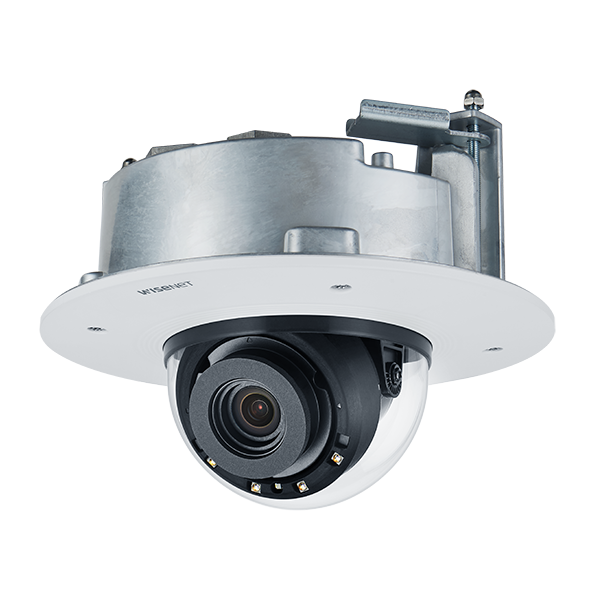

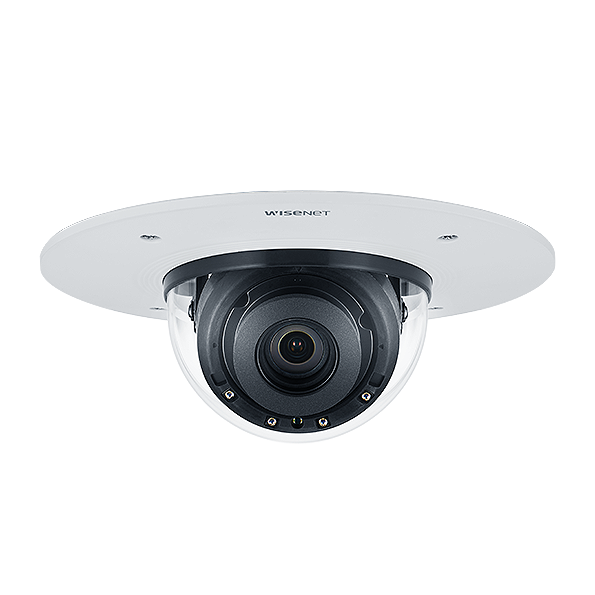

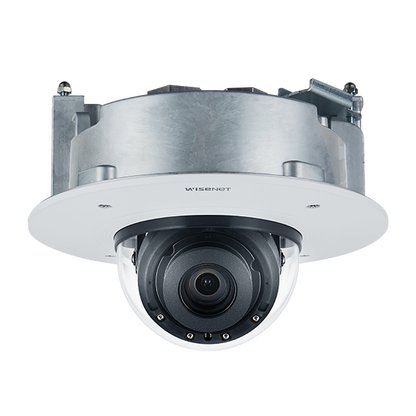

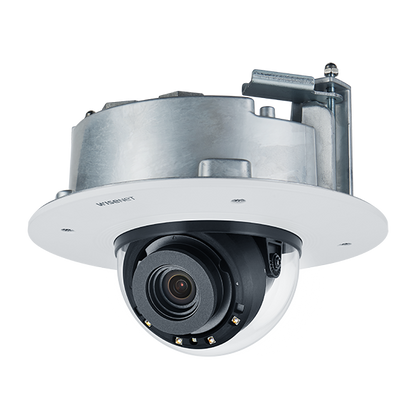

Hanwha Vision XND-8082RF 6MP IR Recessed Mount Dome Camera – Indoor AI Surveillance with Wisenet7 and Plenum-Rated Design x series

The Hanwha Vision XND-8082RF is a discreet and high-performing 6MP internal recessed dome camera designed with Wisenet7 technology for enhanced video analytics and superior image quality. With 40m IR range, AI-powered motion detection, and dual SD storage, this plenum-rated model is ideal for sophisticated indoor environments including offices, healthcare, and retail spaces requiring secure and seamless ceiling integration.

What's Included in the Box

• Hanwha Vision XND-8082RF Camera

• Recess Mount Kit

• Quick Start Installation Guide

• USB Setup Cable (Micro USB)

• Mounting Screws

Main Features

• 6MP Resolution at 30fps: Delivers detailed footage at up to 3328 x 1872 pixels.

• 3x Motorized Varifocal Lens (2.8–8.4mm): Remote zoom and precise focusing with P-iris and DC auto iris.

• 40m IR Night Vision: Clear black-and-white imaging in full darkness.

• AI Analytics & Business Intelligence: Includes motion, sound, shock, face/upper body detection, people counting, heatmap, queue management.

• Plenum-Rated & Recess Mount: Designed for professional, flush-mounted indoor installations.

• 150dB extremeWDR: Ensures visibility in scenes with intense backlighting or shadows.

• Dual SD Card Slots: Supports up to 512GB local storage (2 x 256GB).

• Compact & Rugged: IK10-rated and IP52 protected housing.

Detailed Specifications

• Sensor: 1/2.8" CMOS

• Min. Illumination: Color: 0.05 Lux @ F1.2; B/W: 0 Lux (IR On)

• Lens Angle: H: 114°–40.2°, V: 62.0°–22.5°, D: 133.0°–46.3°

• Pan/Tilt/Rotate: 0˚–360˚ / -45˚–85˚ / 0˚–355˚

• Shutter Speed: 1/5 to 1/12,000 sec with anti-flicker

• Video Rotation: Flip, Mirror, Hallway View (90°/270°)

• Privacy Masking: 32 zones, polygonal shape with color or mosaic fill

• Streaming: Up to 10 profiles; unicast (20 users) and multicast

• Compression: H.265, H.264 (Main/High), MJPEG with WiseStream II

• Edge Storage: Dual SD/SDHC/SDXC slots (up to 512GB)

• Network Protocols: HTTPS, RTSP, SRTP, ONVIF Profiles S/G/T, SUNAPI

• Power: PoE (IEEE802.3af) or 12VDC

• Power Consumption: Max 12.95W (PoE), Max 11.5W (12VDC)

• Operating Temperature: -25°C to +60°C

• Dimensions / Weight: Ø205 x 163mm; 1.95kg

• Color: White (RAL9003), Aluminum Housing

DORI Distance (EN62676-4)

• Detect: 49.9m (wide) / 209.9m (tele)

• Observe: 19.9m / 83.9m

• Recognize: 10.0m / 42.0m

• Identify: 5.0m / 21.0m

Warranty Information

Includes a 3-year limited warranty, supported locally in Australia and New Zealand by Hanwha’s authorized partners.

Brand Description

Hanwha Vision is a global leader in advanced video surveillance. With powerful AI analytics, robust WDR imaging, and superior build quality, Hanwha’s Wisenet7 cameras deliver future-ready solutions for today’s security demands.

SKU: HV-XND-8082RF

Practical Use Scenarios

• Corporate Offices: Discreet, ceiling-flush installations for boardrooms or open areas.

• Retail: Enhanced facial analytics and queue tracking at POS and entryways.

• Hospitals & Clinics: Monitor patient areas and hallways without visual clutter.

• Airports & Transportation: Accurate people counting and directional movement in terminals.

• Schools: Stealthy ceiling mount for public areas with tamper protection.

Datasheets & Resources

• Download the Full Datasheet (PDF)

Excellence for the Australian and New Zealand Market

• Designed to meet RCM and AS/NZS compliance for electronic devices.

• IK10 vandal resistance and IP52 protection tailored for indoor public use.

• Plenum-rated housing allows installation in ceiling cavities per fire safety codes.

• Distributed and supported exclusively through authorized ANZ channels.

• All service and warranty queries managed locally via Hanwha’s certified support network.

Frequently Asked Questions (FAQs)

Q1: What installation environment is the HV-XND-8082RF best suited for?
A1: It is plenum-rated and ideal for indoor ceiling cavities in commercial, healthcare, and retail facilities.

Q2: How much onboard storage does the HV-XND-8082RF support?
A2: Up to 512GB via two SD/SDHC/SDXC card slots (256GB per slot).

Q3: Does the HV-XND-8082RF support hallway view?
A3: Yes, it includes hallway view (90°/270°) for optimal corridor monitoring.

Q4: What analytics features are built-in?
A4: Face detection, directional movement, sound classification, loitering, queue monitoring, and more.

Q5: What is the IR range of this model?
A5: Up to 40 metres in complete darkness using Wise IR technology.
