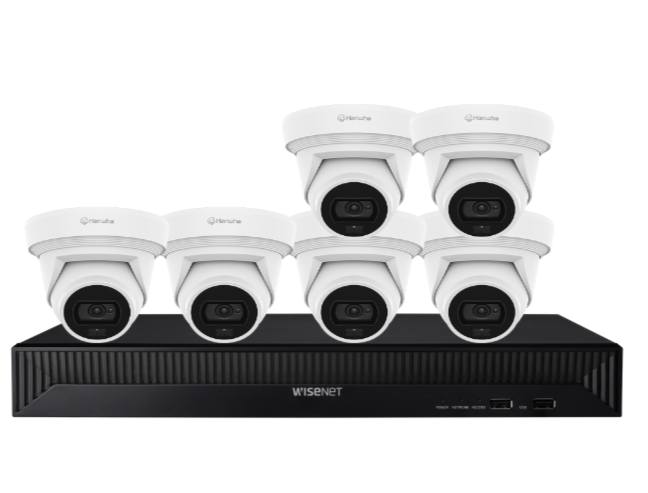

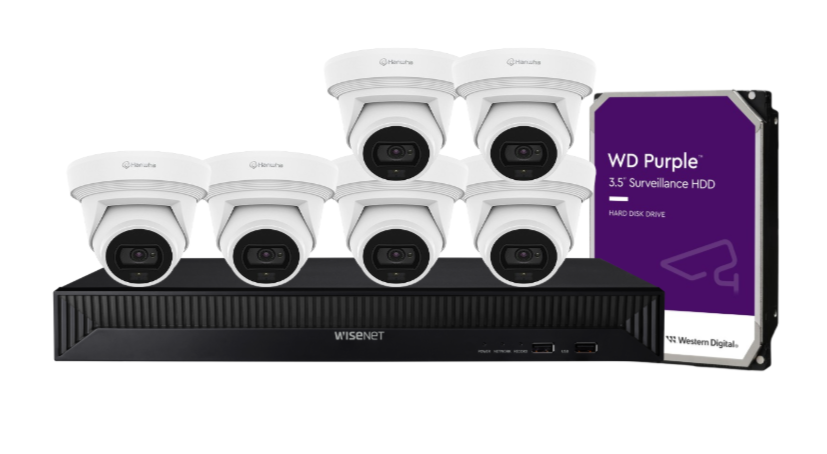

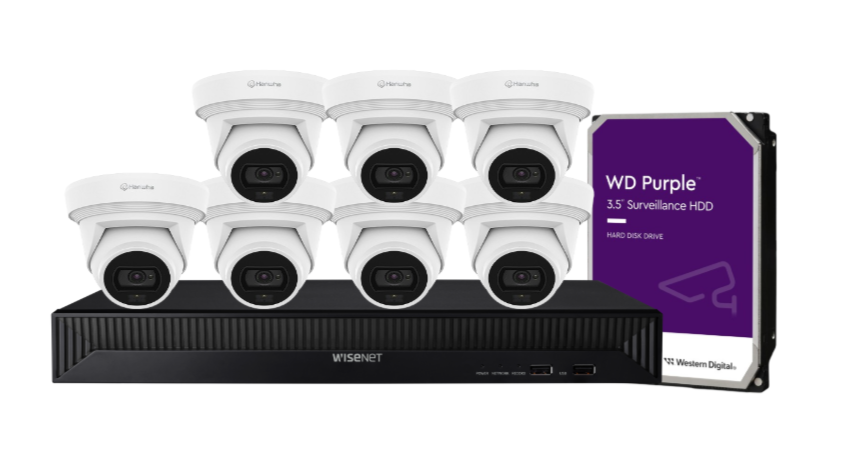

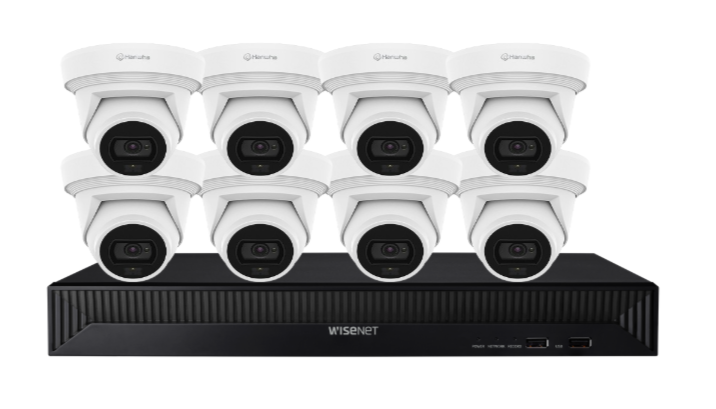

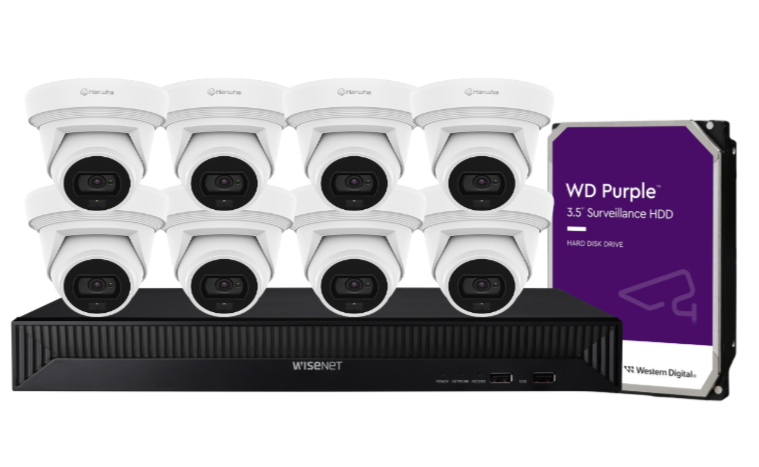

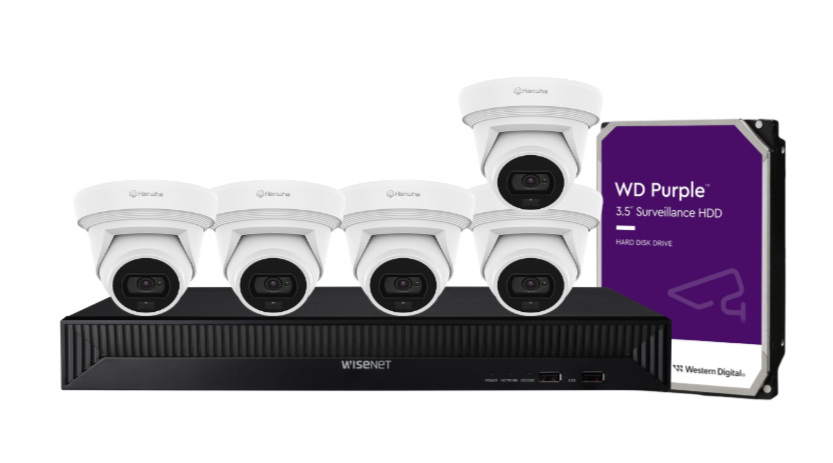

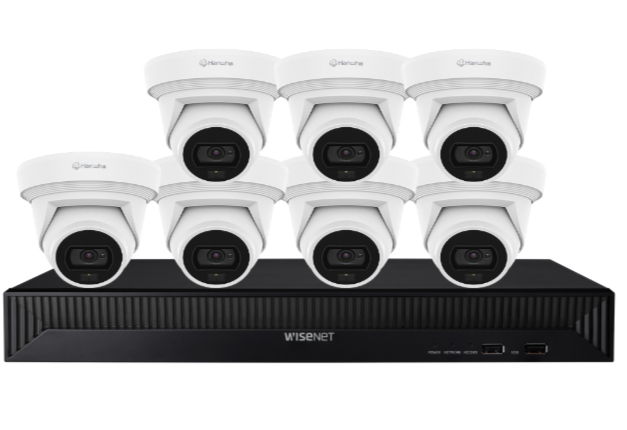

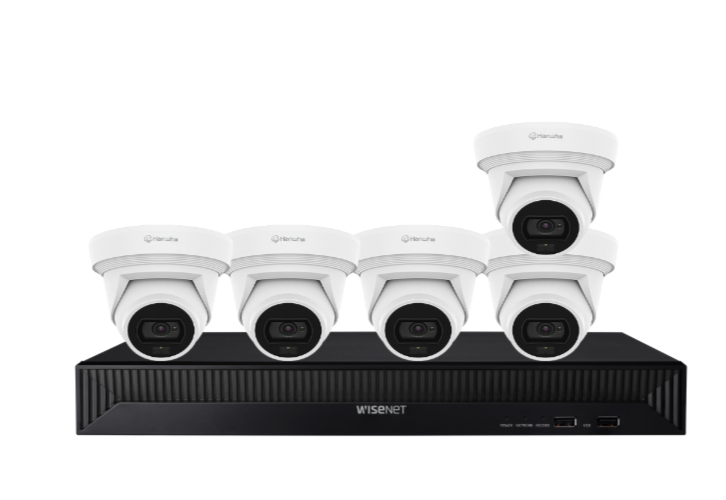

Hanwha Vision x8 Q-Core 8MP AI FlatEye Camera with 8-Channel NVR Kit – Complete 4K Surveillance Solution

Elevate your security infrastructure with the Hanwha Vision Q-Core 8MP AI FlatEye Camera (HV-QNE-C9013RL) paired with the Hanwha Wisenet CT-QRN-830S 8-Channel NVR. This comprehensive surveillance kit delivers exceptional 4K image clarity, advanced AI-driven analytics, and robust low-light performance, ensuring reliable monitoring for commercial and residential environments.

What's Included in the Box

• 8 × Hanwha Vision Q-Core 8MP AI FlatEye Cameras (HV-QNE-C9013RL)

• 1 × Hanwha Wisenet CT-QRN-830S 8-Channel 4K NVR with integrated PoE switch

• 1 ×  HDD (Choose your own HDD)

• Mounting accessories and installation hardware

• Quick Start Guide and User Manuals

Key Features

Hanwha Vision Q-Core 8MP AI FlatEye Camera (HV-QNE-C9013RL)

• Ultra-High Definition Imaging: Captures crisp 8MP (3840x2160) resolution video for detailed surveillance.

• Advanced Low-Light Performance: Equipped with warm white LED and IR illumination, providing clear images up to 30 meters in complete darkness.

• AI-Powered Analytics: Features object classification (person/vehicle), attribute detection, and intelligent motion analysis.

• Robust Build Quality: Rated IP66/IP67 for weather resistance and IK10 for vandal resistance, suitable for outdoor installations.

Hanwha Wisenet CT-QRN-830S 8-Channel NVR

• High-Performance Recording: Supports up to 8 channels with 4K (8MP) recording capabilities.

• Efficient Video Compression: Utilizes H.265, H.264, and MJPEG codecs to optimize storage and bandwidth.

• Integrated PoE Switch: Simplifies installation with 8 PoE ports, delivering power and data over a single cable.

• User-Friendly Interface: Features a new UI/UX design and supports P2P service for easy remote access via QR code scanning.

Detailed Specifications

Hanwha Vision Q-Core 8MP AI FlatEye Camera (HV-QNE-C9013RL)

• Imaging Sensor: 1/2.8" CMOS

• Lens: 3.0mm fixed focal length, F1.6 aperture

• Field of View: Horizontal 108°, Vertical 59°, Diagonal 127°

• Minimum Illumination:

  • Color: 0.034Lux (F1.6, 1/30 sec)

  • B/W: 0.0034Lux (F1.6, 1/30 sec, 30IRE)

  • 0Lux with IR LED on

• Illumination Range: 30 meters for both white LED and IR

• Video Compression: H.265, H.264, MJPEG, WiseStreamⅢ (AI-based)

• Frame Rate: Max. 30fps at 8MP

• Storage: Micro SD/SDHC/SDXC slot (up to 256GB)

• Operating Conditions: -40°C to +60°C, 0~95% RH

• Power Supply: PoE (IEEE802.3af, Class 3)

• Power Consumption: Max. 10.0W

• Dimensions: Ø140.0 x 99.6mm

• Weight: 790g

Hanwha Wisenet CT-QRN-830S 8-Channel NVR

• Video Input: 8 channels, up to 8MP resolution

• Video Compression: H.265, H.264, MJPEG

• Recording Bandwidth: Up to 80Mbps

• Storage: 1 SATA HDD slot (up to 6TB)

• Network Interface: 8 PoE ports (LAN, 10/100), 1 PoE port (WAN, 1Gbps)

• Remote Access: Supports P2P service with QR code connection

• User Interface: New UI/UX design for intuitive operation

• Power Supply: Integrated PoE switch with 65W budget

Warranty Information

This surveillance kit is backed by a comprehensive 5-year warranty, ensuring long-term reliability and peace of mind.

Brand Overview

Hanwha Vision, formerly known as Hanwha Techwin, is a global leader in advanced video surveillance solutions. Renowned for their innovative technologies and commitment to quality, Hanwha Vision products are trusted by professionals worldwide for securing various environments.

SKU

• Camera: HV-QNE-C9013RLOS

• NVR: HAN-CT-QRN-830S

Practical Use Scenarios

• Retail Stores: Monitor customer activity and prevent theft with high-resolution video and AI analytics.

• Office Buildings: Ensure employee safety and secure premises with reliable surveillance.

• Residential Complexes: Enhance security in common areas and perimeters with clear day/night imaging.

• Warehouses: Protect assets and monitor operations in large spaces with wide field-of-view cameras.

Datasheets and Downloadable Resources

• Hanwha Vision Q-Core 8MP AI FlatEye Camera Datasheet

• Hanwha Wisenet CT-QRN-830S NVR Datasheet

Excellence for the Australian and New Zealand Market

• Compliance with Regional Standards: Certified to meet Australian and New Zealand quality and safety standards.

• NDSS Approval: Approved under the National Disability Insurance Scheme (NDIS) for applicable use cases.

• Optimized for Local Conditions: Designed to perform reliably in the diverse climates of Australia and New Zealand.

• Authorized Distribution: Sourced exclusively through authorized Hanwha Vision representatives, ensuring genuine products.

• Warranty Support: Direct warranty handling through Hanwha Vision's official channels for efficient service.

Frequently Asked Questions (FAQs)

Q1: What is the maximum storage capacity supported by the NVR in the HV-QNE-C9013RLOS kit?

A1: The Hanwha Wisenet CT-QRN-830S NVR supports a single SATA HDD with a capacity of up to 6TB, providing ample storage for high-resolution recordings.

Q2: Can the HV-QNE-C9013RLOS cameras operate effectively in low-light conditions?

A2: Yes, the cameras feature advanced low-light performance with warm white LED and IR illumination, delivering clear images up to 30 meters in complete darkness.

Q3: Are the HV-QNE-C9013RLOS cameras suitable for outdoor installations?

A3: Absolutely. The cameras are rated IP66/IP67 for weather resistance and IK10 for vandal resistance, making them ideal for outdoor use.

Q4: Does the HV-QNE-C9013RLOS kit support remote access and monitoring?

A4: Yes, the NVR supports P2P service with QR code connection, allowing for easy remote access via compatible applications.

Q5: What AI analytics features are included in the HV-QNE-C9013RLOS cameras?

A5: The cameras offer AI-powered analytics, including object classification (person/vehicle), attribute detection, and intelligent motion analysis for enhanced security monitoring.
