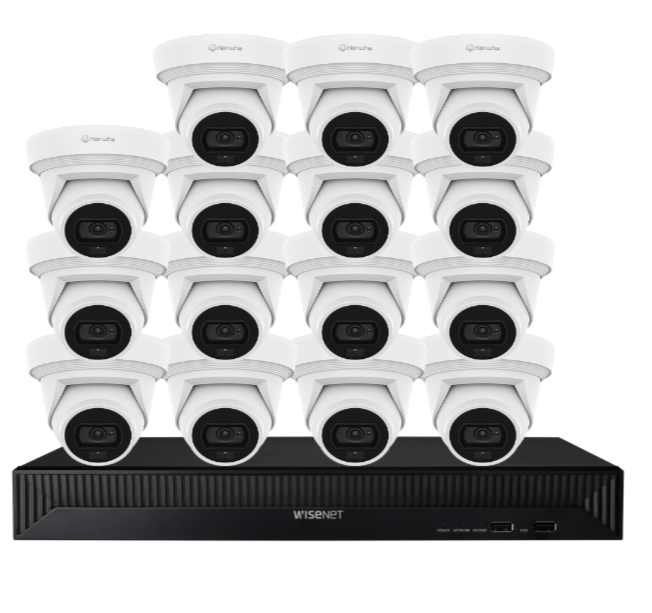

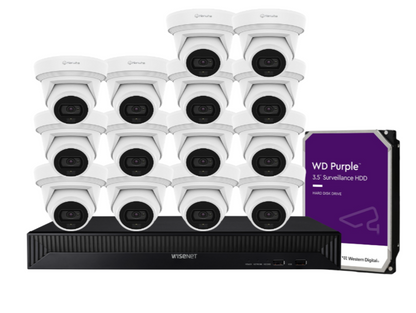

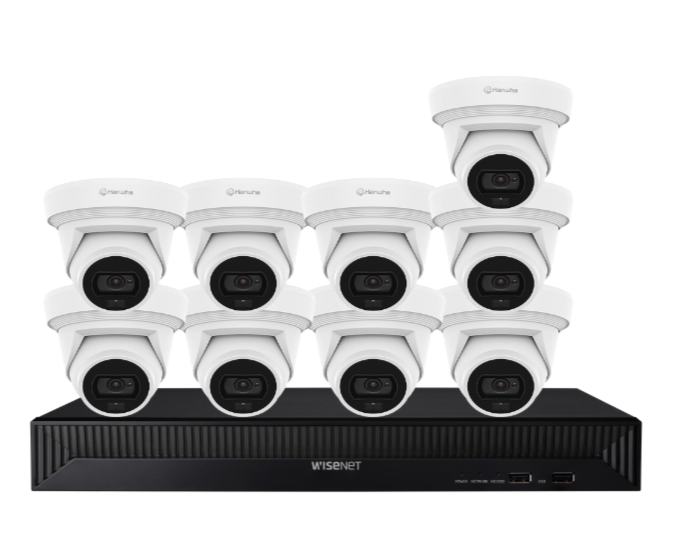

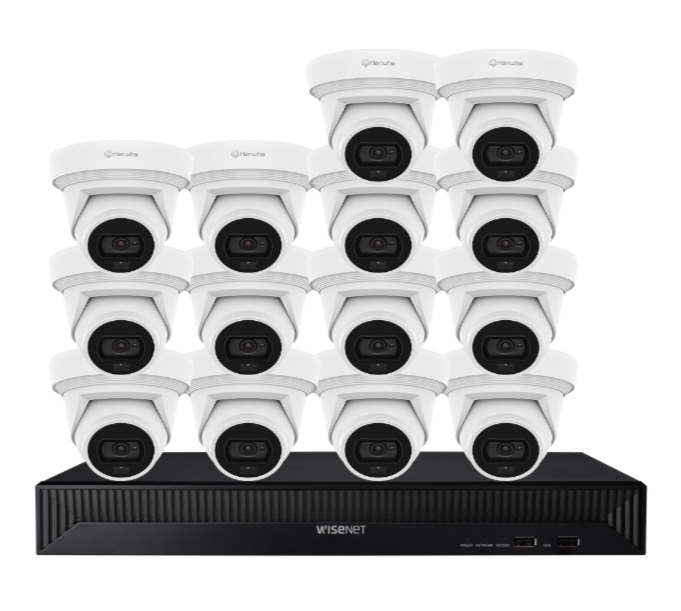

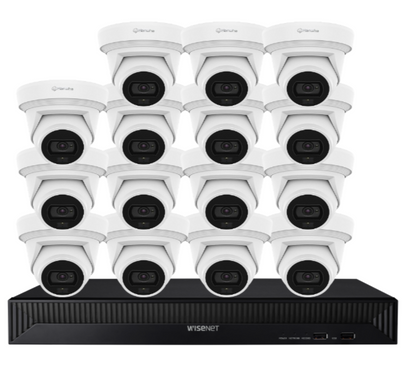

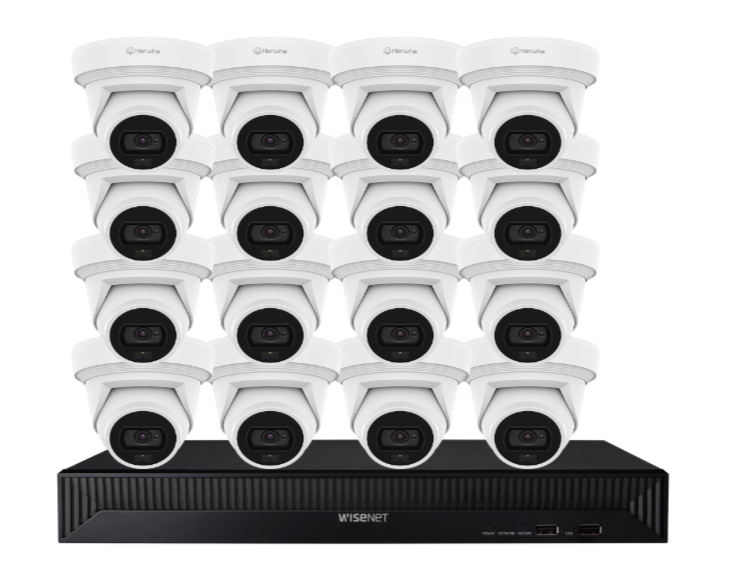

Hanwha Vision x16 8MP AI Dual Light CCTV Kit – 16 Cameras with 16CH NVR & HDD HV-QNE-C9013RL

Elevate your surveillance capabilities with the Hanwha Vision 8MP AI Dual Light CCTV Kit, featuring 16 high-resolution QNE-C9013RL cameras and the robust QRN-1630S 16-channel NVR. This comprehensive solution delivers exceptional image clarity, advanced AI analytics, and seamless integration, ensuring optimal security for various environments.

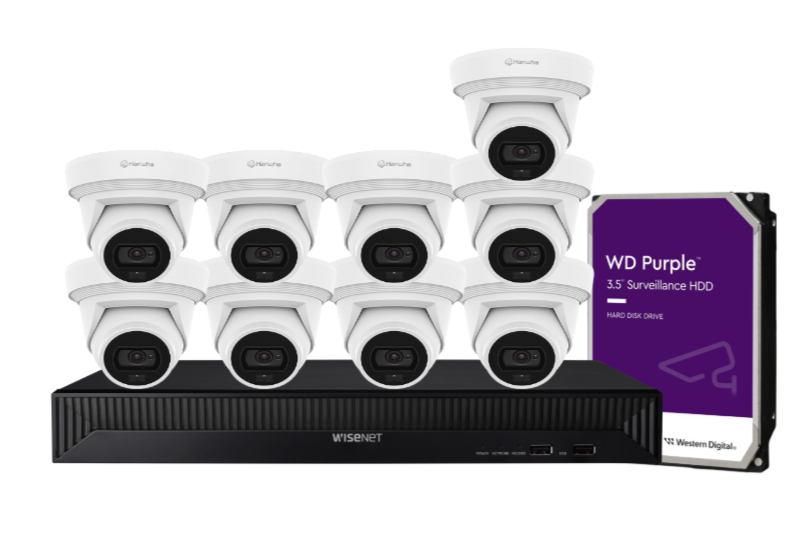

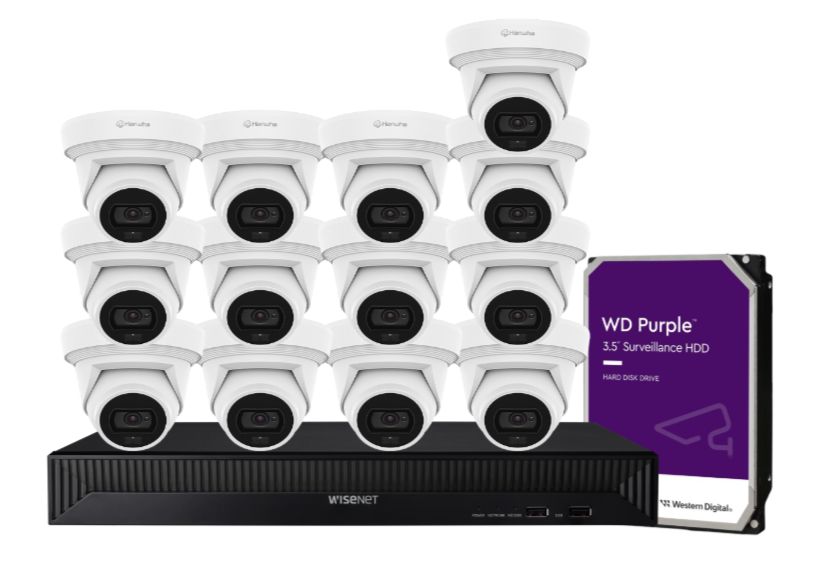

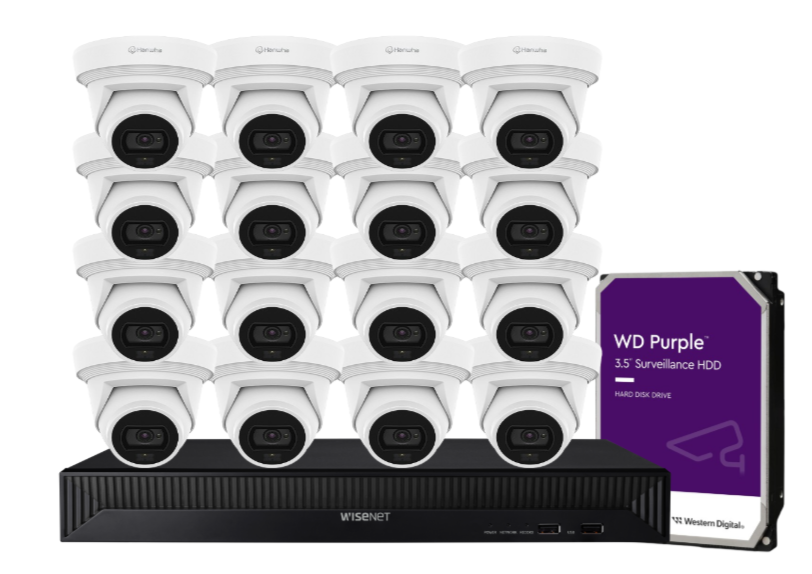

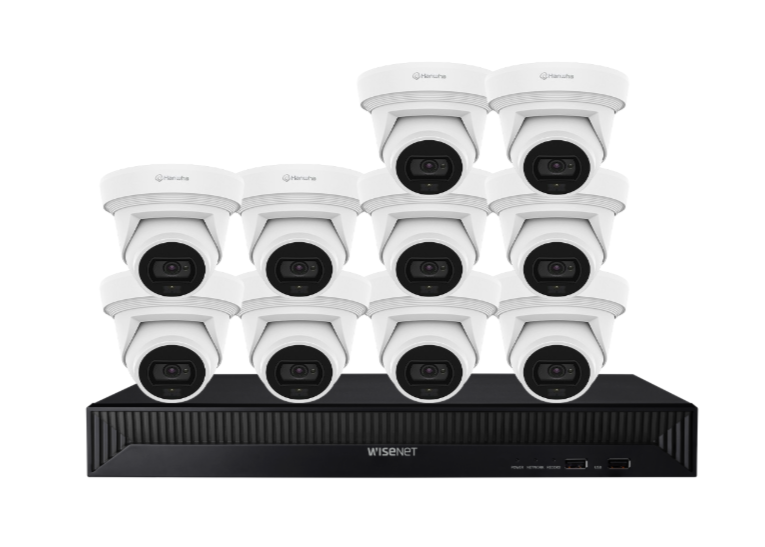

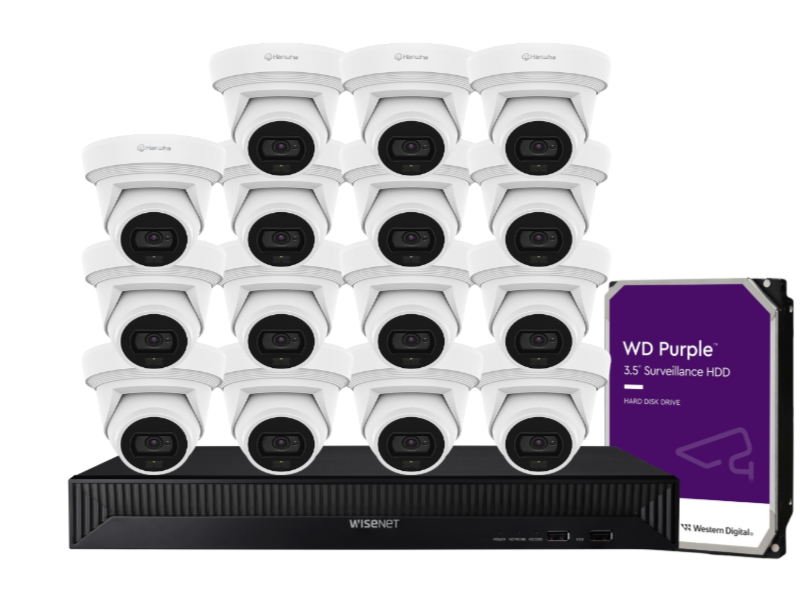

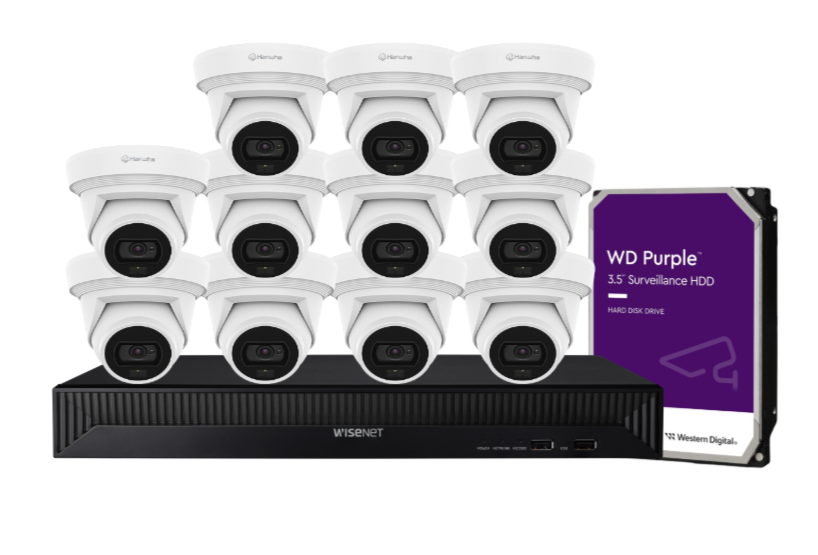

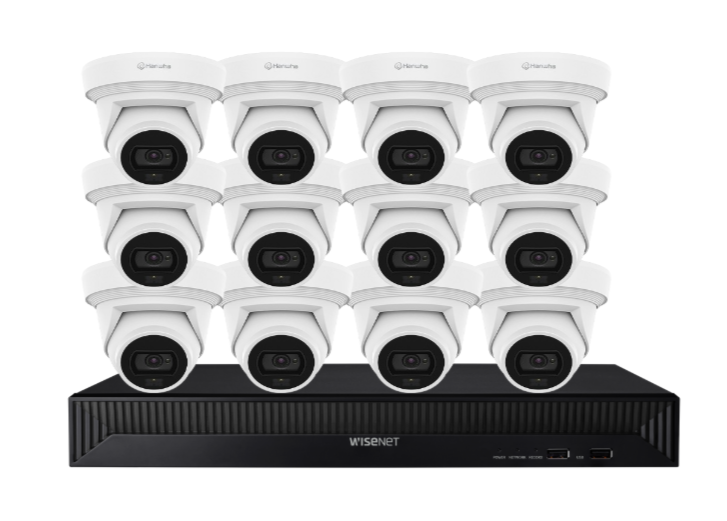

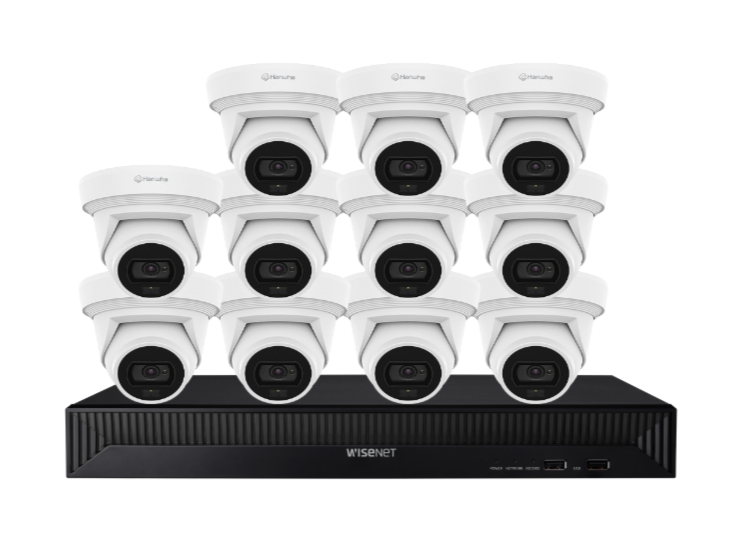

What's Included

• 16 x Hanwha Vision QNE-C9013RL 8MP AI Dual Light FlatEye Cameras

• 1 x Hanwha Vision QRN-1630S 16CH 8MP NVR

• HDD (Choose your own HDD below)

• Mounting accessories and installation guide

Key Features

Hanwha Vision QNE-C9013RL Cameras:

• High Resolution: 8MP (3840x2160) for detailed imaging

• Fixed Lens: 3.0mm lens offering a wide field of view

• Low-Light Performance: Color: 0.034Lux; B/W: 0.0034Lux; 0Lux with IR LED

• Dual Illumination: Warm white LED and IR, each with a 30m range

• AI Analytics: Object classification, attribute detection, and intelligent analysis

• Durability: IP66/IP67 weatherproof and IK10 impact-resistant

Hanwha Vision QRN-1630S NVR:

• Channel Support: Up to 16 channels with 8MP resolution

• Compression: H.265, H.264, MJPEG for efficient storage

• Recording Bandwidth: 128Mbps for smooth video capture

• Storage: 2 SATA slots supporting up to 20TB

• Connectivity: 16 PoE ports for plug-and-play installation

• Remote Access: P2P service with QR code for easy mobile connectivity

Detailed Specifications

QNE-C9013RL Camera:

• Imaging Device: 1/2.8" CMOS

• Max. Frame Rate: 30fps at 8MP

• Min. Illumination: Color: 0.034Lux; B/W: 0.0034Lux; 0Lux with IR

• Lens Type: Fixed IRIS

• Field of View: Horizontal: 108°; Vertical: 59°; Diagonal: 127°

• Storage: Micro SD/SDHC/SDXC slot supporting up to 256GB

• Certifications: IP66/IP67, IK10

• Video Output: HDMI1: 3840x2160 (30Hz); HDMI2: 1920x1080 (60Hz)

• Protocols: SUNAPI, ONVIF

• Operating System: Embedded Linux

• Power Supply: 100 to 240 V AC

• Power Consumption: 130W PoE budget

• Certifications: FCC, CE, UL

Warranty Information

This CCTV kit comes with a 5-year warranty, ensuring long-term reliability and support.

Brand Overview

Hanwha Vision, formerly known as Hanwha Techwin, is a leading global provider of advanced video surveillance solutions. Renowned for innovation and quality, Hanwha Vision offers a comprehensive range of security products designed to meet the diverse needs of various industries

SKU

HV-QNE-C9013RLOS

Practical Use Scenarios

• Commercial Properties: Monitor retail stores, offices, and warehouses with high-resolution imaging and AI analytics.

• Educational Institutions: Ensure campus safety with comprehensive coverage and intelligent detection.

• Healthcare Facilities: Maintain secure environments with reliable surveillance and data protection.

• Residential Complexes: Enhance security in apartment buildings and gated communities with robust monitoring.

Datasheets & Downloads

• QNE-C9013RL Datasheet

• QRN-1630S Datasheet

Excellence for the Australian and New Zealand Market

• Compliance: Meets Australian quality standards and certifications.

• NDSS Approval: Certified for use within the National Disability Insurance Scheme.

• Market Optimization: Tailored features to suit the specific needs of Australian and New Zealand environments.

• Authorized Sourcing: Products sourced exclusively from official Hanwha Vision representatives.

• Warranty Handling: Direct communication with Hanwha Vision ensures efficient warranty support.

FAQs

Q: What is the maximum storage capacity supported by the QRN-1630S NVR? (SKU: HV-QNE-C9013RLOS)
A: The QRN-1630S NVR supports up to 20TB of storage through its two SATA slots, accommodating large volumes of high-resolution footage

Q: Can the QNE-C9013RL cameras operate effectively in low-light conditions? (SKU: HV-QNE-C9013RLOS)
A: Yes, the QNE-C9013RL cameras are equipped with dual illumination (warm white LED and IR) and have a minimum illumination of 0.034Lux in color mode and 0.0034Lux in B/W mode, ensuring clear images in low-light environments.

Q: Is remote access available for this CCTV kit? (SKU: HV-QNE-C9013RLOS)
A: Absolutely. The QRN-1630S NVR offers P2P service with QR code connectivity, allowing for easy remote access via mobile devices.

Q: Are the cameras weatherproof and suitable for outdoor installation? (SKU: HV-QNE-C9013RLOS)
A: Yes, the QNE-C9013RL cameras have IP66/IP67 ratings, making them resistant to dust and water, ideal for outdoor use.

Q: What warranty is provided with this CCTV kit? (SKU: HV-QNE-C9013RLOS)
A: The kit comes with a 5-year warranty, offering peace of mind and assurance of product quality.
