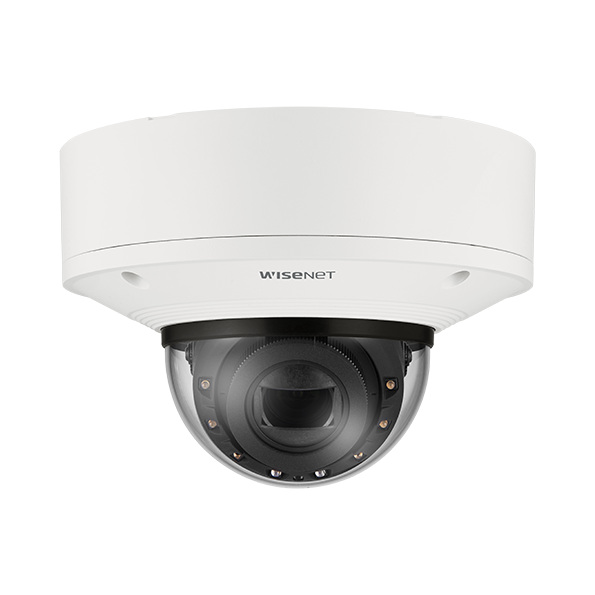

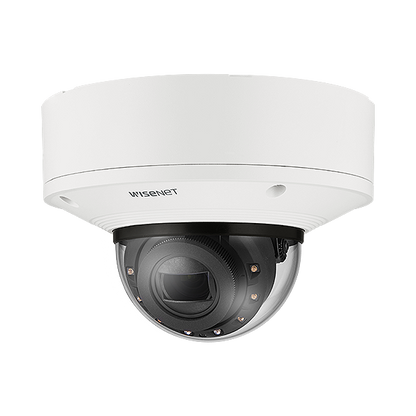

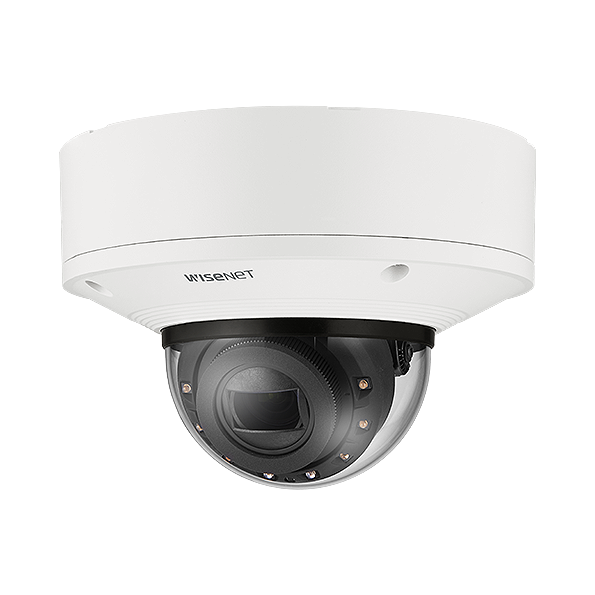

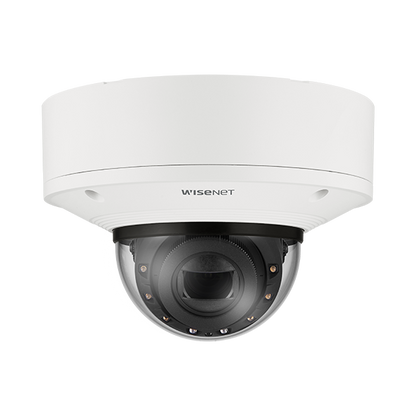

Hanwha Vision Wisenet X-Plus HV-XNV-9083R 4K AI IR Vandal Dome Camera – 4.4~9.3mm Motorized Lens, WiseIR 50m, ExtremeWDR 120dB, Edge Storage, Analytics, IP67 IK10+ | SKU: HV-XNV-9083R x series

[Special Order Item: May take product longer to be posted]

Secure your premises with next-generation clarity and intelligence using the Hanwha Vision HV-XNV-9083R Wisenet X-Plus 4K AI IR Vandal Dome Camera. Engineered for mission-critical surveillance, this camera combines ultra-high 4K resolution with advanced AI-driven analytics, ensuring proactive threat detection and crystal-clear video capture even in the most challenging conditions.

Equipped with a powerful 4.4~9.3mm motorized varifocal lens and a wide dynamic range of up to 120dB, the HV-XNV-9083R provides exceptional image quality in diverse lighting conditions. Its WiseIR technology delivers clear nighttime vision with an IR range of up to 50 meters (164 ft), making it perfect for expansive outdoor or indoor spaces.

Harness the power of AI-based object detection to reliably distinguish between people, faces, vehicles (cars, trucks, buses, bicycles, motorcycles), and license plates, reducing false alarms caused by irrelevant motion like swaying trees or shadows. Intrusion detection, virtual line crossing, loitering, and directional detection give security operators precise, actionable insights.

For operational resilience, the camera is encased in a robust IP66/IP67/IP6K9K, NEMA4X, and IK10+ rated housing, designed to withstand harsh weather, dust, water jets, and vandal attacks. With extreme temperatures supported from -50°C to +55°C (startup above -30°C), the HV-XNV-9083R ensures reliable performance in demanding environments.

Additional capabilities include edge storage with dual microSD slots (up to 1TB total), advanced compression via WiseStreamⅢ to save bandwidth and storage costs, built-in gyro sensors for image stabilization, and a variety of intelligent event triggers such as motion, audio, shock, and tampering detection.

Whether you’re securing critical infrastructure, retail spaces, urban areas, or transportation hubs, the Hanwha HV-XNV-9083R delivers unmatched image fidelity, intelligent analytics, and rugged reliability for the modern security landscape.

What’s Included in the Box

• Hanwha Vision HV-XNV-9083R Wisenet X-Plus 4K AI IR Vandal Dome Camera

• Installation accessories

• Quick installation guide

Main Features

• True 4K Resolution: Captures video at 3840×2160 for sharp, detailed footage.

• AI Analytics Engine: Detects and classifies people, vehicles, license plates, and unusual behaviors for reduced false alarms.

• Motorized Varifocal Lens: 4.4~9.3mm with P-iris and IR correction for precise zoom and focus adjustments.

• Wide Dynamic Range (WDR): Extreme 120 dB WDR balances lighting in scenes with both bright and dark areas.

• WiseIR Technology: Infrared illumination up to 50 meters for clear night vision.

• Advanced Compression: WiseStreamⅢ (AI-based) reduces bandwidth and storage without compromising quality.

• Rugged Build Quality: IP66/IP67/IP6K9K weather resistance, IK10+ vandal resistance, and NEMA4X rating.

• Edge Storage: Dual microSD slots supporting up to 1TB for on-camera recording redundancy.

• Smart Event Detection: Includes fog detection, audio detection, shock detection, tampering, motion detection, and defocus detection.

• Flexible Network Integration: Supports ONVIF (Profile S/G/T), SUNAPI, and multiple streaming protocols for easy integration.

Detailed Specifications

Warranty Information

Hanwha Vision offers a limited warranty on the HV-XNV-9083R, ensuring dependable operation and peace of mind for enterprise installations. Customers in Australia and New Zealand enjoy local warranty support through authorized partners.

Brand Description

Hanwha Vision (formerly Samsung Techwin) is a global leader in video surveillance, delivering cutting-edge technology and AI-powered security solutions for commercial, industrial, and government sectors. Trusted worldwide, Hanwha Vision products combine robust performance with advanced analytics to meet the demands of modern security applications.

SKU

HV-XNV-9083R

Practical Use Scenarios

✅ Ideal for securing airports, train stations, and transportation hubs with ultra-high-definition clarity.
✅ Perfect for city surveillance applications needing robust outdoor cameras.
✅ Excellent for retail or commercial facilities requiring AI-based analytics for people counting and queue management.
✅ Ideal for perimeter security in industrial or critical infrastructure environments exposed to harsh weather.

Datasheets & Downloadable Resources

• Hanwha Vision HV-XNV-9083R Datasheet (Official Website)

Excellence for the Australian and New Zealand Market

The Hanwha HV-XNV-9083R is fully compliant with Australian and New Zealand standards, ensuring reliable, safe, and efficient operation in demanding climates and regulatory environments. All units are sourced through authorized channels, guaranteeing genuine hardware, regulatory compliance, and dedicated local support for peace of mind.

 FAQs

Q1: What resolution does the Hanwha HV-XNV-9083R (SKU: HV-XNV-9083R) support?
A1: It supports true 4K resolution at 3840×2160, plus multiple lower resolutions for versatile applications.

Q2: How far can the IR reach on the Hanwha HV-XNV-9083R (SKU: HV-XNV-9083R)?
A2: The WiseIR technology provides clear night vision up to 50 meters (164.04 ft).

Q3: Does the Hanwha HV-XNV-9083R (SKU: HV-XNV-9083R) have AI analytics?
A3: Absolutely. It includes AI-driven analytics for detecting people, vehicles, license plates, and various behaviors like loitering or intrusion.

Q4: What protection ratings does the Hanwha HV-XNV-9083R (SKU: HV-XNV-9083R) have?
A4: It’s rated IP66/IP67/IP6K9K for water and dust protection, IK10+ for impact resistance, and NEMA4X for harsh environments.

Q5: What is the operating temperature range for the Hanwha HV-XNV-9083R (SKU: HV-XNV-9083R)?
A5: It operates in temperatures from -50°C to +55°C, ensuring reliable performance in extreme conditions.
